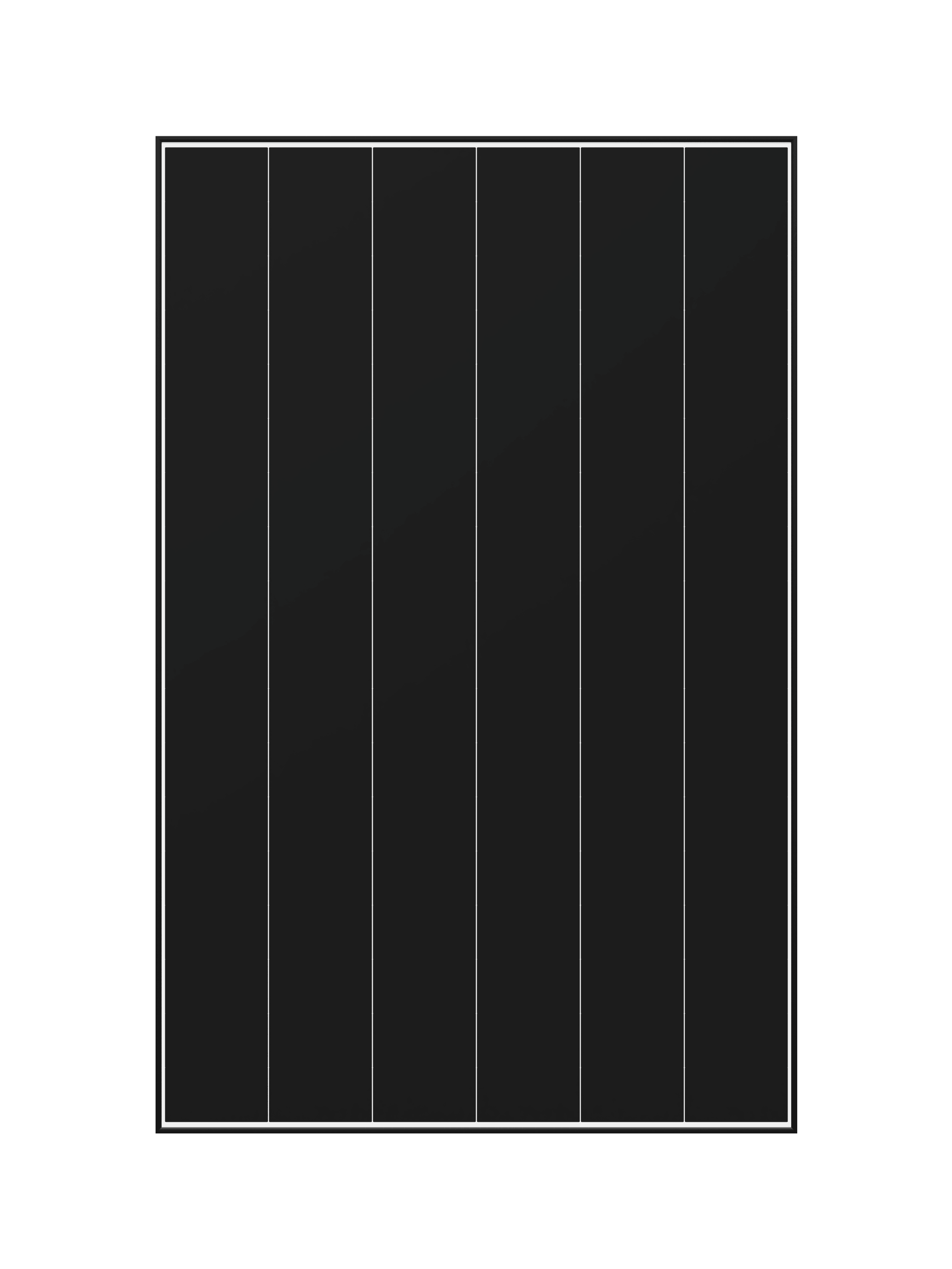

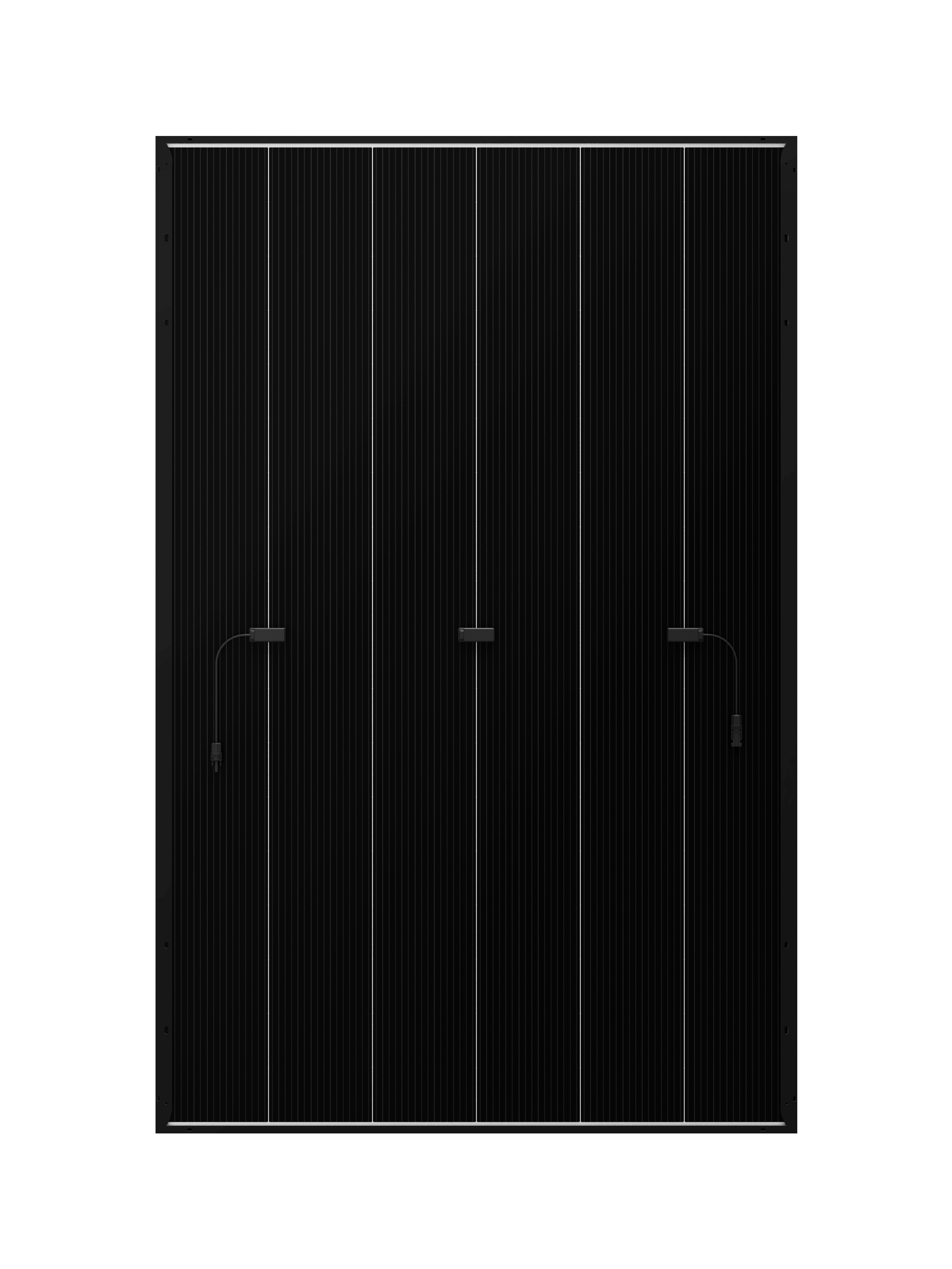

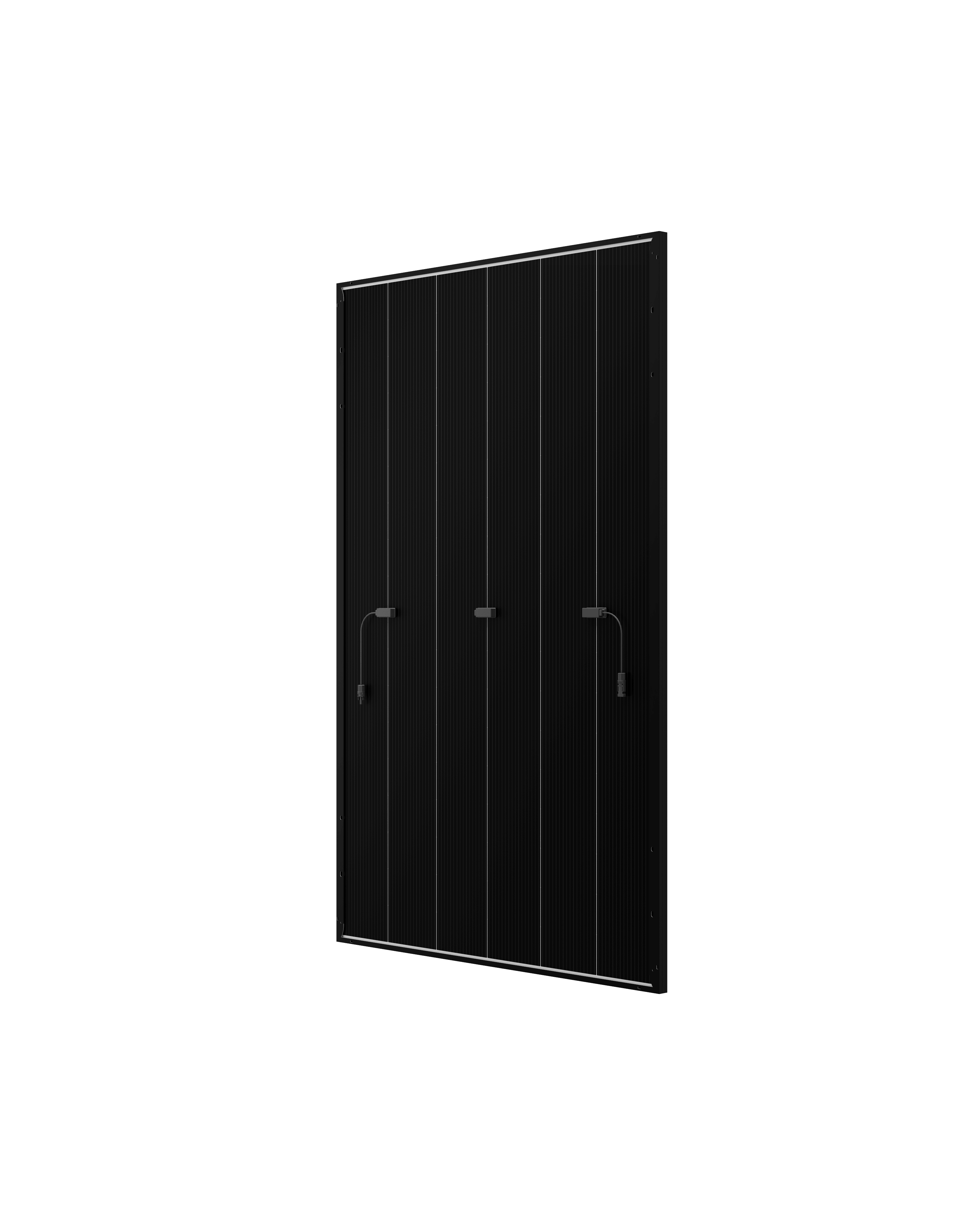

Aiko Neostar 3P+ AIKO-A490-MCE54Dw

Record-breaking performance, efficiency and durability – Aiko Neostar 3P+ 490 W

The third generation of Neostar panels from AIKO Solar is the world’s most powerful panel in the residential size of 1.7 × 1.1 m. This third generation combines the best features of the previous series – it builds on the record-breaking efficiency of the first series and retains the integrated optimisation for partial shading from the second. Thanks to this unique combination, the panel maintains high conversion efficiency even under partial shading and optimises panel performance at the cell level. Aiko’s third-generation panels once again raise the technological bar and, compared to TOPCon cells, achieve up to 30 W more power from the same surface area.

The panel features a glass-glass design and offers Class A fire resistance in accordance with international IEC standards.

This panel from the Neostar 3 series has a peak efficiency of 24.5% and an output of 490 W in an area of less than 2 m². The small panel area allows for great flexibility in installation and maximises performance. The dual-glass design provides higher mechanical and fire resistance, as evidenced by Fire Class A certification in accordance with international IEC standards. ABC (All Back Contact) technology means that all busbars are located on the rear of the panel. A temperature coefficient of -0.26%/°C ensures minimal impact of temperature on panel output. This panel is the ideal choice for both residential and commercial projects where the emphasis is on performance and safety. Thanks to its balance of efficiency, output and quality, Aiko offers the greatest potential for long-term maximisation of returns and a faster return on investment.

Product benefits

• 245.2 watts/m²
• Fire Class A according to IEC standards
• Integrated optimisation for partial shading
• 108 ABC NORD monocrystalline cells
• Record efficiency of 24.5%
• Temperature coefficient -0.26 %/°C
• ABC technology – no contacts on the front of the cell
• Highly efficient and aesthetically pleasing
• 15-year product warranty
• 30-year linear power output warranty

Product features AIKO Solar Neostar 3P+ AIKO-A490-MCE54Dw

• Power: 490 W
• Efficiency: 24.5%
• Frame colour: black
• Backsheet colour: white
• Weight: 24.2 kg
• Dimensions: 1762 x 1134 x 30 mm
• Connector: original MC4 EVO2 from Stäubli
• Protection rating: IP68
• Temperature coefficient: -0.26%/°C
• Load: 5400/2400 Pa (front/rear)

Panel manufacturer: AIKO Solar

AIKO Solar was founded in 2009 and has many years of experience in the development and manufacture of solar cells. The innovative All-Back-Contact (ABC) technology originates from the company’s own laboratories. AIKO Solar now uses this technology in its own panels, achieving top-class efficiency. With a third of its staff working in R&D, Aiko regularly introduces innovative technologies and patents, and it is no surprise that Aiko’s residential panels have quickly become the current market leader in the Czech Republic.
