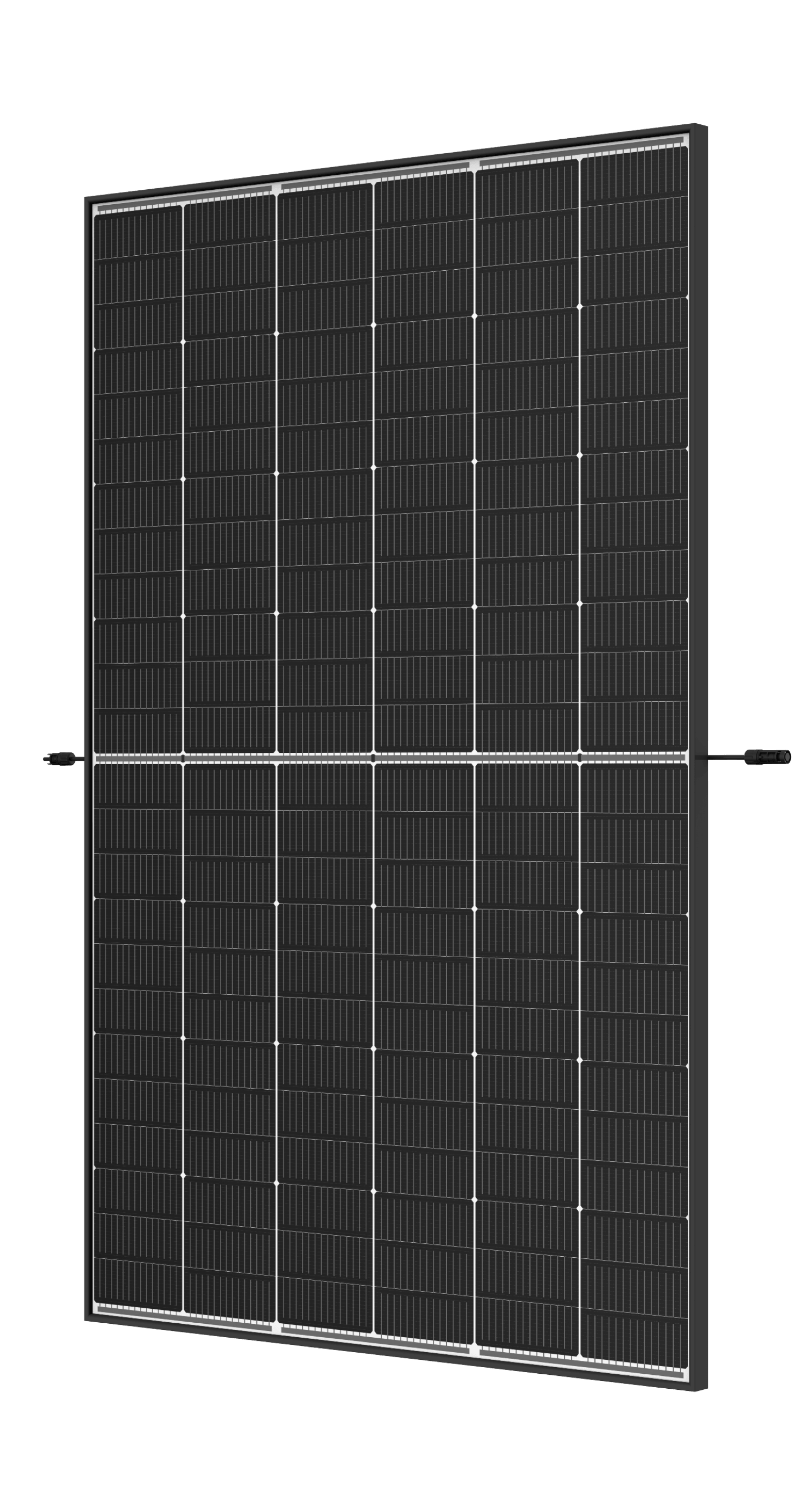

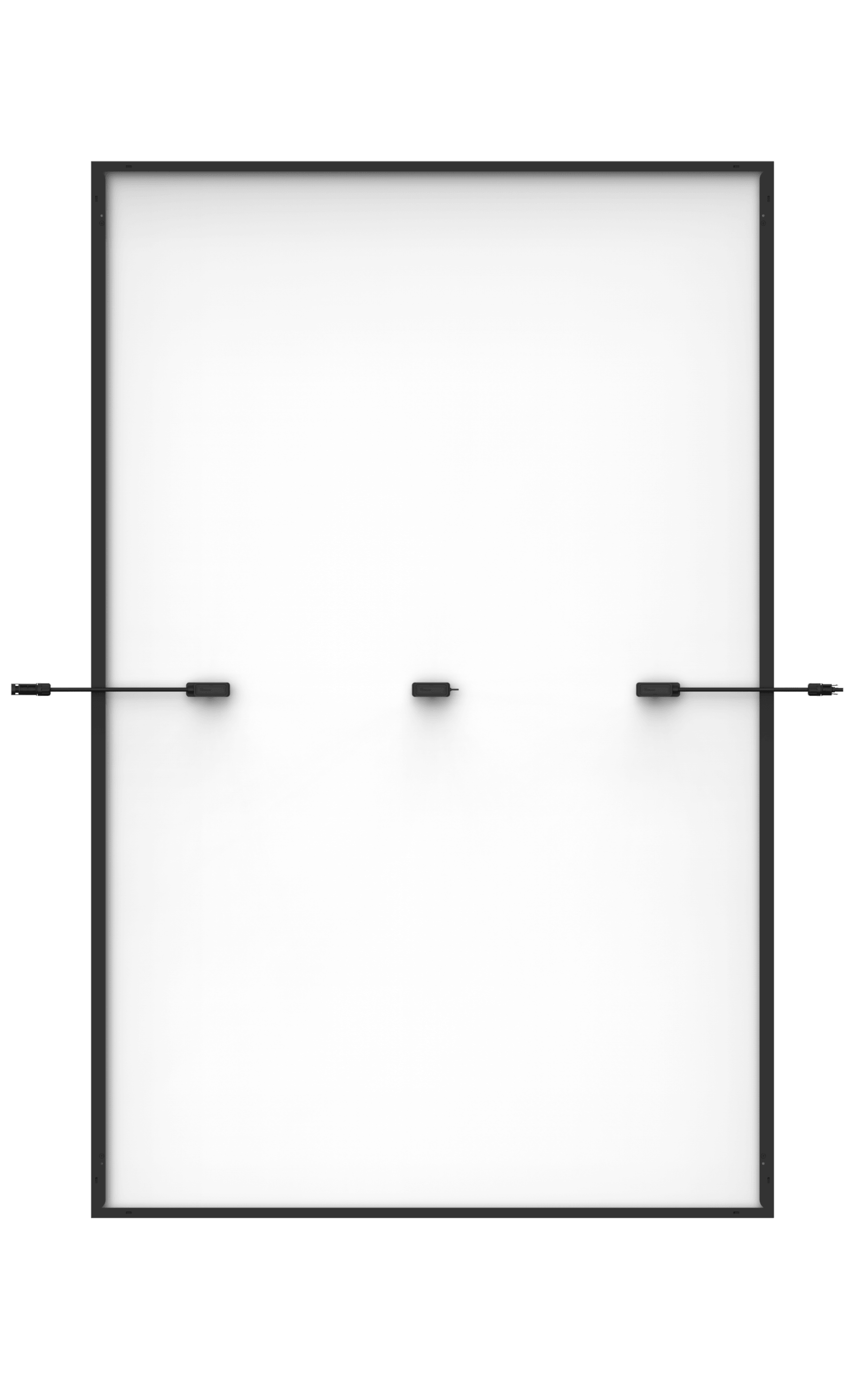

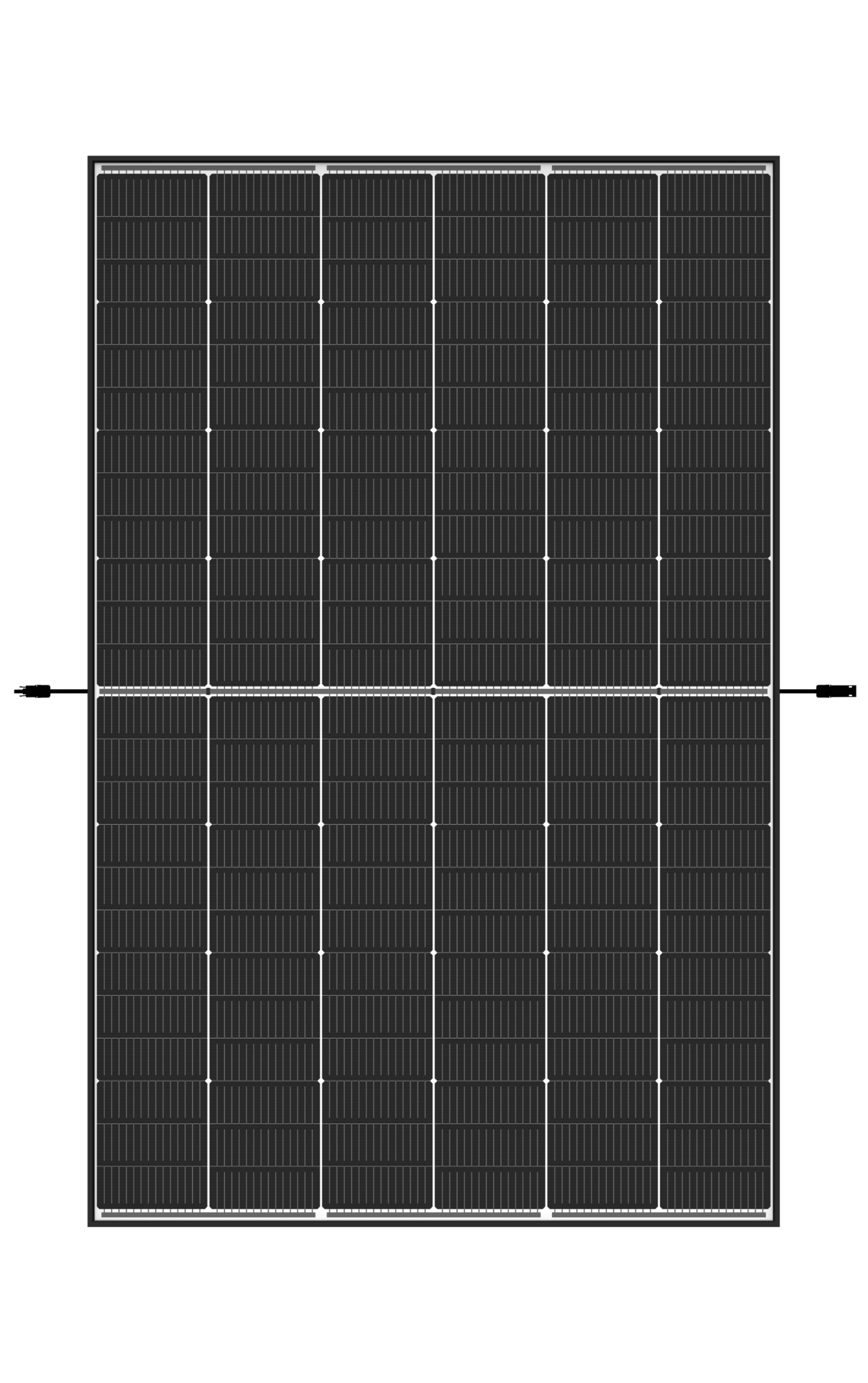

Trina 470 TSM-NEG9R.28 Vertex S+ double glazing
Abbildung kann vom Produkt abweichen.
| Gyártói cikkszám: | TSM-470-NEG9R.28 |
|---|---|
| Cikkszám: | 15480 |
| Darab csomagolási egységenként: |
|
| Power: | 470 Watt |
| Efficiency: | 23.5 % |
| Construction type: | Double-Glass |
| Warranty: | 25/30 years |
| Dimensions: | 1762 x 1134 x 30 mm |
| Backsheet: | White |
| Frame color: | Black |
| Technology: | TOPCon |
| Snow load: | 5400 |
| Wind load: | 4000 |
| Solar panel type: | Glass-glass solar panels, High performance solar panels, TOPCon modules |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- Új
ab 11.06.2026
Termékszám:
15480
-
-
{ "id": "2e36028e629c56a6960fd87232c997cd", "item_brand": "", "item_name": "Tigo TS4-A-O up to 700 W", "item_id": "13176", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2e36028e629c56a6960fd87232c997cd" } } -
{ "id": "33469da9644c584ab0ce04a954e10822", "item_brand": "", "item_name": "Tigo TS4-A-2F up to 1000 W modules (MC4)", "item_id": "10339", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "33469da9644c584ab0ce04a954e10822" } } -
{ "id": "3d0730b3bf0d5f5d8d9b256d421added", "item_brand": "", "item_name": "KBE solar cable DB+, 4mm², 100m, black", "item_id": "11726", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3d0730b3bf0d5f5d8d9b256d421added" } } -
{ "id": "2d4e5a533b0357bc9792cdb75b9cb4e1", "item_brand": "", "item_name": "KBE solar cable DB+, 6mm², 100m, black", "item_id": "11713", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2d4e5a533b0357bc9792cdb75b9cb4e1" } }
-
Leírás
Vertex S+ 455-watt NORD module, black frame
Trina is launching its new Vertex S+ series of PV modules. The Vertex S+ series is the first Trina product to come with a 25-year product warranty upon launch. The new high-performance module achieves an output of up to 450 W whilst taking up minimal space. It features integrated multi-busbar technology, which enhances light capture, reduces series resistance and improves current collection. This double-glass module comes with a 30-year performance warranty. The Vertex S+ series is versatile and designed for both residential and commercial applications.
Product benefits
- Excellent resistance to fire and harsh environmental conditions
- N-type technology with 1% degradation in the first year and 0.4% in years 2–30
- Multi-busbar technology
- 30 mm frame height, very stable
- System design and planning exactly as previously known
- 25-year product warranty on workmanship
- 30-year performance warranty
Hail resistance class 3
Product features Trina 455 TSM-NEG9.28 Vertex S+ double-glazed
- 455 Wp
- 144 monocrystalline cells
- Efficiency: 22.8%
- Black module frame
- White backsheet
- Dimensions: 1762 × 1134 × 30 mm (H x W x D)
- Weight: 21.0 kg
- Connector: MC4 EVO2
- Cable length at the module: 1100 mm (portrait orientation)
- Snow load up to 5,400 Pa
- Wind load up to 4,000 Pa
- Power temperature coefficient: -0.30%/°C
- Does NOT have an A1 fire safety certificate
- New frame variant B (see data sheet)
-
