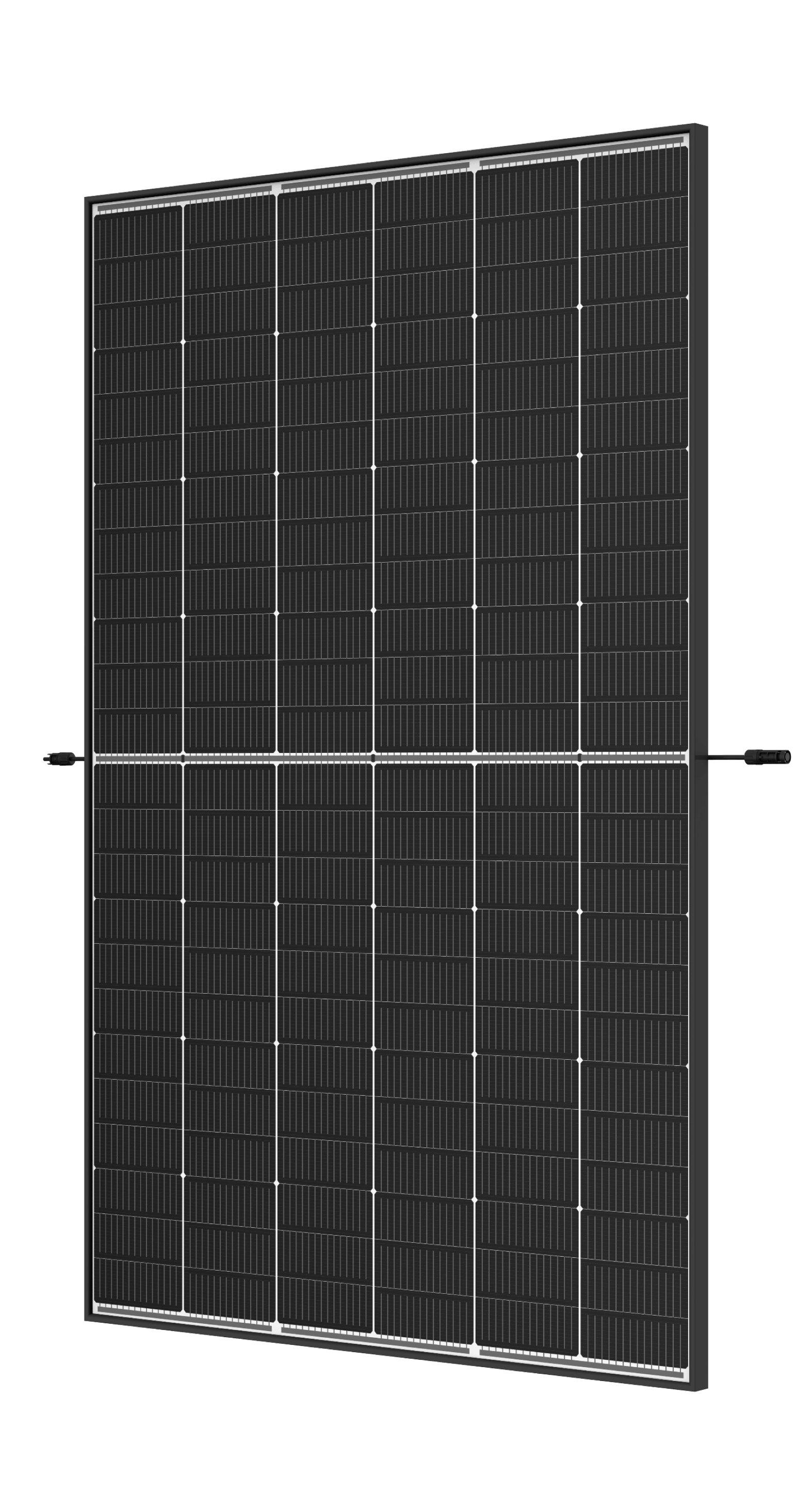

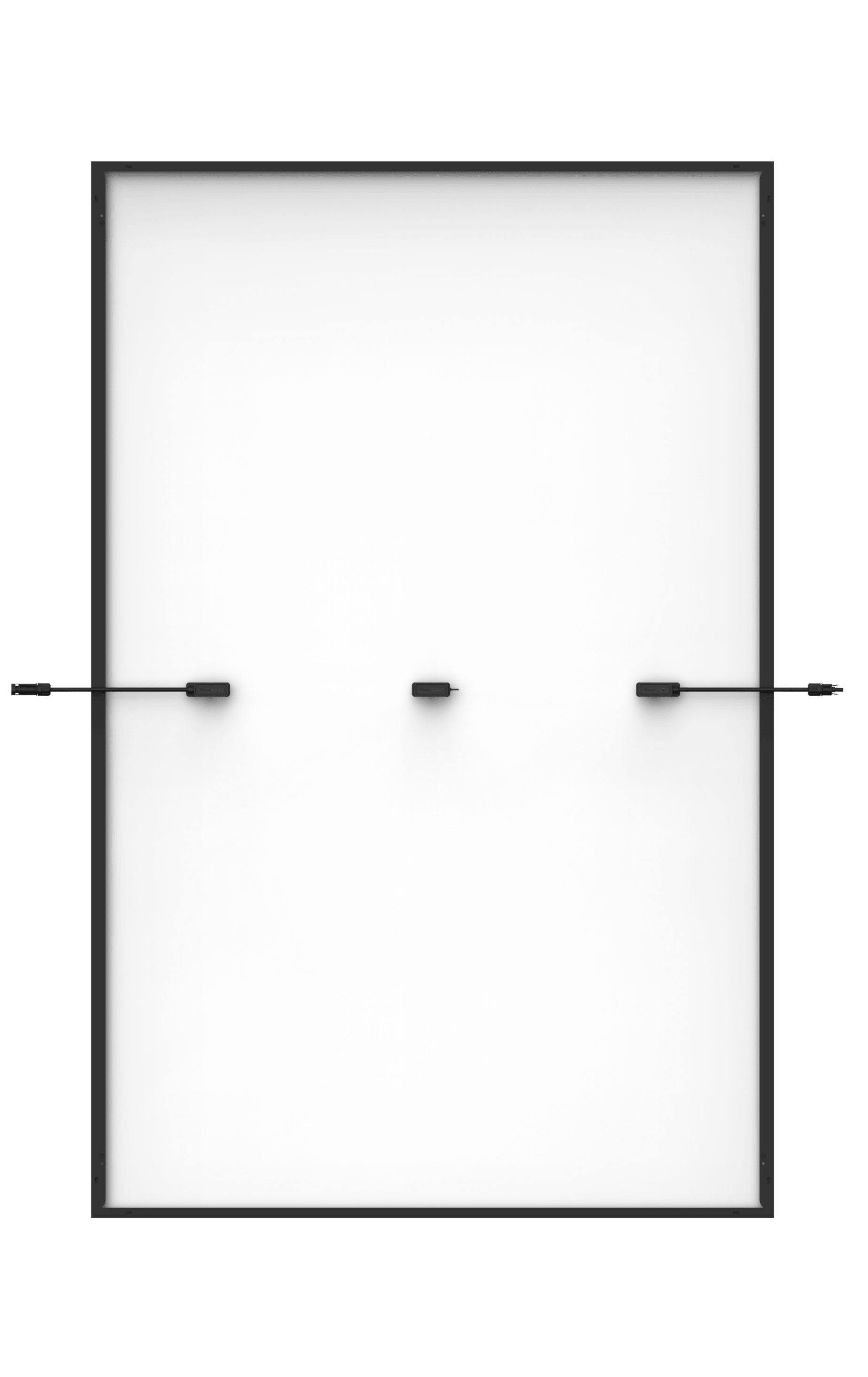

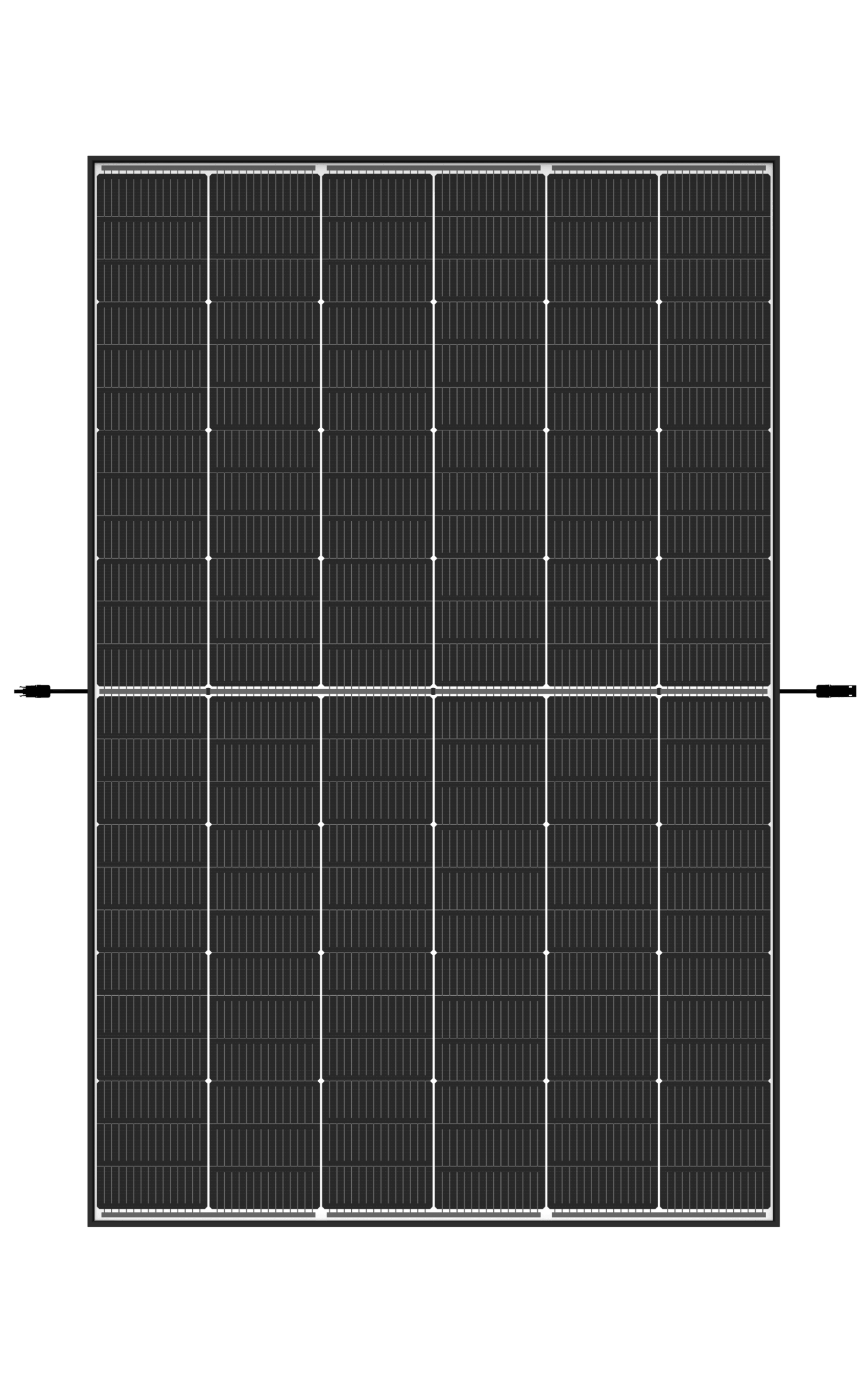

Trina 460 TSM-NEG9R.28 Vertex S+ double glazing
| Gyártói cikkszám: | TSM-460-NEG9R.28 |
|---|---|
| Cikkszám: | 13406 |
| Darab csomagolási egységenként: |
|
| Power: | 460 Watt |
| Efficiency: | 23.0 % |
| Construction type: | Double-Glass |
| Warranty: | 25/30 years |
| Dimensions: | 1762 x 1134 x 30 mm |
| Backsheet: | White |
| Frame color: | Black |
| Technology: | TOPCon |
| Snow load: | 5400 |
| Wind load: | 4000 |
| Solar panel type: | Glass-glass solar panels, High performance solar panels, TOPCon modules |
- Maradék mennyiség
-
-
{ "id": "2e36028e629c56a6960fd87232c997cd", "item_brand": "", "item_name": "Tigo TS4-A-O up to 700 W", "item_id": "13176", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2e36028e629c56a6960fd87232c997cd" } } -
{ "id": "33469da9644c584ab0ce04a954e10822", "item_brand": "", "item_name": "Tigo TS4-A-2F up to 1000 W modules (MC4)", "item_id": "10339", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "33469da9644c584ab0ce04a954e10822" } } -
{ "id": "3d0730b3bf0d5f5d8d9b256d421added", "item_brand": "", "item_name": "KBE solar cable DB+, 4mm², 100m, black", "item_id": "11726", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3d0730b3bf0d5f5d8d9b256d421added" } } -
{ "id": "2d4e5a533b0357bc9792cdb75b9cb4e1", "item_brand": "", "item_name": "KBE solar cable DB+, 6mm², 100m, black", "item_id": "11713", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2d4e5a533b0357bc9792cdb75b9cb4e1" } }
-
High durability and outstanding efficiency – the 460W Trina Vertex S+ panel
A versatile panel. That’s the simplest way to sum up the features of this new product from Trina. Its 460 W output ensures versatile use across all types of small and medium-sized installations. In terms of the technologies used, Trina is pulling out all the stops and entering the era of TOPCon cells with N-type silicon. This means one thing: maximum efficiency (23.0 per cent), a minimal temperature coefficient (-0.29 per cent/°C) and resistance to degradation, underlined by a 25-year warranty on the product’s workmanship. The panel’s longevity is ensured by its dual-glass design, which protects the backsheet and thus reduces the risk of damage from natural factors such as micro-cracks and moisture. Furthermore, this panel is certified to Class A+C fire resistance, making it a suitable choice, for example, for PV installations on residential buildings.
These features make this panel ideal for a wide range of applications across various types of projects.
Product benefits
- Top performance of 460 W
- 144 TOPCon half-cells with N-type silicon
- Efficiency of 23.0%
- Class A+C fire resistance
- Temperature coefficient (-0.29 %/°C)
- Dual-glass design
- Multi-busbar technology for improved light collection and low resistance
- 25-year product warranty
- 30-year performance warranty
Product features of the Trina 460 TSM-NEG9R.28 Vertex S+
- Black panel frame
- White backsheet
- Dimensions: 1762×1134×30 mm (HxWxD)
- Weight: 21.0 kg
- Connector: TS4 (MC4-compatible)
- Cable length: 1.1 m
- Snow load up to 5,400 Pa
- Wind load up to 4,000 Pa
Trina 460 TSM-NEG9R.28 Vertex S+, dual glass, black frame, 1.1 m cable
-
