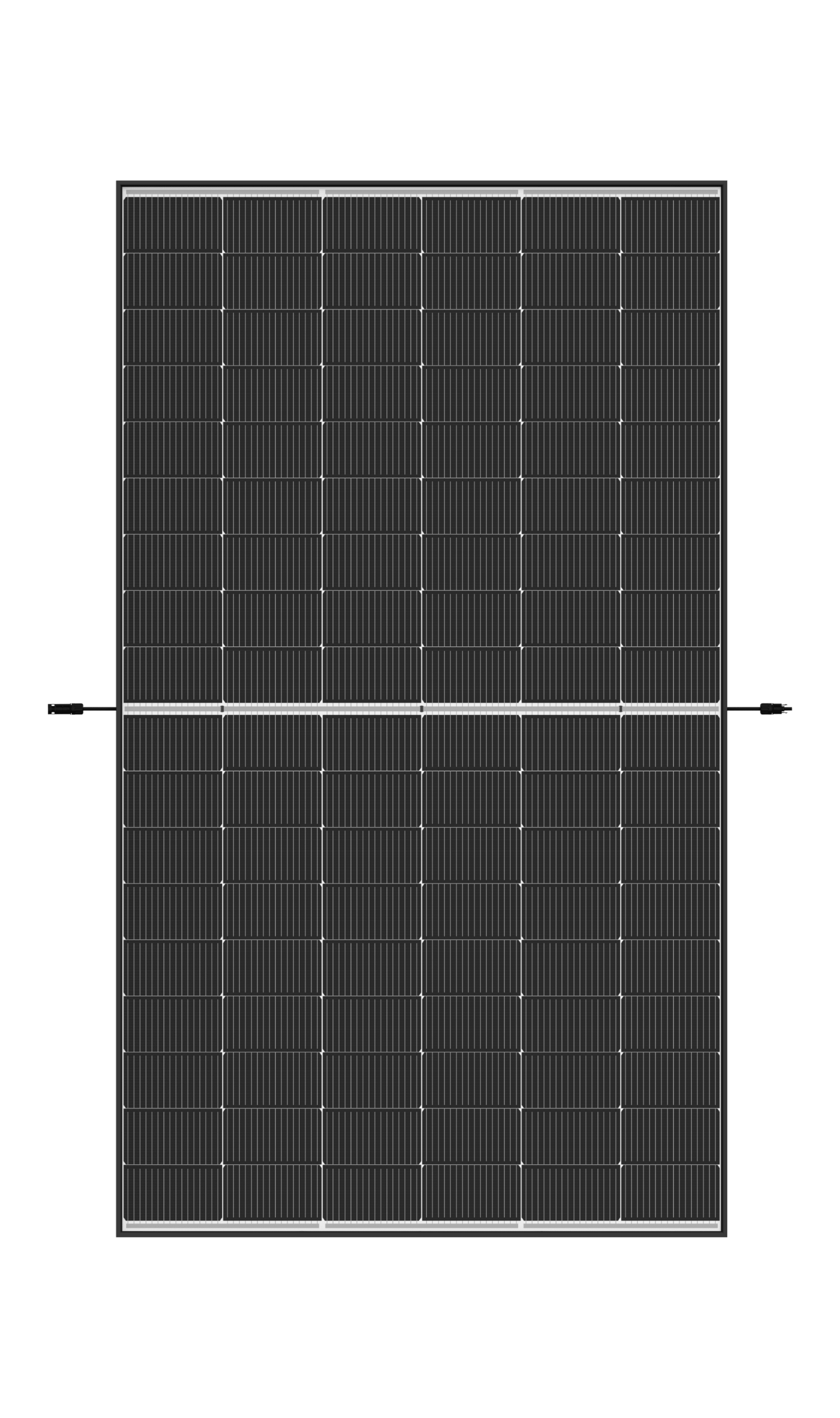

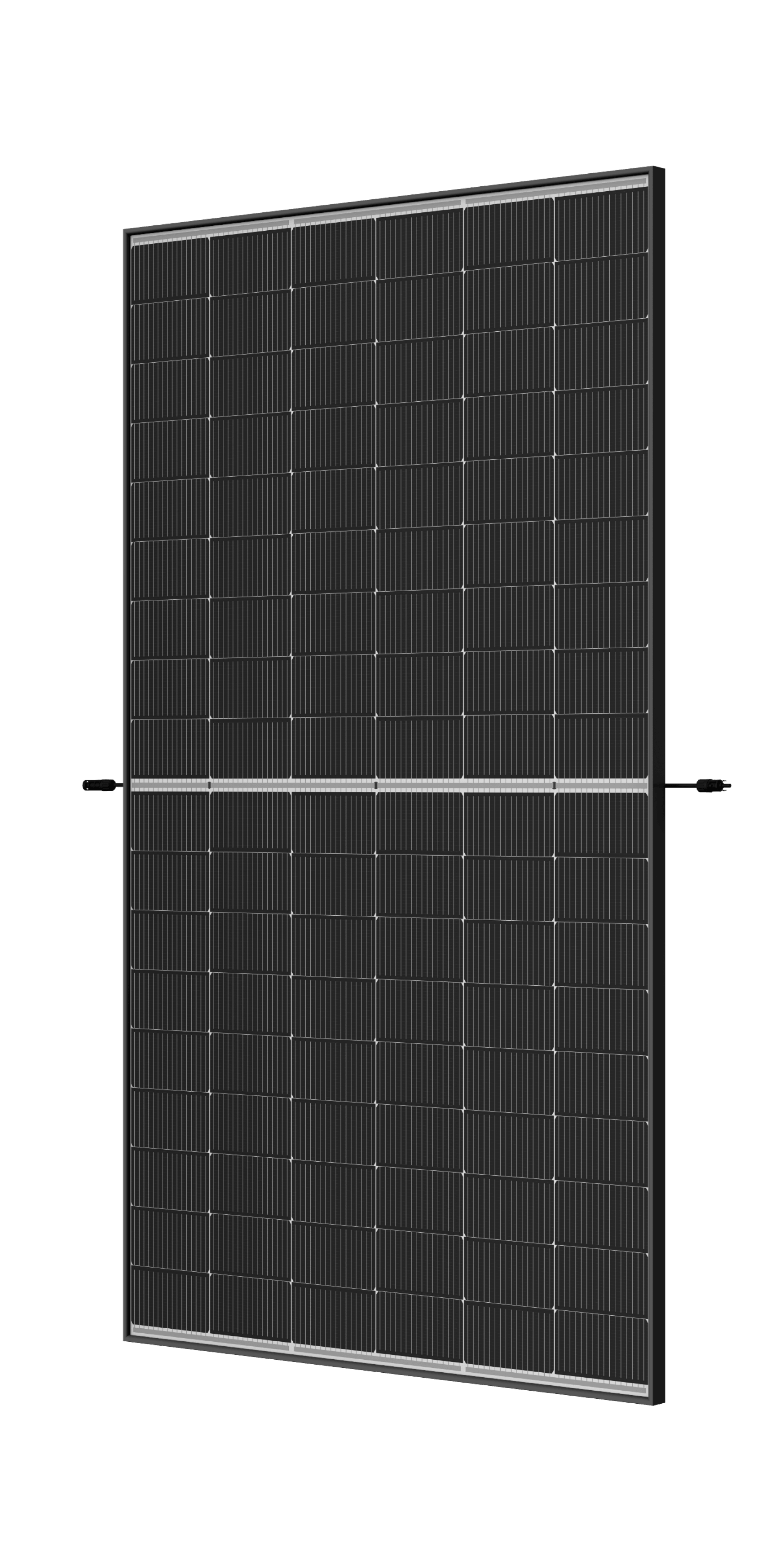

Trina 510 TSM-NEG18R.28 Vertex S+
| Gyártó típusa: | TSM-510NEG18R.28 |
|---|---|
| Gyártói cikkszám: | TSM-NEG18R.28 |
| Cikkszám: | 12993 |
| Darab csomagolási egységenként: |
|
| Power: | 510 Watt |
| Efficiency: | 22.9 % |
| Construction type: | Double-Glass |
| Warranty: | 15/30 years |
| Dimensions: | 1961 × 1134 × 30 mm |
| Backsheet: | White |
| Frame color: | Black |
| Technology: | TOPCon |
| Snow load: | 5400 |
| Wind load: | 2400 |
| Solar panel type: | Glass-glass solar panels, TOPCon modules |
- Maradék mennyiség
-
-
{ "id": "e35d31f0f2a35a77ad2a969d38974160", "item_brand": "", "item_name": "Tigo TS4-X-O up to 800 W modules (MC4)", "item_id": "12765", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e35d31f0f2a35a77ad2a969d38974160" } } -
{ "id": "3d0730b3bf0d5f5d8d9b256d421added", "item_brand": "", "item_name": "KBE solar cable DB+, 4mm², 100m, black", "item_id": "11726", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3d0730b3bf0d5f5d8d9b256d421added" } }
-
Excellent performance and efficiency – the 510W Trina Vertex S+ panel
The ideal panel. That’s the simplest way to sum up the features of this new product from Trina. Its 510 W output in a compact format ensures versatile use across all types of installations. In terms of the technologies used, Trina is not holding back and is entering the era of TOPCon cells with N-type silicon. This means one thing: maximum efficiency (22.9%), a minimal temperature coefficient (-0.29%/°C) and resistance to degradation, underlined by a 15-year product warranty and a 30-year performance warranty. The panel’s longevity is ensured by its dual-glass design, which protects both the cells and the backsheet, thereby reducing the risk of damage from natural factors such as micro-cracks and moisture. Thanks to the double-glazed design, the panel also has Class A+C fire resistance (according to IEC).
These features make it one of the most versatile panels on the market, and you simply cannot go wrong by choosing it.
Product benefits
- Versatile 510 W output
- 108 TOPCon half-cells with N-type silicon
- Efficiency 22.9%
- Temperature coefficient (-0.29 %/°C)
- Dual-glass design
- Fire class A+C (IEC standard)
- Multi-busbar technology for improved light collection and low resistance
- 15-year product warranty
- 30-year performance warranty
Product features of the Trina 510 TSM-NEG18R.28 Vertex S+
- Black panel frame

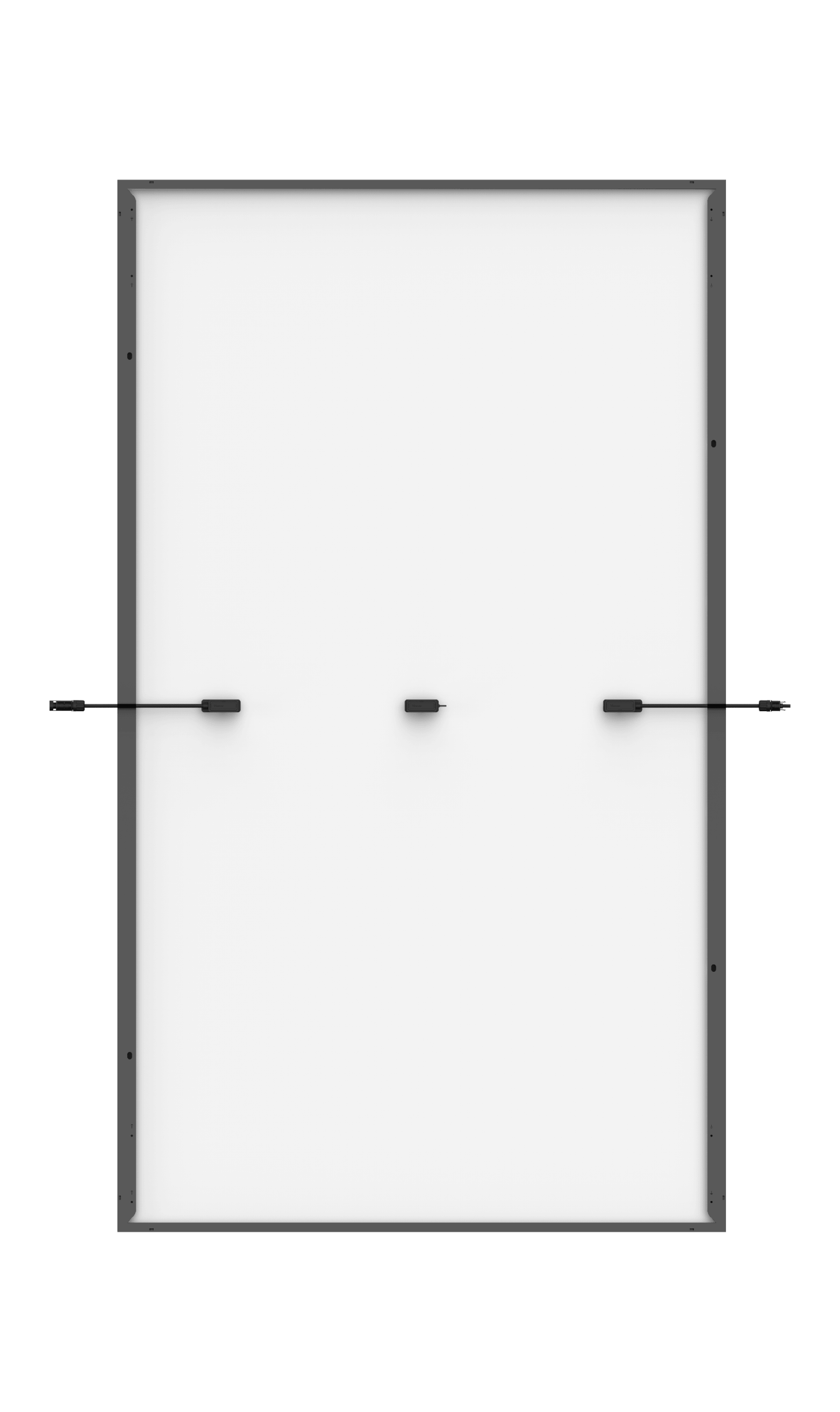

- White backsheet
- Dimensions: 1961×1134×30 mm (HxWxD)
- Weight: 23.5 kg
- Connector: MC4-Evo2
- Panel cable length: 1.3 m
- Snow load up to 5,400 Pa
- Wind load up to 2,400 Pa
Trina 510 TSM-NEG18R.28 Vertex S+, dual glass, black frame, 1.3 m cable
-
