Sungrow & Sungrow PowerStack ST225kWh-110kW-2h
| Gyártó típusa: | ST225CS-2H |
|---|---|
| Gyártói cikkszám: | A0SJ1229 |
| Cikkszám: | 13259 |
| Battery type: | LFP |
| Installation location: | Outdoor |
| Usable capacity: | 225 kWh |
| Power: | 110 kW |
| Commercial storage type: | All-in-One |
- Új
-
-
{ "id": "783a00e4737354a09c0413a6a1f08f91", "item_brand": "", "item_name": "Janitza UMG 604 Pro", "item_id": "8575", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "783a00e4737354a09c0413a6a1f08f91" } } -
{ "id": "d06632f0cb9d5046aac5b7efe35770f8", "item_brand": "", "item_name": "Sungrow & Sungrow EMS300CP EMS Controller", "item_id": "14440", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d06632f0cb9d5046aac5b7efe35770f8" } }
-

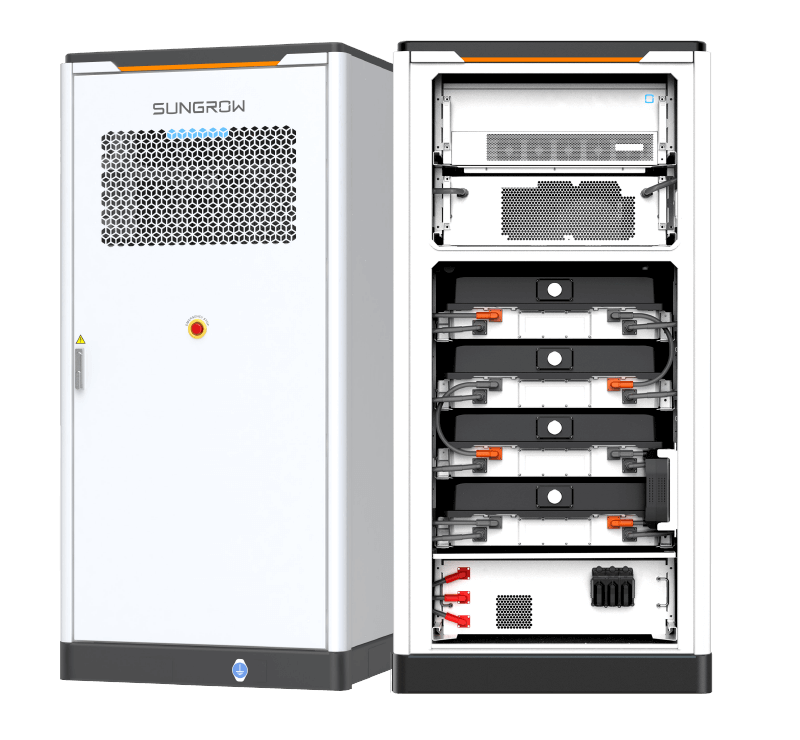

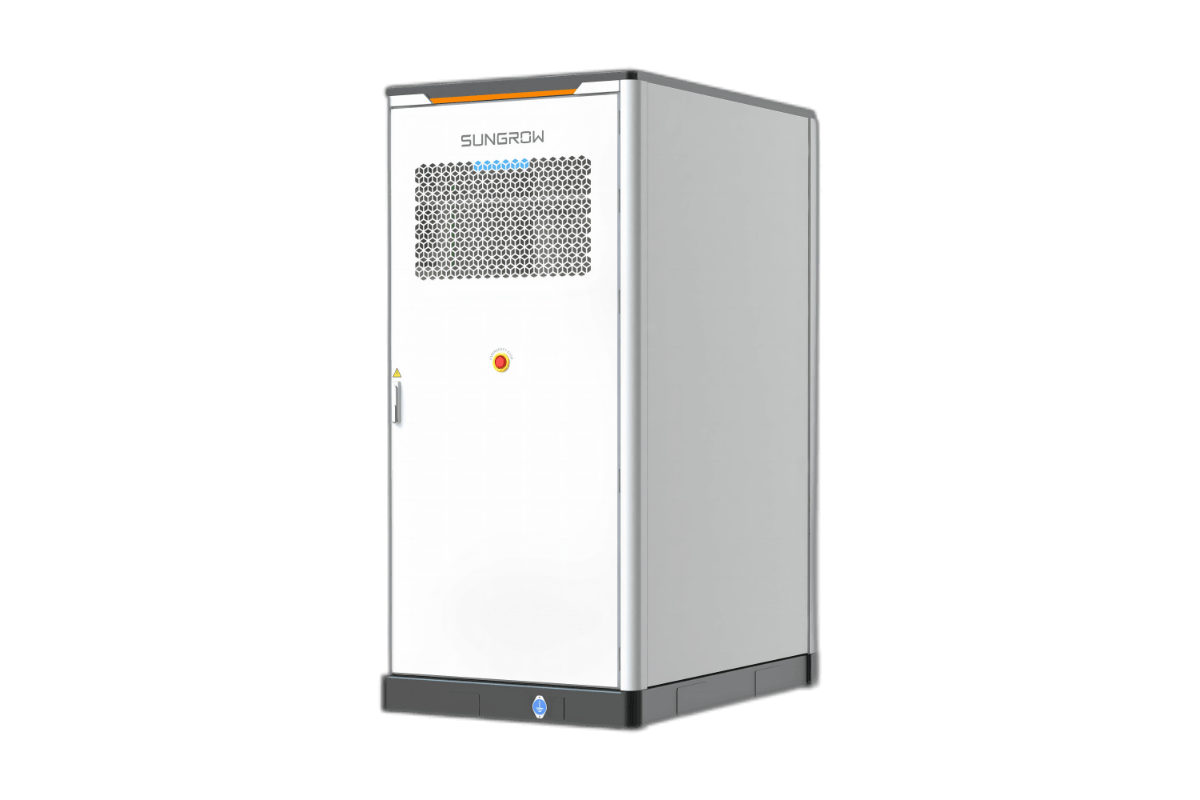

The PowerStack ST225kWh-110kW-2h cabinet-based energy storage system from Sungrow
The PowerStack ST225kWh-110kW-2h is Sungrow’s latest commercial storage system, which is particularly suitable for industrial applications. Thanks to its cabinet design with a high protection rating and C5 corrosion resistance, it offers flexibility in terms of installation and can easily cope with outdoor environments. The cornerstones of the system are prismatic LiFePO4 battery cells arranged in four packs, complemented by a 110 kW inverter capable of discharging the cells’ full capacity in two hours (0.5 C). The battery packs are liquid-cooled, ensuring minimal temperature differences (2.5°C) across the system, which has a significant impact on the safety and service life of the battery cells.
Safety is a key feature of all Sungrow products, whether batteries or inverters. PowerStack cabinets feature intelligent cell temperature control and three-level fire protection. As part of this protection, sensors for flammable gases, smoke and a temperature sensor are built in. An integrated aerosol fire suppression system, including an alarm and sprinkler, ensures that risks are minimised. Furthermore, the entire cabinet is robustly constructed and ensures that the materials are fire-resistant for up to 2 hours.

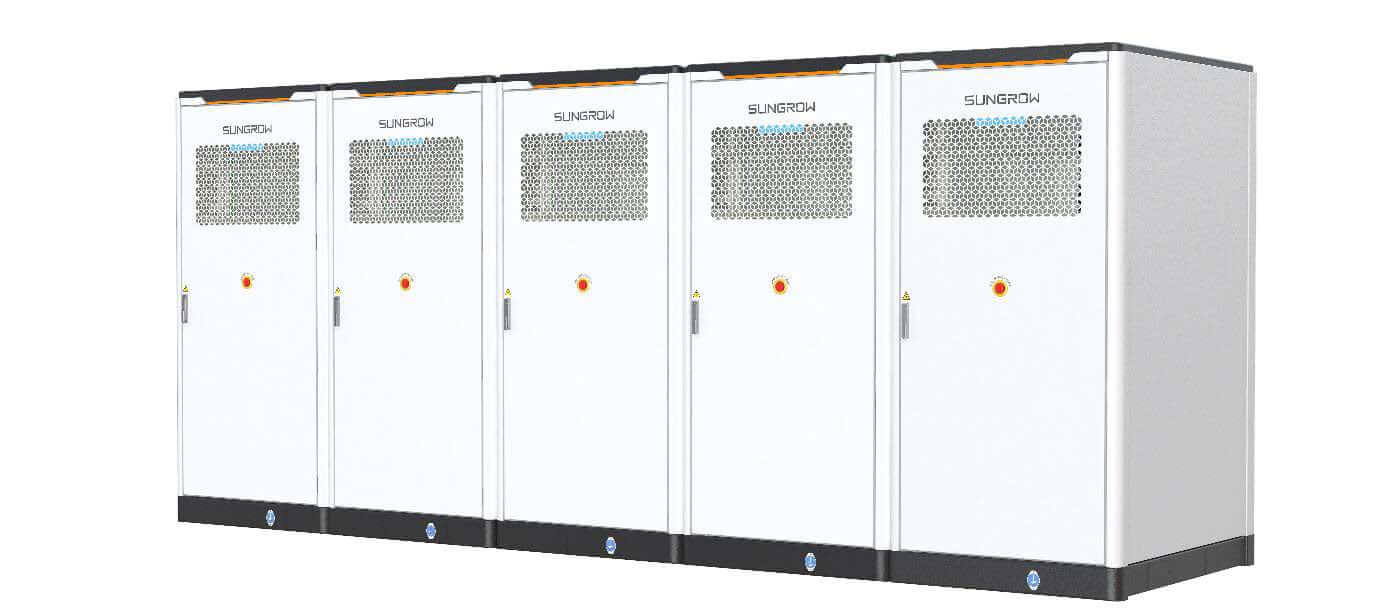

For larger installations, up to 10 cabinets can be connected in parallel, including off-grid applications. For off-grid use, a transformer station must be installed; in this case too, everything is supplied by Sungrow.
The product price excludes services and varies depending on the project. Please contact your sales representative for a full quotation.
Advantages of the PowerStack product:
- All-in-one solution for commercial applications
- Intelligent liquid cooling for maximum safety at cell level
- Three-level fire protection
- High system efficiency
- Scalability – up to 10 units in parallel
- Monitoring via iSolarCloud in Czech
PowerStack product features:
- Capacity: 229 kWh
- Voltage range: 691.2 V – 934.4 Vdc
- Inverter power: 110 kW
- C-rating: 0.5 C, 2 hours
- AC output: 400 V
- Dimensions: 1150 x 2450 x 1610 mm (WxHxD)
- Weight: 3100 kg
- Protection: IP55 and anti-corrosion treatment (C3 standard, optionally C5)
- Operating temperatures: -30 °C to +50 °C
