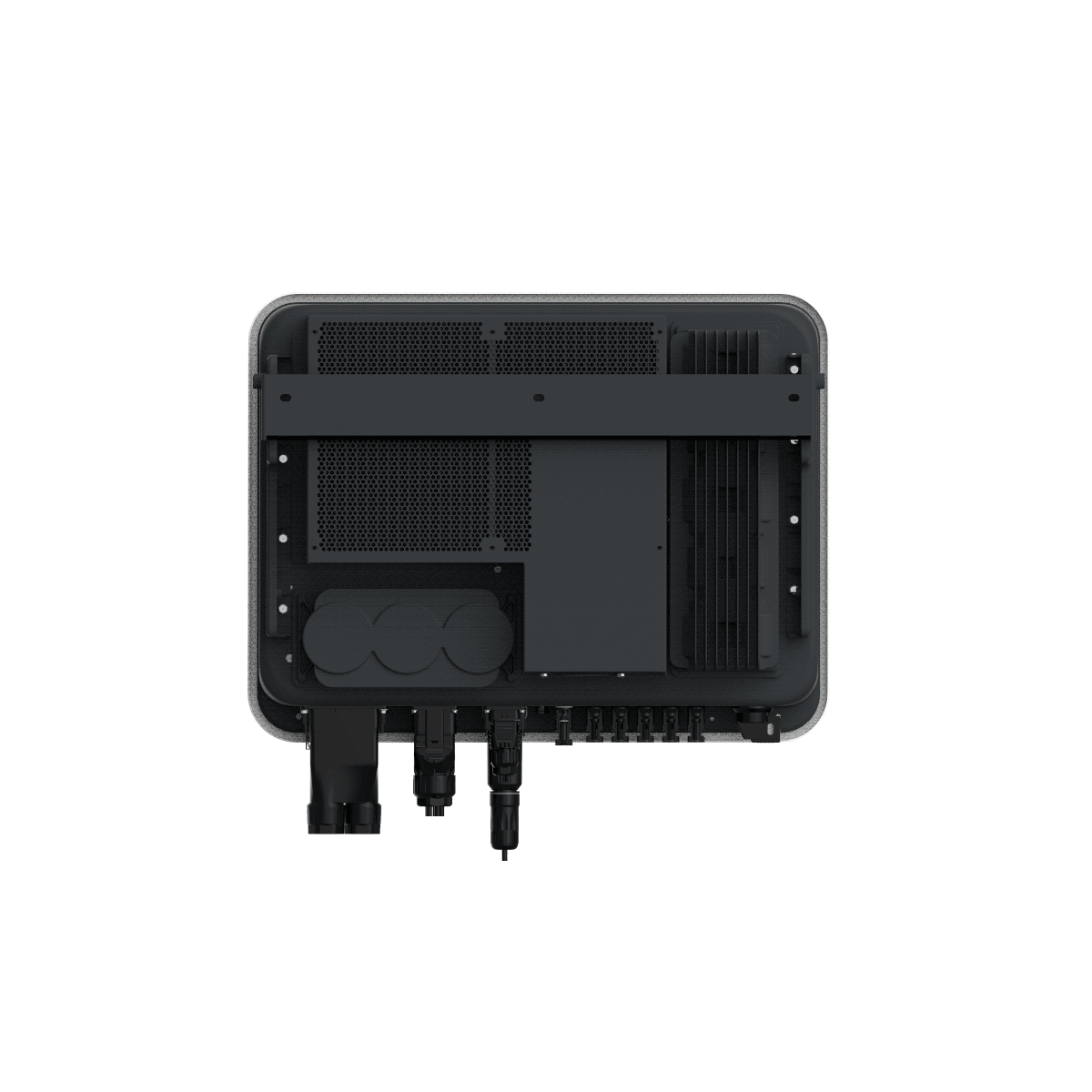

Sungrow & Sungrow Hybrid SH10T
| Gyártó típusa: | SH10T |
|---|---|
| Gyártói cikkszám: | ASH00142 |
| Cikkszám: | 12397 |
| Darab csomagolási egységenként: |
|
| Phases: | 3 |
| Inverter type: | Asymmetric inverters, Hybrid inverter |
| MPP-Tracker: | 2 |
| AC power: | 10 kW |
| Warranty: | 10 years |
| Communication: | RS485, WiFi, Ethernet, CAN |
| MPP voltage range: | 150 - 950 Volt |
-
-
{ "id": "2a1d583649b1570899e297619c84ac57", "item_brand": "", "item_name": "Sungrow & Sungrow iHomeManager", "item_id": "13173", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2a1d583649b1570899e297619c84ac57" } } -
{ "id": "f85c4fe5e0dd5dd6af6ed4bc9bdce27d", "item_brand": "", "item_name": "Sungrow & Sungrow EV Charger 22 kW, cable", "item_id": "13140", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "f85c4fe5e0dd5dd6af6ed4bc9bdce27d" } } -
{ "id": "eadf99e9444f5889989b4fc360f0da5a", "item_brand": "", "item_name": "Sungrow & Sungrow EV Charger 22 kW, cable, MID", "item_id": "13141", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "eadf99e9444f5889989b4fc360f0da5a" } }
-
Sungrow SH10RT-20 High-Voltage Hybrid Inverter with Emergency Power Output
These new three-phase hybrid inverters feature a three-phase backup power output with three-phase current that is 100% unbalanced load capable. Together with the high-voltage battery connection and two independent MPP trackers, the Sungrow inverter leaves nothing to be desired. This device is configured via iSolarCloud Assistant and transmits its data via the built-in WiFi or Ethernet interfaces to the free iSolarCloud portal or iSolarCloud app. RS485 (Modbus RTU) and Ethernet (Modbus TCP) are available for connecting third-party data loggers. A three-phase smart meter is included.
External connections, a generous connection area and an integrated spirit level enable quick installation.
If PV modules with currents greater than 13.5 A are used, the Inverter may throttle back slightly on a few peak days of the year!
Product advantages
- Input voltage range of 200–950 V
- High efficiency of up to 98.4%
- Natural convection
- 2 integrated AC + DC overvoltage protection
- External connections, no need to open the Inverter
- Integrated spirit level
- SG-Ready contact available (for controlling e.g. Heat pump)
- Noise emission 30 dB(A)
Applications:
- Operation without a battery as a pure Inverter
- DC operation with PV and battery
- AC operation without PV and with battery
Product features:
- Mains connection: 3-phase
- AC power: 10.0 kVA (10.0 kW nominal / 12 kW for 5 minutes) Emergency power output via separate output
- Reverse polarity protection
- MPP trackers: 2
- MPPT 1: 1 MC4 input; MPPT 2: 2 MC4 inputs
- Battery connection
- Interfaces: Ethernet
- AC connection cable cross-section: 6–10 mm² possible
- DC connection cable cross-section: 4–6 mm² possible
- Dimensions: 540 x 460 x 170 mm (H x W x D)
- Weight: 27 kg
- Protection class: IP 65
Scope of delivery
- Inverter
- 3-phase CHINT DTSU666-20 smart meter included
- WiNet-S module Wi-Fi adapter
- Wall bracket
- Expansion plug set
- M4 screws and washers
- AC/backup connector set
- Cable end terminal
- PV connector
- Crimp contact
- SUNCLIX connector set
- LAN connector
- COM connector
- RS485 cable
- OT connector
- Documents
Battery compatibility
Memodo energy storage approval list
If you’re looking for emergency power, you’ve come to the right place! Compact dimensions and low weight with full performance – quicker to install than any other.
You can find informative, free online training courses and other useful tools from Sungrow here.
-
