SolaX & SolaX X3-IES-15K (AFCI)

Gyártó típusa: X3-IES-15K (AFCI)
Gyártói cikkszám: 1010130013
Cikkszám: 12594
Phases: 3
Inverter type: Hybrid inverter
MPP-Tracker: 2
AC power: 15 kW
Warranty: 10 years
MPP voltage range: 110-950 Volt
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
  • Új
Termékszám: 12594
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
  • Új
Termékszám: 12594
Leírás

Solax X3-IES asymmetric hybrid inverter

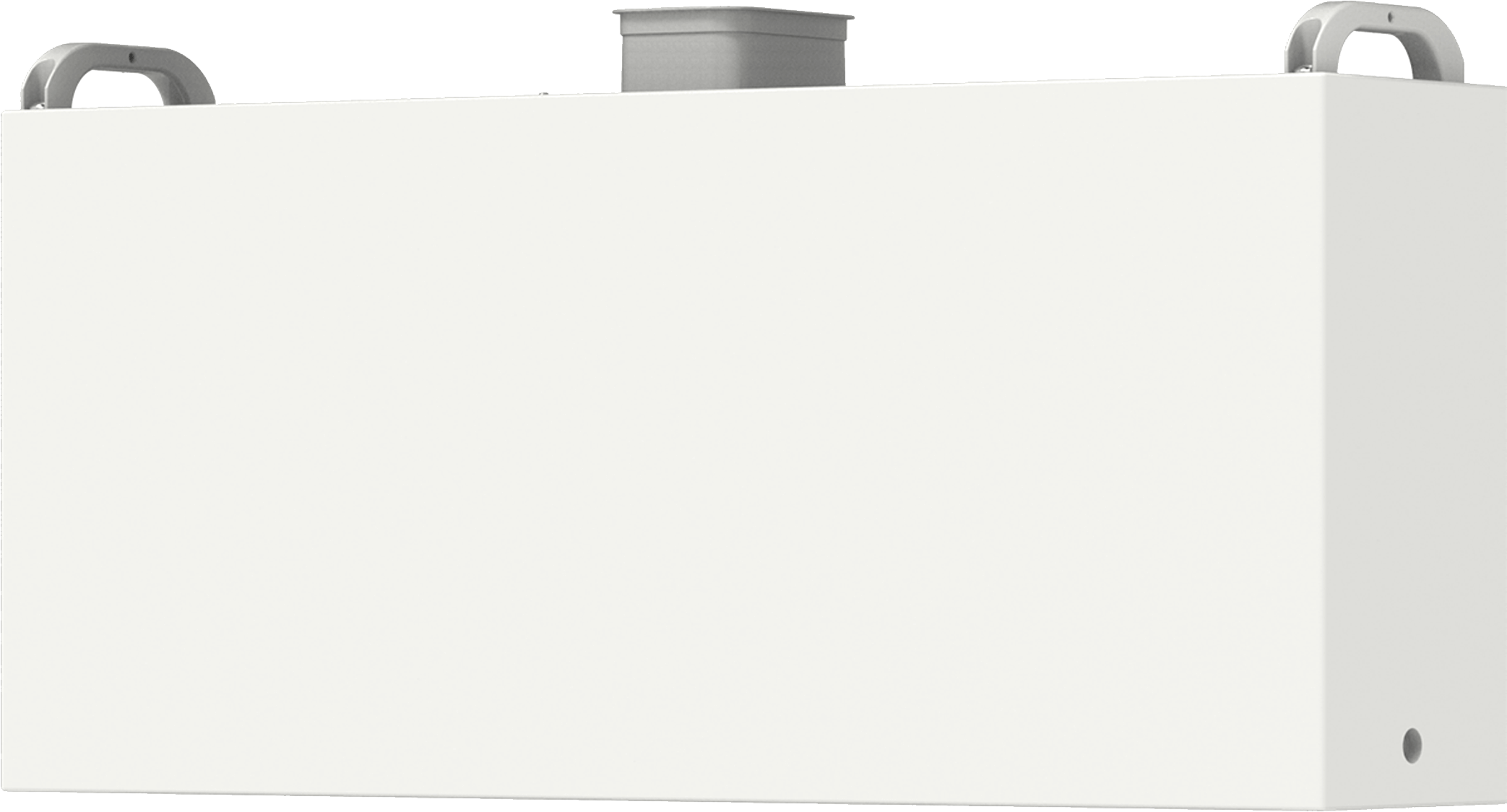

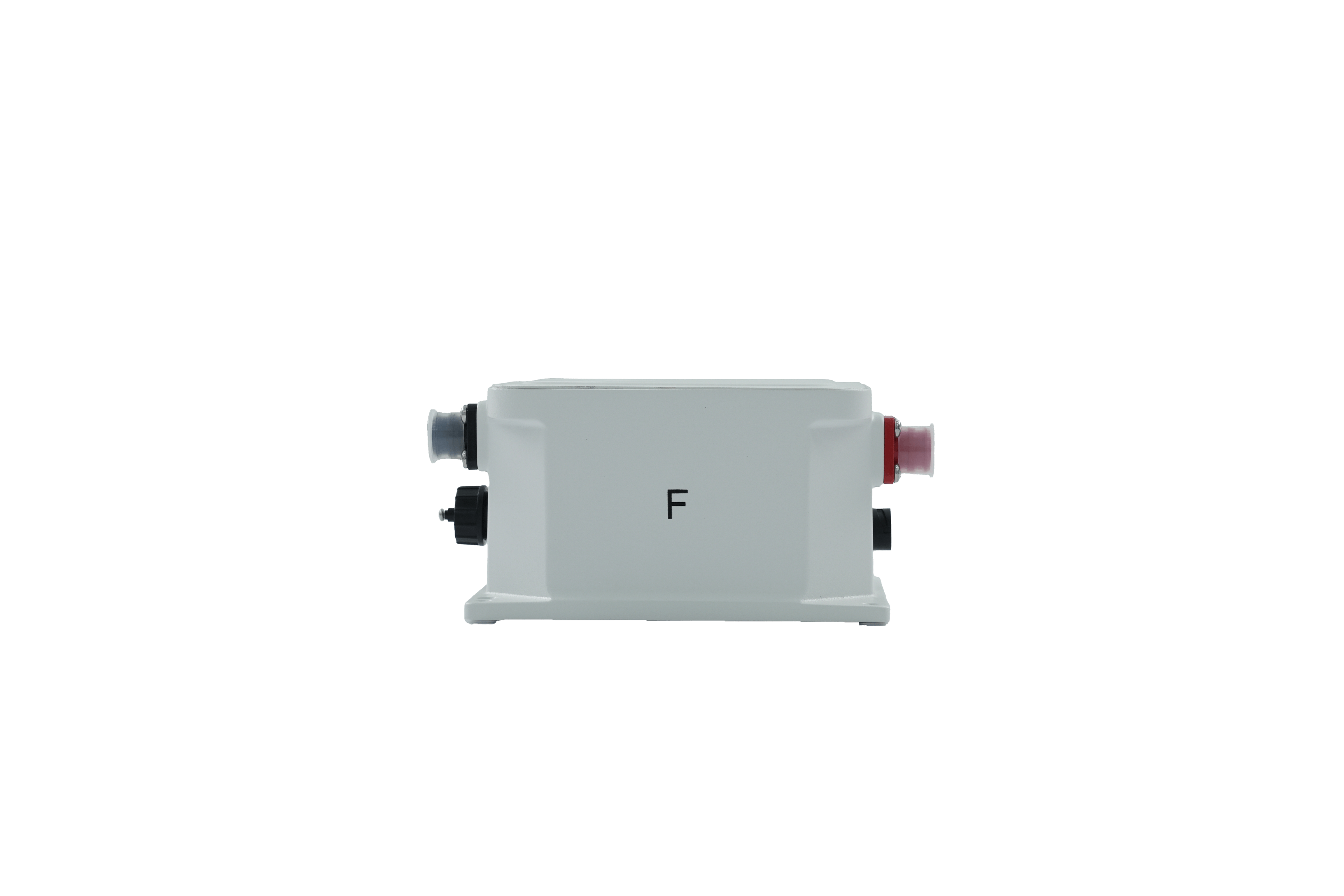

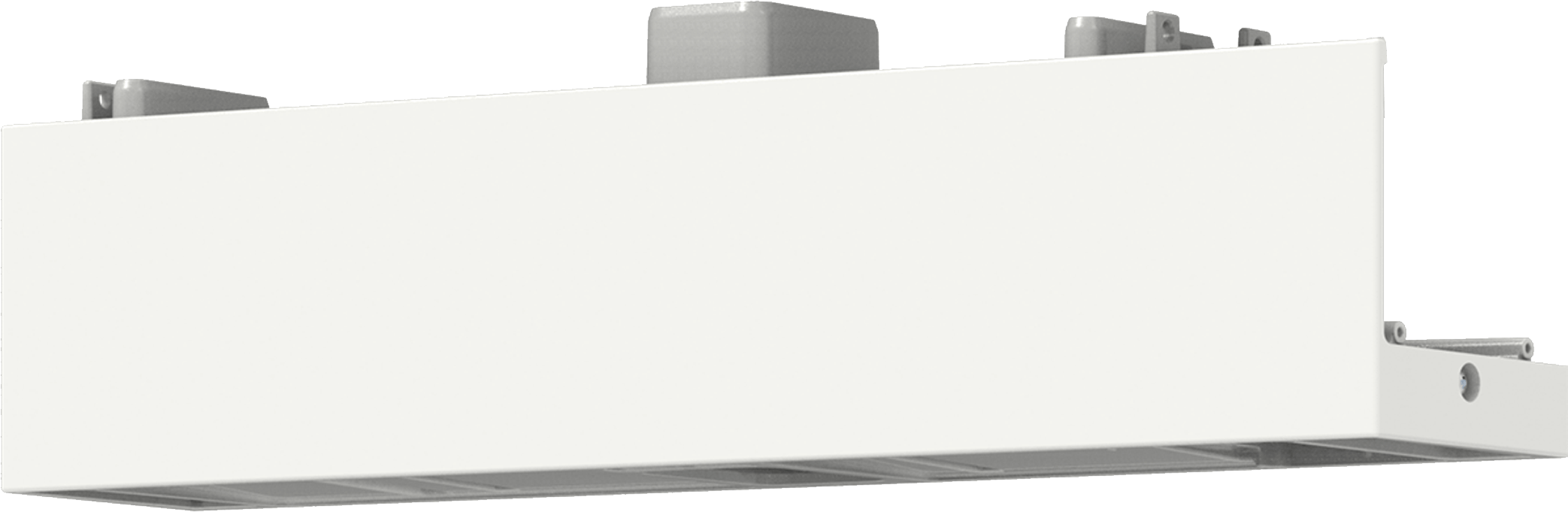

The package includes only the X3-IES-15K (AFCI) hybrid inverter. For a complete “all-in-one” system, you will need to purchase the BMS – SolaX TBMS-MCS0800E, battery modules – SolaX TP-HS50E and, if using 4–6 battery modules (serial connection of two stacks), the Series Box – SolaX Series Box (THS50E).

The inverter cannot be purchased separately! The purchase of the complete “all-in-one” system is a prerequisite.

You can also choose from pre-configured packages:

SolaX X3-IES-15K (AFCI) – 15.3 kWh
SolaX X3-IES-15K (AFCI) – 20.4 kWh

The X3-IES is a modular energy storage system that integrates a 4–15 kW hybrid inverter, a BMS system and expandable battery modules with capacities ranging from 10 kWh to 30 kWh. This ‘all-in-one’ system, characterised by safety, high performance and intelligence, is tailored for residential and small commercial and industrial applications to ensure reliability, ease of use and energy savings. Furthermore, thanks to the Plug&Play connection of the entire system, installation is very quick.

Product benefits

  • Modular all-in-one system
  • Maximum input current of up to 20A per DC string
  • Up to 200% overload on the PV input
  • Robust backup, switchover time <10 ms (UPS level)
  • Up to 200% of EPS power for 10 seconds, support for half-wave loads
  • Battery heating technology, operation in extreme environments down to -30 °C, IP66
  • AFCI

Features of the X3-IES-15K (AFCI)

  • Power: 15 kW
  • Number of MPPT: 2 (2/1 strings)
  • MPPT voltage range: 110–950 V
  • Battery input range: 160–800 V
  • Max. charge/discharge current: 50A
  • Protection rating: IP66
  • Operating temperature: -30 to 60°C
  • AFCI protection
  • Dimensions: 717 × 405 × 209.5 mm
  • Weight: 37 kg

Contents of delivery

  • 1x SolaX X3-IES-15K (AFCI)
