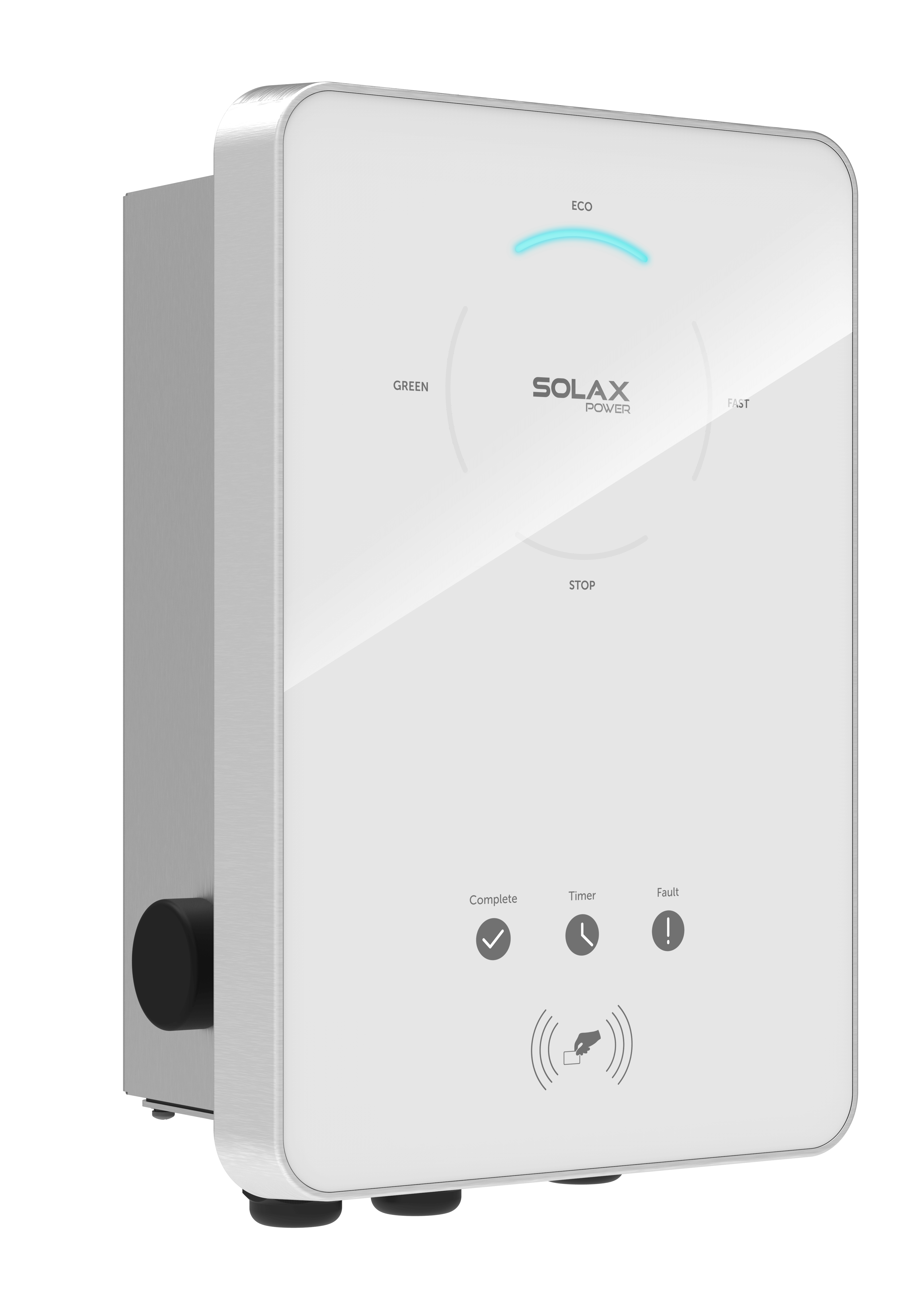

SolaX & SolaX X3-EVC Smart EV charger 22 kW (PXH)
| Gyártó típusa: | X3-EVC-22K(PXH) |
|---|---|
| Gyártói cikkszám: | X3-EVC Wallbox 22kW (PXH) |
| Cikkszám: | 7908 |
| Darab csomagolási egységenként: |
|
| Power: | 22 kilowatt |
| Number of charging points: | 1 |
| Access control: | RFID |
| AC phases: | 3 |
| Surplus charging: | Yes |
| Charging port: | Cable |
| Energy meter: | No measurement |
| Heating system: | Private, Wallbox |
- % Sale
SolaX EV Charger 22 kW three-phase charger

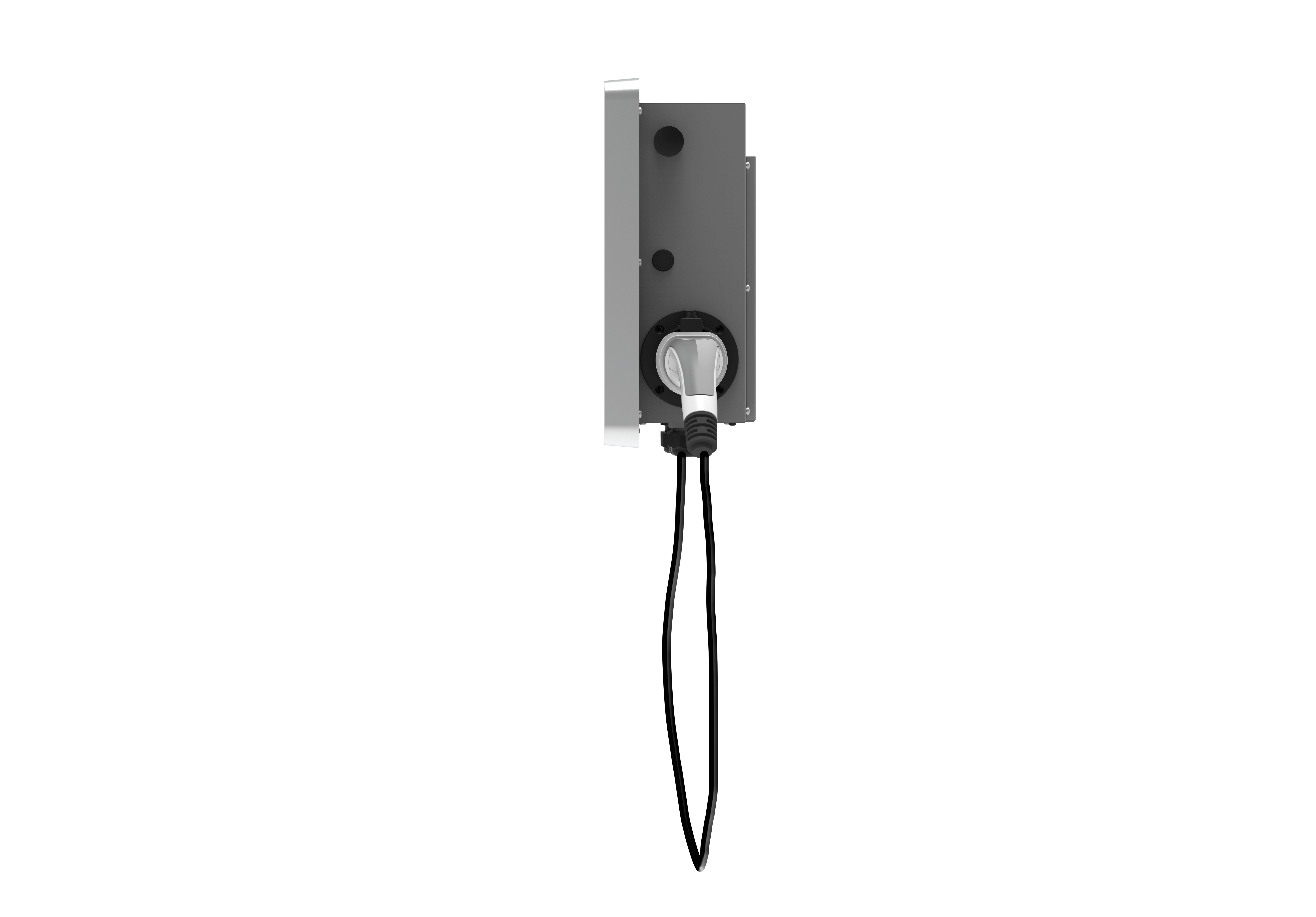

From the customer-tried-and-tested manufacturer SolaX, we present the three-phase Smart EV Charger X3-EVC. The 11 kW Wallbox offers full compatibility with inverters from the same manufacturer. The Wallboxes are equipped with a 6.5-metre Type P charging cable (IEC 62196-2). The charger offers up to three charging modes, ranging from charging solely from surplus photovoltaic power, through a combination of grid and photovoltaic power, to fast charging from the grid alone. It also features a range of safety features, including an integrated residual current device, earthing, RFID and dynamic charging. This makes the X3-EVC series of wallboxes reliable and safe chargers for your car. Smart control via the app and time scheduling based on current energy prices on the spot market enable the effective use of this system for energy management.
Advantages of the X3-EVC22K
- Option to charge your car 100% from solar power
- Dynamically balanced charging control
- Remote management and monitoring
- High compatibility with SolaX inverters
- Secure communication based on TLS
- Option to set timers based on current energy prices
Applications
- Outdoor and external (IP65)
- Safety standards: IEC 61851-1:2017, IEC 62196-2:2016
- Wall-mounted application
- Three charging modes: Green, Eco, Fast Charge
- CT coils included
Product features X3-EVC22K
- Charging power: 22 kW
- Charging current: 32A
- Wi-Fi: 2.4GHz
- RFID function
- Integrated current protection: (AC/30mA, DC/6mA)
- Warranty: 3 years
