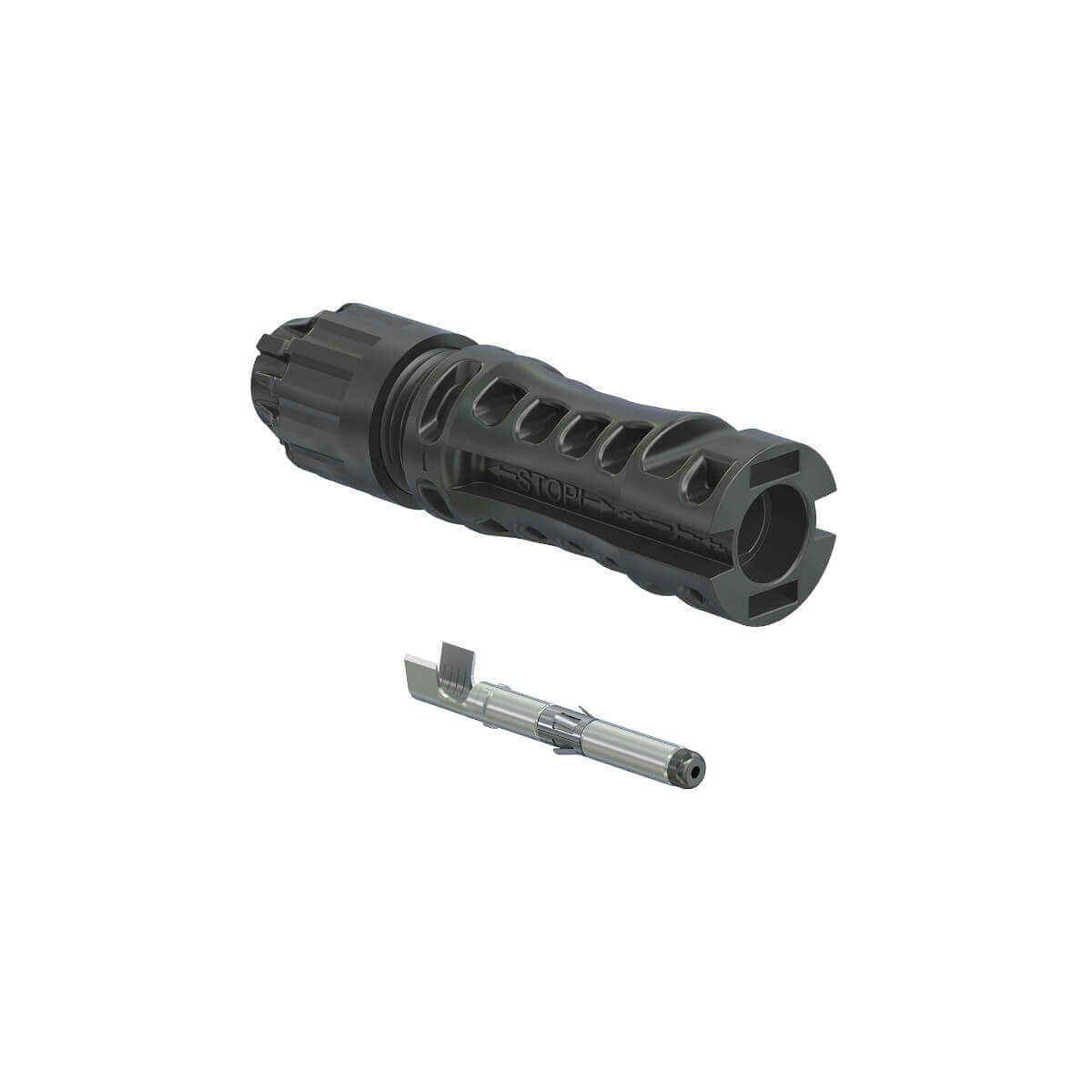

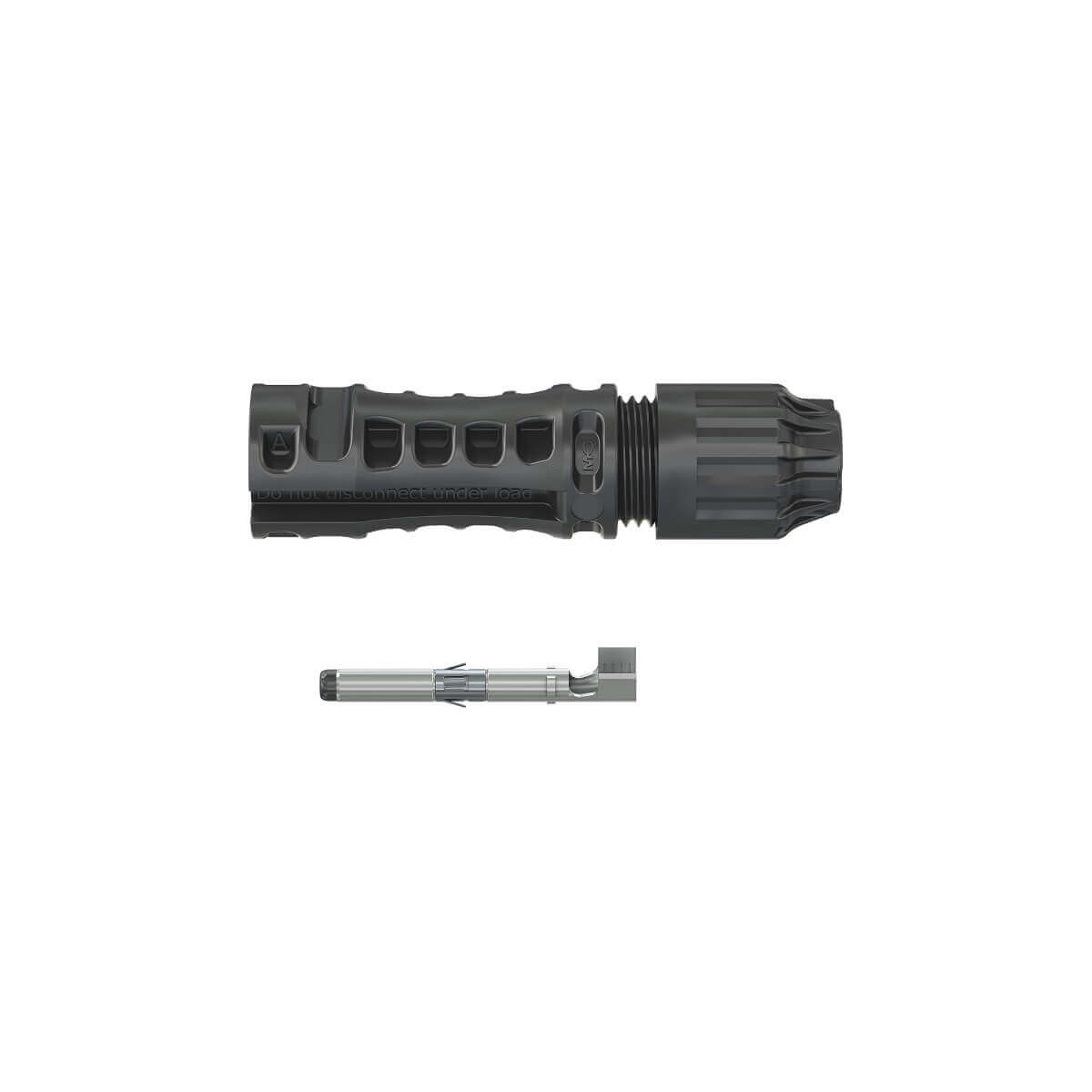

Stäubli MC4-EVO 2 plug 4/6 mm², Da 6.4 – 8.4mm
| Gyártó típusa: | PV-KST4-EVO 2A/6II |
|---|---|
| Gyártói cikkszám: | 32.0321P0001 |
| Cikkszám: | 8987 |
| Darab csomagolási egységenként: |
|
| Accessory type: | Plugs |
Stäubli Multi Contact MC4-EVO 2 connector for system voltages up to 1,500 V DC and cables with 4/6 mm²
The MC4 and MC4-EVO 2 connectors from Stäubli are a price-efficient and high-quality solution for photovoltaic systems with DC voltages of up to 1,500 V and 100 A. The connectors are available for cable cross-sections of up to 10 mm²/ 8 AWG. The connectors meet the requirements of IEC 61984:2008 (Connectors – Safety requirements and tests) for general low-voltage DC applications.
The scope of delivery includes the housing and the inner part.
Product advantages
- Meets the requirements of IEC 61984:2008
- TÜV certification according to IEC 62852:2014 in combination with corresponding PV cables
- UL certification according to 6703:2014 in combination with corresponding PV cables
- Can also be used in systems outside the photovoltaic sector
Product features Stäubli MC4-EVO 2 plug 4/6 mm², Da 6,4 - 8,4 mm
- Cable cross-section (conductor): 4/6 mm²
- Outer cable diameter: 6.4 – 8.4 mm
- Rated voltage: 1,500 V DC
- Ambient temperature: -40 °C to +85 °C
- Protection class plugged in: IP 65
Internationally certified according to IEC, UL, JET and cTÜVus. Approved for DC 1500 V (IEC, JET), DC 1500 V (UL). The quality and durability of MULTILAM technology has proven itself many hundreds of millions of times since 2004. Suitable for all climatic conditions thanks to UV and ammonia resistance and high IP protection class (IP68). Field assembly or pre-assembled connector, use of standard crimping pliers possible. Plug-in compatible with the original MC4 connector family.
-
