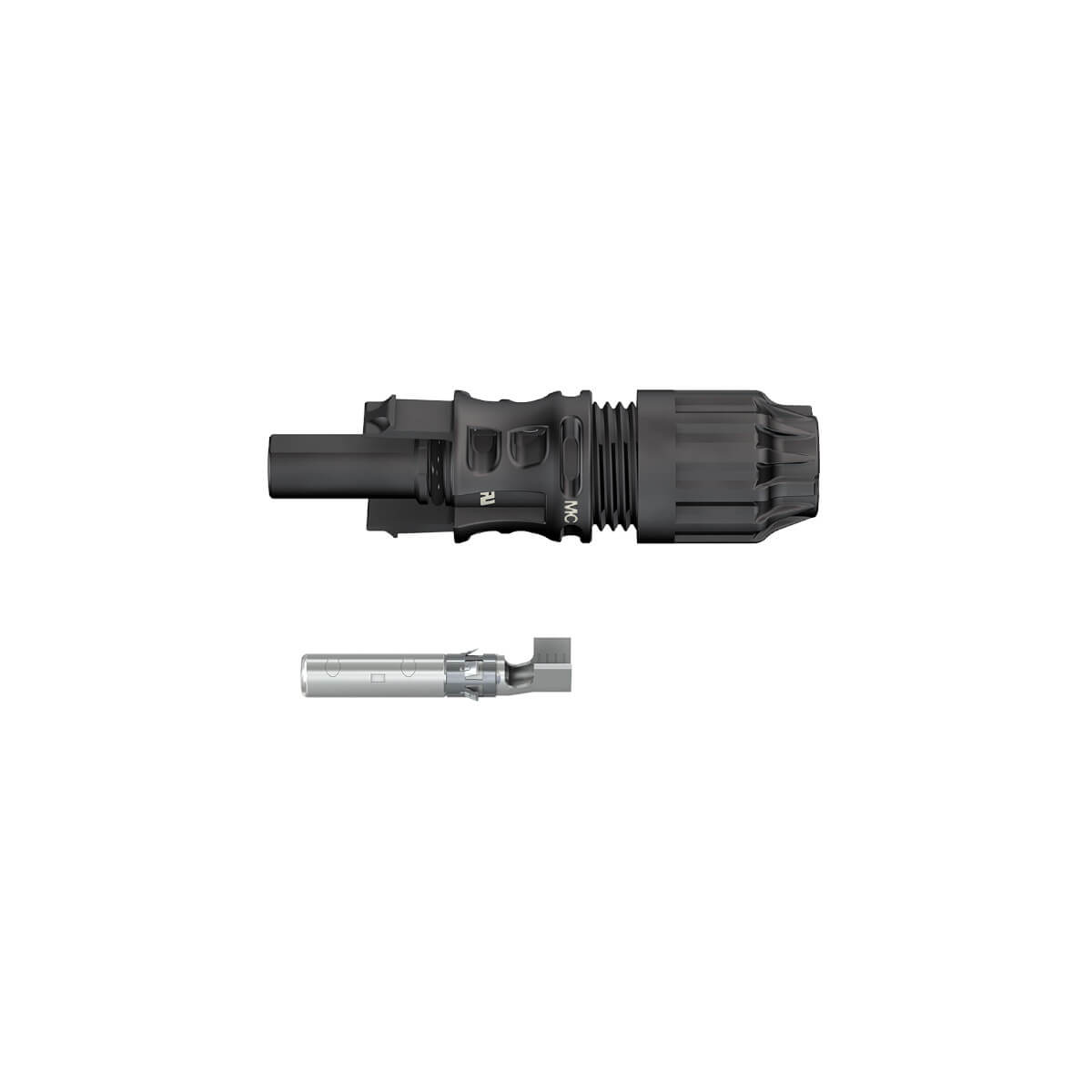

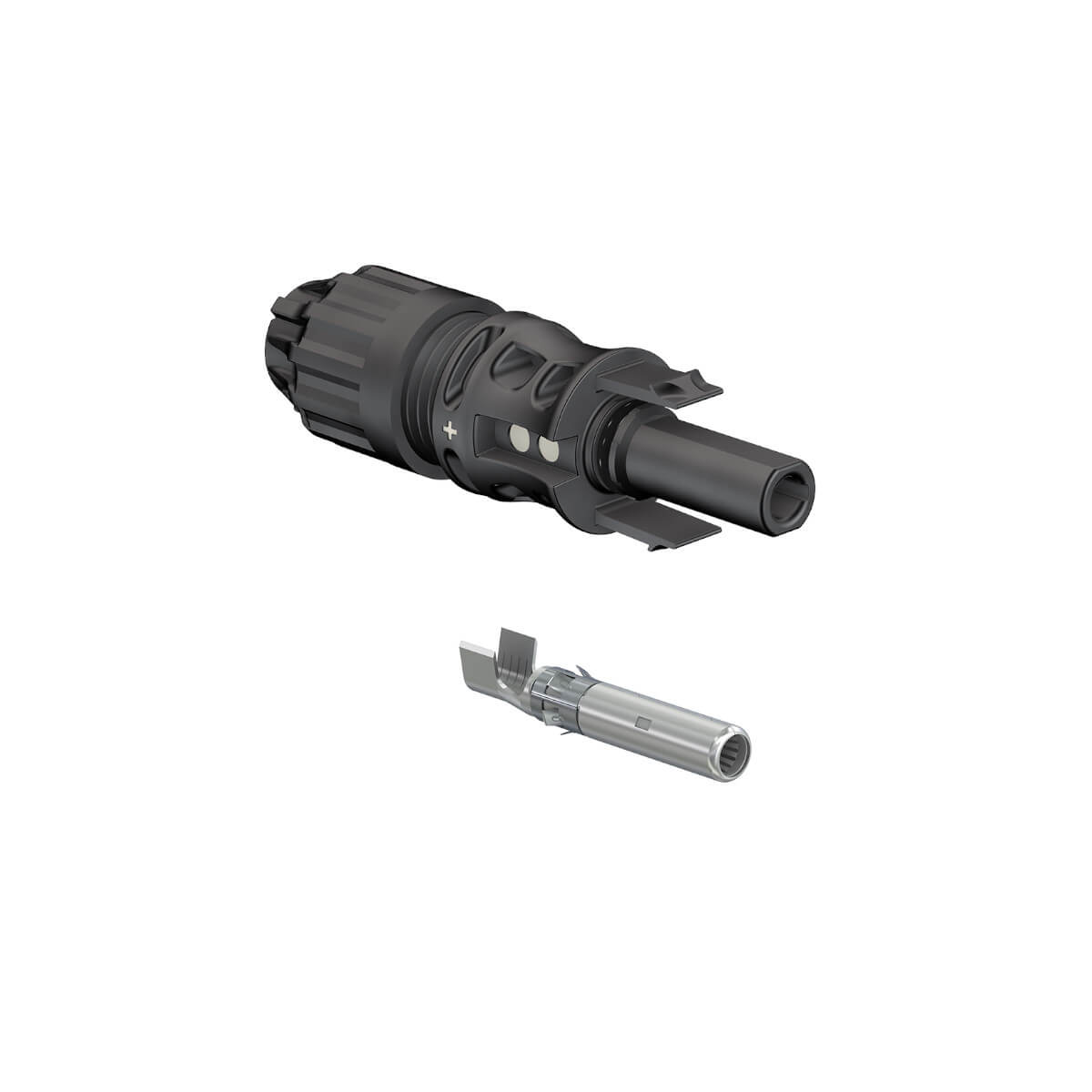

Stäubli MC4-EVO 2 socket, 4-6 mm², diameter 6.4 – 8.4mm
| Gyártó típusa: | PV-KBT4-EVO 2/6II-UR |
|---|---|
| Gyártói cikkszám: | 32.0088P0001-UR |
| Cikkszám: | 8926 |
| Darab csomagolási egységenként: |
|
| Accessory type: | Plugs |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
Available from stock
Termékszám:
8926
Leírás
Stäubli Multi Contact MC4-EVO 2 socket for system voltages up to 1,500 V DC and cables up to 6 mm².
Stäubli's MC4 and MC4-EVO 2 connectors are a price-efficient and high-quality solution for photovoltaic systems with DC voltages of up to 1500 V and 100 A. The connectors are available for cable cross-sections of up to 10 mm²/ 8 AWG. The connectors meet the requirements of IEC 61984:2008 (Connectors – Safety requirements and tests) for general low-voltage DC applications.
The scope of delivery includes the socket as well as the inner part.
Product advantages
- Meets the requirements of IEC 61984:2008
- TÜV certification in accordance with IEC 62852:2014 in combination with appropriate PV cables
- UL certification according to 6703:2014 in combination with appropriate PV cables
- Can also be used in systems beyond the photovoltaic sector
Product features Stäubli MC4-EVO 2 socket 4-6 mm², diameter 6.4 - 8.4 mm
- Cable cross section (conductor): 4 or 6 mm²
- Outer cable diameter: 6.4 - 8.4 mm
- Rated voltage: 1,500 V DC
- Rated current (30°C) at 4 mm² cable cross-section: 51 A
- Rated current (30°C) at 6 mm² cable cross-section: 65 A
- Ambient temperature: -40 °C to +85 °C
- Protection category: IP 65
-
