Dyness Tower TS17
| Cikkszám: | 15783 |
|---|---|
| Net capacity: | 16,872 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Warranty: | 10 |
| Solar battery type: | High voltage battery |
- Új
-
-
{ "id": "e3eabe4718535d03bc177150a6f1d7c4", "item_brand": "", "item_name": "Solinteg MHT-10K-25", "item_id": "14839", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e3eabe4718535d03bc177150a6f1d7c4" } }
-

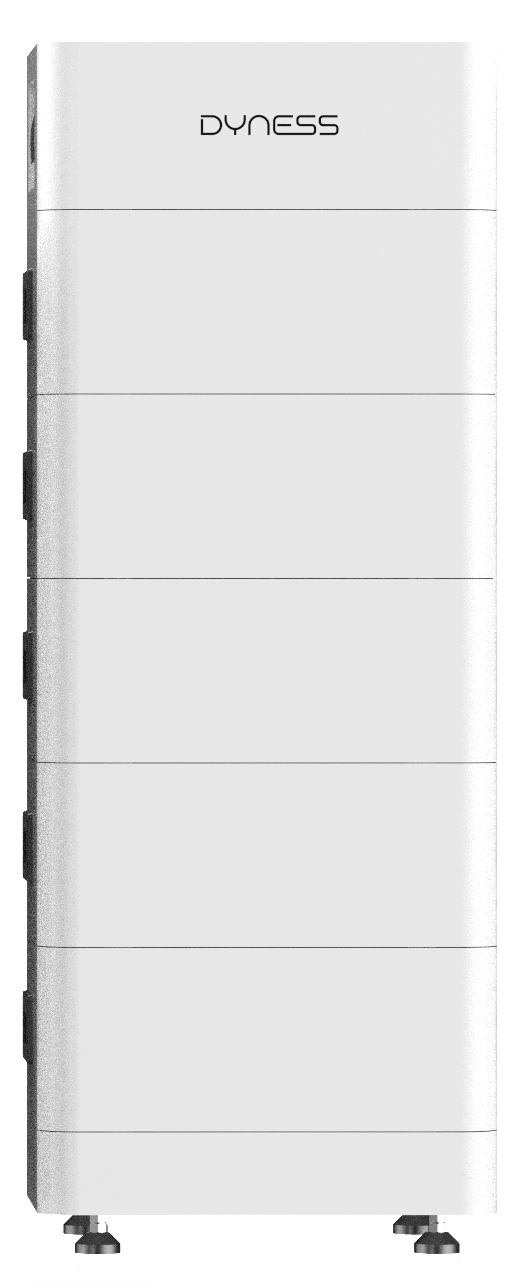

Dyness Tower TS17 17.76 kWh battery
The Dyness Tower S3 battery is a new range of high-voltage, stackable Tower batteries that impress with their simple installation, robust design and modern appearance. The battery is scalable from 7.10 to 21.31 kWh.
New version of the Tower S3 battery module
The Dyness HV9637S is a high-voltage battery module designed for the latest model of the Dyness Tower S3 modular battery system, which builds on the popular Tower series and offers an updated version for residential high-voltage battery storage. The module utilises lithium iron phosphate (LFP) technology, which is suitable for safe operation, a long service life and stable performance. A single module has a capacity of 3.552 kWh and a nominal voltage of 96 V. Thanks to its stackable design, system installation is very straightforward.
New Dyness BDU Tower S3
The Dyness Tower S3 Battery Distribution Unit is a control and distribution unit designed for the latest version of the Dyness Tower S3 high-voltage battery system, which builds on the popular Tower series. It serves as the central component of the entire battery assembly, ensuring communication between individual modules, battery management system (BMS) control and the safe operation of the energy storage system. The BDU S3 enables remote monitoring via an integrated WiFi module and the parallel connection of up to 12 units. The BDU allows for easy integration into both residential and commercial photovoltaic systems. Thanks to communication via CAN and RS485, it is compatible with selected inverters and ensures reliable data transmission across the entire energy system.
Neither the HV9637S battery modules nor the Tower S3 BDU are compatible with the older Tower 2.0 (1.5G) generation or the older Tower 2G and 1G generations.
Advantages of the Dyness Tower S3 battery
- Modular design
- Max. charge/discharge rate 0.6C
- 10-year warranty
- Option to connect up to 12 towers in parallel
Product features
- Usable battery capacity: 16.872 kWh
- Recommended DoD: 95%
- Lithium iron phosphate (LFP) technology
- Nominal voltage: 480 V
- Max. charge/discharge rate: 0.6C
- Weight: 223 kg
- Protection rating: IP 54
- Dimensions: 1320 x 504 x 380 mm (H/W/D)
Contents of delivery
- 1x Tower BDU S3
- 5x HV9637S
Extended warranty: https://dyness.com/warranty
-
Illő tartozékok
-
- Új
- TIPP
Dyness Tower Pro TP11- Gyártó típusa: Dyness Tower Pro TP11
- Cikkszám: 13415
{ "id": "0c3b8823e439504db5c53422998d43b9", "item_brand": "", "item_name": "Dyness Tower Pro TP11", "item_id": "13415", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0c3b8823e439504db5c53422998d43b9" } } -
- Új
- TIPP
Dyness Tower Pro TP7- Gyártó típusa: Dyness Tower Pro TP7
- Cikkszám: 13734
{ "id": "1a0f25e981ad598f92022431e04418df", "item_brand": "", "item_name": "Dyness Tower Pro TP7", "item_id": "13734", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "1a0f25e981ad598f92022431e04418df" } } -
- Új
- TIPP
Dyness Tower Pro TP15- Gyártó típusa: Dyness Tower Pro TP15
- Cikkszám: 13640
{ "id": "8df6f8e061b9586492b16a1a6b4f129c", "item_brand": "", "item_name": "Dyness Tower Pro TP15", "item_id": "13640", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8df6f8e061b9586492b16a1a6b4f129c" } } -
- Új

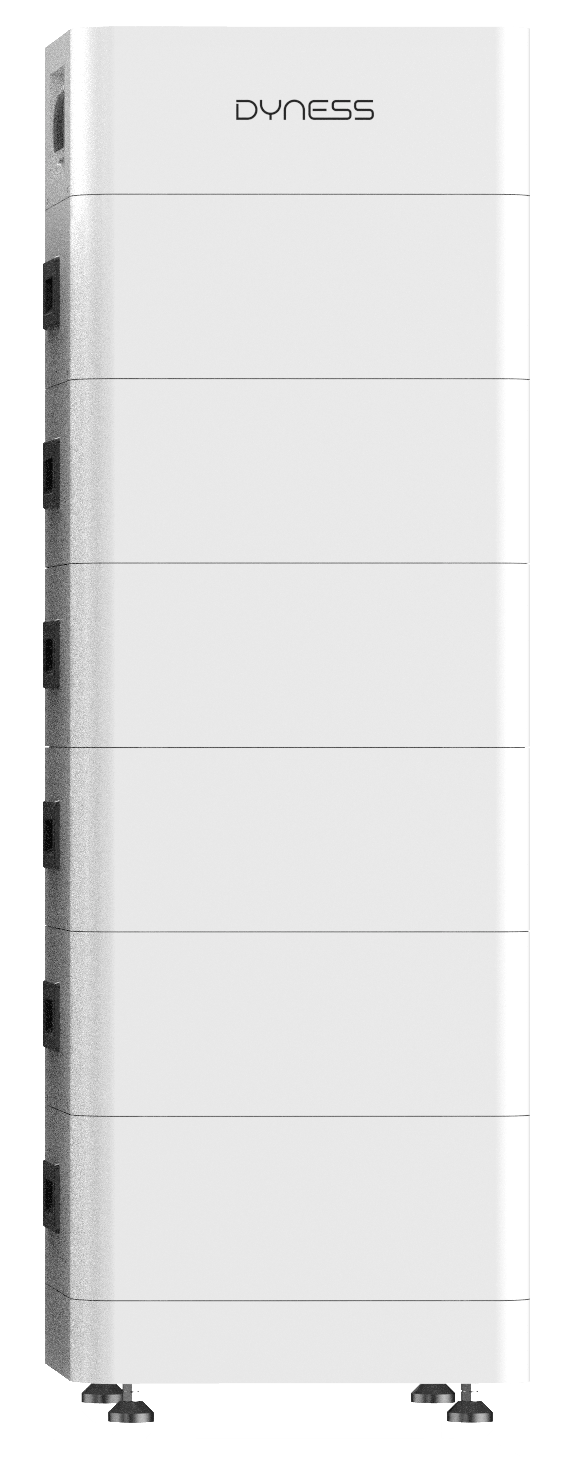

Dyness Tower TS21- Cikkszám: 15784
{ "id": "9ae41fb70e055efc8d0bbf89f1c12247", "item_brand": "", "item_name": "Dyness Tower TS21", "item_id": "15784", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "9ae41fb70e055efc8d0bbf89f1c12247" } } -
- Új

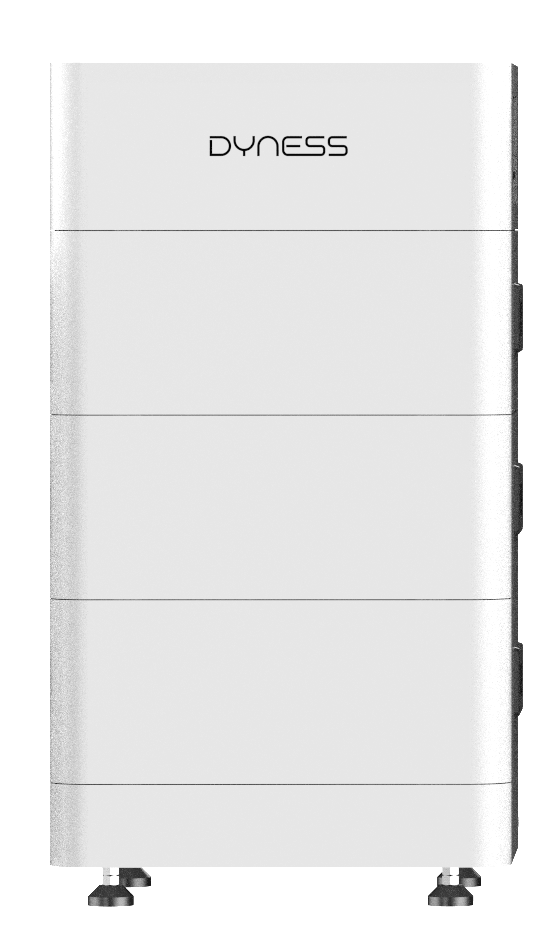

Dyness Tower TS10- Cikkszám: 15781
{ "id": "d6f154dd7cd7574faf879c57e92b238e", "item_brand": "", "item_name": "Dyness Tower TS10", "item_id": "15781", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d6f154dd7cd7574faf879c57e92b238e" } } -
- Új

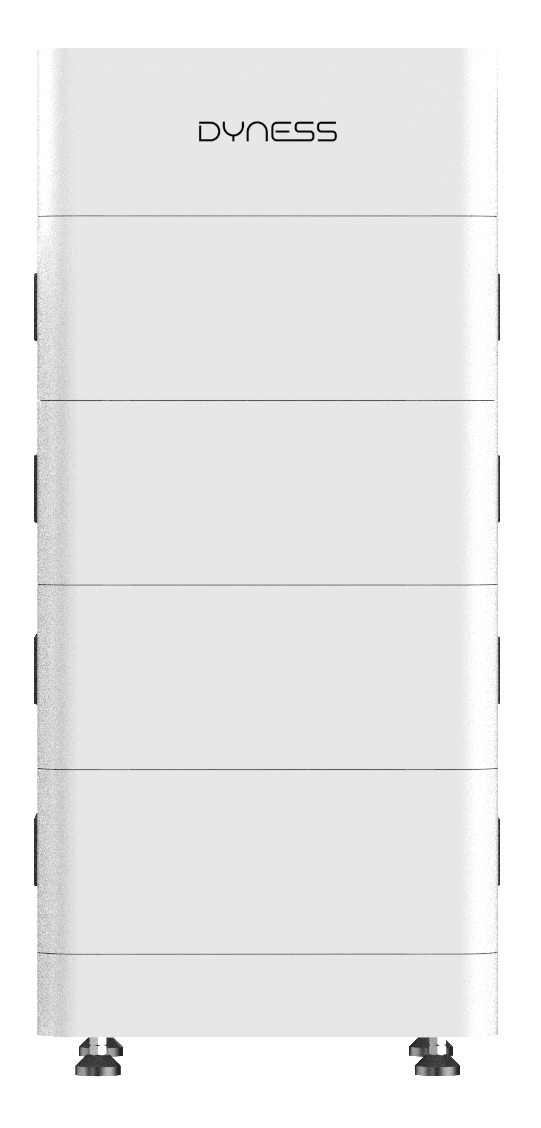

Dyness Tower TS14- Cikkszám: 15782
