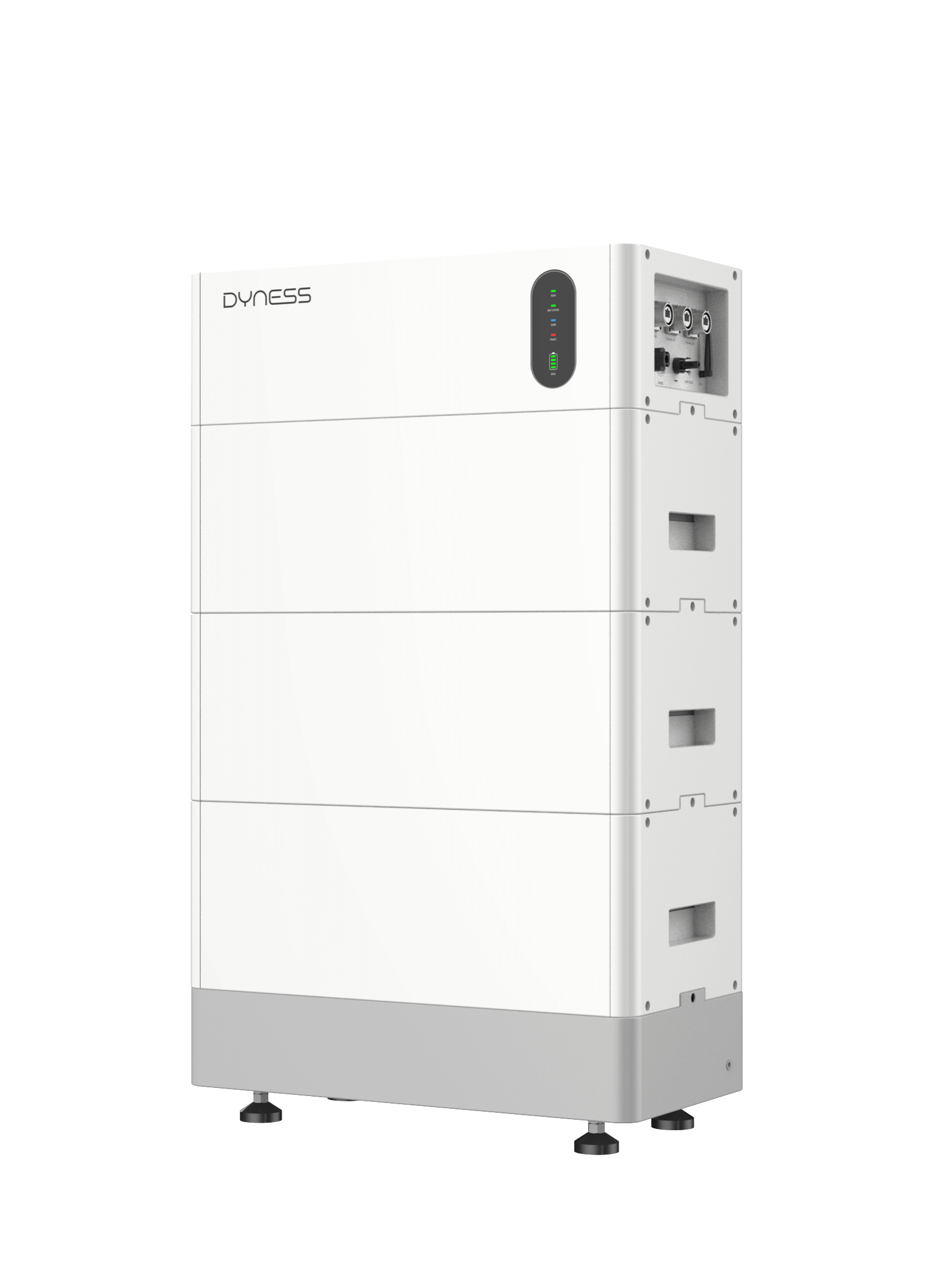

Dyness Tower Pro TP11
| Gyártó típusa: | Dyness Tower Pro TP11 |
|---|---|
| Cikkszám: | 13415 |
| Net capacity: | 10.9 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Cycles: | 8000 |
| Warranty: | 10 |
| Solar battery type: | High voltage battery |
- Új
- TIPP
-
-
{ "id": "e3eabe4718535d03bc177150a6f1d7c4", "item_brand": "", "item_name": "Solinteg MHT-10K-25", "item_id": "14839", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e3eabe4718535d03bc177150a6f1d7c4" } }
-
Tower Pro – the new generation of Dyness battery towers
Dyness Tower Pro is a high-voltage home energy storage system that combines advanced technology with user-friendliness. Thanks to its modular design, it allows for flexible capacity scaling from 7.68 kWh up to 23.04 kWh, whilst connecting up to 12 towers in parallel enables a total capacity of up to 276.48 kWh.
The Tower Pro is equipped with a smart fire suppression system in each battery module, which maximises safety. The module contains several sensors that continuously monitor the temperature within the battery module. If a critical threshold is exceeded, the system activates the fire suppression mechanism and subsequently restarts. The system is designed to intervene in good time against thermal runaway in individual cells, ensuring that, in an emergency, only a single module is affected. Thanks to its plug-and-play design, the module can be easily replaced. The Tower Pro features an automatic heating function which intelligently preheats the battery modules at low temperatures, ensuring safe charging and reliable operation down to -20 °C. Controller and balancing at the individual module level allow the system to be expanded for up to three years from the date of initial commissioning.
The recommended maximum depth of discharge (DoD) is 95 per cent.
Product benefits:
- Maximum safety thanks to an integrated fire suppression system (aerosol)
- Option to combine old and new battery modules (up to 3 years old)
- Fast charging up to 1C
- Easy installation – stackable modules
- LED display on the BDU unit
- Automatic heating function
Product features of the Dyness Tower Pro TP11:
- Battery type: LiFePO4
- Total battery capacity: 11.5 kWh
- Usable battery capacity: 10.9 kWh (95% DoD)
- Number of battery modules: 3
- Operating voltage: 252–324 V
- Communication: CAN, RS485, RS232
- Discharge temperature range: -20 °C to 55 °C
- Charging temperature range: -20 °C to 55 °C
- Remote battery update capability
- Dimensions: 587 × 1009 × 310 mm (W × H × D)
- Battery weight: 150 kg
- Protection class: IP 55
- Service life: ≥8,000 cycles
- Warranty: 10 years
Contents of delivery:
- 3x HV9640 battery modules
- 1x Tower Pro BDU
Compatible inverters:
- GoodWe ET Plus 5-10 series
- GoodWe ET 15–30 series
- GoodWe ET G2 range
The Dyness Tower Pro is the ideal solution for households and small businesses looking for an efficient and reliable energy storage system that can be customised and easily integrated into existing energy systems.
-
