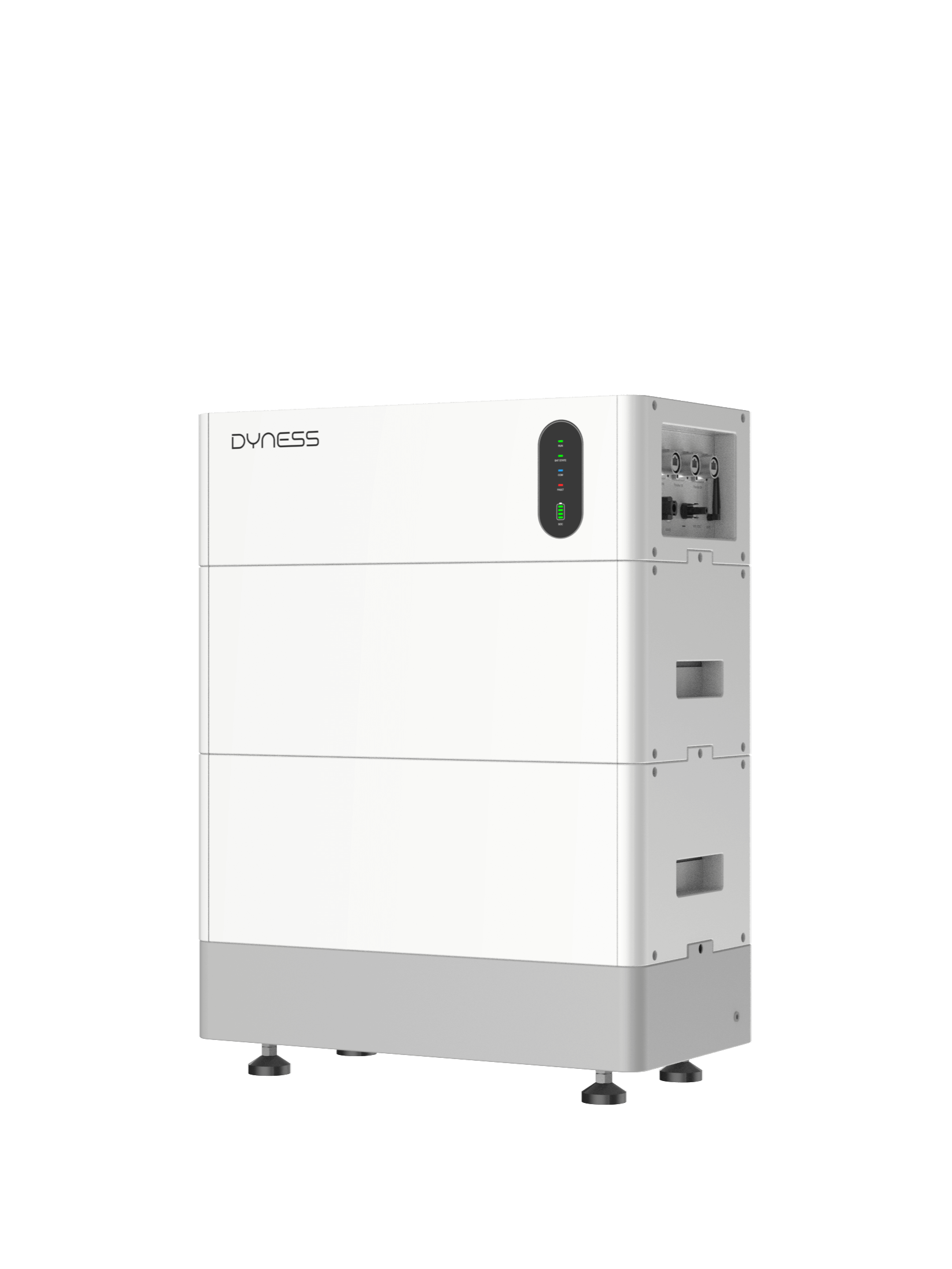

Dyness Tower Pro TP7
| Gyártó típusa: | Dyness Tower Pro TP7 |
|---|---|
| Cikkszám: | 13734 |
| Net capacity: | 7.3 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Cycles: | 8000 |
| Warranty: | 10 |
| Solar battery type: | High voltage battery |
- Új
- TIPP
-
-
{ "id": "e3eabe4718535d03bc177150a6f1d7c4", "item_brand": "", "item_name": "Solinteg MHT-10K-25", "item_id": "14839", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e3eabe4718535d03bc177150a6f1d7c4" } }
-
Tower Pro – the new generation of Dyness battery towers
Dyness Tower Pro is a high-voltage home energy storage system that combines advanced technology with user-friendliness. Thanks to its modular design, it allows for flexible capacity scaling from 7.68 kWh up to 23.04 kWh, whilst a total capacity of up to 276.48 kWh can be achieved by connecting up to 12 towers in parallel.
The Tower Pro is equipped with a smart fire suppression system in each battery module, maximising safety. The module contains several sensors that continuously monitor the temperature within the battery module. If a critical threshold is exceeded, the system triggers the fire suppression mechanism, followed by a restart. The system is designed to intervene in good time against thermal runaway in individual cells, ensuring that, in an emergency, only a single module is affected. Thanks to plug & play, this module can be easily replaced. Controller and balancing at the individual module level allow the system to be expanded up to three years after initial commissioning.
The recommended maximum depth of discharge (DoD) is 95%.
A combiner box for the Dyness Tower Pro is not yet available.
Product benefits:
- Maximum safety thanks to the integrated fire suppression system (aerosol)
- Option to combine old and new battery modules (up to 3 years old)
- Fast charging up to 1C
- Easy installation – stackable modules
- LED display on the BDU unit
Product features of the Dyness Tower Pro TP7:
- Battery type: LiFePO4
- Total battery capacity: 7.7 kWh
- Usable battery capacity: 7.3 kWh (95% DoD)
- Number of battery modules: 2
- Operating voltage: 168–216 V
- Communication: CAN, RS485, RS232
- Temperature range: discharge: -10 °C to 55 °C
- Temperature range: charging: 0 °C to 55 °C
- Remote battery update capability
- Dimensions: 587x788x310 mm (WxHxD)
- Battery weight: 109.5 kg
- Protection class: IP 55
- Service life: ≥8,000 cycles
- Warranty: 10 years (7 standard + 3 after registration)
Contents:
- 2x HV9640 battery modules
- 1x Tower Pro BDU
Compatible inverters:
- GoodWe ET G2 series
Dyness Tower Pro is the ideal solution for households and small businesses looking for an efficient and reliable energy storage system that can be customised and easily integrated into existing energy systems.
-
