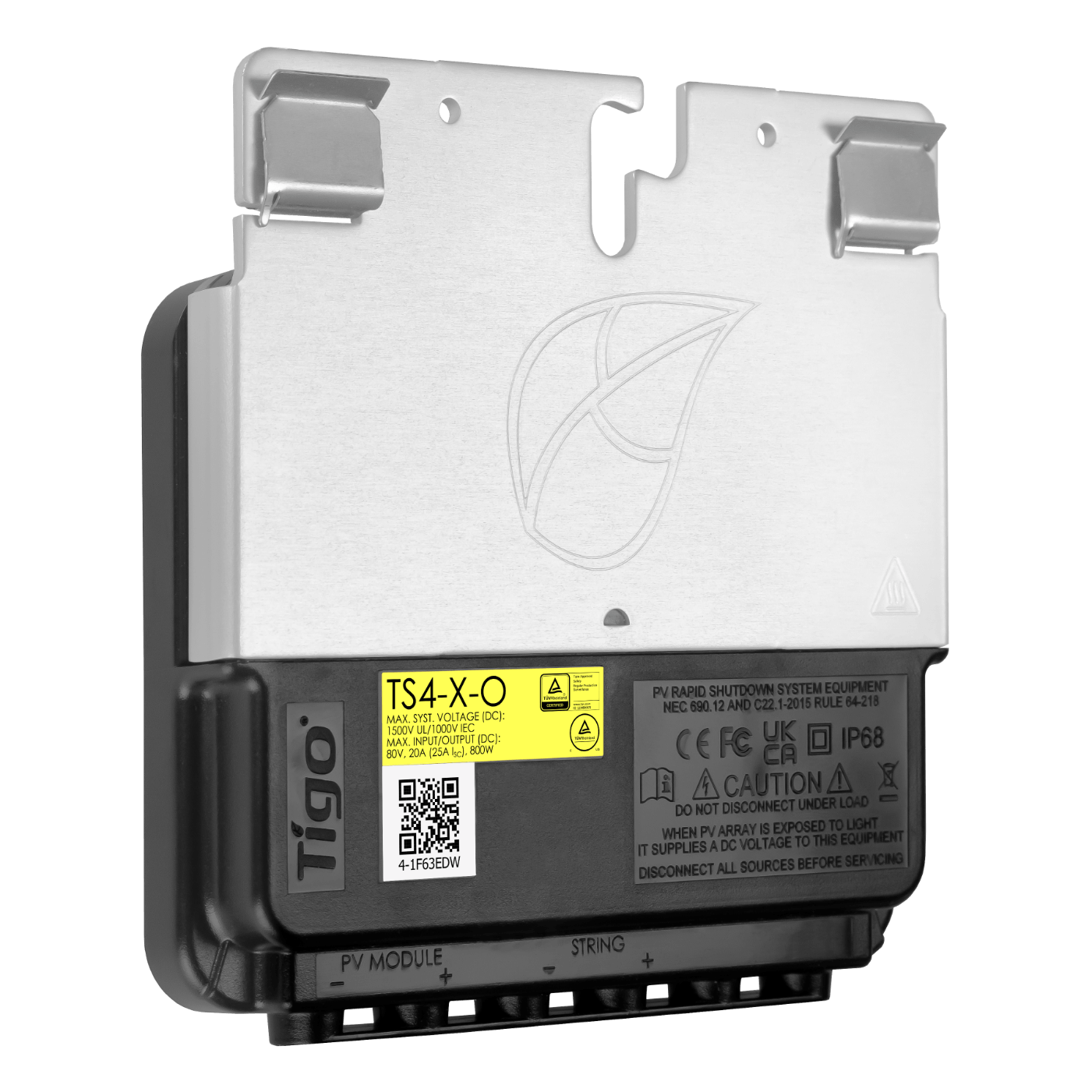

Tigo TS4-X-O up to 800 W modules (MC4)

Tigo TS4-X-O DC optimiser for panels with an output of up to 800 W

The latest Tigo TS4-X-O optimiser can monitor and optimise the entire installation at the panel level. Thanks to panel-level optimisation, installations with partial shading or varying panel orientations can also be implemented. Production data is visualised, and any reductions in output caused by dirt or shading are also displayed. It is also possible to switch off the entire array of panels without applying voltage. You have a choice: you can either equip only the affected panels with panel optimisers, or the entire system. The new X series also allows for combination with the previous TS4-A-O series and even with disconnectors from the TS4-A-F series. Communication between optimisers from both the A and X series takes place via WiFi using the TAP unit and CCA Kit. If you wish to combine the system with disconnectors from the F series, PLC communication via RSS transmitters is also required. The advantage is that the new X series supports dual communication – both WiFi and PLC – giving you the added assurance of multi-factor rapid shutdown for maximum safety of the PV system.

When using optimisers, it is necessary to check compatibility with the relevant inverters and meet individual technical requirements. A list of tested inverters can be found here.

Product benefits

• All the benefits of optimisation
• Maximum input current (Isc): 25 A
• Panel-level monitoring minimises operating costs throughout the system’s lifetime
• Greater safety thanks to rapid shutdown at panel level and dual communication
• 25-year manufacturer’s warranty upon registration with Tigo Cloud
• Genuine MC4 connector from Stäubli

Product features of the TS4-X-O DC optimiser

• Maximum panel power: 800 W
• Maximum input current: 25 A
• Maximum output current: 20 A
• Only the panels in question can be optimised
• Monitoring for comprehensive panel-level monitoring (integration of an inverter and weather station is also possible).
• Panel-level shutdown (in accordance with NEC 2017)
• Input cable length per panel: 0.62 m
• Length of output cable for stringing: 1.20 m
• Protection rating: IP68
• IEC 1000 V certification – suitable for systems up to 1000 V per string

For complete system monitoring and remote management, connection to the Tigo TAP (part no. 5073) and the separately available Tigo CloudConnect Advance Kit communication unit (part no. 4918) is required
