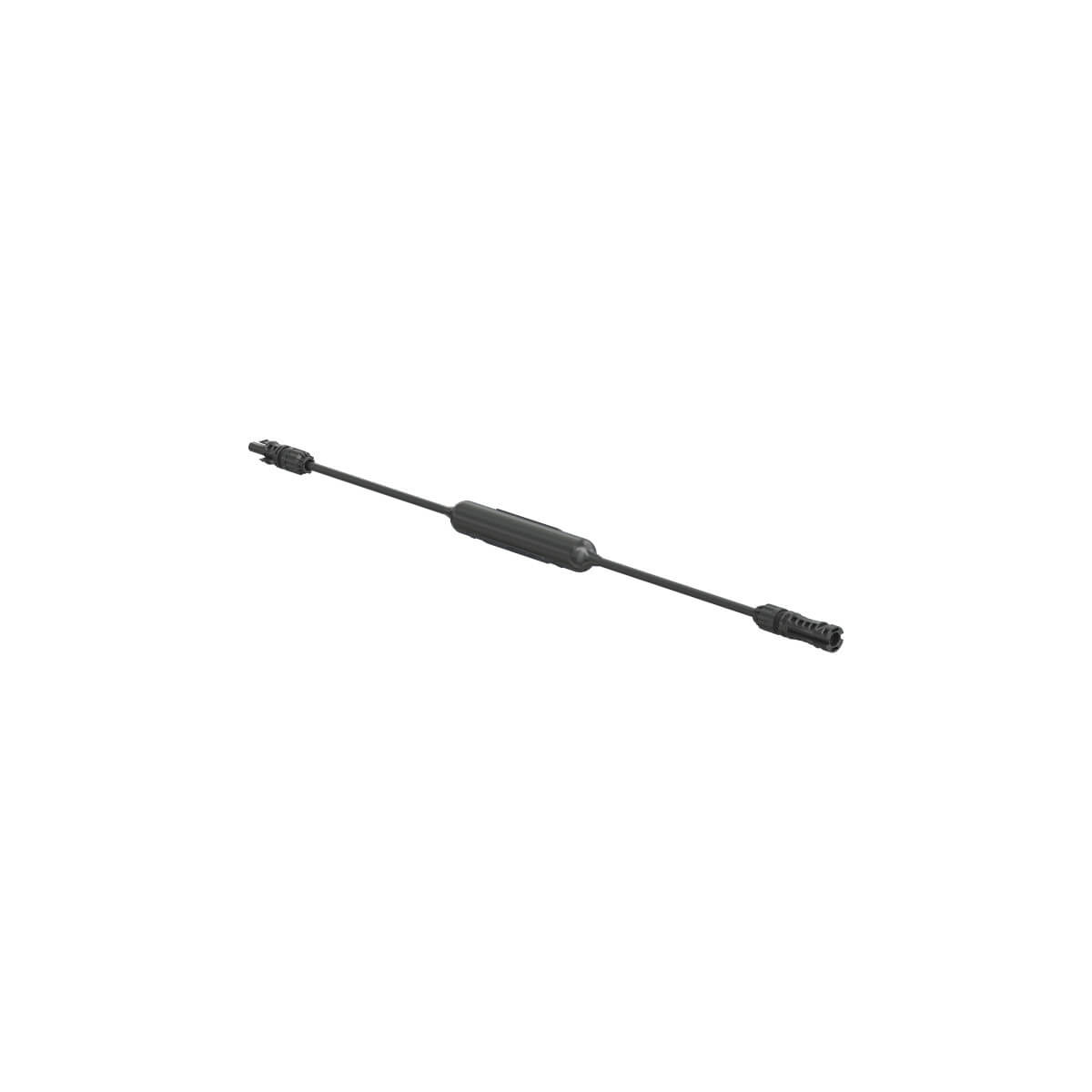

Stäubli MC4-EVO 2 in-line fuse 1,500 V, 20 A
| Gyártó típusa: | PV-K/1500ILF3-20/6E-0063 |
|---|---|
| Gyártói cikkszám: | 32.0330 |
| Cikkszám: | 8991 |
| Darab csomagolási egységenként: |
|
| Accessory type: | Plugs |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
Available from stock
Termékszám:
8991
Leírás
Stäubli Multi Contact MC4-EVO 2 in-line fuse for system voltages up to 1,500 V DC / 20 A
Stäubli's MC4 and MC4-EVO 2 connectors are a price-efficient and high-quality solution for photovoltaic systems with DC voltages of up to 1500 V and 100 A. The connectors are available for cable cross-sections of up to 10 mm²/ 8 AWG. The connectors meet the requirements of IEC 61984:2008 (connectors – safety requirements and tests) for general low-voltage DC applications.
The scope of delivery includes the socket as well as the inner part.
Product advantages
- Low heat generation
- Minimum energy loss
- Certified according to TÜV Rheinland 2PfG 2380
- Highest protection category IP65
- Can also be used in systems beyond the photovoltaic sector
Product features Stäubli MC4-EVO 2 in-line fuse 1,500 V DC / 20 A
- Cable length: 59 cm
- Cable cross section: 6 mm²
- Rated voltage: 1,500 V DC
- Rated current: 20 A
- Ambient temperature: -40 °C to +85 °C
- Protection category: IP 65
The DC cabling system offers first-class quality and outstanding features. The unique manufacturing process with vulcanization permanently delivers the highest IP protection and offers superior performance even under harsh climatic conditions.
-
