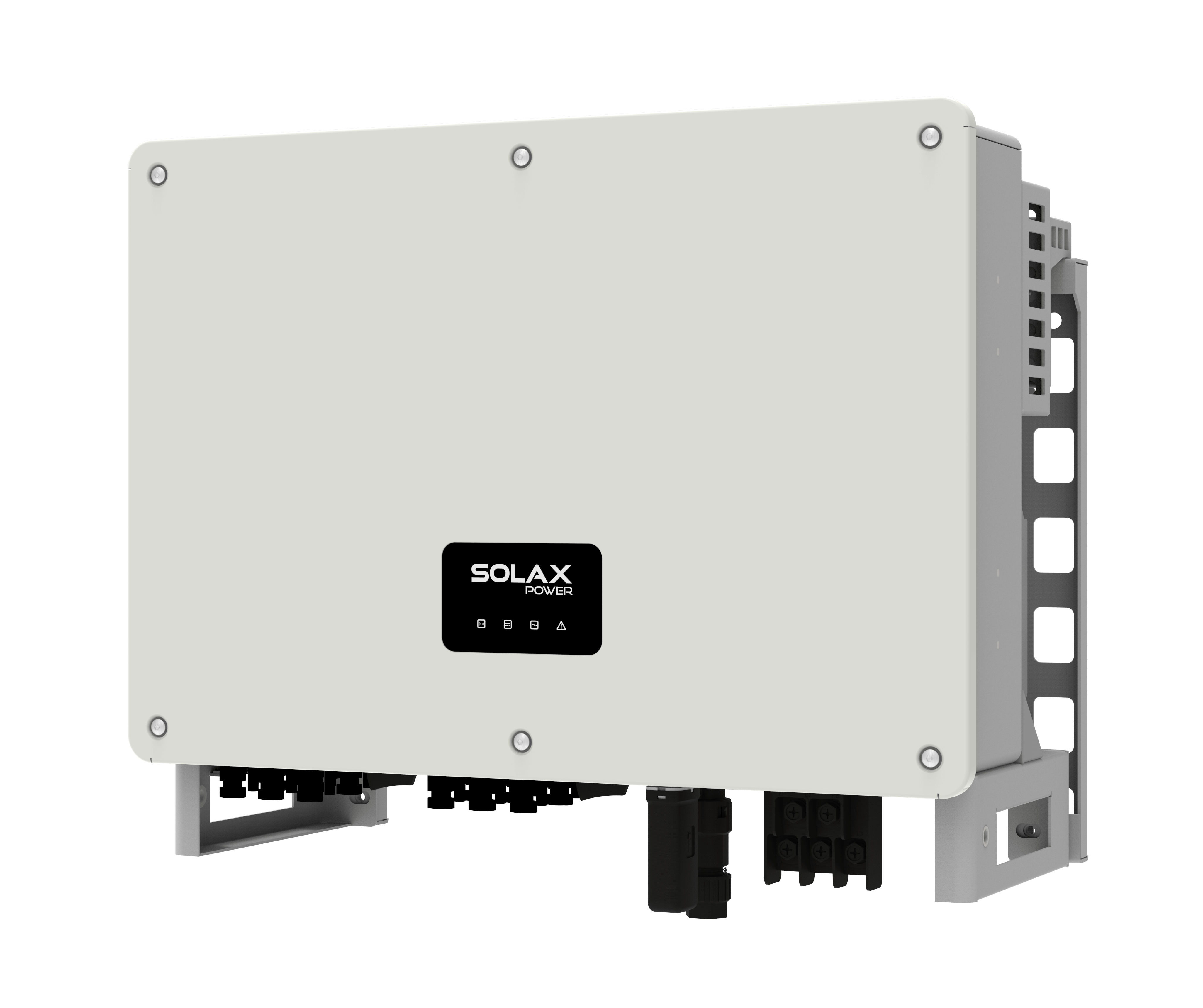

SolaX X3-MGA-60K-G2 with AFCI
| Gyártó típusa: | X3-MGA-60K-G2 |
|---|---|
| Gyártói cikkszám: | 1030120015 |
| Cikkszám: | 11342 |
| Phases: | 3 |
| Inverter type: | PV inverter, Project inverter |
| MPP-Tracker: | 6 |
| AC power: | 60 kW |
| Warranty: | 5+1 years |
| Communication: | RS485 / USB / DRM |
| MPP voltage range: | 180-1000 Volt |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- % Sale
Termékszám:
11342
-
-
{ "id": "5ebf7b5369be5487b05d5738c639fbde", "item_brand": "", "item_name": "3x SolaX current transformers 200A/40mA for M3-40", "item_id": "13920", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "5ebf7b5369be5487b05d5738c639fbde" } } -
{ "id": "bb9dbbfbe0a551cbbebf3fff9dbab1fc", "item_brand": "", "item_name": "SolaX Pocket Wifi + LAN", "item_id": "11269", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "bb9dbbfbe0a551cbbebf3fff9dbab1fc" } } -
{ "id": "bbfa80ba19455387bf67f4c624339922", "item_brand": "", "item_name": "SolaX M3-40 3-phase meter 100A/40mA", "item_id": "13422", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "bbfa80ba19455387bf67f4c624339922" } } -
{ "id": "ce4ec0a32a6d5ff696b2d848fac307c2", "item_brand": "", "item_name": "SolaX DataHub1000", "item_id": "10561", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ce4ec0a32a6d5ff696b2d848fac307c2" } }
-
Leírás
SolaX X3 MEGA G2 three-phase inverter with a power output of 60 kW
The SolaX X3-MEGA G2 inverter with a power output of 60 kW is designed to maximise the performance of photovoltaic power plants. Thanks to six MPPT trackers and two strings on each MPPT tracker, this model enables efficient energy conversion across varying panel inclinations and orientations. High efficiency of up to 98.4% and a wide MPPT voltage range from 180 to 1000 Vdc ensure excellent inverter performance. Furthermore, thanks to its IP66 protection rating, this inverter is suitable for use in harsh outdoor conditions.
Product benefits
- Maximum efficiency of 98.4% ensures high energy conversion efficiency.
- 6 MPPT channels for power optimisation
- IP66 rating allows for installation even in harsh environments
- A wide MPPT voltage range allows for flexibility in PV system configuration.
- Smart air cooling function extends the fan’s service life
- AFCI protection
- 150% DC input over-rating, 110% AC output overload
Features of the SolaX X3-MGA-60K-G2 inverter
- Power: 60 kW
- Number of phases: 3
- Number of MPPT trackers: 6 (2/2/2/2/2/2 strings)
- MPPT operating voltage range: 180–1000 Vdc
- Maximum input current per MPPT: 32 A
- Efficiency: 98.4%
- Protection rating: IP66
- Dimensions: 630 x 521 x 286 mm
- Weight: 45.5 kg
- Warranty: 5 years + 1 year parts warranty (after connecting the inverter to the SolaX cloud)
-
