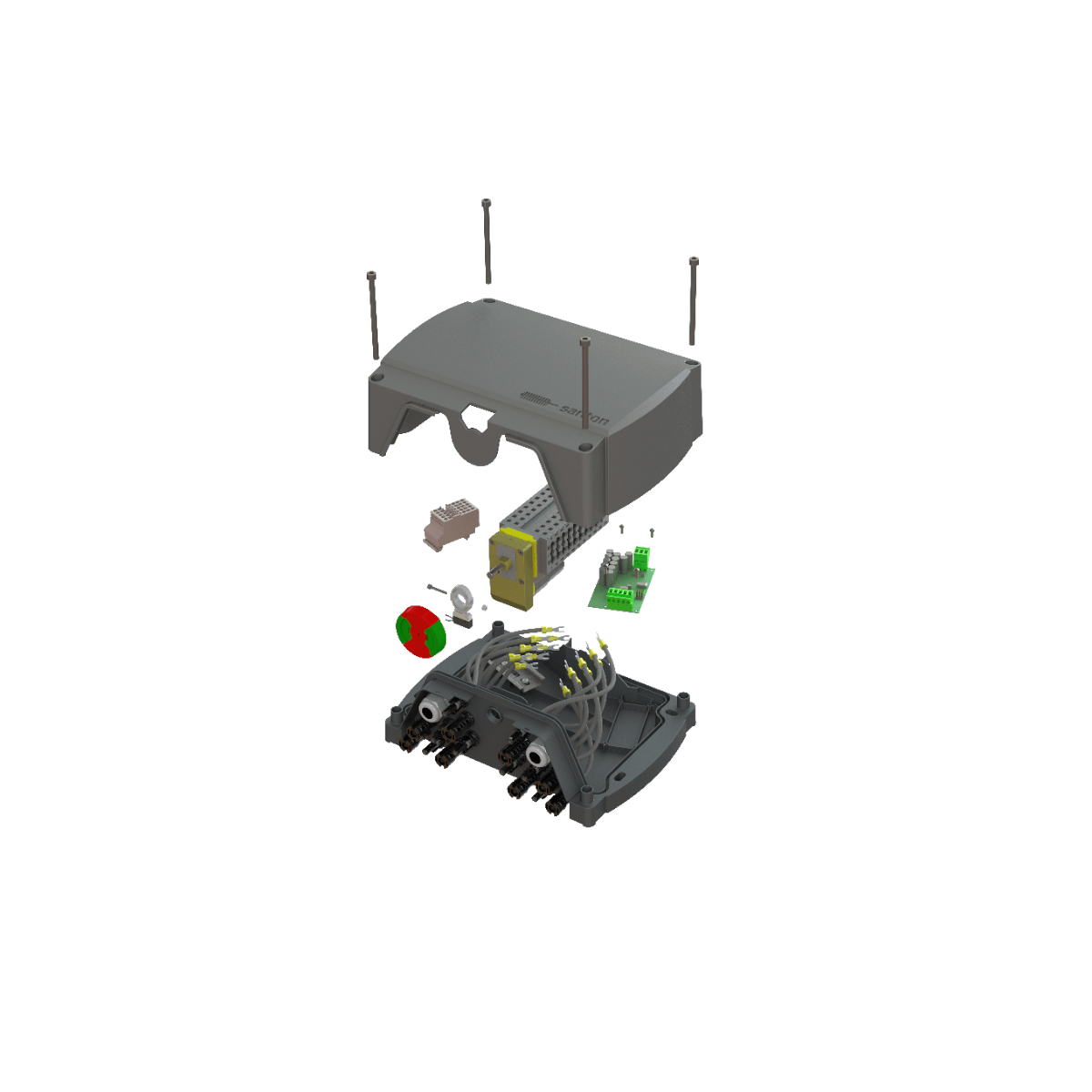

Firefighter safety switch Santon for 4 MPP, 40A, MC4
| Gyártói cikkszám: | PFSHP-18-MC4 |
|---|---|
| Cikkszám: | 9505 |
| Darab csomagolási egységenként: |
|
| Accessory type: | Firefighter breaker |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
Available from stock
Termékszám:
9505
Leírás
Secure disconnection of the DC lines with the Santon firefighter safety switch, complies with the new standard
Manufacturer's designation: PFSHP-18-MC4
The Santon firefighter protection switch safely disconnects all connected DC lines in the event of a power failure or remote tripping. The connection from the switch to the inverter is thus voltage-free and the fire department can safely extinguish in this area.
Advantages Santon firefighter safety switch
- Complies with new standard
- Compact design with IP65
- Motorized switch
- Shutdown in case of power failure secured via capacitors
- Automatic connection on return to the public grid
Product features firefighter safety switch Santon for 4 MPP, 40A, MC4
- Up to 1000 V DC voltage and up to 40 A possible
- Connection for 4 separate strings
- In accordance with application rule VDE-AR-E2100-712 (version 2018-12) and OVE guideline R11-1 (version 2022-05-01)
- Classifications according to IEC EN 60947-3:2009/A1:2012/C1:2013/A2:2015 Cat PV-1 based on positive and negative pole connection
- Dimensions: 300 x 231 x 120 mm (L x W x H)
