enwitec overvoltage protection DC type II, 4 MPPT, terminals
| Gyártói cikkszám: | 10013377 |
|---|---|
| Cikkszám: | 3761 |
| Darab csomagolási egységenként: |
|
| Accessory type: | Overvoltage protection |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- Maradék mennyiség
Termékszám:
3761
Leírás

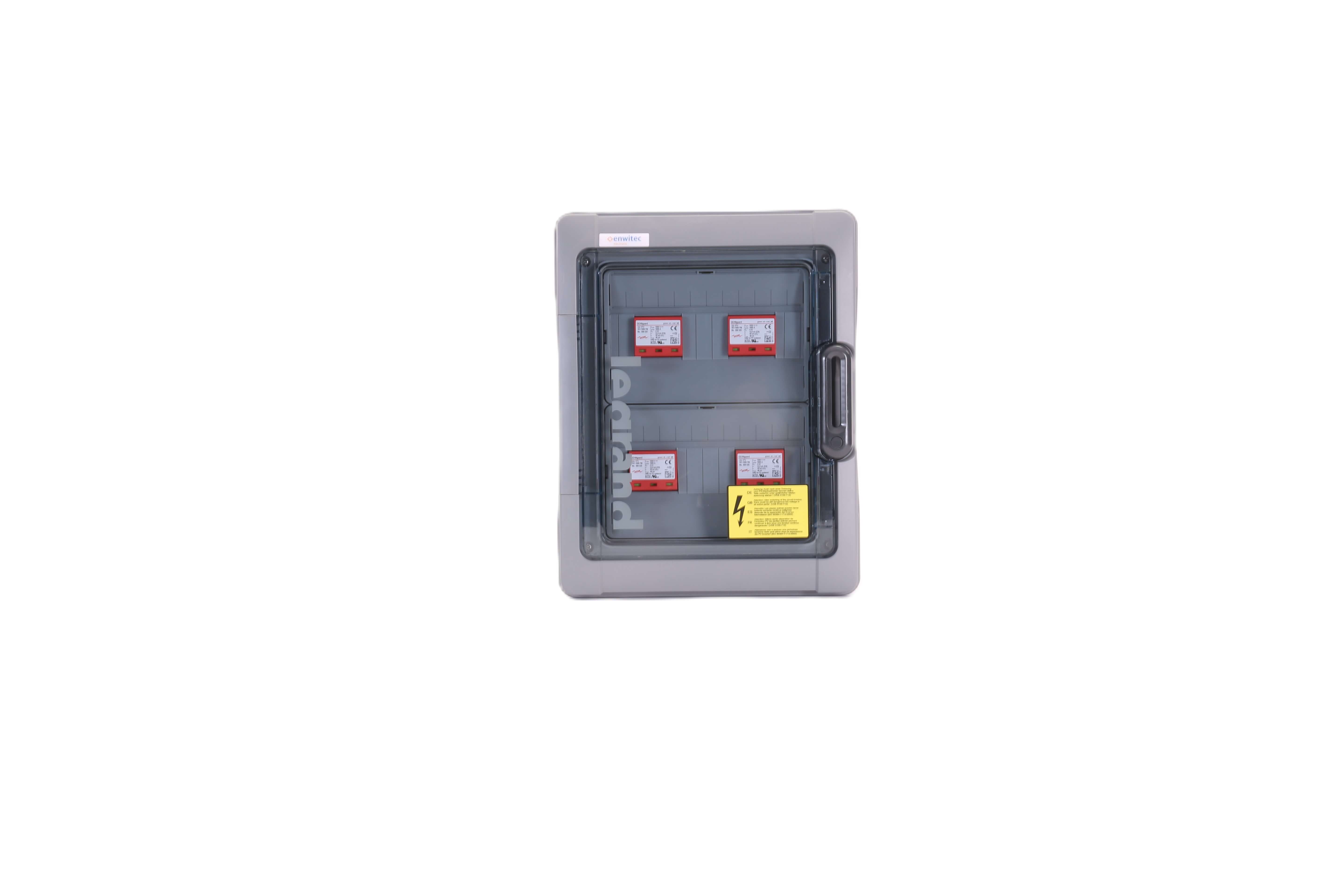

DC overvoltage protection, type II for 4 MPP trackers
Area of application: according to VDE 0100-443 and 0100-534, building without external lightning arrester

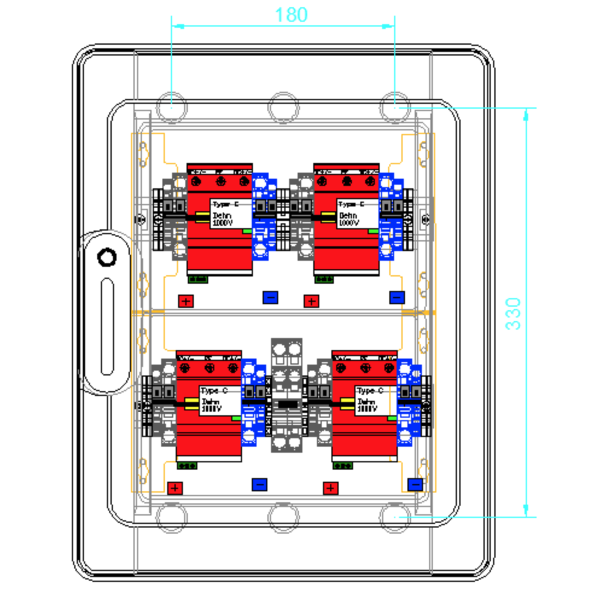

Compact and pre-fabricated box with type II surge arresters for the DC side. Suitable for INV with only 4 MPP trackers up to 1000 V DC voltage. This overvoltage box has 4 input terminals each with spring-type terminal contacts per pole and arrester. Here, cable end sleeves are not required. This results in an even larger contact area and low contact resistance. The output terminal is also screwless.
Specifications:
- Arrester elements of type II for 4 MPP trackers
- 4 input terminals up to 6 mm² each
- 1 input terminal up to 10 mm each
- IP65
- 340 x 432 x 161 mm wall mount
-
