Stäubli solar cable extension, MC4-Evo 2A, 6 mm², 1 m
| Gyártó típusa: | PV-K6IEC62930/EVO 2A/6-B/EVO 2A/6-S/100 |
|---|---|
| Gyártói cikkszám: | 13002844-100 |
| Cikkszám: | 16683 |
| Darab csomagolási egységenként: |
|
| Accessory type: | DC solar cable |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- Új
Termékszám:
16683
Leírás

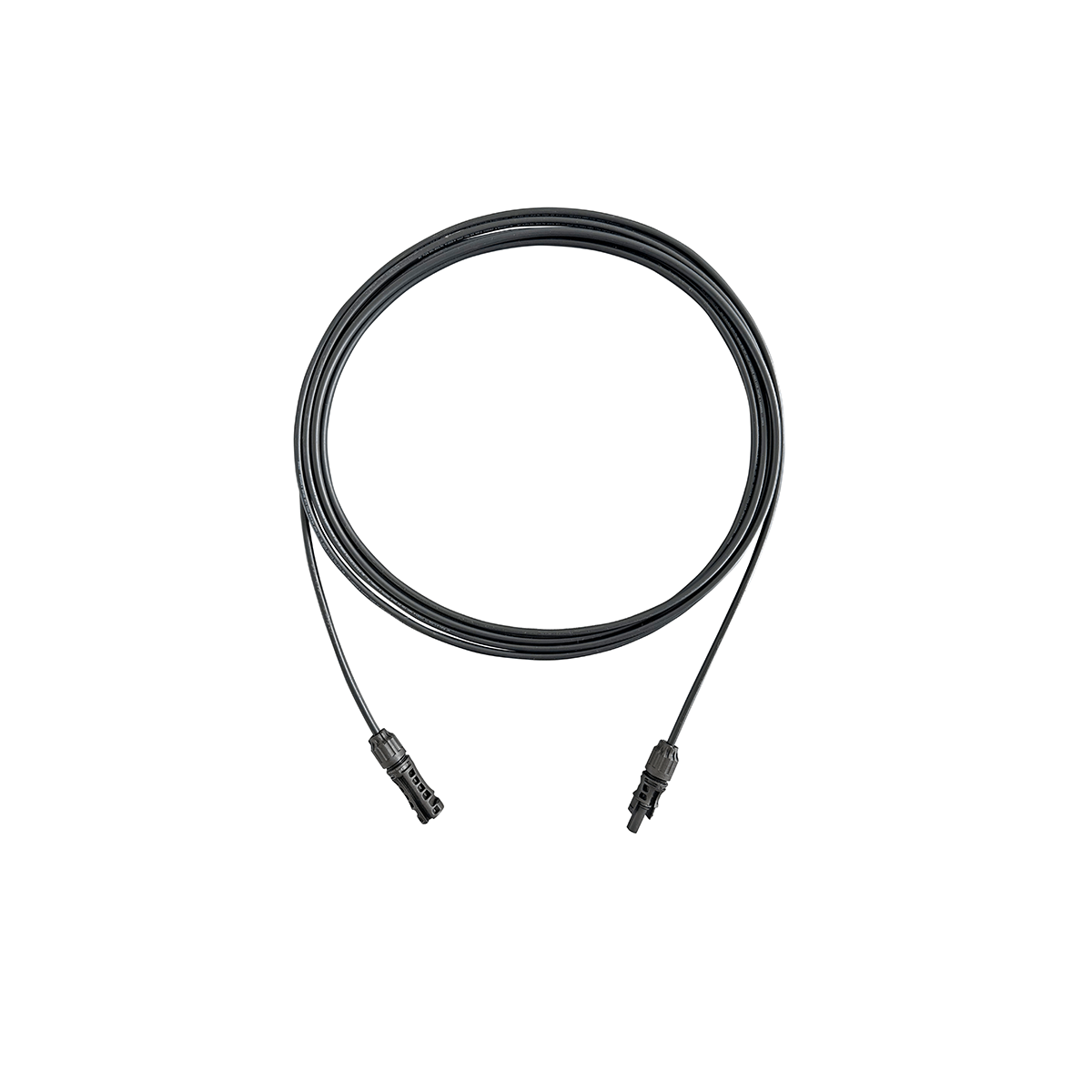

Stäubli Solar Cable Extension MC4-Evo 2A, 6 mm², 1 m
The Stäubli MC4-Evo 2A cable assembly offers a reliable and efficient solution for connecting PV components. These DC cable extensions are certified to IEC 62930 and ensure safe power transmission at a rated voltage of up to 1500 V DC. Thanks to their robust design and high-quality materials, including MC4-Evo 2A connectors, these cables are ideal for demanding environments and guarantee a long service life.
Available in various lengths (1 m, 2 m, 5 m & 10 m) and cross-sections (4 mm² & 6 mm²) at Memodo!
Product benefits
- Certified to IEC 62930 for maximum safety
- Suitable for rated voltages up to 1500 V DC
- Robust construction for extreme temperatures (-40 °C to +85 °C)
- High reliability thanks to genuine Stäubli connectors
- Versatile applications with various lengths (1, 2, 5 & 10 m) and cross-sections (4 & 6 mm²) available from Memodo
- Ideal for professional PV systems and industrial applications
Technical specifications
- Connector: MC4-Evo 2A
- Rated voltage: DC 1500 V
- Conductor cross-section: 6 mm²
- Ambient temperature range: -40 °C to +85 °C (IEC and UL)
- Temperature range for transport/storage: -30 °C to +60 °C
- Relative humidity for transport/storage: < 70 %
- Certification: IEC 62930, UL 6703
- Safety note: Do not disconnect whilst under load
- Plug-compatible with the original MC4 connector family.
-
