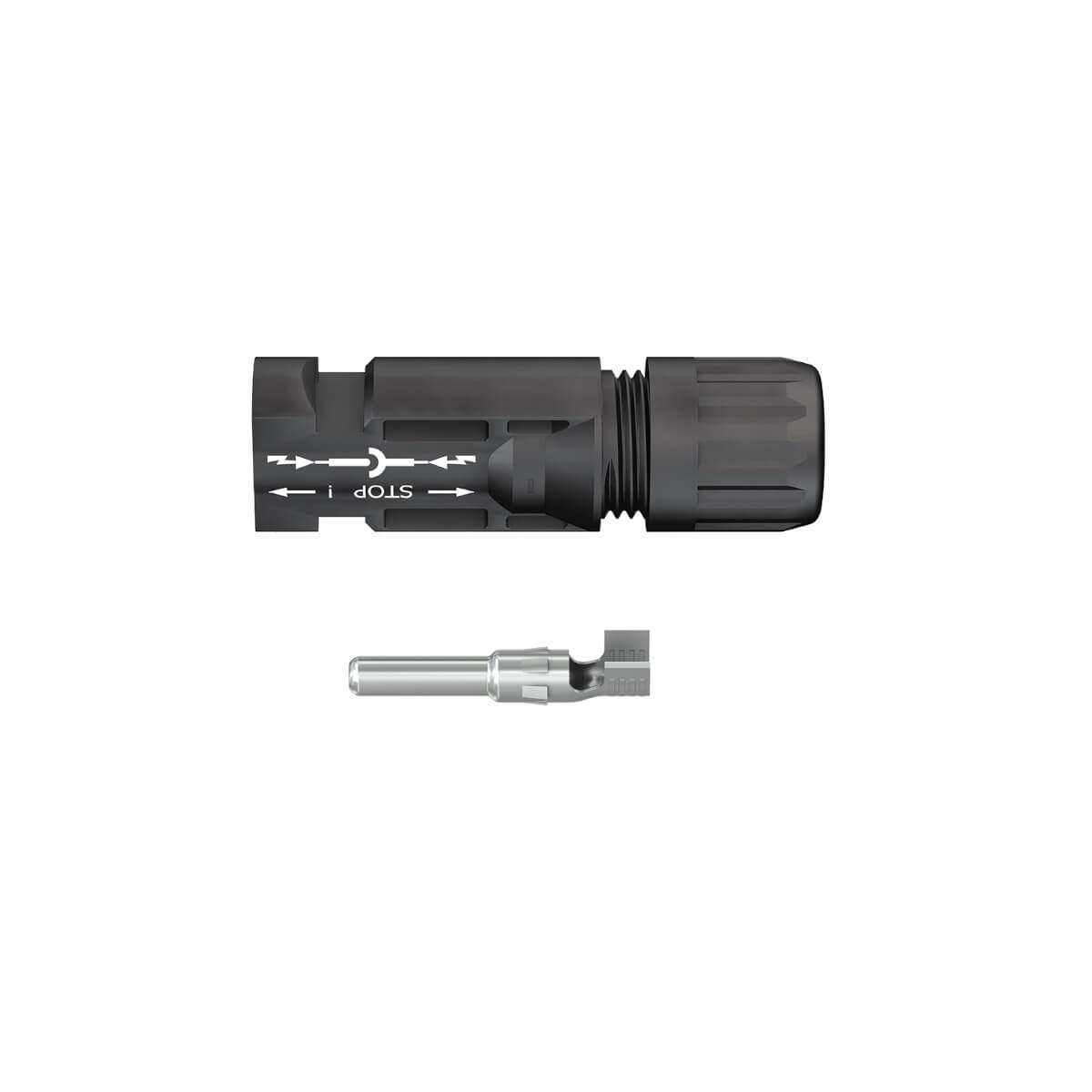

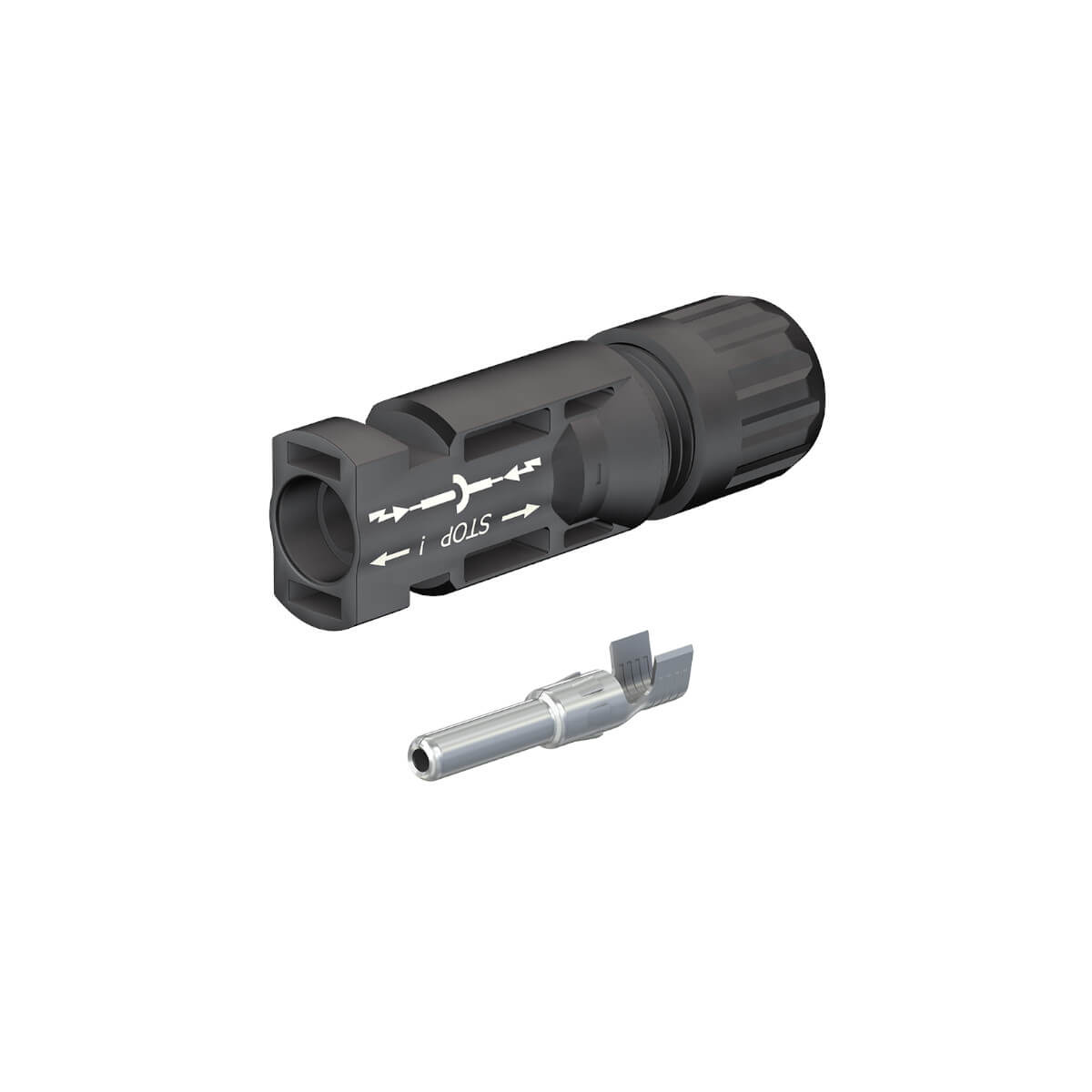

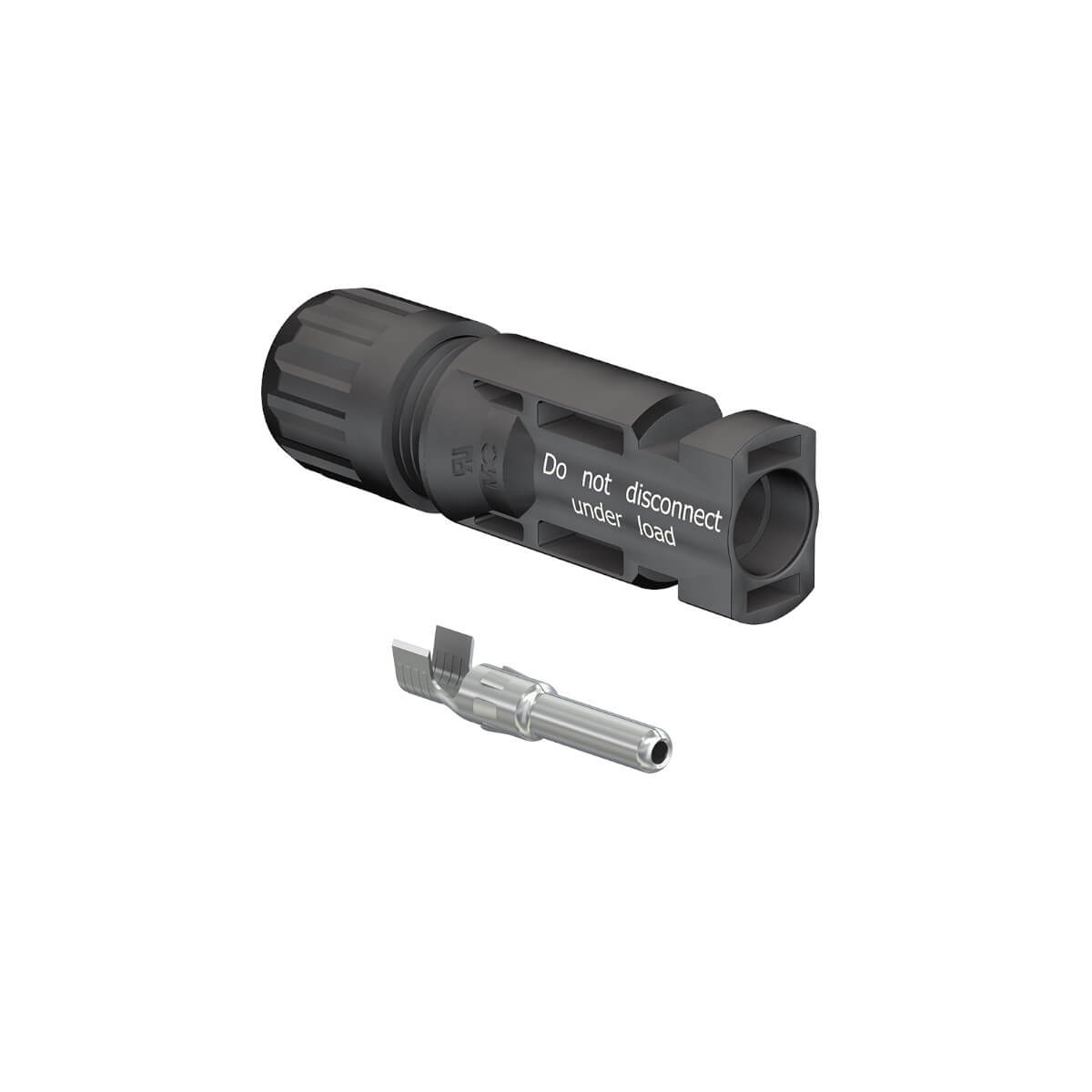

Stäubli MC4 plug, 10 mm² II, 5.9–8.8 mm
| Gyártó típusa: | PV-KST4/10II |
|---|---|
| Gyártói cikkszám: | 32.0035P0100 |
| Cikkszám: | 16177 |
| Darab csomagolási egységenként: |
|
| Accessory type: | Plugs |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- Új
Termékszám:
16177
Leírás
Stäubli Multi-Contact MC4 connectors for cables with a diameter of 5.9–8.8 mm
Stäubli connectors offer a cost-effective, high-quality solution for Photovoltaic systems.
The scope of delivery includes the housing and the inner assembly.
Product benefits
- Significant time savings thanks to quick connection
- Approved by TÜV and JET
Product features Stäubli Multi-Contact MC4 connectors for cables with a diameter of 5.9–8.8 mm
- DC voltage up to 1000 V and 45 A, tested to IEC 62852
- O.D. (outer diameter) 5.9–8.8 mm
The original solution for secure connections of solar cables. Ensure you use the correct crimping tool and select the appropriate size for the cross-section of the solar cables being installed.
-
