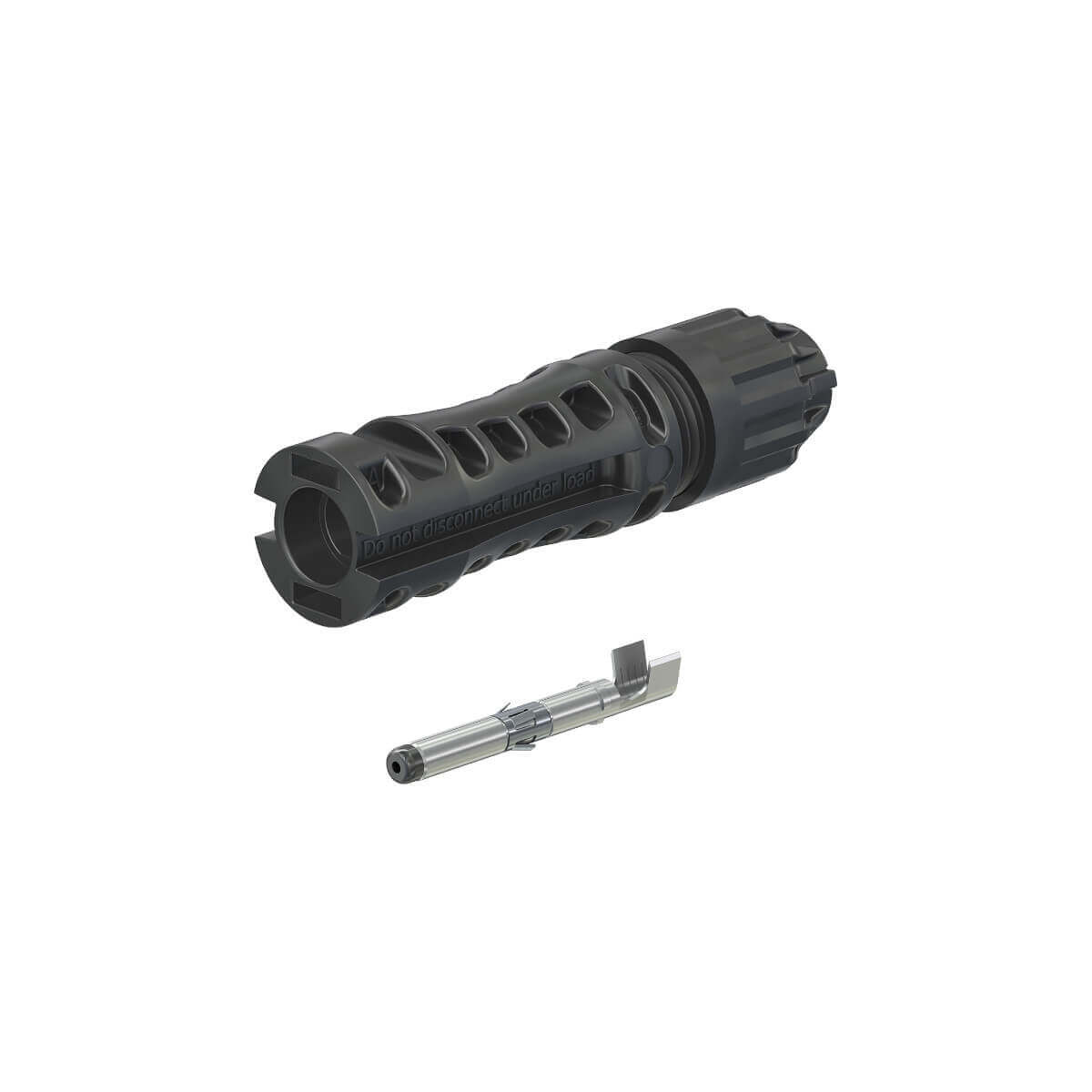

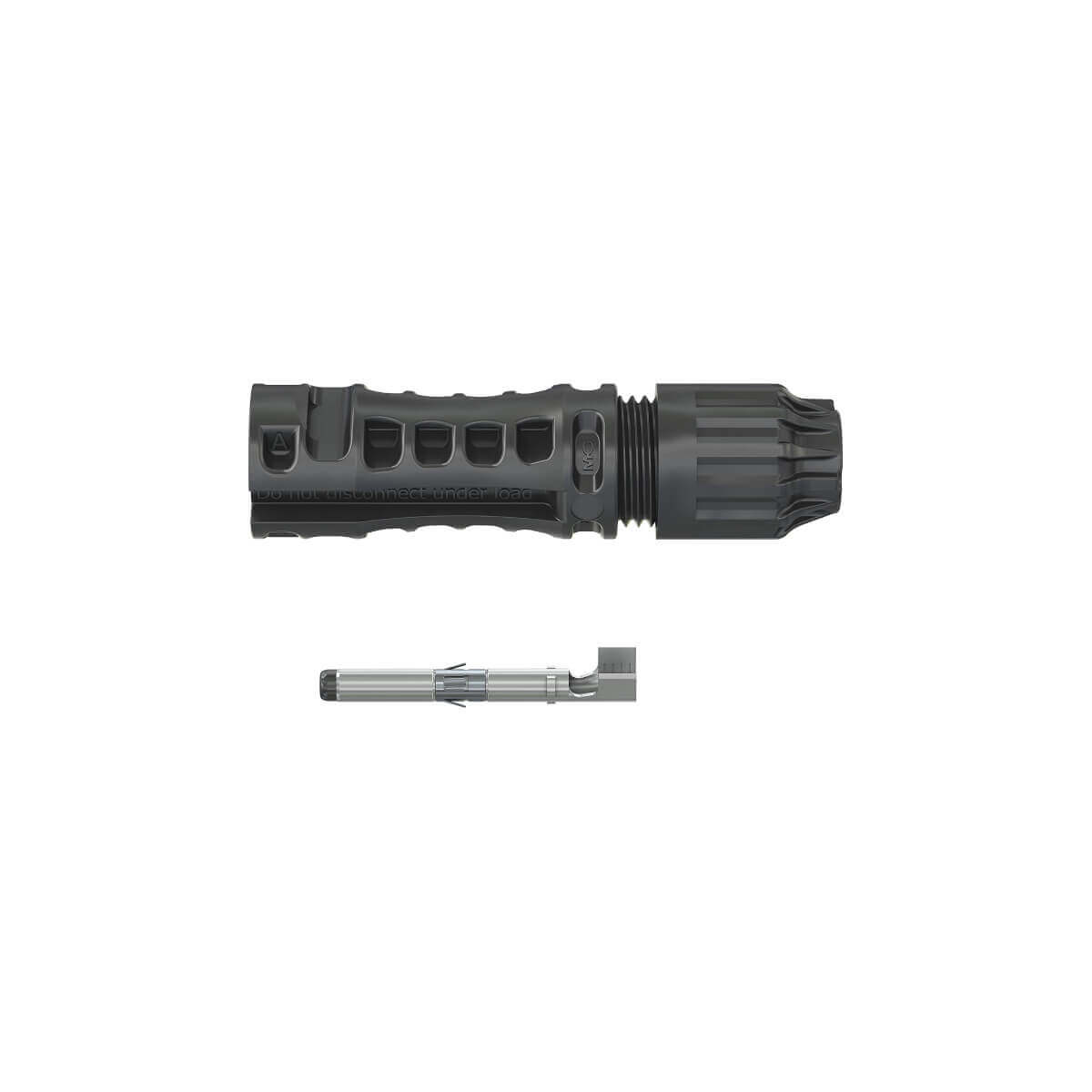

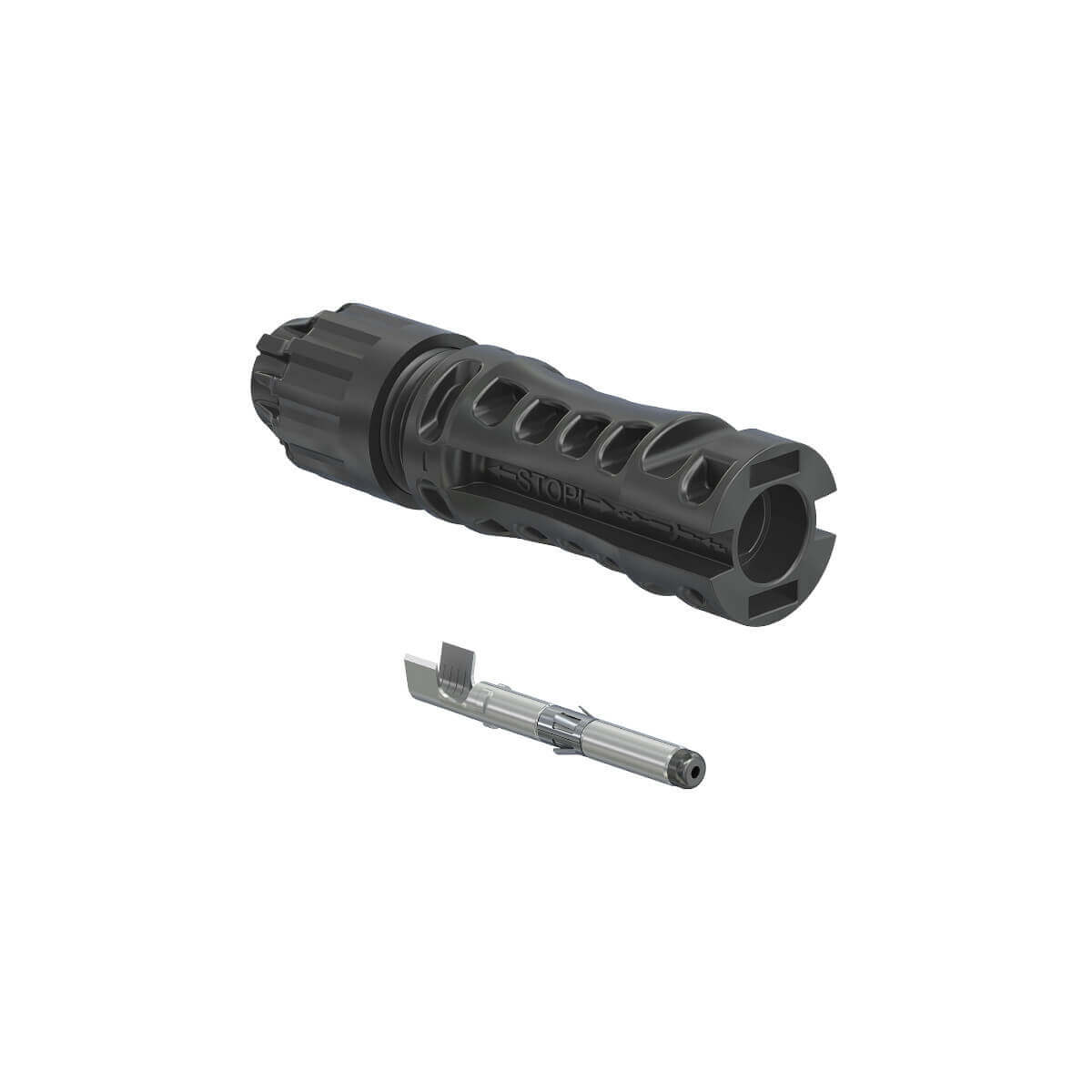

Stäubli MC4-EVO 2A plug, 4–6 mm², DA 6.4–8.4 mm
| Gyártó típusa: | PV-KST4-EVO 2A/6II |
|---|---|
| Gyártói cikkszám: | 32.0321P0100 |
| Cikkszám: | 16181 |
| Darab csomagolási egységenként: |
|
| Accessory type: | Plugs |
- Új
Stäubli Multi-Contact MC4-EVO 2A connectors for system voltages up to 1,500 V DC and cables with a cross-section of 4/6 mm²
Stäubli’s MC4 and MC4-EVO 2A connectors are a cost-effective, high-quality solution for Photovoltaic systems with DC voltages of up to 1,500 V and 100 A. The connectors are available for cable cross-sections of up to 10 mm²/8 AWG. The connectors comply with the requirements of IEC 61984:2008 (Connectors – Safety requirements and tests) for general low-voltage DC applications.
The scope of supply includes the housing and the internal assembly.
Product advantages
- Complies with the requirements of IEC 61984:2008
- TÜV certification to IEC 62852:2014 when used with suitable PV cables
- UL certification to 6703:2014 in combination with suitable PV cables
- Can also be used in systems outside the photovoltaic sector
Product specifications: Stäubli MC4-EVO 2A connector 4/6 mm², DA 6.4–8.4 mm
- Cable cross-section (conductor): 4/6 mm²
- Cable outer diameter: 6.4 – 8.4 mm
- Rated voltage: 1,500 V DC
- Ambient temperature: –40 °C to +85 °C
- Protection rating when connected: IP 65
Internationally certified in accordance with IEC, UL, JET and cTÜVus. Approved for DC 1,500 V (IEC, JET) and DC 1,500 V (UL). The quality and durability of MULTILAM technology have been proven hundreds of millions of times since 2004. Suitable for all climatic conditions thanks to its resistance to UV and ammonia, as well as its high IP rating (IP68). Field assembly or pre-assembled connector; standard crimping pliers can be used. Plug-compatible with the original MC4 connector family.
-
