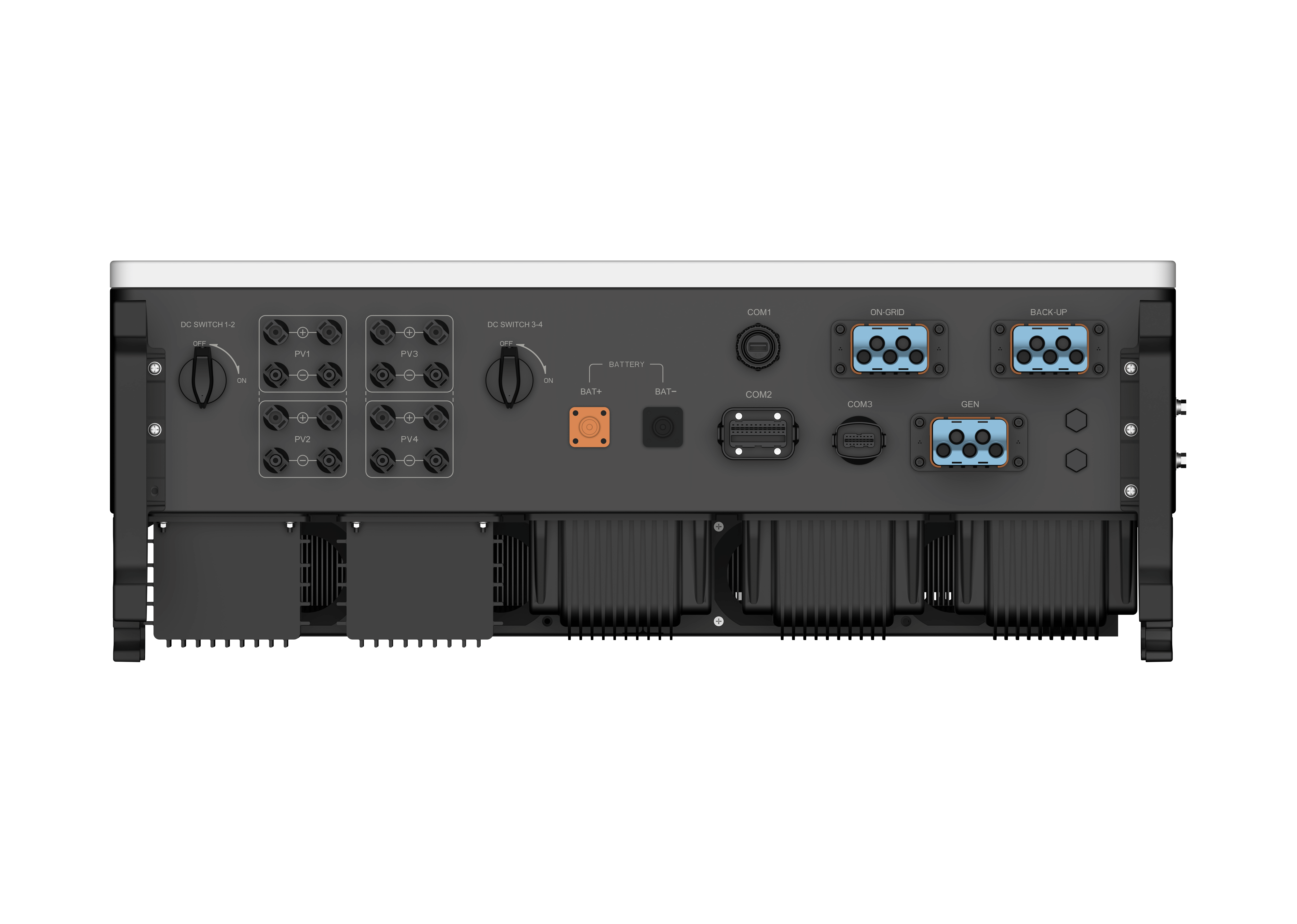

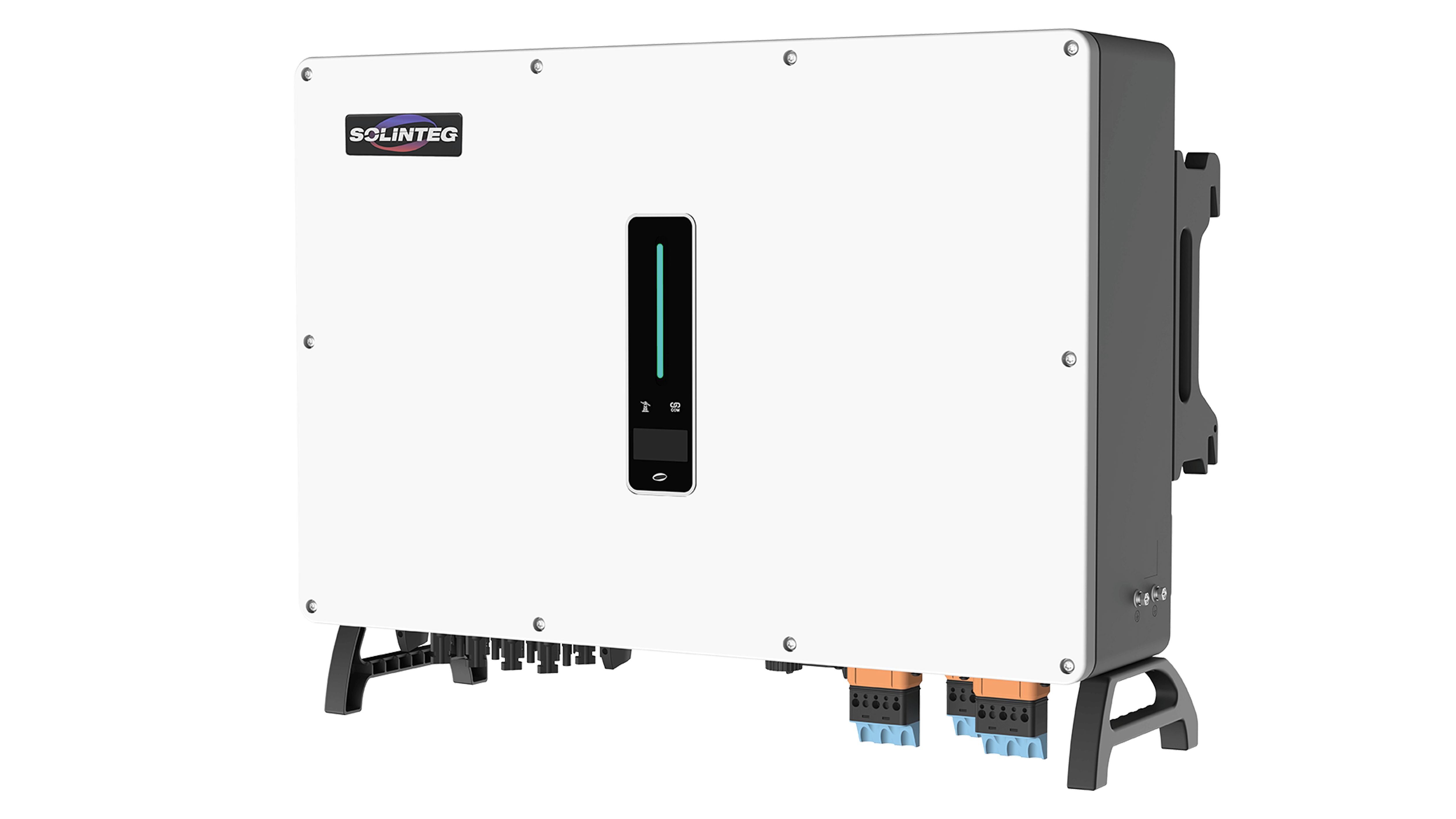

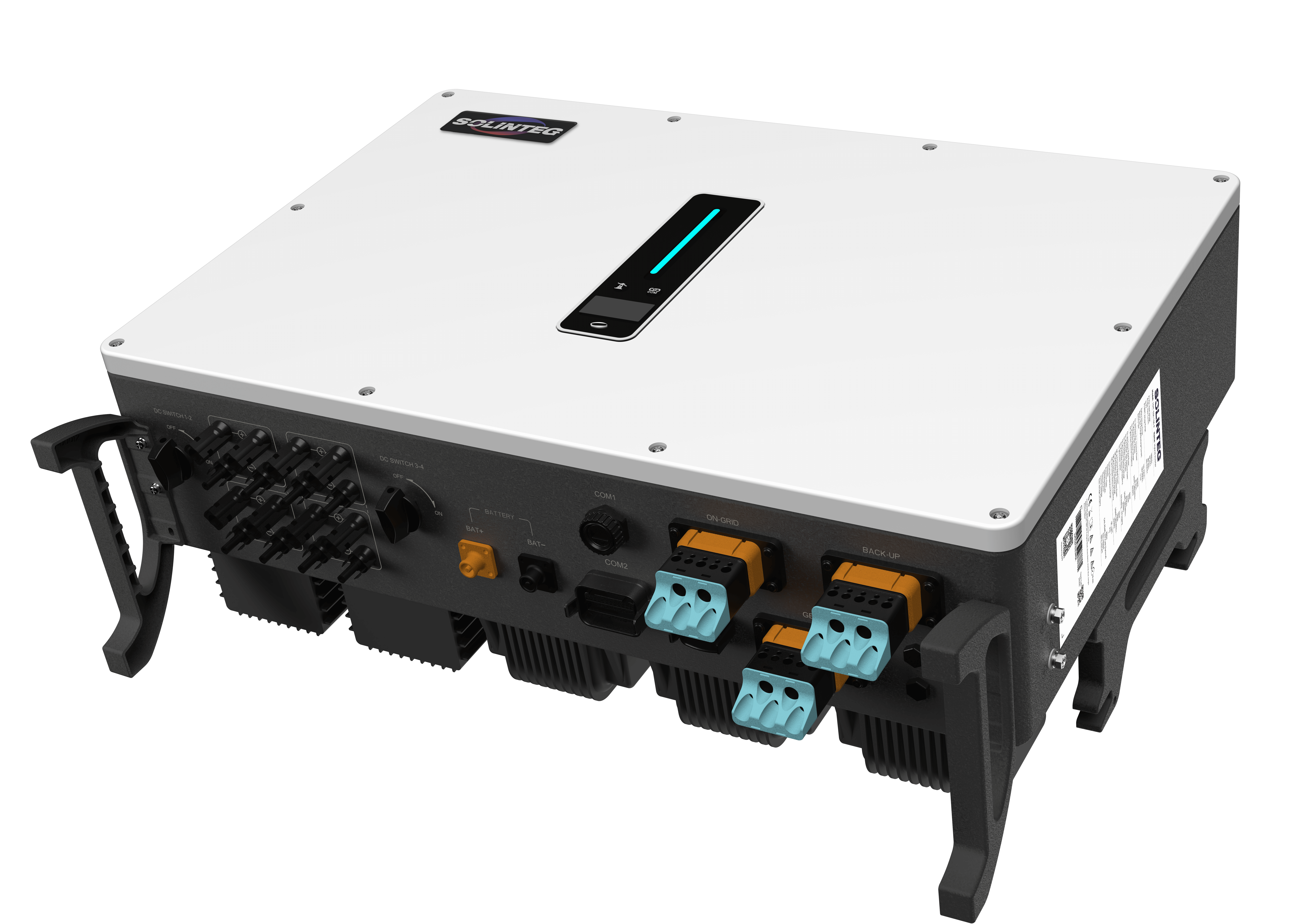

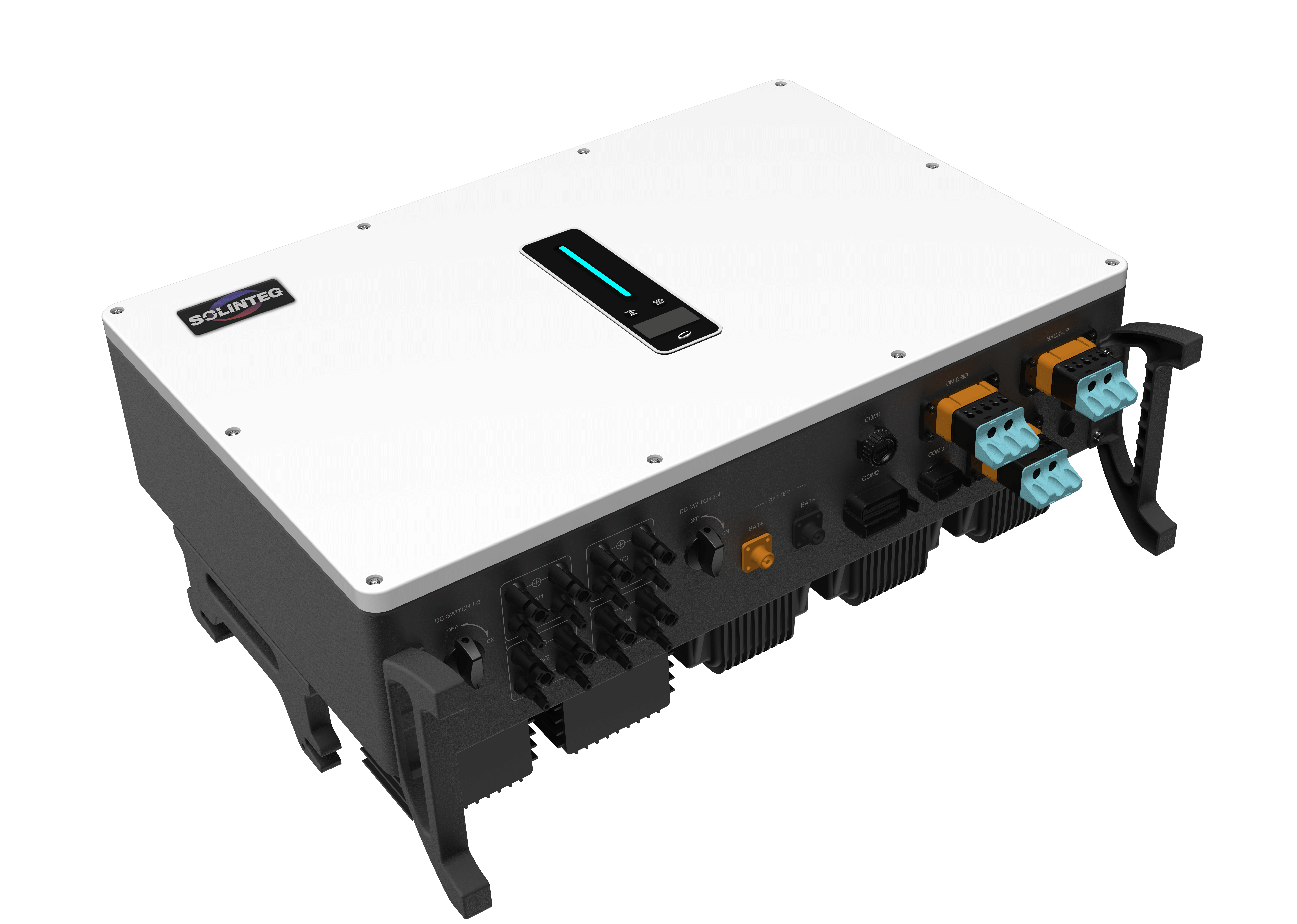

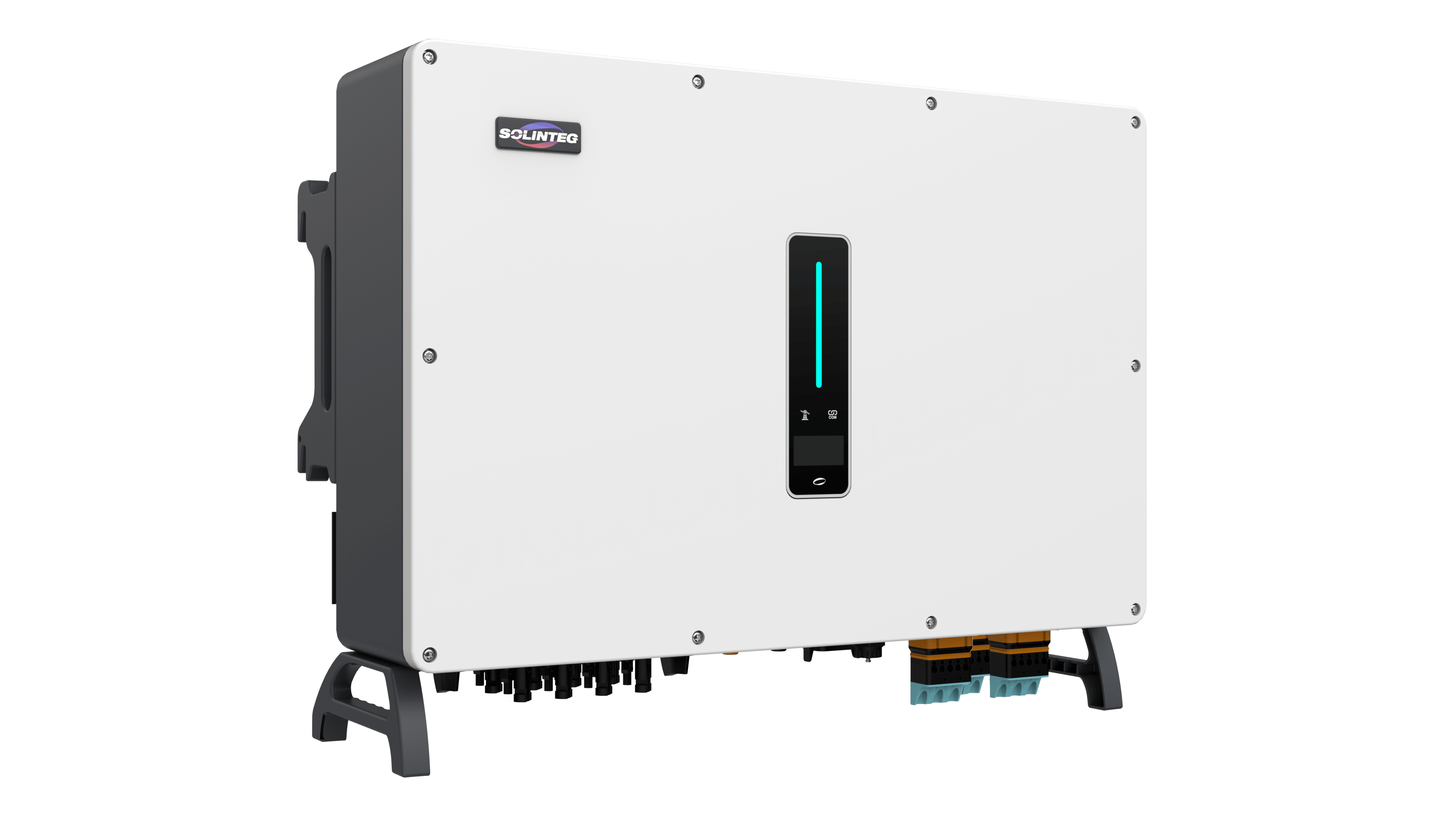

Solinteg MHT-50K-100
| Gyártó típusa: | MHT-50K-100 |
|---|---|
| Gyártói cikkszám: | MHT-50K-100 |
| Cikkszám: | 14814 |
| Darab csomagolási egységenként: |
|
| Phases: | 3 |
| Inverter type: | Asymmetric inverters, Hybrid inverter, Project inverter |
| MPP-Tracker: | 4 |
| AC power: | 50 kW |
| Warranty: | 5 years |
| Communication: | CAN, RS485 |
| MPP voltage range: | 200-850 Volt |
- Új
Solinteg MHT 50 kW – hybrid three-phase inverter for commercial PV systems
Solinteg MHT 50K-100 is a modern hybrid three-phase inverter designed for commercial and industrial photovoltaic installations with high demands on performance, flexibility and reliability. It enables the efficient combination of electricity generation from photovoltaic panels with storage in high-voltage battery systems, whilst ensuring a stable supply of energy even in the event of a distribution grid failure. Thanks to four independent MPPT trackers, the inverter can optimally manage even complex photovoltaic array configurations and maximise their energy yield.
5-year standard warranty – extendable to 10 years
Product benefits
- Modern controls: OLED display
- Elegant design and compact dimensions
- Up to 100% power asymmetry between individual phases
- Rapid switchover to backup mode (UPS)
- Parallel operation of up to 10 inverters for larger installations
- High efficiency of up to 98.3% for minimal energy loss
Product features of the MHT 50K-100
- Power: 50 kW
- Number of phases: 3
- Number of MPPT channels: 4
- MPPT operating voltage range: 200–850 V
- Max. input current per MPPT: 30 A
- Efficiency: 98.3%
- Communication: RS485, CAN
- IP rating: IP65
- Dimensions: 800 × 620 × 300 mm (H × W × D)
- Weight: 72.0 kg
- Warranty: 5 years
Manufacturer: Solinteg
Solinteg Power Co., Ltd. is an international manufacturer specialising in the development and production of photovoltaic inverters and energy storage systems. The company focuses on modern technology, high-quality workmanship and the long-term reliability of its products. Solinteg solutions are used in residential, commercial and industrial projects worldwide and meet strict international safety and performance standards.
-
