Solinteg E2BA-B10K3
| Gyártói cikkszám: | E2BA-B10K3 |
|---|---|
| Cikkszám: | 16074 |
| Darab csomagolási egységenként: |
|
| Net capacity: | 10.36 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Warranty: | 10 |
| Solar battery type: | High voltage battery |
- Új

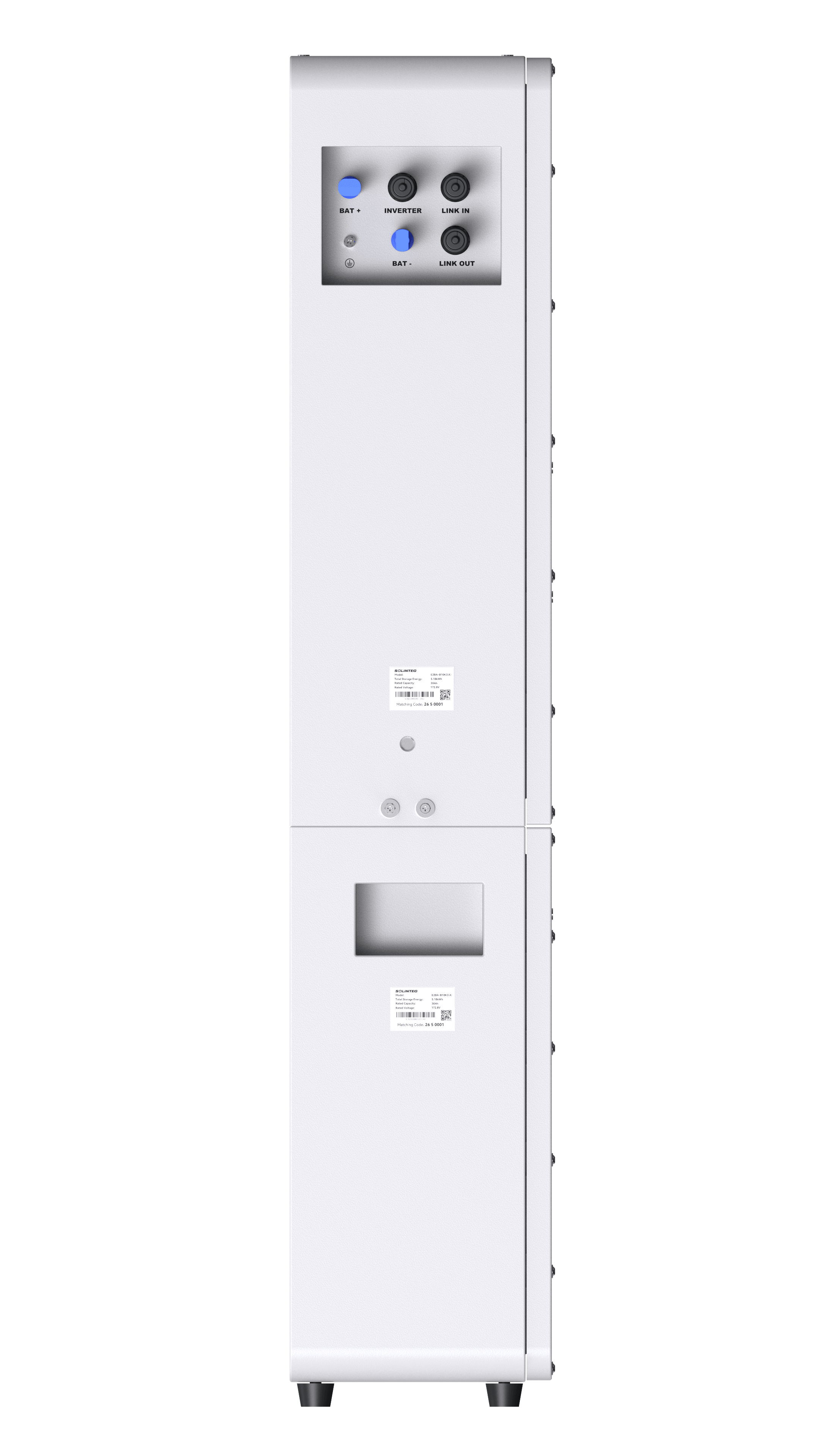

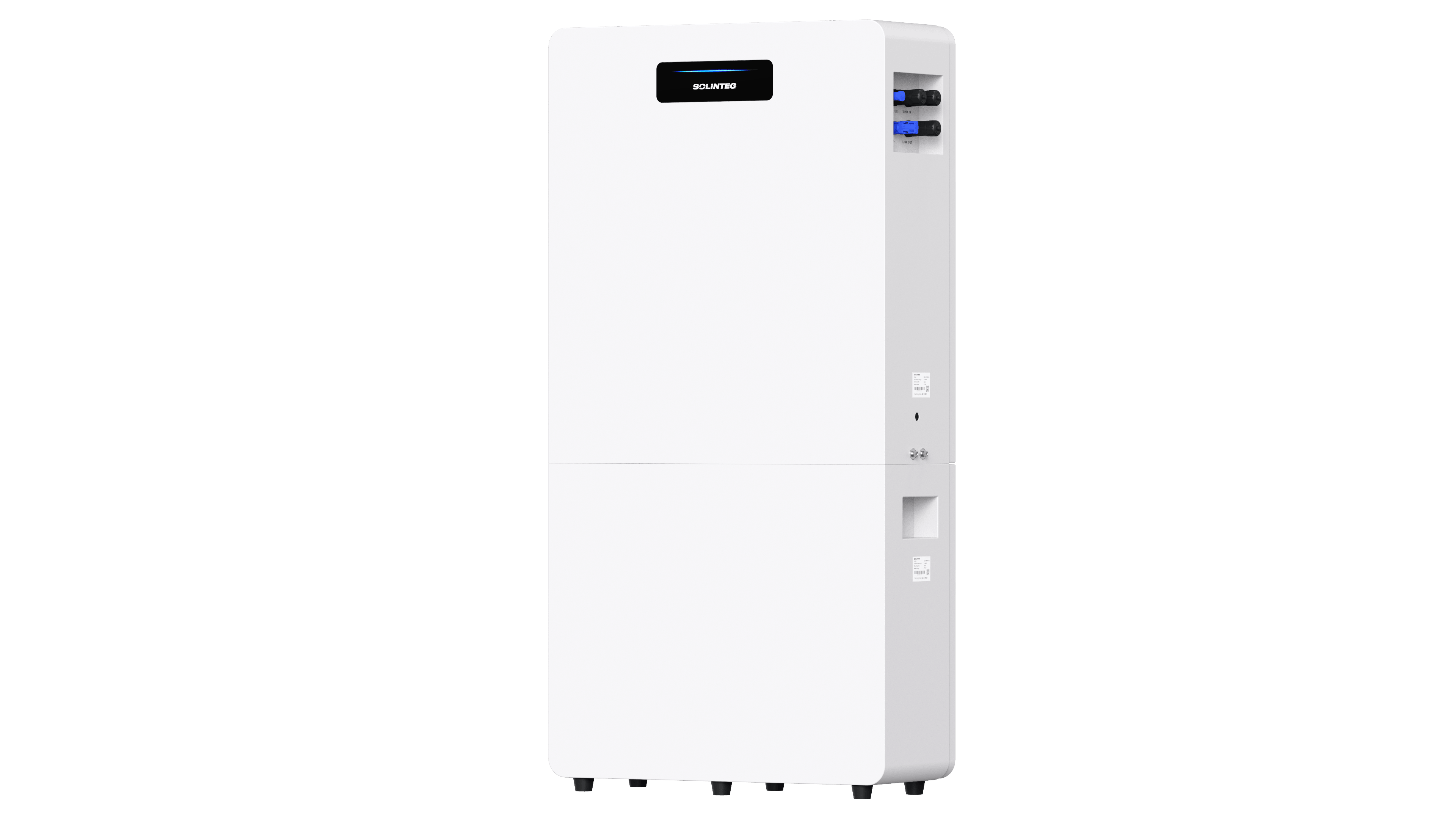

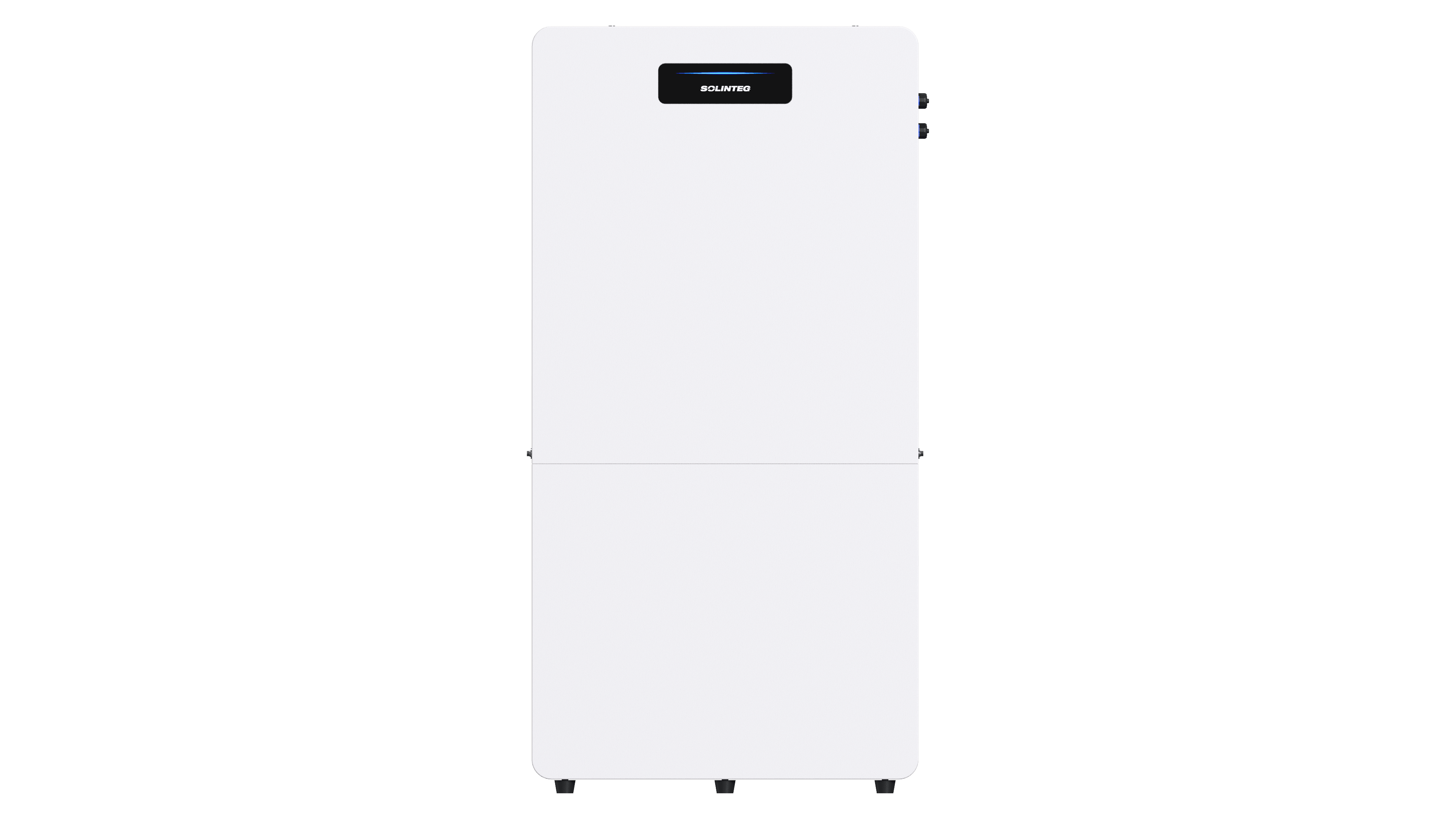

Solinteg E2BA-B10K3 – quiet, safe and scalable performance.
Solinteg E2BA-B10K3 is a high-voltage LiFePO4 battery with a capacity of 10.36 kWh and a 90% depth of discharge. Its two-module, stackable design with plug-and-play connectivity significantly simplifies installation, whilst the unit can be expanded to up to two units, achieving a capacity of up to 20.6 kWh. The battery operates at high voltage for greater efficiency, utilises safe LFP cells, supports remote diagnostics, updates and maintenance, and, thanks to its IP65 rating and natural convection, offers quiet and reliable operation. It can be mounted either on the floor or on the wall; the operating temperature range is -20 °C to 55 °C, complemented by advanced heating for cold conditions. Full compatibility with Solinteg inverters makes this solution the ideal choice for both domestic and small-scale commercial energy storage.
Product benefits
- Stackable two-module design for easier installation
- Flexible scalability up to 20.6 kWh
- Safe and reliable LFP (LiFePO₄) cells
- IP65 rating for greater resistance to dust and water
- Plug-and-play design
- LED display for quick system status checks
Product features
- Battery type: LiFePO4 (lithium iron phosphate)
- Rated capacity: 10.36 kWh
- Depth of discharge (DoD): 90%
- Nominal voltage: 345.6 V
- Operating voltage range: 270–394.2 V
- Max. charge/discharge current: 30 A
- Protection rating: IP65
- Operating temperature: -20 °C to 55 °C
- Cooling: natural convection
- Dimensions: 543 × (671 + 540) × 226 mm
- Weight: 54 kg + 48 kg (approx. 102 kg in total)
- Warranty: 10 years
- Compatibility: Solinteg inverters
Manufacturer: Solinteg
Solinteg Power Co., Ltd. is an international manufacturer specialising in the development and production of photovoltaic inverters and energy storage systems. The company focuses on modern technologies, high-quality workmanship and the long-term reliability of its products. Solinteg solutions are used in residential, commercial and industrial projects worldwide and meet strict international safety and performance standards.
