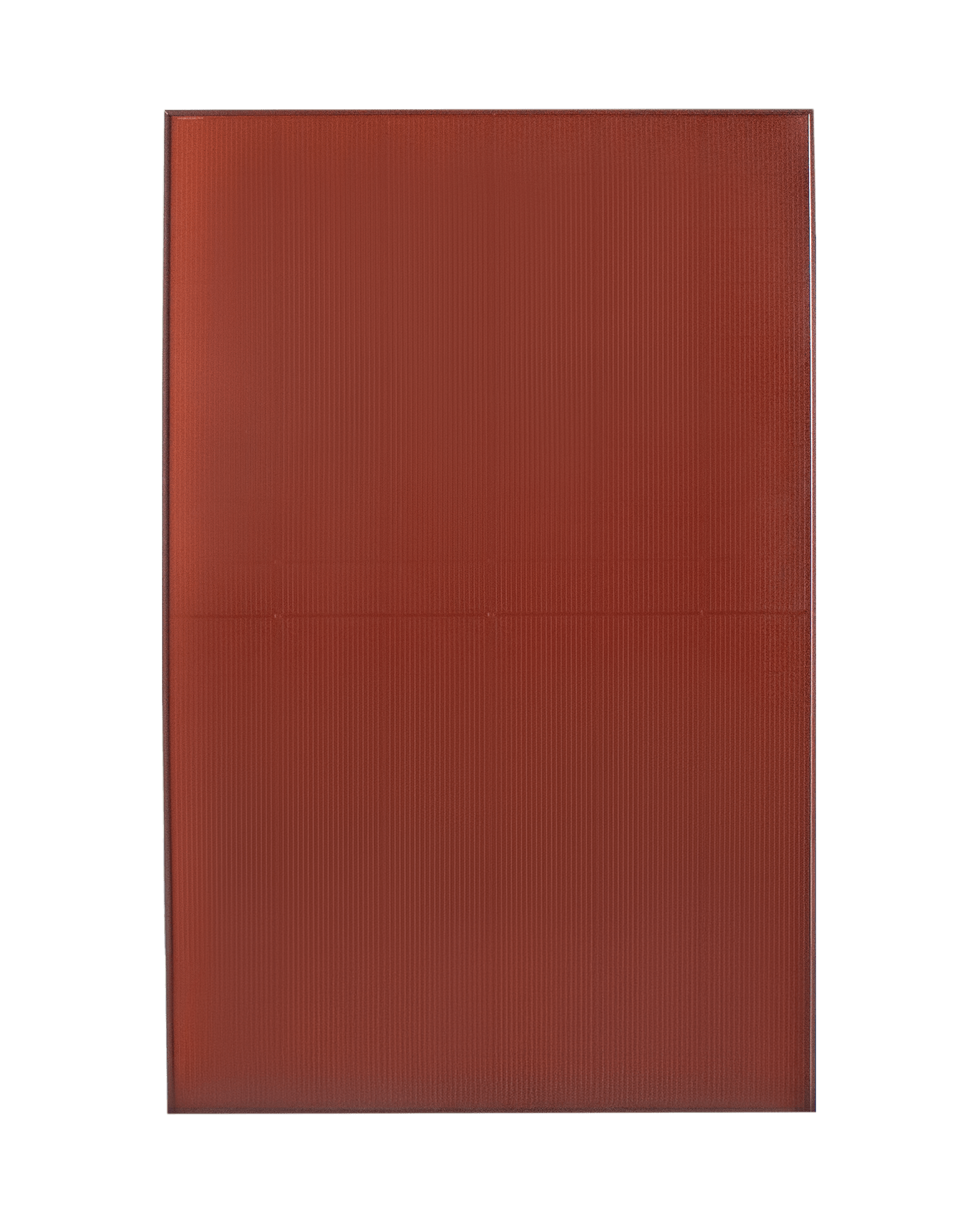

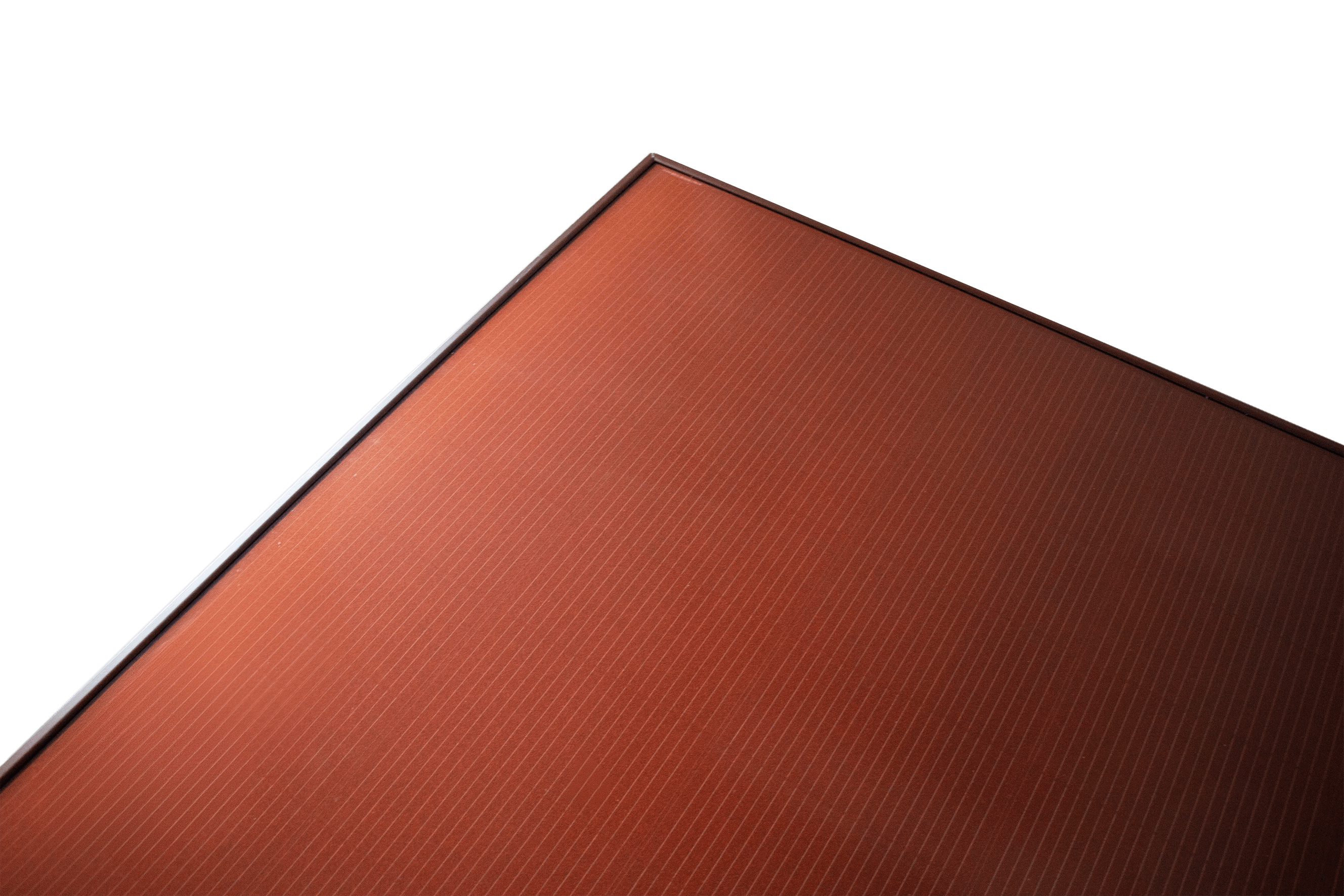

Solar Fabrik 420W S4 Chroma Orange
Image may differ from the product.
| Gyártó típusa: | 11160420 |
|---|---|
| Gyártói cikkszám: | M-SOF-TC-420-340-DE-E |
| Cikkszám: | 15753 |
| Darab csomagolási egységenként: |
|
| Power: | 420 Watt |
| Efficiency: | 21,02 % |
| Construction type: | Double-Glass-Bifacial |
| Warranty: | 30/30 years |
| Dimensions: | 1762 x 1134 x 30 mm |
| Backsheet: | White |
| Frame color: | Silver |
| Technology: | TOPCon |
| Connector: | MC4 |
| Snow load: | 5400 Pa |
| Wind load: | 2400 Pa |
| Solar panel type: | Glass-glass solar panels, TOPCon modules |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
Termékszám:
15753
-
-
{ "id": "26b5b256d5d05ee1b34a261745ed4e81", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m red", "item_id": "5753", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "26b5b256d5d05ee1b34a261745ed4e81" } } -
{ "id": "e766b11a31cc5290a41b1e4ee29da4cb", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black", "item_id": "5752", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e766b11a31cc5290a41b1e4ee29da4cb" } }
-
Leírás
Solar Fabrik Mono S4 Halfcut Chroma Orange 420 W – the heritage-friendly module from Germany
With the Mono S4 Halfcut Chroma Orange, Solar Fabrik is launching a bifacial double-glass module featuring copper-red front glass in RAL 8004 – specially developed for colour-coordinated integration on tiled roofs in historic town centres and listed buildings. Where classic black modules meet with resistance from heritage authorities, the copper-red appearance creates the conditions for PV systems to be approved.
Beneath the coloured front glass, 96 bifacial monocrystalline N-type half-cells with TOPCon technology operate, delivering 420 Wp at an efficiency of 21.02% – impressive figures for a coloured module. Solar Fabrik rounds off the package with a 30-year product warranty and a 30-year linear performance guarantee, as well as German fire protection class A.
Product benefits

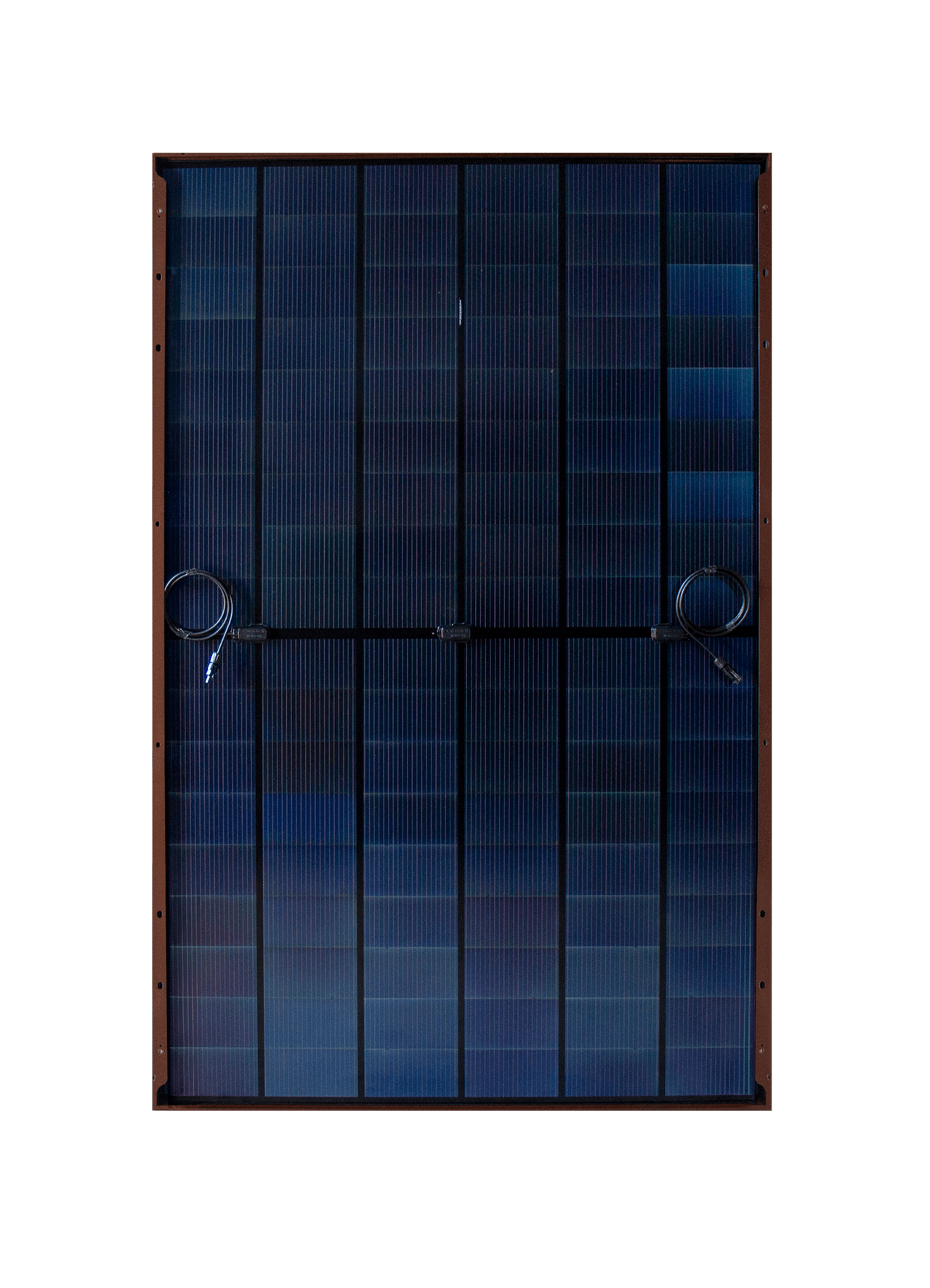

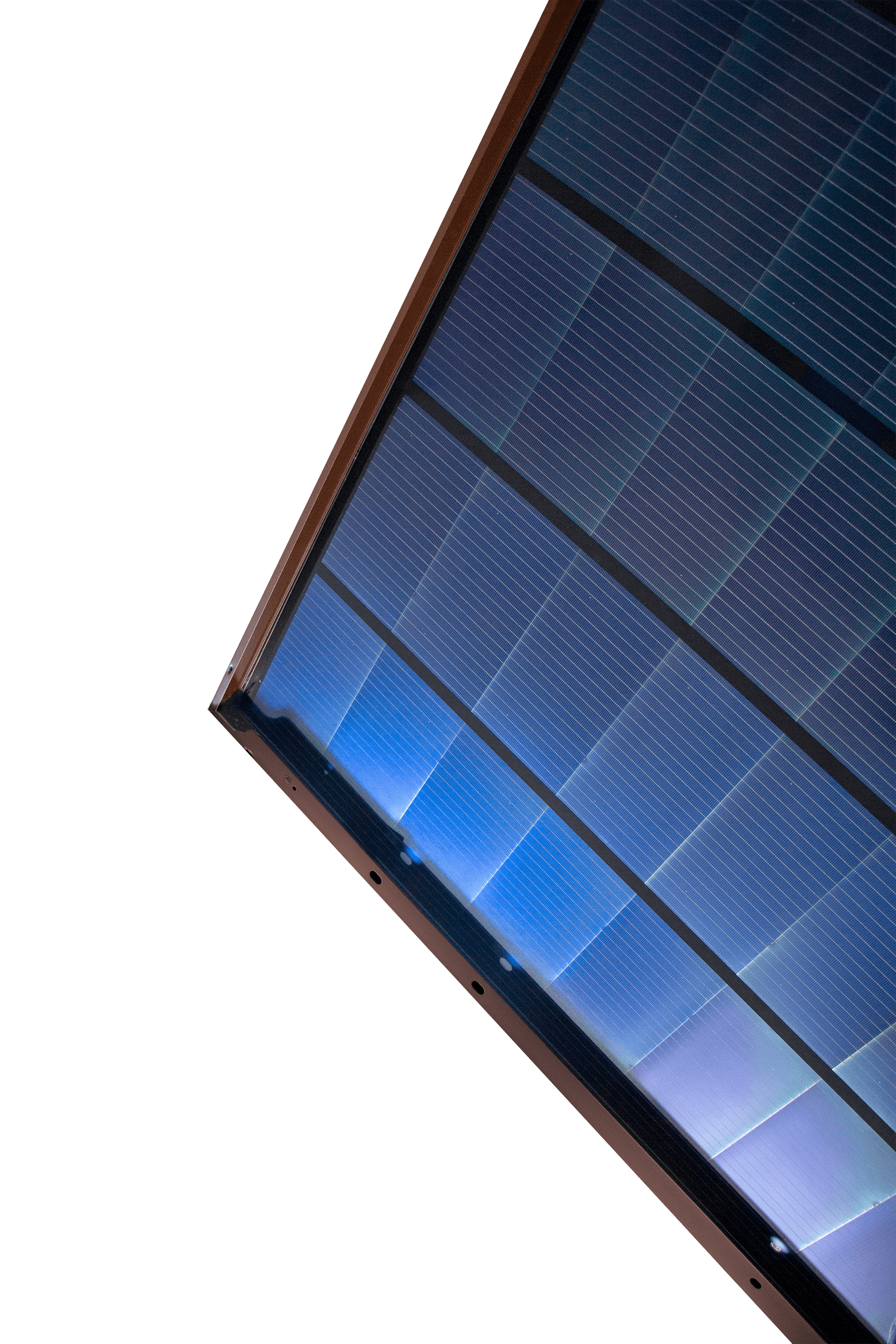

- 96 bifacial monocrystalline N-type half-cells (6 x 16) with TOPCon technology
- Copper-red coloured front glass similar to RAL 8004 – ideal for red and terracotta-coloured tiled roofs
- Bifacial double-glazed 2.0 + 2.0 mm with anti-reflective coating
- Module efficiency 21.02% at 420 Wp
- Red-brown aluminium frame similar to RAL 8011 for a harmonious overall appearance
- Resistant to ammonia and salt spray
- Highly transparent, self-cleaning glass
- Excellent low-light performance
- Snow load 5,400 Pa
- Hail test with ice balls up to 25 mm in diameter at 23 m/s
- Fire class A according to IEC 61730-2 (UL 790, UL 1703) with German TÜV certificate
- 30-year German product warranty
- 30-year linear performance warranty (87.4% in year 30)
- EUPD Top Brand PV Modules Germany 2026
Technical data at a glance
- Module type: Mono S4 HC V 420 BF-DG
- Rated power: 420 W
- Power tolerance: 0/+5 W
- UMPP voltage: 29.30 V
- Open-circuit voltage Uoc: 34.50 V
- Current IMPP: 14.33 A
- Short-circuit current Isc: 15.82 A
- Pmax temperature coefficient: -0.290 %/°C
- Dimensions: 1,762 x 1,134 x 30 mm
- Weight: approx. 24 kg
- Connection: MC4 Stäubli EVO 2, 4.0 mm²
- Cable length: ± 1,200 mm (optional)
- Junction box: IP68
- Operating temperature: -40 °C to +85 °C
- Maximum system voltage: DC 1,500 V
- Packaging: 36 units per pallet / 936 units per 40' HC
-
