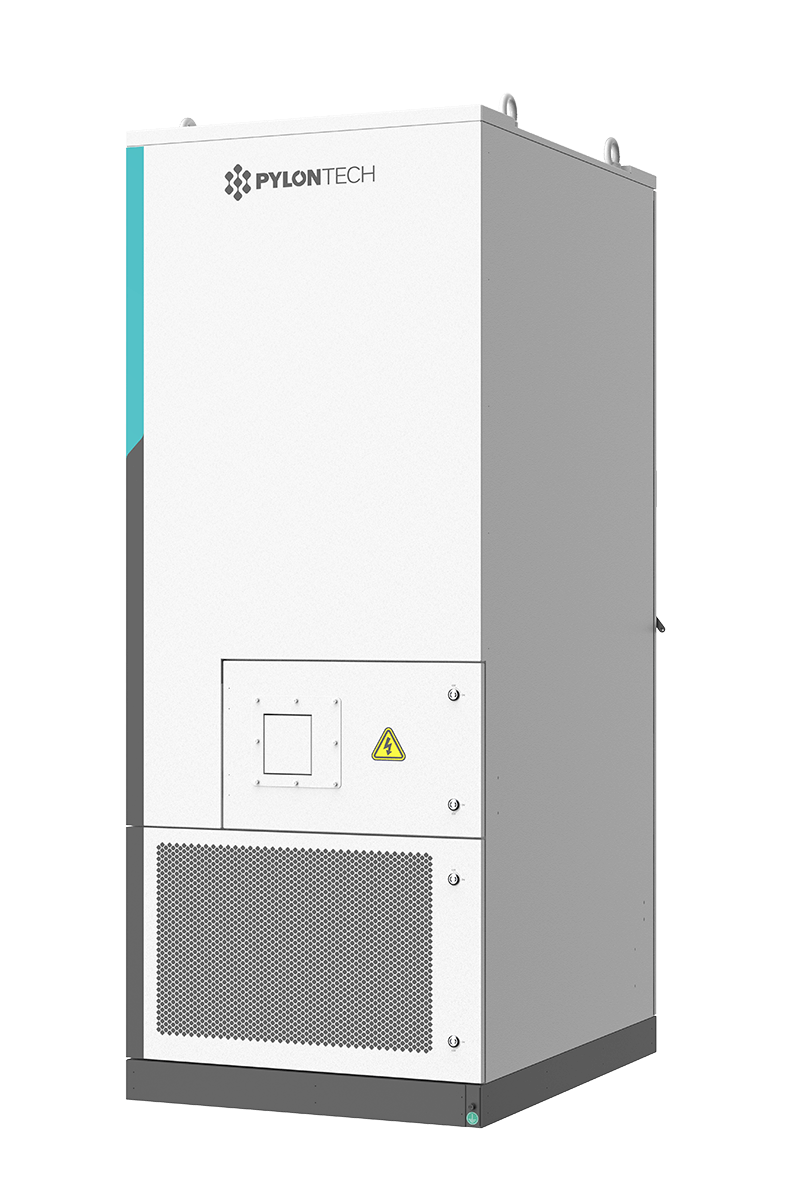

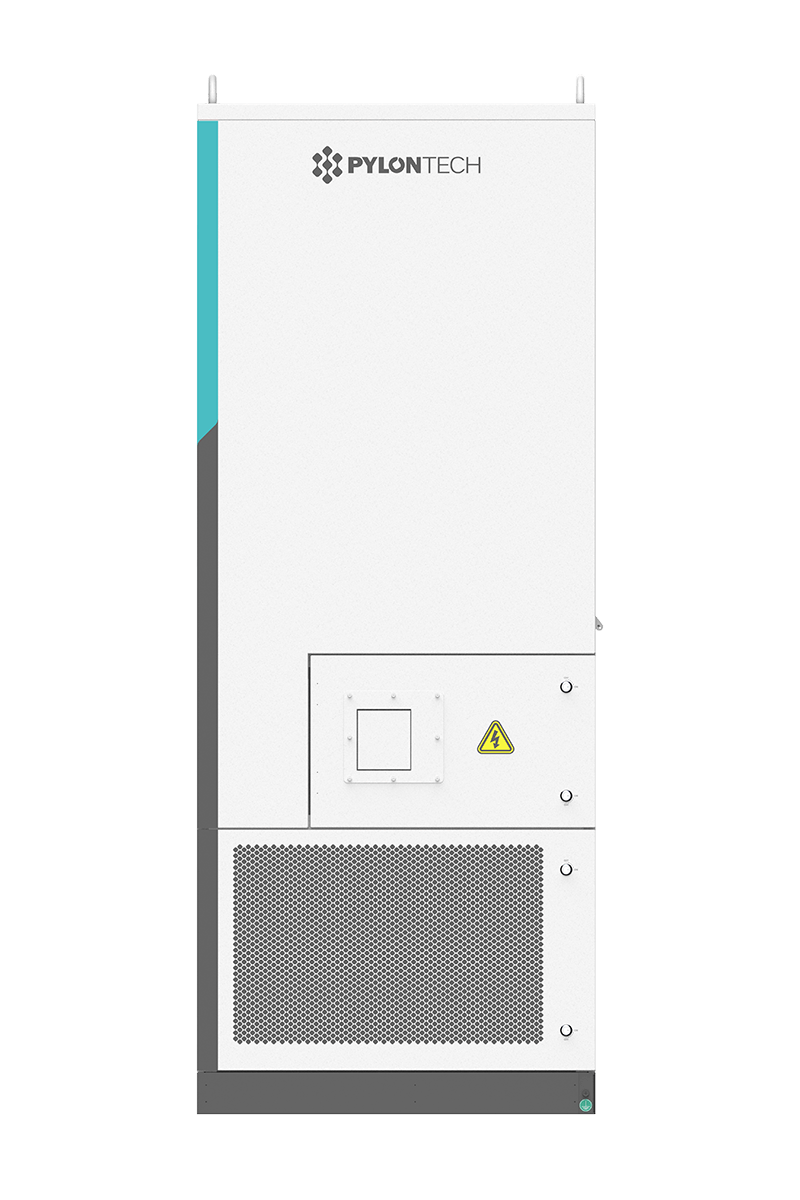

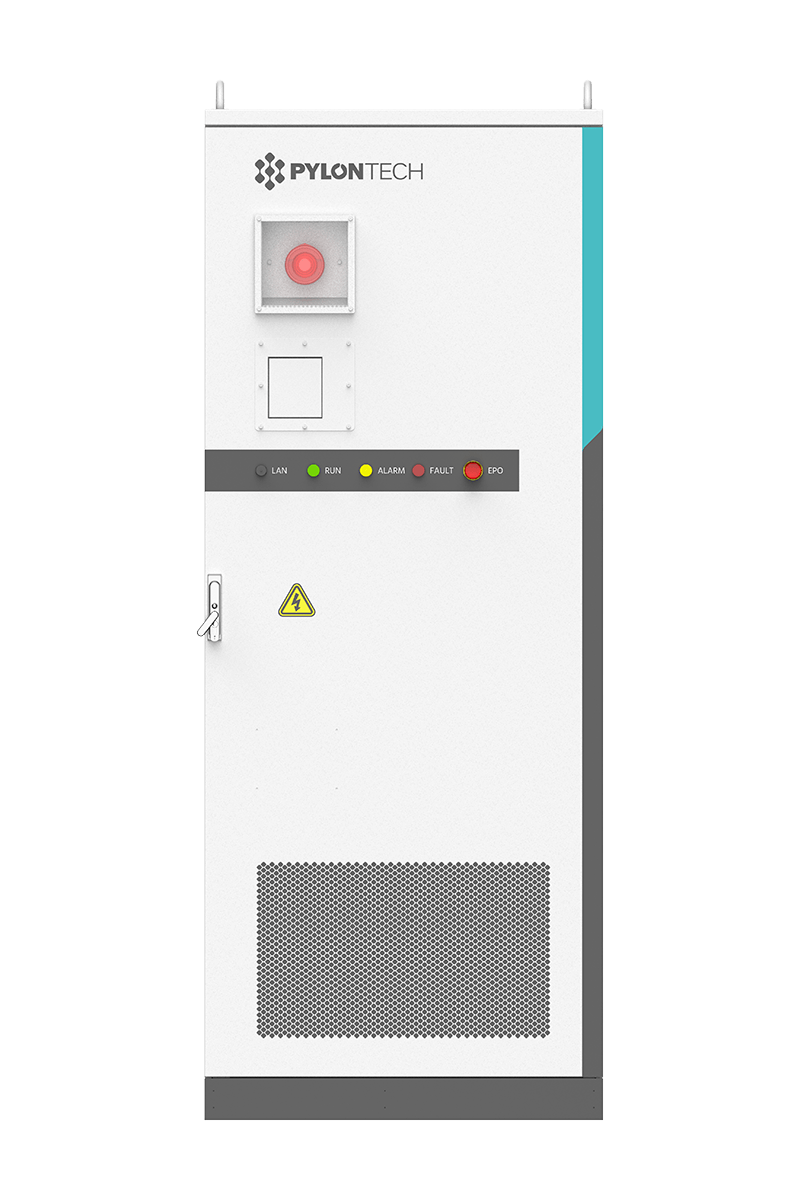

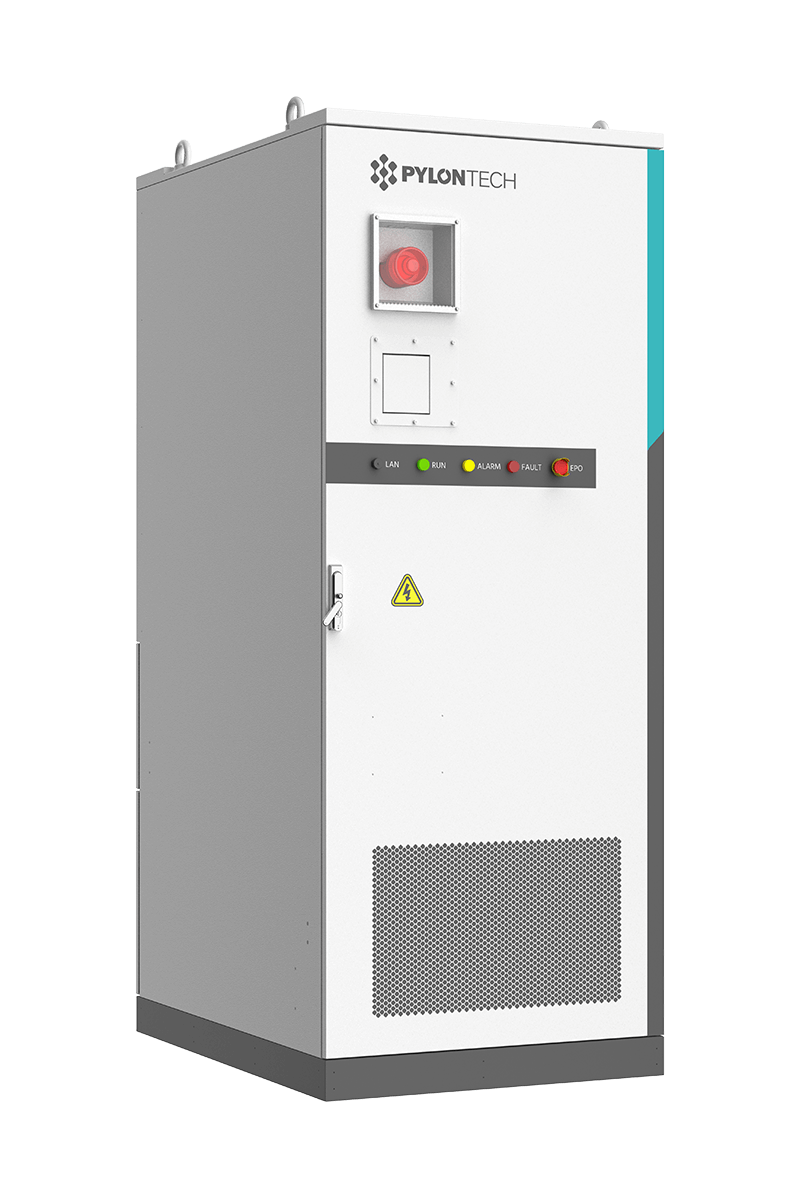

Pylontech Cabinet OPTIM US L260-OMNI - 125kW/261kWh
| Gyártó típusa: | L260-OMNI |
|---|---|
| Cikkszám: | 13685 |
| Installation location: | Outdoor |
| Usable capacity: | 248 kWh |
| Power: | 125 kW |
| Commercial storage type: | All-in-One |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- Új
ab 27.10.2026
Termékszám:
13685
Leírás
Pylontech OPTIM US L260-OMNI cabinet solution – 125 kW/261 kWh

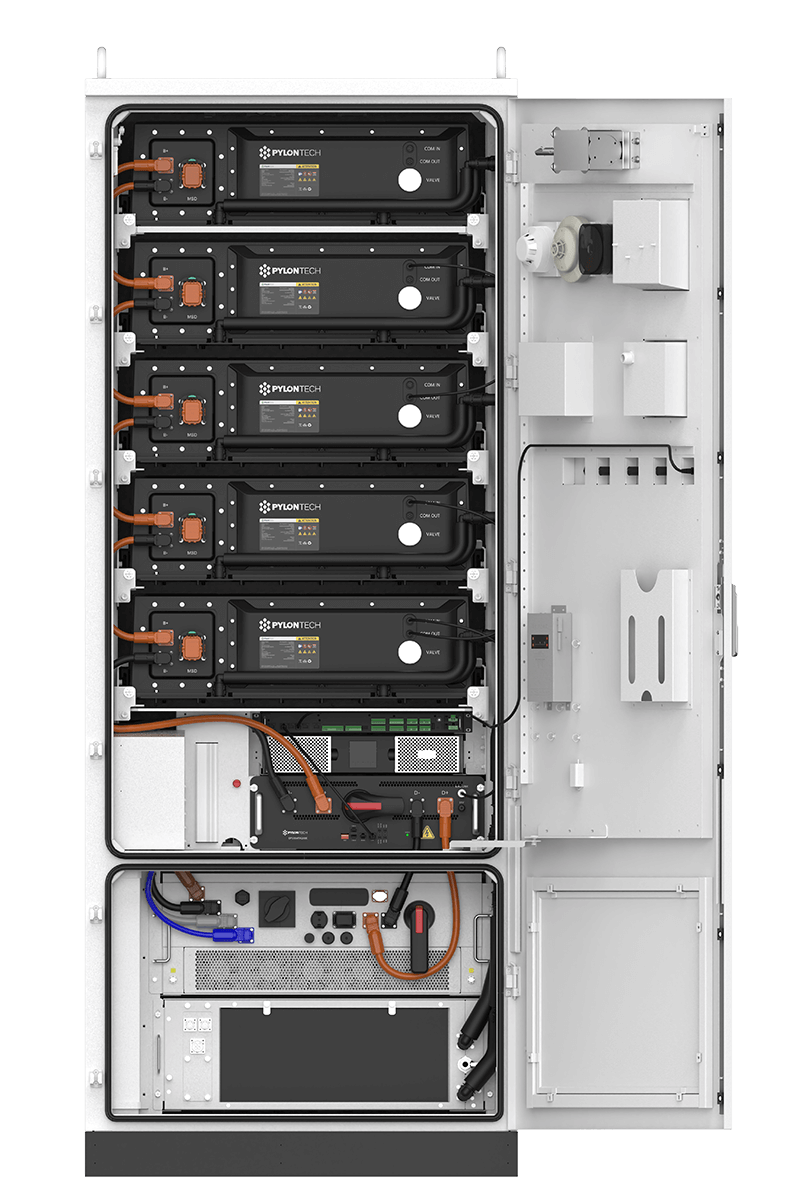

Pylontech is a specialist supplier of Battery Energy Storage Systems (BESS). The L260-OMNI liquid-cooled cabinet solution provides a capacity of 261 kWh and a power output of 125 kW in its standard configuration. This is a complete solution, including a liquid cooler, which ensures the optimum temperature for the battery storage system throughout the year. Safety is ensured by a self-extinguishing system, including smoke and temperature detectors, which can automatically detect fire hazards and intervene in good time if necessary. The solution includes the InPower INPPCS-125/0.4-W-14-A2-OS AC-coupled battery inverter with a power output of 125 kW.
Advantages of the L260-OMNI solution
- All-in-one solution
- 0.5 C charge/discharge rating
- Flexible configuration – option to connect multiple storage units
- Wide temperature range: -25–50 °C
Features of the L260-OMNI solution
- System capacity: 261 kWh
- DoD: 95%
- DC voltage range: 702–936 Vdc (single string)
- Cycle life: >8500
- Protection rating: IP55
- Dimensions (W*D*H): 950*1300*2480 mm
- Weight: 2.9 tonnes
- Cooling system: liquid cooling
- Extinguishing agent: Aerosol
- Corrosion protection: C3 (optionally C5)
The price quoted includes hardware components only.
-
