KBE Solar DB+, 10 mm², 500m, blue
| Gyártó típusa: | H1Z2Z2-K 10,0 bl |
|---|---|
| Gyártói cikkszám: | 731000015060QUBL |
| Cikkszám: | 11725 |
| Darab csomagolási egységenként: |
|
| Accessory type: | DC solar cable |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
Available from stock
Termékszám:
11725
Leírás

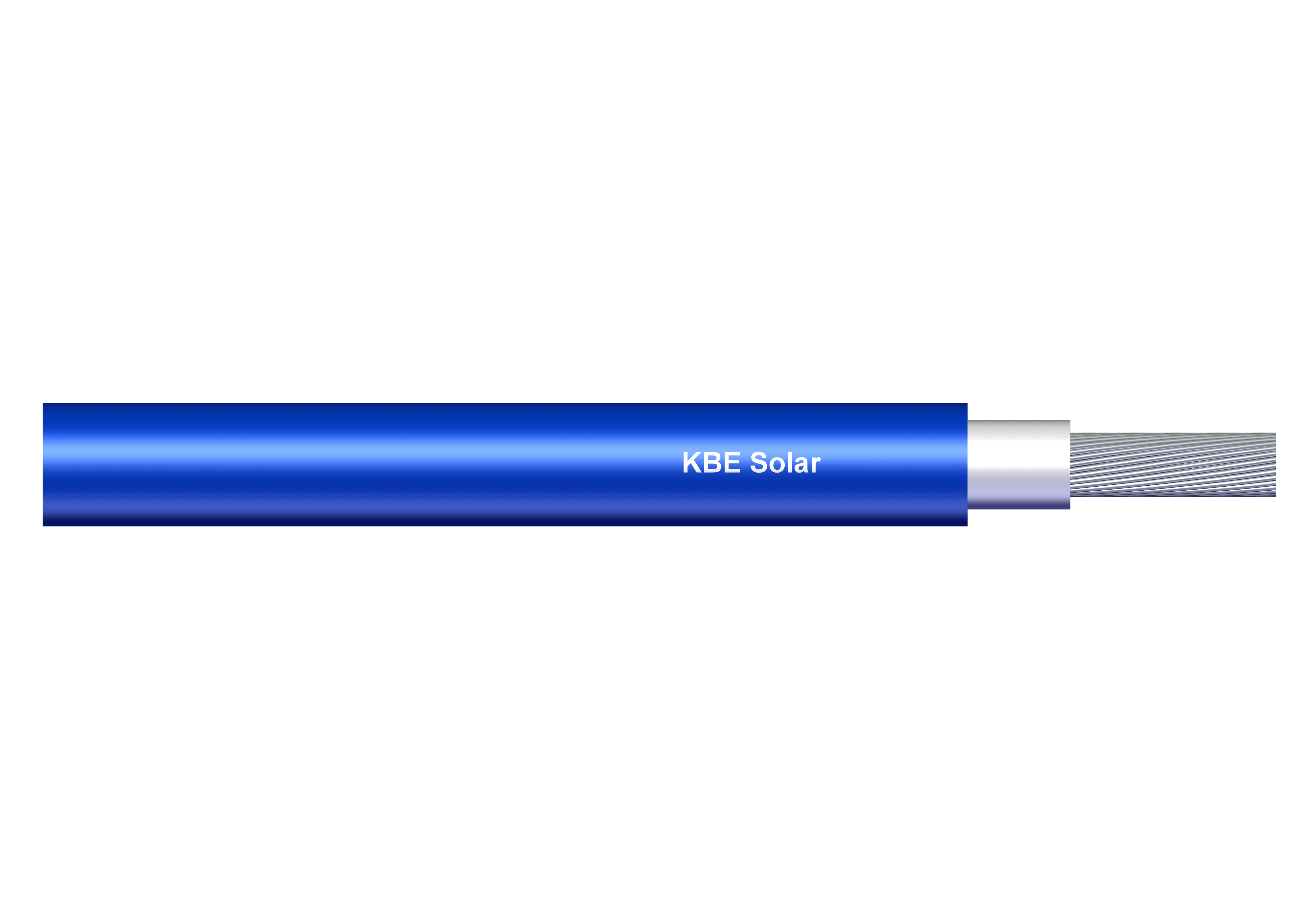

KBE Solar DB+ blue, 10 mm2, diameter 7.1 mm
The KBE Solar DB+ solar cable from KBE Elektrotechnik GmbH is manufactured in Berlin and is perfect for direct current installations. This triple-certified solar cable meets the latest technical requirements and is tested in accordance with the EN 50618, IEC 62930 and TÜV 2 PfG 1169/10.19 standards. With its excellent UV and water resistance as well as high insulation and structural stability, it offers a reliable installation solution. The cables are designed for voltages of up to 1,800 VDC and are ideal for floating PV systems.
Product advantages:
- Triple TÜV certification guarantees the highest standards.
- Designed for high voltages up to 1,800 VDC, ideal for powerful systems.
- High UV and water resistance increases durability under extreme conditions.
- Can be laid underground thanks to high-quality insulation materials.
- Optimized for use in floating PV systems (FPV).
- “Made in Germany” promises quality and reliable production quality.
Technical specifications:
- Nominal voltage: 1,500 VDC (max. 1,800 VDC)
- Cross section: 10 mm2
- Outer diameter: 7.1 mm
- Color: blue
- UV resistant
- Water resistant
- Insulation material: Cross-linked specialized polyolefin
- High structural stability
- Fire classification: Dca in accordance with BauPVO
- Certificates: EN 50618, IEC 62930, TÜV 2 PfG 1169/10.19
- Product service life: 25 years according to EN 50618
- Packaging: 500 m drum
-
