KBE DB+ solar cable, 10 mm², 500 m, red
| Gyártó típusa: | H1Z2Z2-K 10,0 rt |
|---|---|
| Gyártói cikkszám: | 731000015060QURT |
| Cikkszám: | 16390 |
| Darab csomagolási egységenként: |
|
| Accessory type: | DC solar cable |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- Új
Termékszám:
16390
Leírás

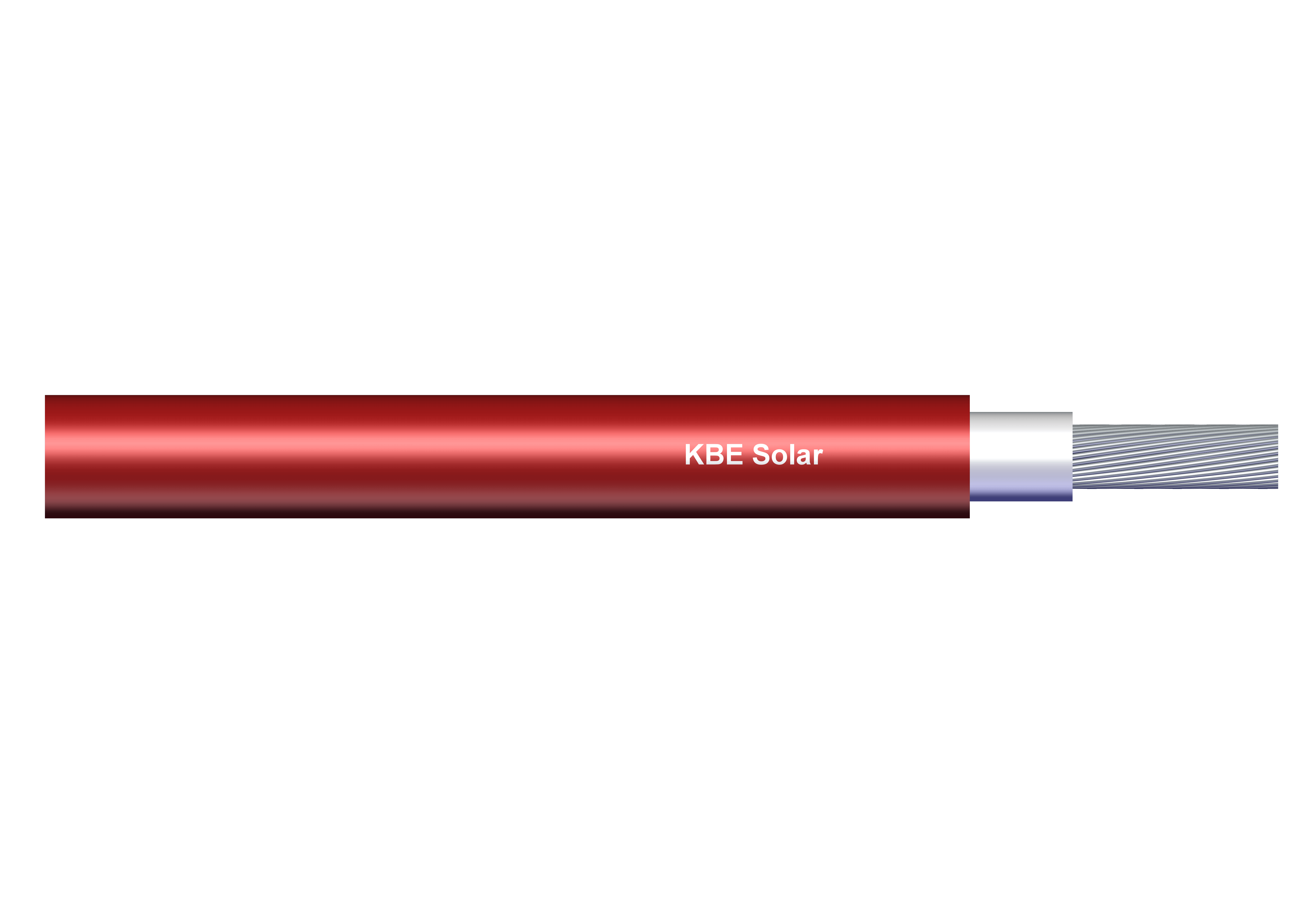

KBE Solar DB+ red, 10 mm², OD 7.1 mm
The KBE Solar DB+ solar cable from KBE Elektrotechnik GmbH, manufactured in Berlin, is the ideal choice of DC cable for your installations. This triple-certified solar cable meets the latest technical requirements and has been tested in accordance with the EN 50618, IEC 62930 and TÜV 2 PfG 1169/10.19. Thanks to its excellent resistance to UV radiation and water, as well as its high insulation and mechanical stability, it offers a reliable installation solution.
Product benefits
- Triple TÜV certification guarantees the highest standards
- Designed for voltages up to 1,800 Vdc, ideal for high-power systems
- High resistance to UV radiation and water extends service life in extreme conditions
- Thanks to high-quality insulating materials, it can also be laid underground
Product Features
- Rated voltage: 1,500 VDC (max. 1,800 VDC)
- Cross-section: 10 mm²
- Outer diameter: 7.1 mm
- Colour: red
- UV resistance
- Water-resistant
- Insulation material: cross-linked special polyolefin
- High mechanical stability
- Fire resistance class: Dca according to CPR
- Certificates: EN 50618, IEC 62930, TÜV 2 PfG 1169/10.19
- Product service life: 25 years in accordance with standard EN 50618

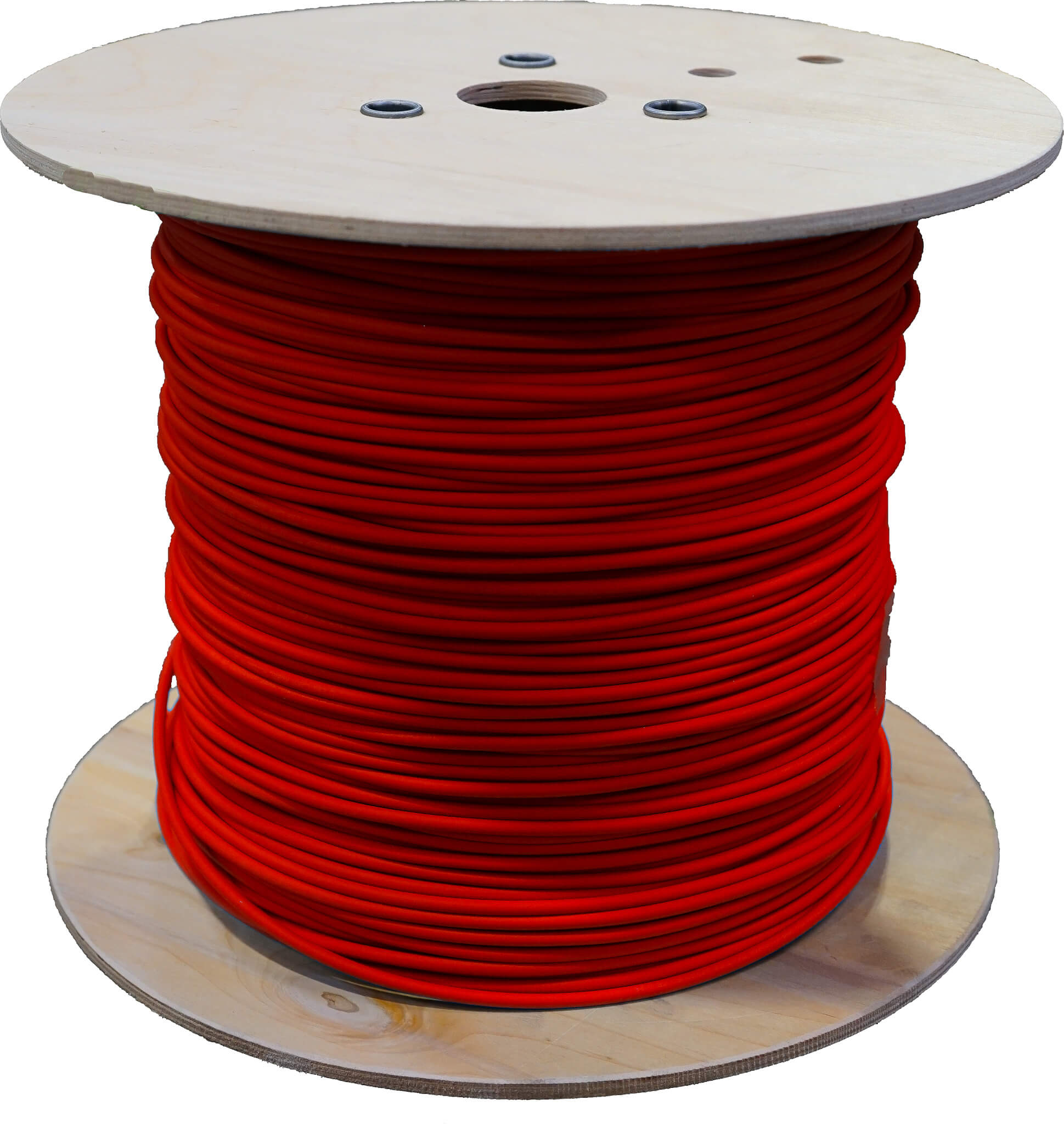

- Packaging: 500 m
-
