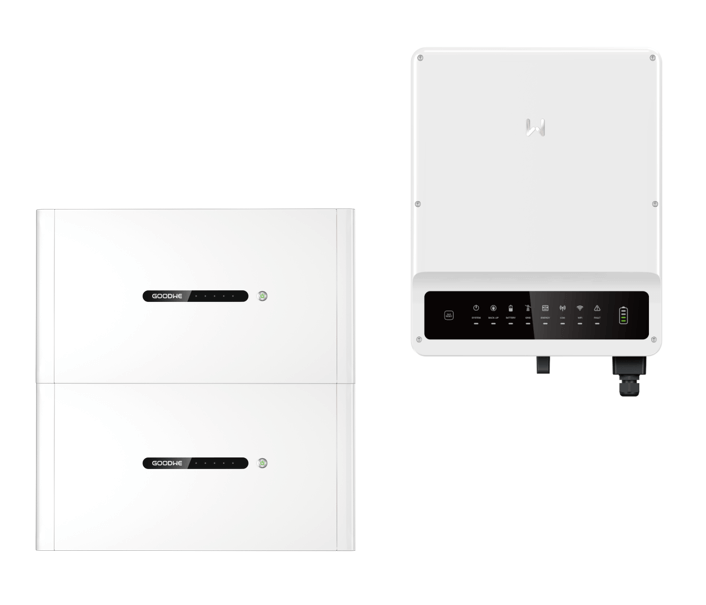

GoodWe Lynx D 10 kWh with GoodWe ET Plus 16A - GW6.5KN-ET
| Cikkszám: | 15605 |
|---|---|
| Inverter: | GW6.5KN-ET |
| Phases: | 3 |
| Solar battery: | LX D5.0-10 |
| Net capacity: | 10 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
- Új
- Top-Deal
GoodWe Lynx D 10 kWh with GoodWe ET Plus 16A - GW6.5KN-ET
The mounting system (base plate or wall bracket) is not included with the battery and must be purchased separately. It is required for installation!
Item number for base plate: 12788
Item number for wall bracket: 12787
With its own complete solution, GoodWe offers the stackable Lynx D high-voltage battery together with the 3-phase hybrid Inverter from the ET Plus 16A series. Both systems are designed to work together and offer maximum energy autonomy, maximum efficiency and a reliable emergency power supply. Other consumers such as Wallboxes and Heat pumps can also be integrated via the potential-free contact in the hybrid Inverter.
Brand information
GoodWe is a leading global provider of innovative solar and storage solutions. With a strong focus on sustainability and technological development, GoodWe stands out for its durable products, simple installation and broad compatibility.
Package benefits
- 3-phase Smart meter included with the ET Plus Series 16A
- Reliable emergency power supply (switchover time < 10 ms)
- Up to 8 stackable battery modules (max. 40 kWh)
- Integration into the Sems Portal
- High battery safety standard VDE 2510-50
- Individual modules can be replaced (mix of old and new modules)
Product features GoodWe Lynx D – LX D5.0-10
- Cell type: LiFePO4
- Usable battery capacity: 10 kWh
- Nominal voltage: Charging per battery module: 435 V; Discharging: 380 V
- Rated charging/discharging power: 6 kW
- Communication: CAN
- Temperature range: Discharge: -20°C – 53°C
- Temperature range: Charging: 0°C – 53°C
- Battery module retrofitting possible
- Dimensions: 760 x 700 x 170 mm (H x W x D)
- Weight: 104 kg
- Protection class: IP 66
- Installation type: Floor-stacked / Wall-mounted (base plate / wall bracket must be ordered separately)
Product features GoodWe ET Plus 16A – GW6.5KN-ET:
- Mains connection: 3-phase
- AC power: 6.5 kVA
- 8 kW emergency power output via separate output
- MPP trackers: 2
- String connections per MPPT: 1
- Max. input current per MPPT: 16 A
- Max. short-circuit current per MPPT: 21.2 A
- Communication: RS485, Wi-Fi (optional LAN)
- Dry contact available (programmable via SolarGo app) (SG-Ready)
- Push-in terminals for the communication interfaces simplify installation
- WiFi module included
- Dimensions: 516 x 415 x 180 mm (HxWxD)
- Protection class: IP66
- Weight: 24.0 kg
Application examples
- Self-consumption optimisation: Use the Solar power generated during the day to charge your batteries and meet your energy needs at night
- Emergency power supply: Keep essential devices and applications operational during power cuts
- Cost efficiency: Charge your batteries at low electricity rates and save during peak load times
Contents
- 2x GoodWe Lynx D - LX D5.0-10
- GoodWe ET Plus 16A - GW6.5KN-ET including 3-phase Smart meter
Make your home independent of rising electricity prices and grid fluctuations – with the GoodWe Lynx D and ET Plus series! Secure the perfect solution for greater efficiency and comfort.
-
GoodWe ET Plus 16A InstallationA YouTube-videó le lett tiltva a cookie-beállítások miatt.
-
