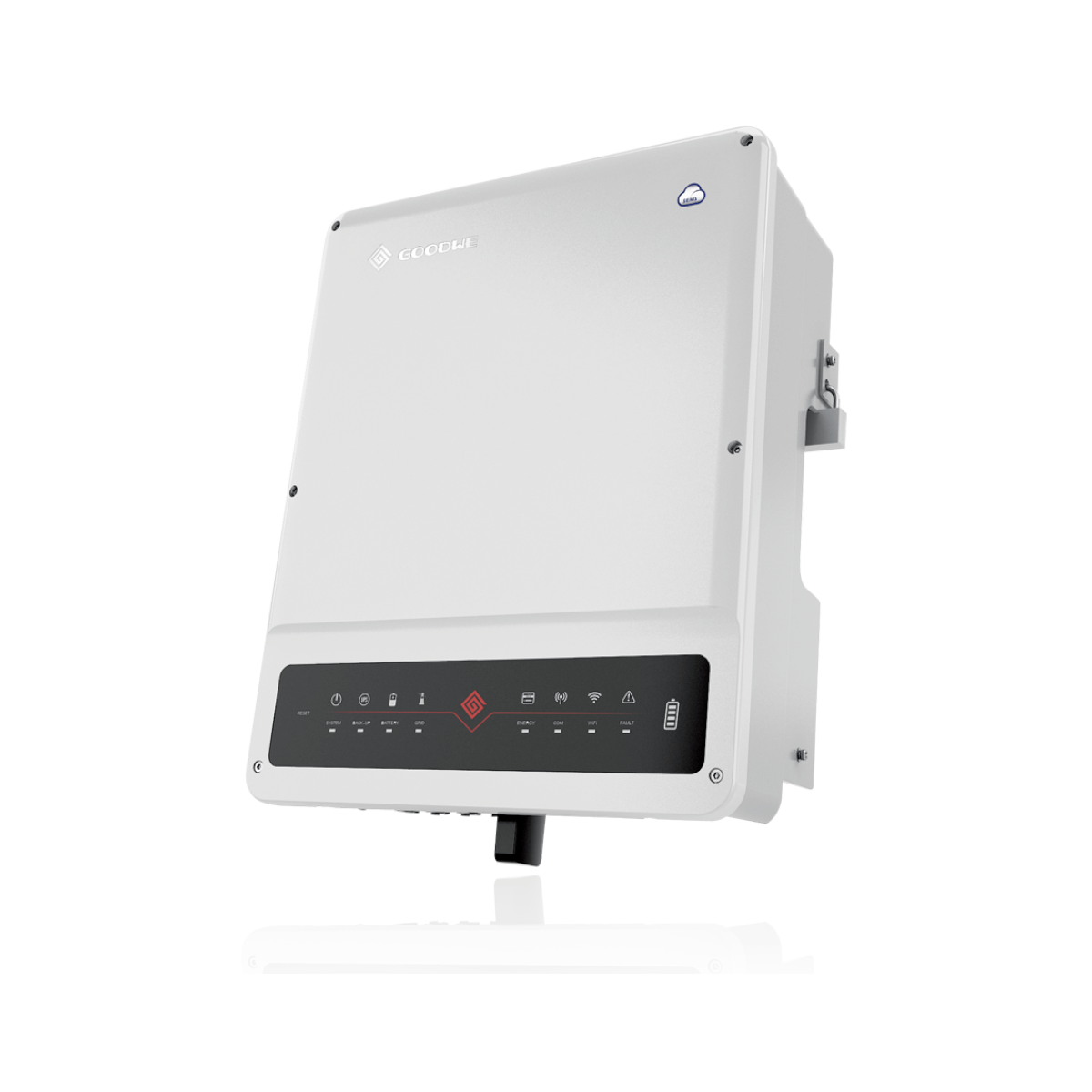

GoodWe & GoodWe ET Plus - GW10K-ET
| Gyártó típusa: | GW10K-ET |
|---|---|
| Gyártói cikkszám: | ETU0010-09-00P |
| Cikkszám: | 8735 |
| Darab csomagolási egységenként: |
|
| Phases: | 3 |
| Inverter type: | Asymmetric inverters, Hybrid inverter |
| MPP-Tracker: | 2 |
| AC power: | 10 kW |
| Warranty: | 5 years |
| Communication: | RS485, WiFi |
| MPP voltage range: | 200 - 850 Volt |
GoodWe ET Plus Series High-Voltage Hybrid Inverter with Emergency Power Output GW10K-ET
The ET Plus series replaces the old ET series.
In Austria, please check local approval requirements!
This three-phase hybrid inverter features a three-phase emergency power output with three-phase current. Together with the high-voltage battery connection and 2 independent MPP trackers, the GoodWe inverter leaves nothing to be desired. This device is configured via the GoodWe PV Master app and sends its data to the free GoodWe SEMS portal via the integrated WiFi interface. A three-phase smart meter with clamp-on current transformers is included in the scope of delivery. Larger system designs are possible through the cascaded operation of multiple ET units.
Product advantages
- Status LED
- AC charging capability, expandable via the SDT G2 series, among others
- High efficiency of up to 98.2%
- Integrated DC Type 2 overvoltage protection
- Direct connection to master control receivers
- AC surge protection
- Cascade operation of multiple ET devices possible with the SEC1000S Hybrid Combiner Box (Memodo 4407) accessory!
Product features GoodWe GW10K-ET
- Grid connection: 3-phase
- AC power: 10.0 kVA
- 10.0 kW emergency power output via separate output
- MPP trackers: 2
- String connections per MPPT: 1
- Battery connection for high-voltage battery (BYD, GoodWe)
- RS485, Wi-Fi (optional LAN)
- Potential-free contact available (programmable via PV-Master app) (SG-Ready)
- Push-in terminals for the communication interfaces simplify installation
- 3-phase Smart meter included
- Dimensions: 516 x 415 x 180 mm (HxWxD)
- Protection class: IP66
- Weight: 24 kg
If you’re looking for emergency power, you’ve come to the right place! Compact dimensions and low weight with full power – what more could you want?
-
