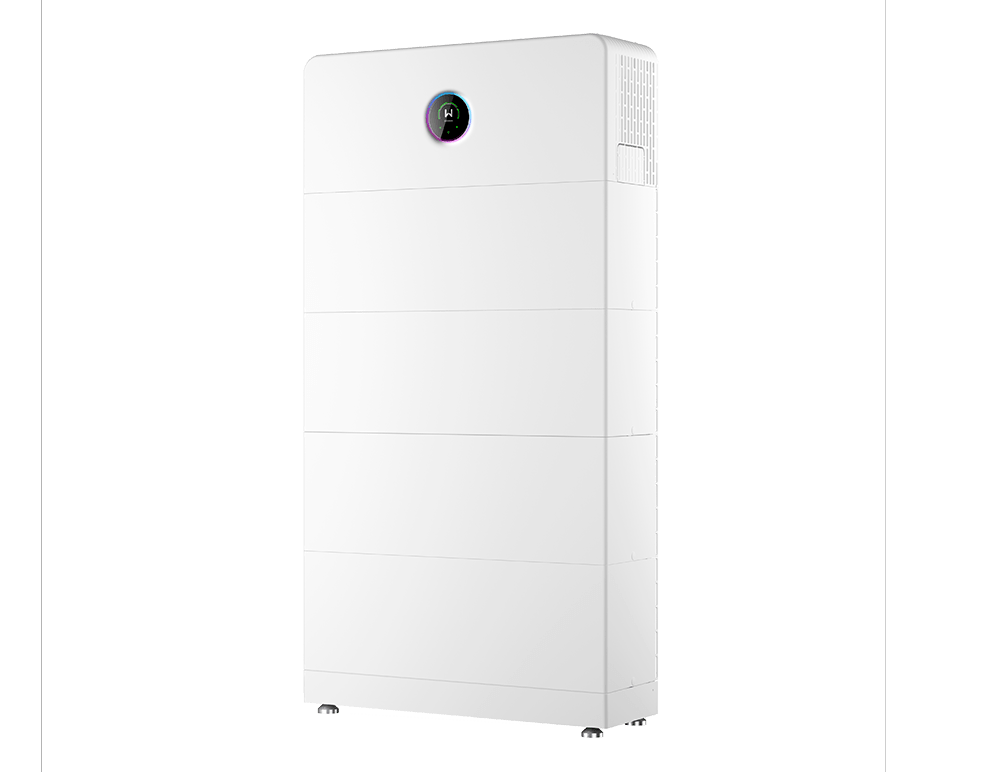

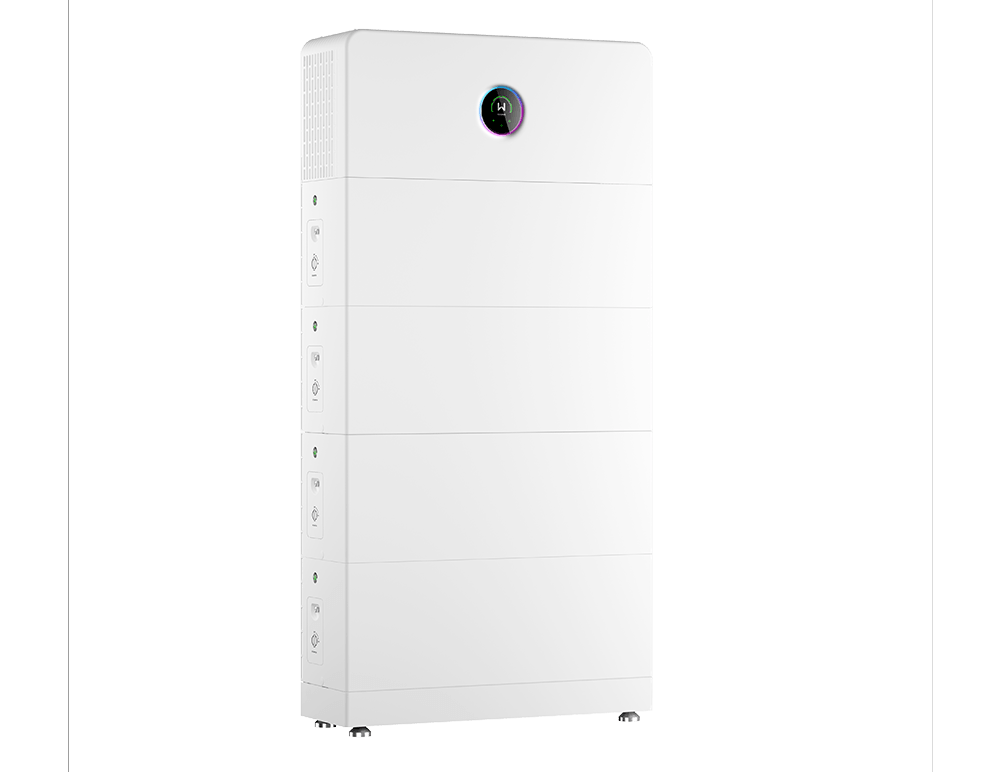

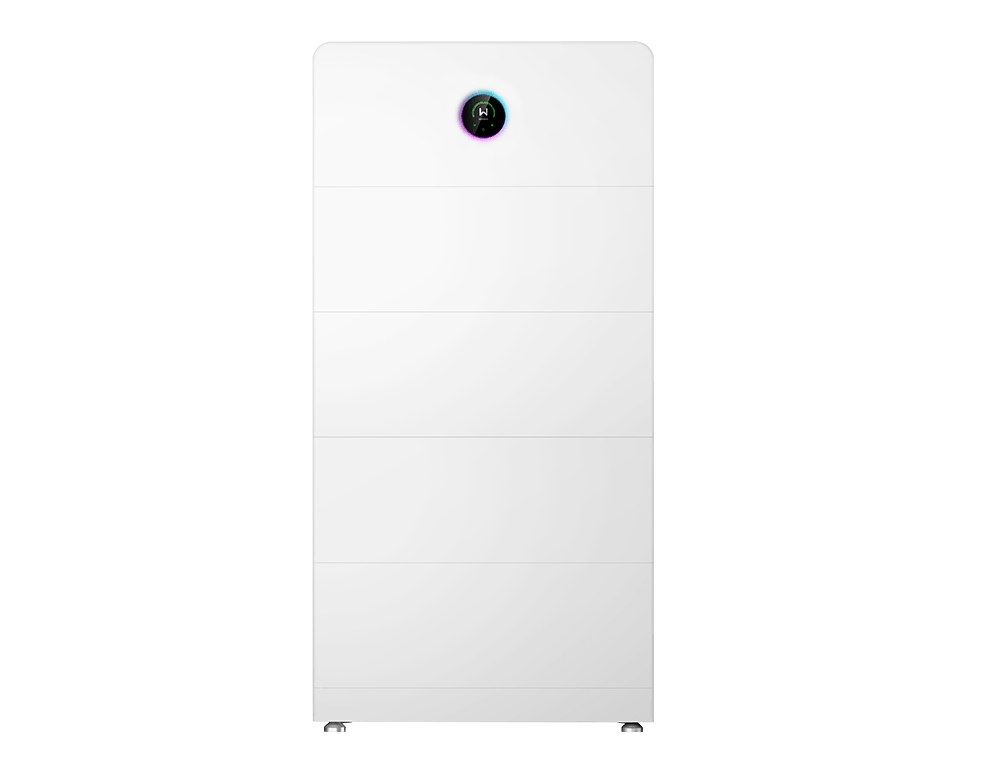

GoodWe ESA 25 kW and GoodWe ESA 27 kWh
| Gyártói cikkszám: | 1 |
|---|---|
| Cikkszám: | 16075 |
| Inverter: | GoodWe ESA - GW25K-ETA-G20 |
| Phases: | 3 |
| Solar battery: | GoodWe ESA - GW5.1-BAT-D-G20, GW8.3-BAT-D-G20 |
| Net capacity: | 27 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
- Új
GoodWe ESA 25 kW + GoodWe ESA 27 kWh | ESS package
The GoodWe ESA 20 kW + 25 kWh package combines the GW25K‑ETA‑G20 three-phase hybrid inverter with the GW5.1-BAT-D-G20 and GW8.3‑BAT‑D‑G20 lithium battery modules into a modular solution that you can easily configure to suit your exact needs. The inverter is designed for maximum flexibility – it can handle significant oversizing on the DC side and offers a fully asymmetrical output. It can intelligently distribute power between phases according to the current consumption of your home or business premises. The system is ready for smart energy management: in the app, you can set up self-consumption modes, manage dynamic tariffs and define priorities for charging and backup power.
The battery section is stackable and scalable, so you can easily expand the supplied capacity in future by adding further modules. The compact design with a high IP66 rating allows for both indoor and outdoor installation, whilst ensuring a quick, clean installation without taking up unnecessary space. The result is a flexible system that adapts to your current consumption patterns and remains open to expansion and new energy strategies in the future.
Benefits of the package
- Flexible configuration: operating modes, overflow control, time-of-use tariffs, charging priority
- Modular expansion for the future
- Quick all-in-one installation and compact dimensions
- Safe and long-lasting LFP battery chemistry
- Monitoring and management via the GoodWe platform (app/web), remote updates
GW25K-ETA-G20 product features
- Grid connection: three-phase
- AC power: 25 kW
- Number of MPPT trackers: 4
- Number of strings per MPPT: 1/1/2/2
- Max. input current per MPPT: 21/42 A
- Max. short-circuit current per MPPT: 26/52 A
- Battery voltage range: 700–950 V
- Protection rating: IP66
- Communication: RS485, Wi-Fi + LAN + Bluetooth
- Dimensions: 800 × 340 × 270 mm (H × W × D)
- Weight: 38.0 kg
- Max. efficiency: 97.4%
Product features GW5.1-BAT-D-G20
- Total capacity: 5.12 kWh
- Usable capacity: 5 kWh
- Technology: LFP (LiFePO₄)
- Voltage range: 700–950 V
- Dimensions: 800 × 326 × 270 mm
- Weight: 57.5 kg
- Communication: CAN
- Protection rating: IP66
Product features GW8.3-BAT-D-G20
- Total capacity: 8.32 kWh
- Usable capacity: 8 kWh
- Technology: LFP (LiFePO₄)
- Voltage range: 700–950 V
- Dimensions: 800 × 326 × 270 mm
- Weight: 79 kg
- Communication: CAN
- Protection rating: IP66
-
