Fronius & Fronius Symo GEN24 10.0 Plus SC (hybrid inverter)
| Gyártói cikkszám: | 4,210,187,002 |
|---|---|
| Cikkszám: | 15147 |
| Darab csomagolási egységenként: |
|
| Phases: | 3 |
| Inverter type: | Hybrid inverter |
| MPP-Tracker: | 2 |
| AC power: | 10 kW |
| Warranty: | 10 years |
| Communication: | Ethernet, WLAN, RS485 |
| MPP voltage range: | 80 - 800 Volt |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
Termékszám:
15147
Leírás

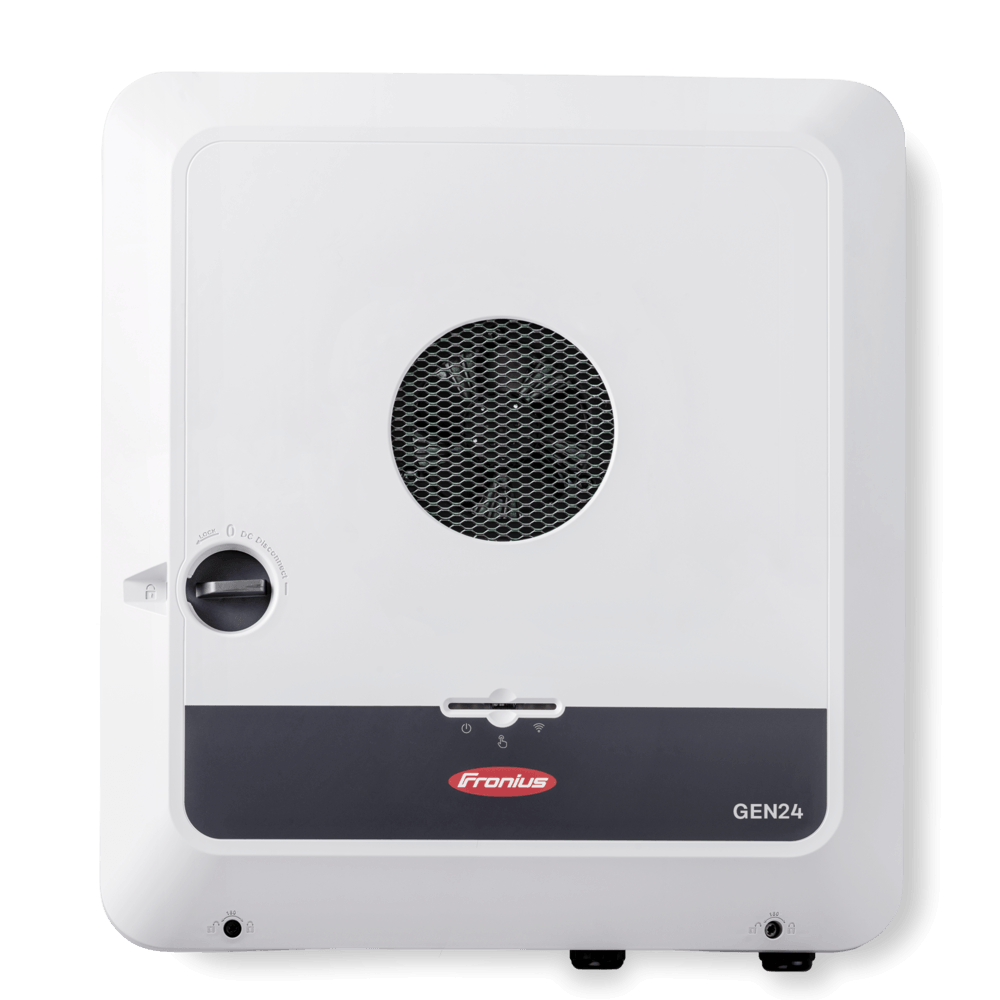

Fronius Symo GEN24 10.0 Plus SC – The hybrid inverter for private households
Fronius is expanding its hybrid inverter range with the Fronius Symo GEN24 3.0 – 5.0 Plus SC. These three-phase inverters, with power ratings of 3–5 kW, are ideal for PV system designs in the residential sector. The basic emergency power function PV-Point is integrated, allowing single-phase loads to be supplied via a socket with up to 3 kW in the event of an emergency. Furthermore, the battery input allows for charging and discharging currents of up to 12.5 A. The hybrid inverter also features integrated Multi Flow technology, which enables the battery to be charged from other AC sources as well.
Product benefits
- Integrated basic emergency power function PV Point
- Integrated AFCI
- Multi Flow technology
- High battery charge/discharge power
- Complete interface package
- Free warranty extension to 10 years upon online registration on Fronius Solar.Web
Product features Fronius Symo GEN24 10.0 Plus SC
- Mains connection: 3-phase
- AC power: 10.0 kVA
- MPP trackers: 2
- Max. usable input current: MPPT1: 28 A / MPPT2: 14 A
- Max. short-circuit current: MPPT1: 40 A / MPPT2: 20 A
- DC input voltage range: 80–1,000 V
- Communication: integrated data logger and web server
- Interfaces: 2 x Ethernet, Wi-Fi, 2 x RS485, 6 x digital IN/OUT, 6 x digital IN (FRE)
- Active cooling
- Dimensions: 595 x 529 x 180 mm (H x W x D)
- Weight: 22.8 kg
- Protection class: IP 66
- Warranty: 2 years (extended to 10 years upon online registration on Fronius Solar.Web)
-
