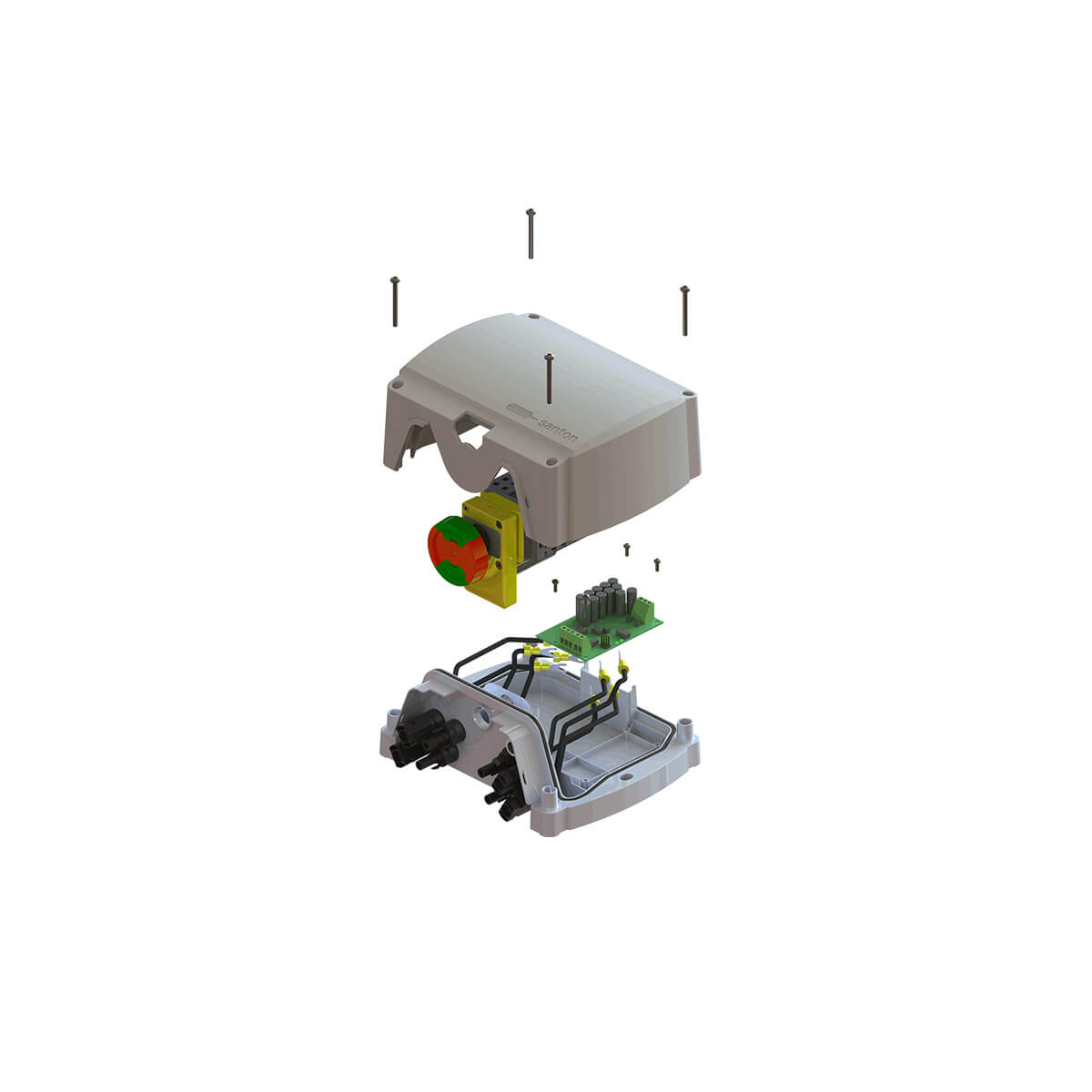

Fire prevention circuit breaker Santon for 2 MPP, 40A, MC4
| Gyártói cikkszám: | DFSHP-14-MC4 |
|---|---|
| Cikkszám: | 4754 |
| Darab csomagolási egységenként: |
|
| Accessory type: | Firefighter breaker |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
Newer model
Ehhez a termékhez elérhető egy utódmodell.
Termékszám:
4754
Leírás
Safe isolation of DC circuits with the Santon fire protection switch
This item has been discontinued; you can find the new version at a better price here:
Santon by Cergen FFS fire protection switch for 2 MPPT | 16262
Manufacturer’s designation: DFSHP-14-MC4
The Santon fire protection switch safely disconnects all connected DC cables in the event of a mains failure or remote tripping. The connection from the switch to the Inverter is therefore de-energised, allowing fire crews to extinguish fires in this area without risk.
Advantages of the Santon fire protection switch
- Complies with the new standard
- Compact design with IP65 rating
- Motor-driven switch
- Shutdown in the event of a mains failure is secured via capacitors
- Automatic re-engagement upon return of mains power
Product features
- Up to 40 A possible at 1000 V DC
- Connection: MC4 for 2 separate strings
- In accordance with application rule VDE-AR-E 2100-712 (version 2013-05) and OVER guideline R11-1 (version 2013-03-01)
- Ratings in accordance with IEC 60947-1&3 DC21 based on the connection of positive and negative terminals
- Dimensions: 201 x 175 x 105 mm (L x W x H)
