Euronergy EUQJH57J 420 W
| Gyártói cikkszám: | EUQJH57J 420W |
|---|---|
| Cikkszám: | 13682 |
| Darab csomagolási egységenként: |
|
| Power: | 420 Watt |
| Efficiency: | 21.69 % |
| Warranty: | 15/25 years |
| Dimensions: | 1850 x 1158 x 2 mm |
| Backsheet: | Black |
| Frame color: | Black |
| Technology: | xBC |
| Snow load: | 3600 |
| Wind load: | 1600 |
| Solar panel type: | Back contact modules |
- Maradék mennyiség
-
-
{ "id": "58fa6e40a7255217a2f61e2e18635d2e", "item_brand": "", "item_name": "Primer Connect Seal-It 525 Clean & Bond 500ml", "item_id": "10542", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "58fa6e40a7255217a2f61e2e18635d2e" } } -
{ "id": "6d228726d7755418816c034a04af973b", "item_brand": "", "item_name": "Adhesive Connect Seal-It 353 Super Strong 600ml glue", "item_id": "13687", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "12", "shopware_id": "6d228726d7755418816c034a04af973b" } }
-

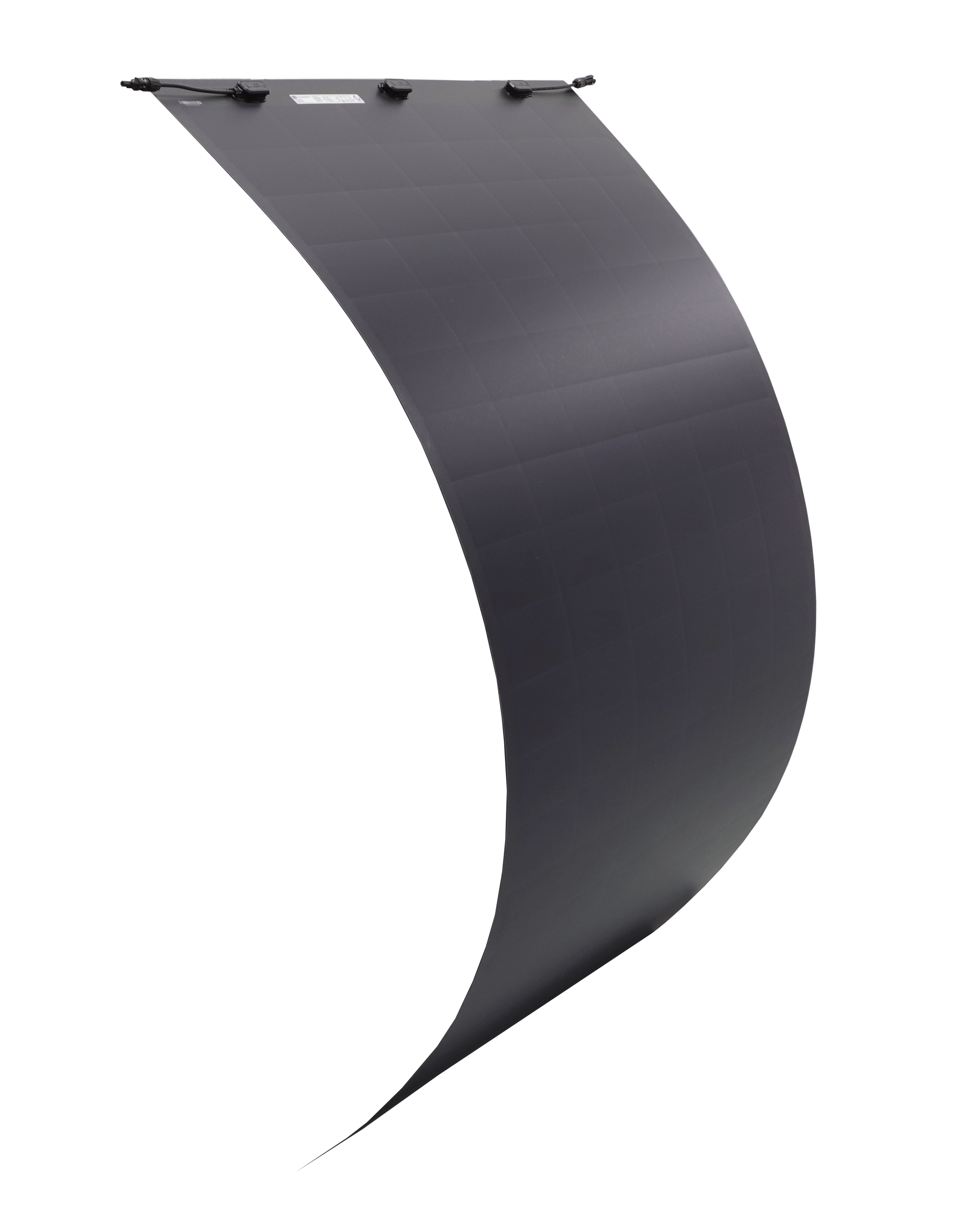

Euronergy 420W ultra-light solar panel weighing 5.2 kg
Is your roof unable to support conventional photovoltaic panels? No problem for Euronergy panels. The panels use an organic polymer composite that replaces the typical front glass cover layer, making them extremely lightweight. The patented polymer composite material is durable and capable of withstanding high temperatures and harsh weather conditions – including exposure to UV radiation (equivalent to 25 years), PID, salt spray and ammonia corrosion tests. Unlike other lightweight panels, the composite’s surface is not textured; it is perfectly smooth and ensures good self-cleaning properties.
The panel is 75% lighter and up to 95% thinner. The quick-bonding process requires no screw holes or mounting hardware, which significantly simplifies the installation process. Backside-contact cells deliver excellent performance even in low light conditions and have a very low temperature coefficient of –0.24% per 1 °C. The panel’s flexibility allows for installation on curved roofs. Euronergy is ideally suited to various commercial applications where glass panels cannot be used. Its features and build quality are underlined by a 15-year product warranty and a 25-year performance warranty.
The panel can be bonded directly to the roof membrane, but we recommend using PVC profiles as a substructure. A summary table of the accessories (profiles, primer, adhesive) required for installation can be found in the Downloads section.
Product benefits
- IBC cells with rear contact
- Panel weight just 5.2 kg (2.5 kg/㎡)
- Flexible – bending radius up to 0.5 m
- Same resistance to PID, UV and other conditions as glass-covered panels
- Thickness: 2 mm
- Frameless – no need to earth the frame, good self-cleaning properties
- 15-year product warranty
- 25-year performance warranty
Specifications of the Euronergy 420W EUQJH57J panel
- Power output: 420 W
- Efficiency: 21.69%
- 114 monocrystalline IBC half-cells
- Backsheet colour: black
- Dimensions: 1850 x 1158 x 2 mm (H x W x D)
- Fire class: C (according to IEC 61215)
- Cable length: 0.30 m
- Connector: Stäubli MC4
- Protection rating: IP68
- Pressure rating: 3600 Pa / 1600 Pa
- Temperature coefficient of power: -0.24 [%/°C]
