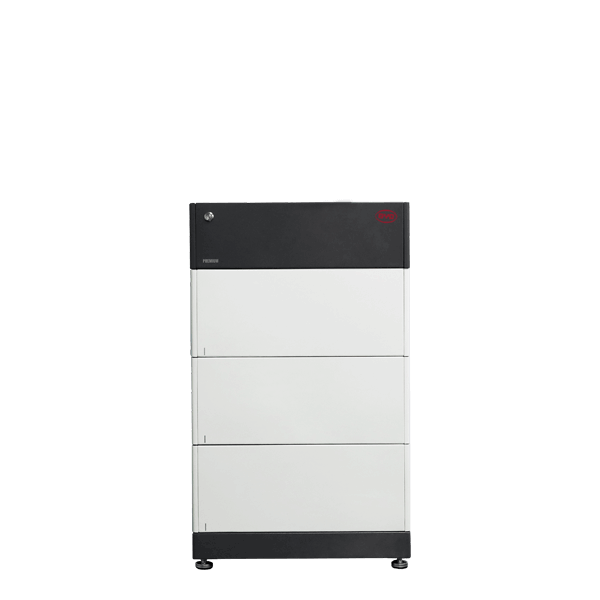

BYD Battery-Box Premium HVM 8.3 incl. BCU 2.0

BYD Battery-Box Premium HVM 8.3 high-voltage battery with BCU 2.0

The BYD Battery-Box Premium HVM is the more powerful high-voltage variant for larger PV systems. An HVM tower consists of 3 to 8 modules connected in series (8.3 to 22.1 kWh) and can be expanded to a maximum of 66.2 kWh by connecting three identical systems in parallel. The modular, cobalt-free LFP batteries offer a long service life, maximum safety and can be easily expanded at any time. The system is suitable for residential, commercial and industrial applications, supports emergency power/off-grid functionality and is compatible with standard Inverters. When it comes to charge and discharge power, however, BYD remains true to form. Each battery can also deliver its rated capacity as power – i.e. 1C. This makes the new series ideally suited for on-grid, on-grid plus backup and off-grid systems. As the software in the new models remains the same, the Premium HVM remains fully compatible with Kostal, SMA, Fronius and GoodWe.

Complications may arise when connecting BCU 1.0 and BCU 2.0 in parallel. For the installation of the MC4 connectors, the use of hydraulic crimping pliers with a crimping head is recommended. Furthermore, for correct commissioning, it is essential to fit the supplied terminating resistor (in the COM-IN for single operation), as otherwise communication errors will occur and the BCU will not recognise the modules.

Product benefits

• Award-winning efficiency thanks to true series connection
• The patented modular plug-in design requires no internal cabling and enables maximum flexibility and user-friendliness
• Cobalt-free lithium iron phosphate (LFP) battery: maximum safety, service life and performance
• Compatible with leading 1- and 3-phase Inverters
• Highest safety standards such as VDE 2510-50
• Powerful emergency/back-up power and off-grid functionality

Product features BYD Battery-Box Premium HVM 8.3

• Battery capacity: 8.28 kWh
• Nominal voltage: 153 V
• Max. output current: 50 A
• Peak output current: 75 A for 3 seconds
• Weight: 129 kg
• Protection class: IP 55
• Dimensions: 945 x 585 x 298 mm (H/W/D)

Contents:

• 1 x BYD Battery-Box Premium BCU 2.0
• 3 x BYD Battery-Box Premium HVM 2.76 kWh battery module

By optimising the battery capacity to 2.76 kWh, transport and installation are even faster. For higher capacities, up to 3 identical battery towers can be connected to form a single system.
