Alumero easySPEED base plate 240x480
| Gyártói cikkszám: | 200124-480 |
|---|---|
| Cikkszám: | 16134 |
| Darab csomagolási egységenként: |
|
| Product type: | Elevation system |
| Type of roof: | Flat roof |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- Új
Termékszám:
16134
Leírás

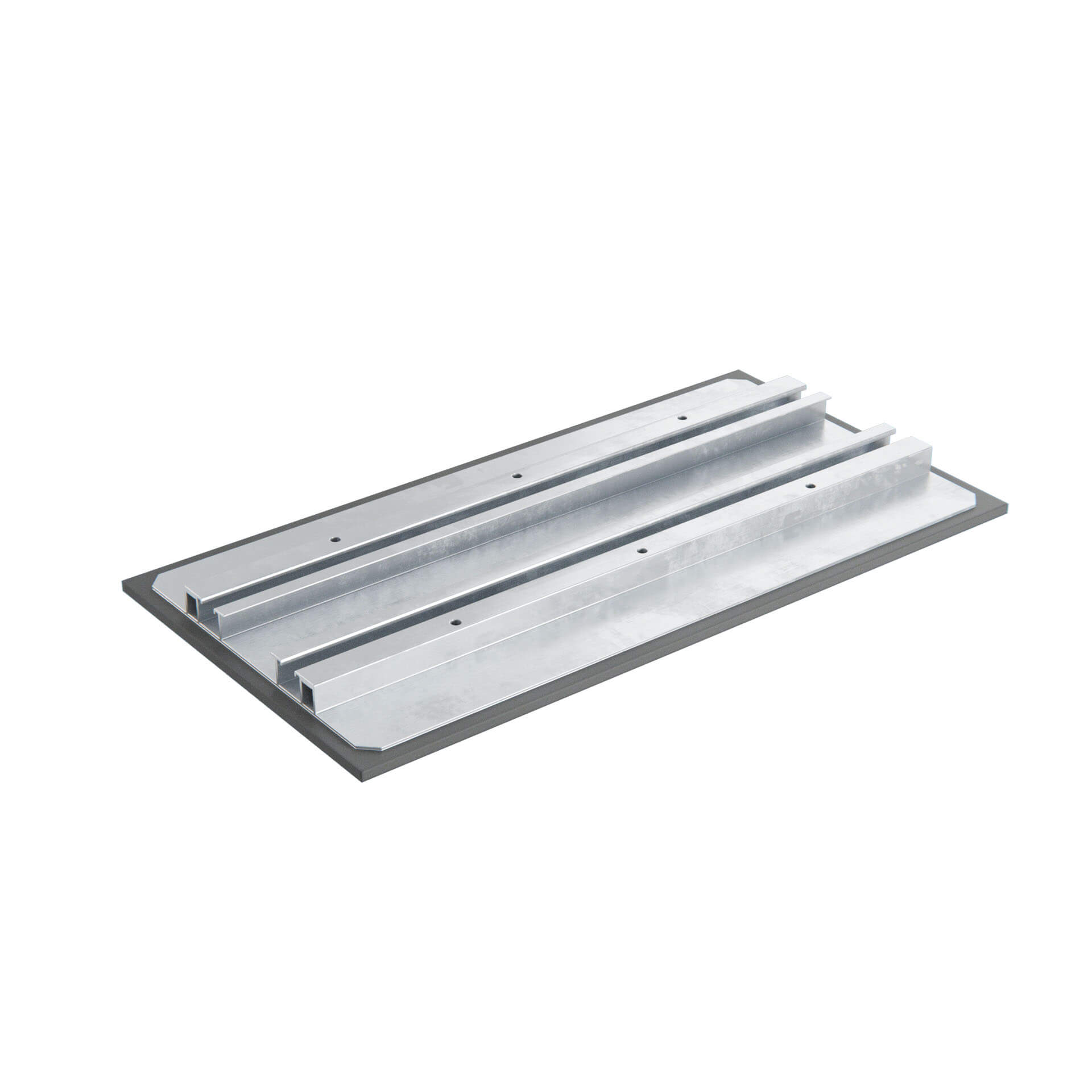

Alumero easySPEED base plate 240x480
The 240x480 mm base plate is the fundamental component of the Alumero easySPEED 2 system for east-west installation on flat roofs. It rests on the roof membrane, accommodates supports and profiles, and distributes the load across the entire surface rather than at specific points – meaning you do not need to penetrate the roof. On the underside is a building protection fleece made of polyester needle-punched felt, which protects the roof membrane.
Your benefits
- No roof penetrations – the roof membrane remains intact, and existing roof warranties remain valid
- Load is distributed evenly across the surface rather than as point loads on the roofing membrane
- Building protection fleece made of polyester needle-punched felt on the underside, free from plasticisers
- Combines the stability of a rail system with the flexibility of a panel system
- Approved for membrane, bitumen, concrete and gravel roofs, with or without thermal insulation
- Lightning current dissipation up to 50 kA, tested in accordance with DIN EN IEC 62561-1
- 25-year manufacturer’s quality guarantee
Order now
Are you planning an east-west layout on a flat roof? Order the Alumero easySPEED base plate 240x480 directly here in the Memodo Shop. The required quantity and ballast requirements are specified in the project report.
Application examples
- East-west installation on membrane and bitumen flat roofs with a pitch of up to 5°
- Installation on concrete and gravel roofs, provided a protective membrane is in place in accordance with building regulations
- Projects where the roof membrane must not be penetrated
Technical data
- Dimensions: 240 x 480 mm
- System: Alumero easySPEED 2 E/W
- Function: Base element for supporting posts and profiles
- Underside: Building protection fleece, polyester needle felt
- Orientation: East-West
- Module pitch: approx. 10°
- Permissible roof pitch: 0° to 5°
- Module formats: framed, width 900–1500 mm, length 1500–2500 mm, landscape format
- Permissible wind load (suction load): up to 3.00 kN/m²
- Permissible snow load: up to 5.76 kN/m²
- Suitable roof types: membrane, bitumen, concrete and gravel roofs
- Lightning current dissipation: up to 50 kA, tested in accordance with DIN EN IEC 62561-1
- Warranty: 25-year quality guarantee
- Manufacturer’s item number: 200124-480
