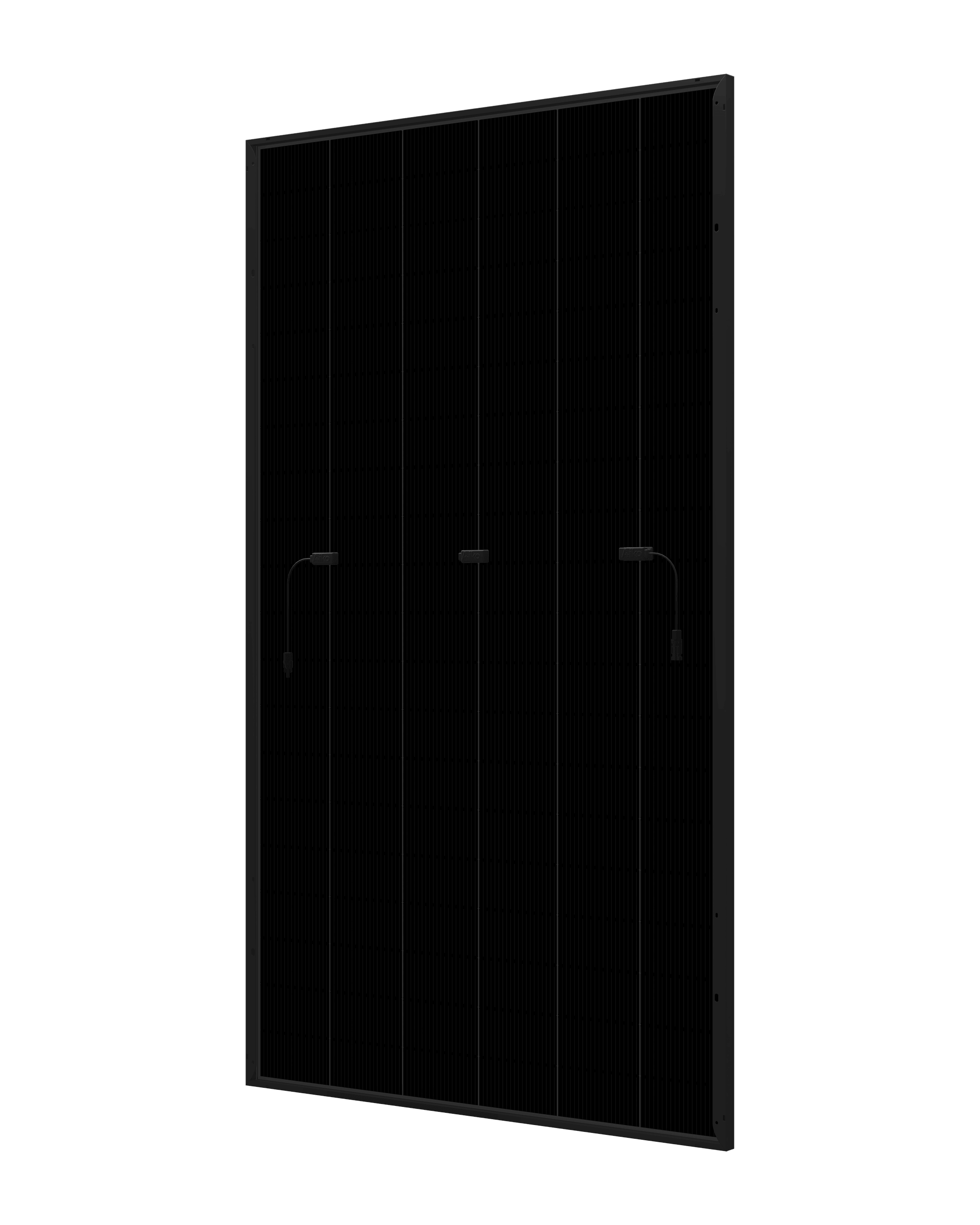

Aiko Neostar 3S+ AIKO-A540-MCE60Db, dual glass, cable 1,2 m

Abbildung kann vom Produkt abweichen.

Gyártó típusa:	AIKO-A540-MCE60Db
Gyártói cikkszám:	M-AIK-BC-540-320-CZ-E
Cikkszám:	16128
Darab csomagolási egységenként:	37 raklaponként 888 konténerenként
Power:	540 Watt
Efficiency:	24,4 %
Construction type:	Double-Glass-Bifacial
Warranty:	25/30 years
Dimensions:	1954 × 1134 × 30 mm
Backsheet:	Black
Frame color:	Black
Technology:	xBC
Snow load:	5400
Wind load:	2400
Solar panel type:	Back contact modules, BiFacial, Full black modules, Glass-glass solar panels, High performance solar panels

Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.

Sajnos nem jogosult rendelések leadására

A cikk megvásárlásához gyártói tanúsítvány szükséges.

The article is currently not available in your country.

Kérjük, lépjen kapcsolatba személyes kapcsolattartójával a termék árának megtudásához. Kapcsolattartója elérhetőségeit az ügyfélfiókjában találja.

There was an error when determining the product availabilty

Termékszám: 16128

Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.

Sajnos nem jogosult rendelések leadására

A cikk megvásárlásához gyártói tanúsítvány szükséges.

The article is currently not available in your country.

Kérjük, lépjen kapcsolatba személyes kapcsolattartójával a termék árának megtudásához. Kapcsolattartója elérhetőségeit az ügyfélfiókjában találja.

There was an error when determining the product availabilty

Termékszám: 16128

Ajánlott tartozékok
- Tigo TS4-A-O up to 700 W

  Cikkszám: 13176

  Tigo

  { "id": "2e36028e629c56a6960fd87232c997cd", "item_brand": "", "item_name": "Tigo TS4-A-O up to 700 W", "item_id": "13176", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2e36028e629c56a6960fd87232c997cd" } }
- Tigo TS4-A-2F up to 1400 W modules (MC4)

  Cikkszám: 11668

  Tigo

  { "id": "523a20f6d2c9534abbcd4282bd530847", "item_brand": "", "item_name": "Tigo TS4-A-2F up to 1400 W modules (MC4)", "item_id": "11668", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "523a20f6d2c9534abbcd4282bd530847" } }
- KBE Solar Cable DB+, 6 mm², 100 m, black

  Cikkszám: 16391

  KBE

  { "id": "7d81197bd5365de79584505d9b27e52a", "item_brand": "", "item_name": "KBE Solar Cable DB+, 6 mm², 100 m, black", "item_id": "16391", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7d81197bd5365de79584505d9b27e52a" } }
- KBE DB+ solar cable, 4 mm², 100 m, black

  Cikkszám: 16392

  KBE

  { "id": "d726251f769f57e5baa4e1289b6707f5", "item_brand": "", "item_name": "KBE DB+ solar cable, 4 mm², 100 m, black", "item_id": "16392", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d726251f769f57e5baa4e1289b6707f5" } }

Aiko Neostar 3S+ 540 W bifacial full-black – a highly efficient panel for residential use

The AIKO-A-MCE60Db (540 W) photovoltaic panel impresses with its top-class efficiency of up to 24.4 %, N-Type ABC technology and a robust construction made from black anodised aluminium. This third-generation model combines the best features of the previous series – it builds on the first series’ record-breaking efficiency whilst retaining the second series’ integrated optimisation for partial shading. Thanks to this unique combination, the panel maintains high conversion efficiency even under partial shading and optimises panel performance at the cell level. Aiko’s third-generation panels once again raise the technological bar and, compared to TOPCon cells, achieve up to 30 W higher power output per unit area.

The panel features a glass-glass design and offers Class A fire resistance in accordance with international IEC standards.

This bifacial panel from the Neostar range has a peak efficiency of 24.4% and an output of 540 W in a versatile size of 1.9 × 1.1 m. The panel’s compact size allows for great flexibility during installation and maximises output. ABC (All Back Contact) technology means that all busbars are located on the rear of the panel. This configuration offers two main advantages – a seamless black design with no visible busbars and maximum power output. A temperature coefficient of -0.26 %/°C ensures that temperature has a minimal impact on the panel’s power output. This panel is the ideal choice for residential projects where the emphasis is on both aesthetics and performance. Thanks to its balance of efficiency, performance and quality, Aiko offers the greatest potential for maximising long-term returns and a faster return on investment.

Product benefits

244 W/m²
120 bifacial ABC N-type cells
Efficiency 24.4%
Temperature coefficient -0.26 %/°C
ABC technology – no contacts on the front of the cell
Completely black surface
Highly efficient and aesthetically pleasing
25-year product warranty
30-year linear power output warranty

Product features of the AIKO Solar Neostar 3S+60 AIKO-A540-MCE60Db

Power: 540 W
Efficiency: 24.4%
Frame colour: black
Backsheet colour: black
Weight: 27.2 kg
Dimensions: 1954 x 1134 x 30 mm
Protection rating: IP68
Temperature coefficient: -0.26%/°C
Product warranty: 25 years
Performance warranty: 30 years

Panel manufacturer AIKO Solar

AIKO Solar was founded in 2009 and has many years’ experience in the development and manufacture of solar cells. The innovative All-Back-Contact (ABC) technology was developed in the company’s own laboratories. AIKO Solar now uses this technology in its own panels, achieving top-class efficiency. With a third of its workforce dedicated to R&D, AIKO Solar regularly introduces innovative technologies and patents. Aiko holds a patent for tubular PERC cells, which today account for 70 % of global production.
