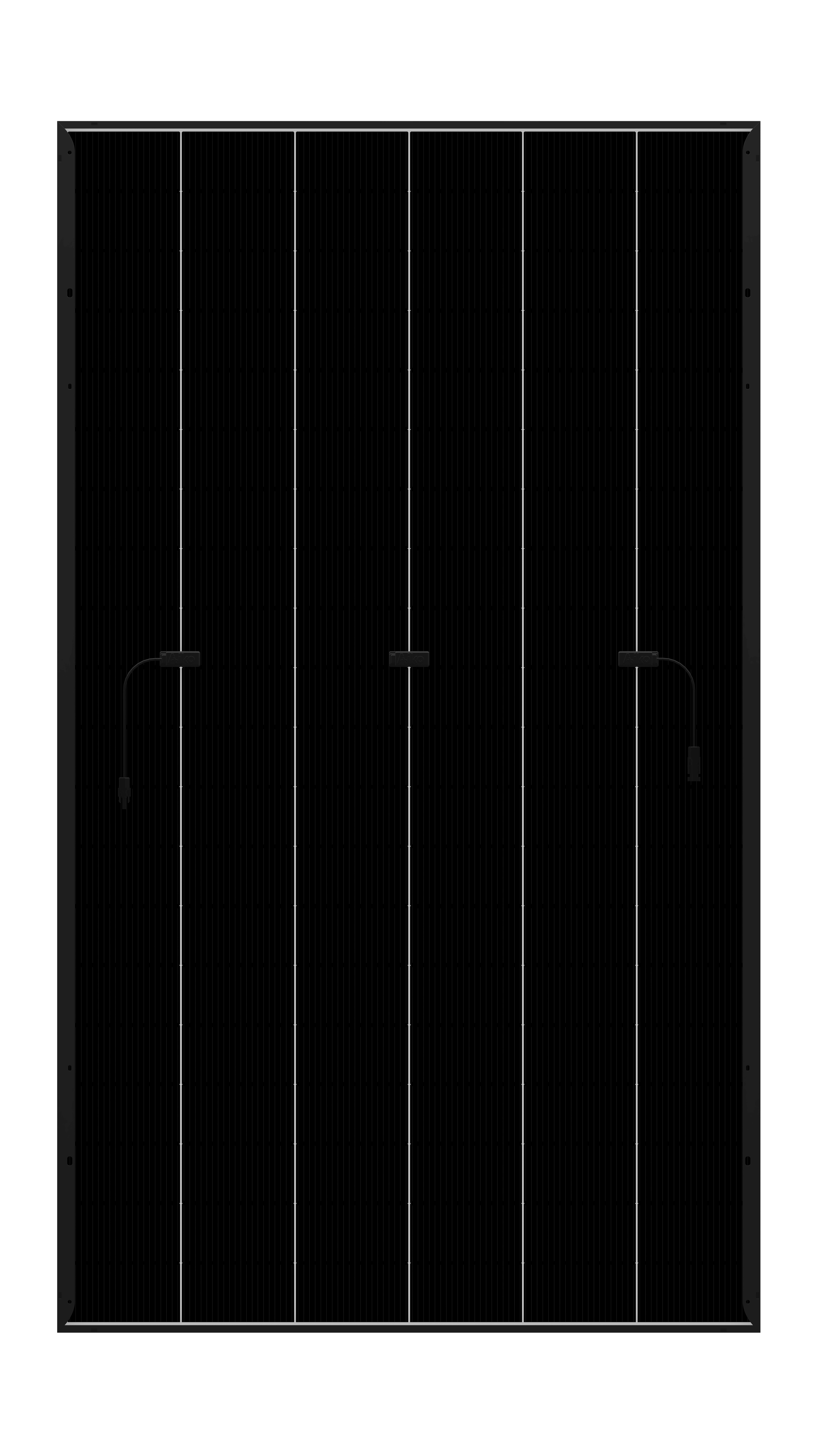

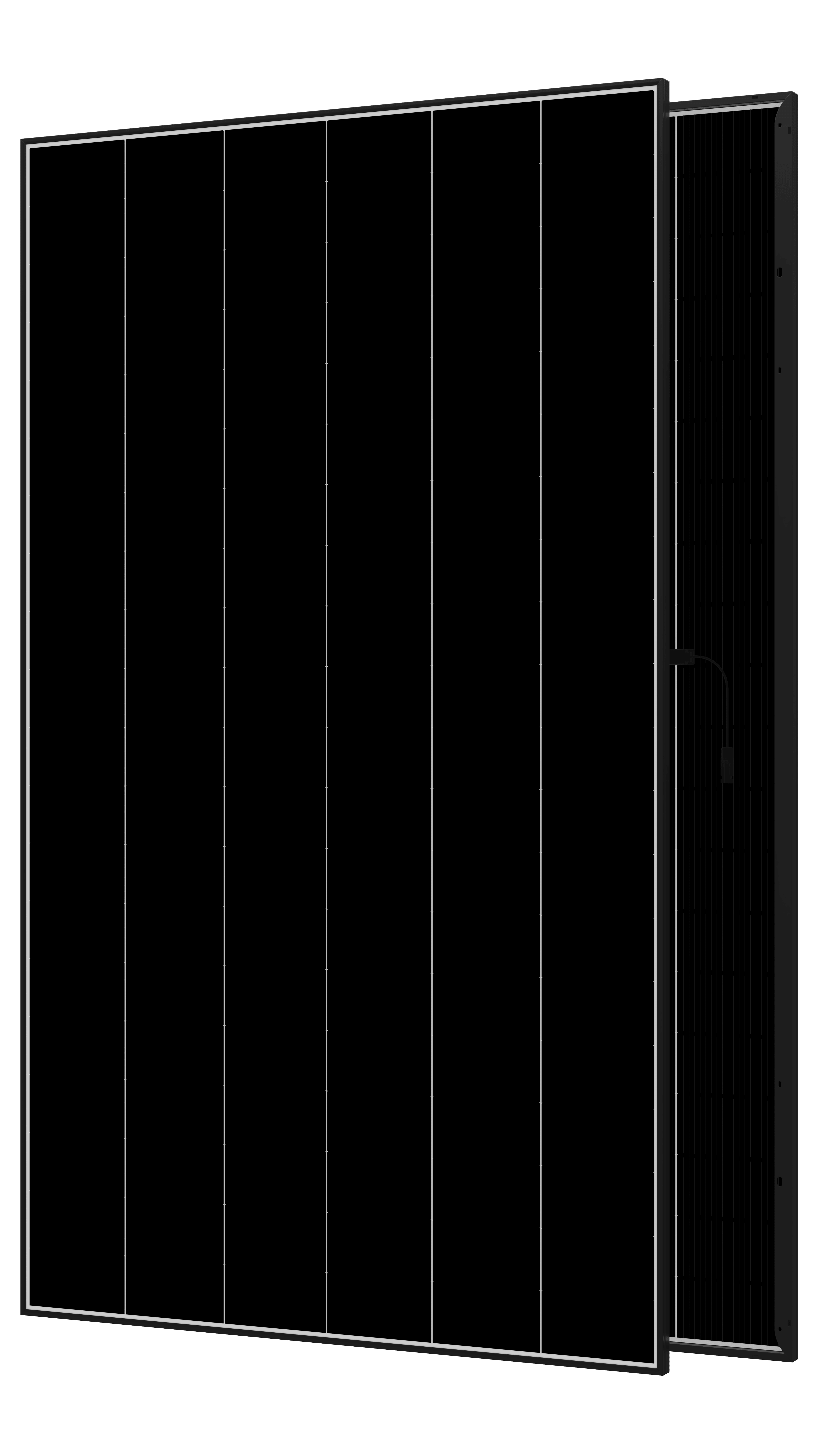

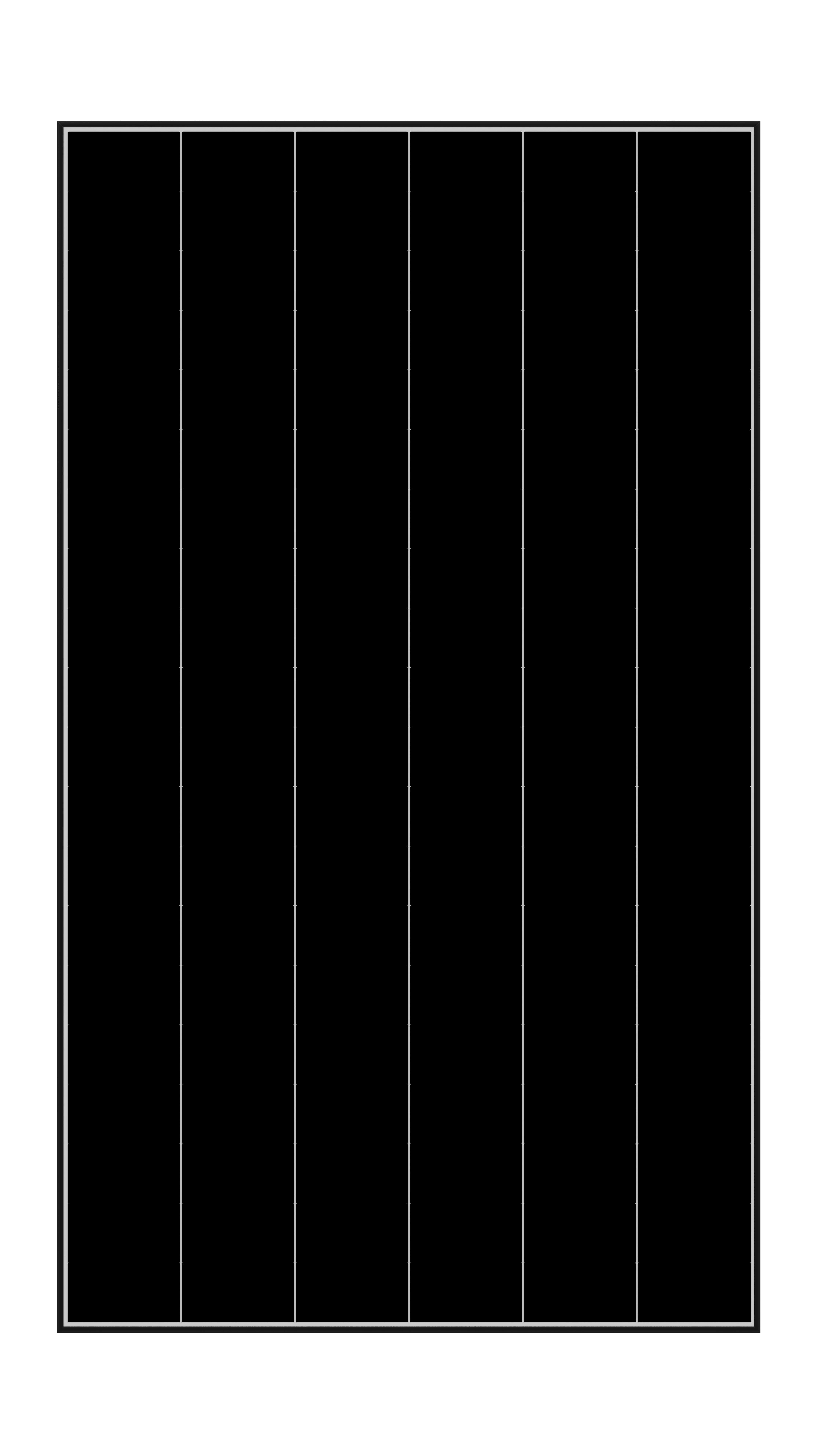

Aiko Neostar 3P+ AIKO-A550-MCE60Dw, dual glass, black frame, cable 1,2 m

Aiko Neostar 3P+ 550 W – a highly efficient, third-generation N-type ABC solar panel

The AIKO-A-MCE60Dw (550 W) photovoltaic panel impresses with its top-class efficiency of up to 24.8%, N-Type ABC technology and a robust construction made from black anodised aluminium. This third generation combines the best features of the previous series – it builds on the record-breaking efficiency of the first series whilst retaining the integrated optimisation for partial shading from the second. Thanks to this unique combination, the panel maintains high conversion efficiency even under partial shading and optimises panel performance at the cell level. Aiko’s third-generation panels once again raise the technological bar and, compared to TOPCon cells, achieve up to 30 W more power from the same surface area.

With an output of 550 W and compact dimensions, it guarantees versatile use across all types of installations. A temperature coefficient of -0.26 %/°C ensures that temperature has a minimal impact on the panel’s output. This panel is the ideal choice for all projects where the emphasis is on both visual appeal and performance. Thanks to its balance of efficiency, power output and quality, Aiko offers the greatest potential for maximising long-term returns and a faster return on investment. When combined with optimisers, you are assured of optimisation at both the cell level within the panel and across the entire string, enabling you to achieve the system’s maximum possible yield.

Product benefits

• 248 W/m²
• Dual-glass design
• High energy density: suitable for installations with limited space
• Thermal stability: stable performance at high temperatures
• Low power degradation: ensures a higher return on investment throughout the product’s lifetime
• Highly efficient and aesthetically pleasing
• 15-year product warranty
• 30-year linear performance warranty

Product features of the Aiko Neostar 3P+60 AIKO-A550-MCE60Dw

• Power: 550 W
• Module efficiency: 24.8%
• Cell type: N-Type ABC GEN3 (120 half-cells)
• Frame colour: black
• Backsheet colour: white
• Dimensions: 1954 × 1134 × 30 mm
• Weight: 27.1 kg
• Connector: original MC4 EVO2 from Stäubli
• Cable: 1.2 m
• Protection rating: IP68
• Temperature coefficient: -0.26%/°C
• Load: 5400/2400 Pa (front/rear)

Panel manufacturer: AIKO Solar

AIKO Solar was founded in 2009 and has many years’ experience in the development and manufacture of solar cells. The innovative All-Back-Contact (ABC) technology was developed in the company’s own laboratories. AIKO Solar now uses this technology in its own panels, achieving top-class efficiency. With a third of its workforce dedicated to R&D, Aiko regularly introduces innovative technologies and patents, such as optimisation for partial shading. Aiko holds a patent for tubular PERC cells, which today account for 70% of global production.
