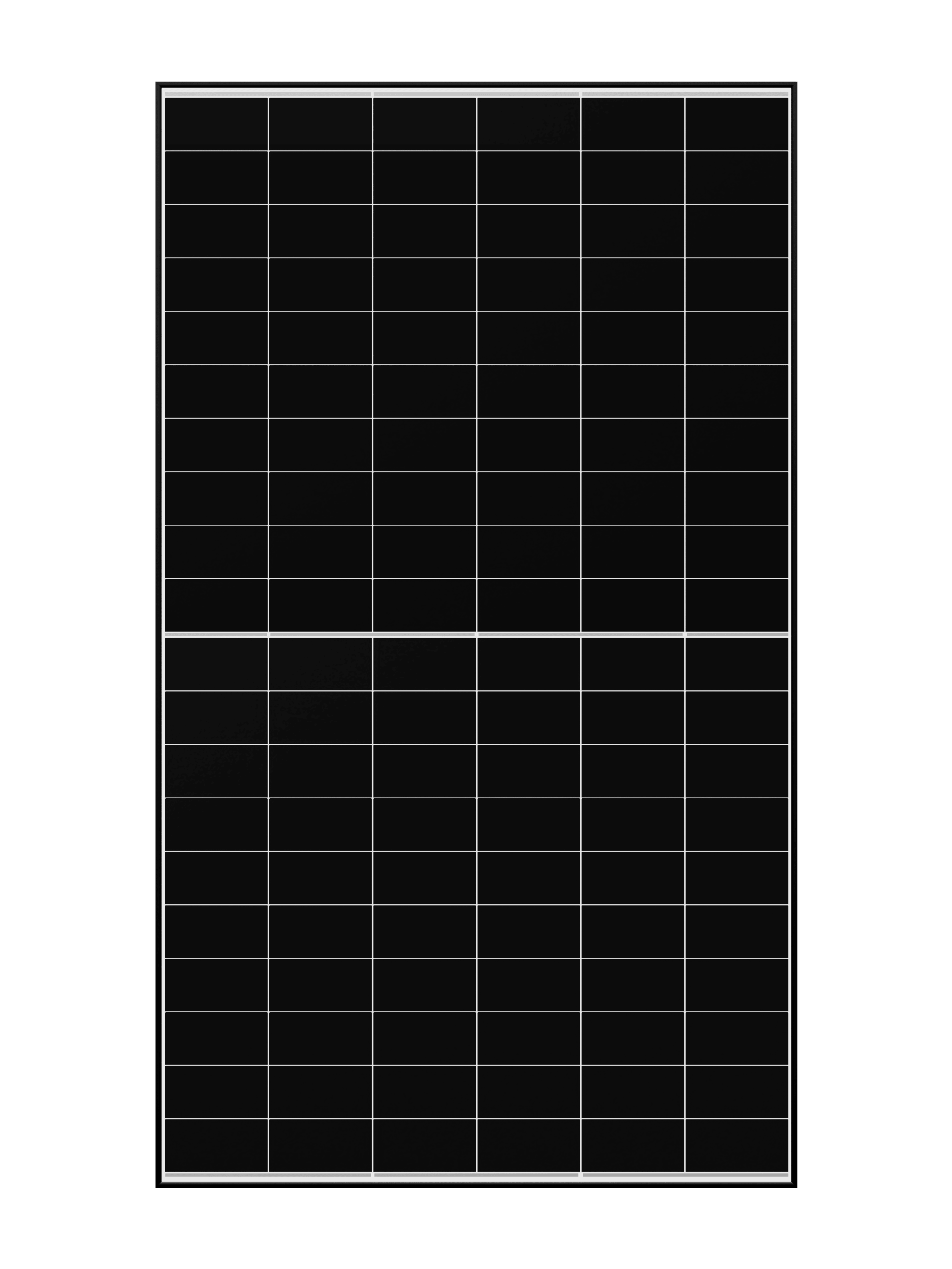

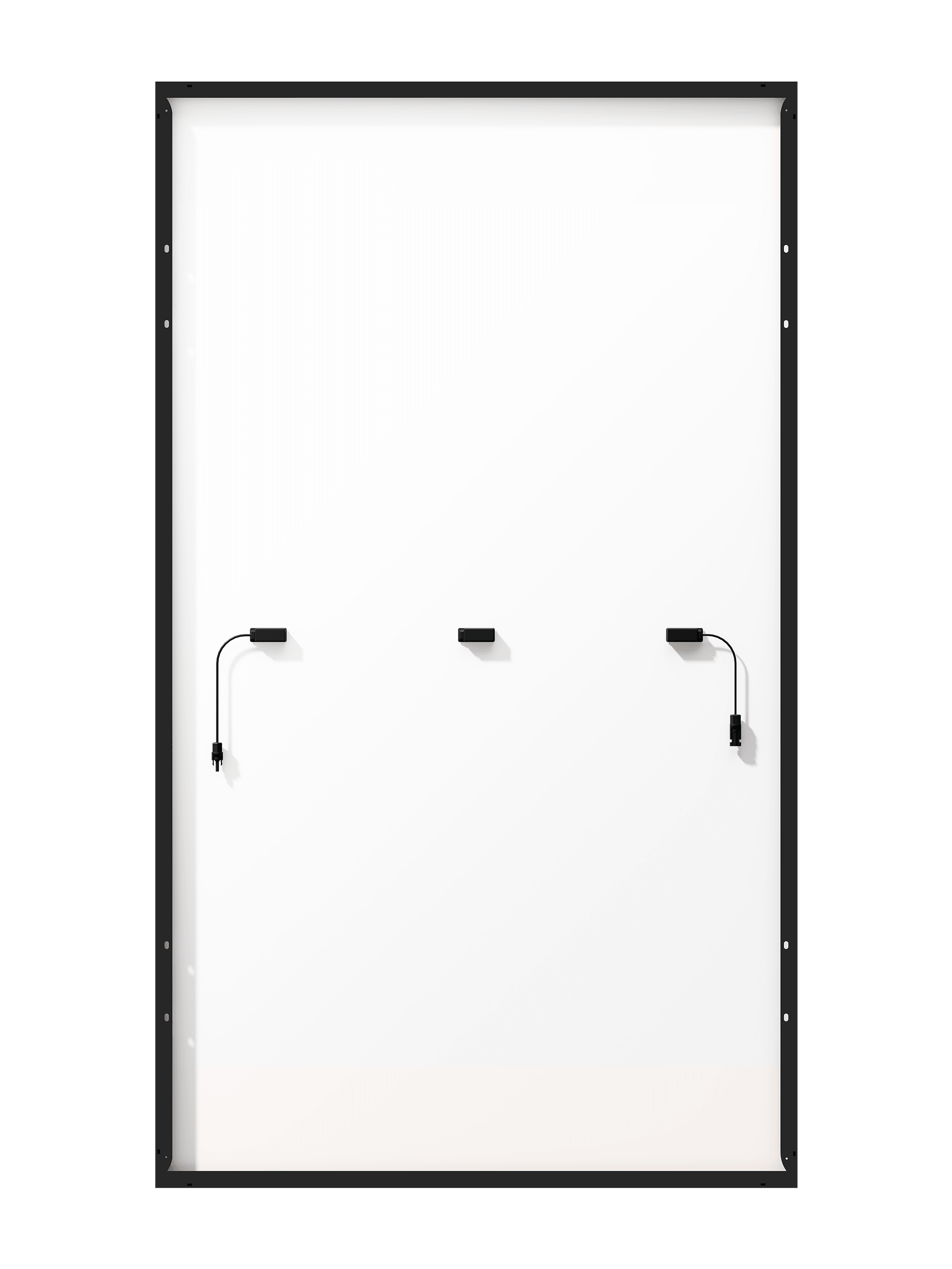

Aiko Neostar 2P60 AIKO-A500-MAH60Mw, black frame, cable 1,2 m

Aiko Neostar 2P60 500 W – a highly efficient N-type ABC solar panel with ideal performance

The AIKO-A-MAH60Mw (500 W) photovoltaic panel boasts a top-class efficiency of up to 22.6%, N-Type ABC technology and a robust construction made from black anodised aluminium. It is designed for professional installations requiring high reliability, low power degradation and a long service life. A key feature of these panels is their integrated optimisation for partial shading. Thanks to this unique function, the panel maintains high output even when partially shaded and optimises performance at the cell level.

The 500 W output ensures versatile use across all types of installations and, what’s more, the calculations couldn’t be simpler. ABC (All Back Contact) technology means that all busbars are located on the rear of the panel. This configuration has two main advantages – a seamless black design with no visible busbars and maximum performance. A temperature coefficient of -0.26 %/°C ensures that temperature has a minimal impact on the panel’s performance. This panel is the ideal choice for all projects where the emphasis is on both aesthetics and performance. Thanks to its balance of efficiency, performance and quality, Aiko offers the greatest potential for long-term maximisation of yields and a faster return on investment. When combined with optimisers, you are assured of optimisation at both the cell level within the panel and across the entire string, enabling you to achieve the maximum possible system yield.

Product benefits

• 226 W/m²
• Popular 500 W output
• Thermal stability: stable output at high temperatures
• Low power degradation: ensures a higher return on investment throughout the system’s lifetime
• Highly efficient and aesthetically pleasing
• 15-year product warranty
• 30-year linear power output guarantee

Product features of the Aiko Neostar 2P60 AIKO-A500-MAH60Mw

• Power: 500 W
• Module efficiency: 22.6%
• Cell type: N-type ABC (120 half-cells)
• Dimensions: 1954 × 1134 × 30 mm
• Weight: 23.1 kg
• Open-circuit voltage (Voc): 45.02 V
• Short-circuit current (Isc): 14.05 A
• Maximum system voltage: DC 1500 V
• Protection rating: IP68, 3 bypass diodes
• Connector: Stäubli MC4
• Warranty: 30 years on performance and 15 years on the product
