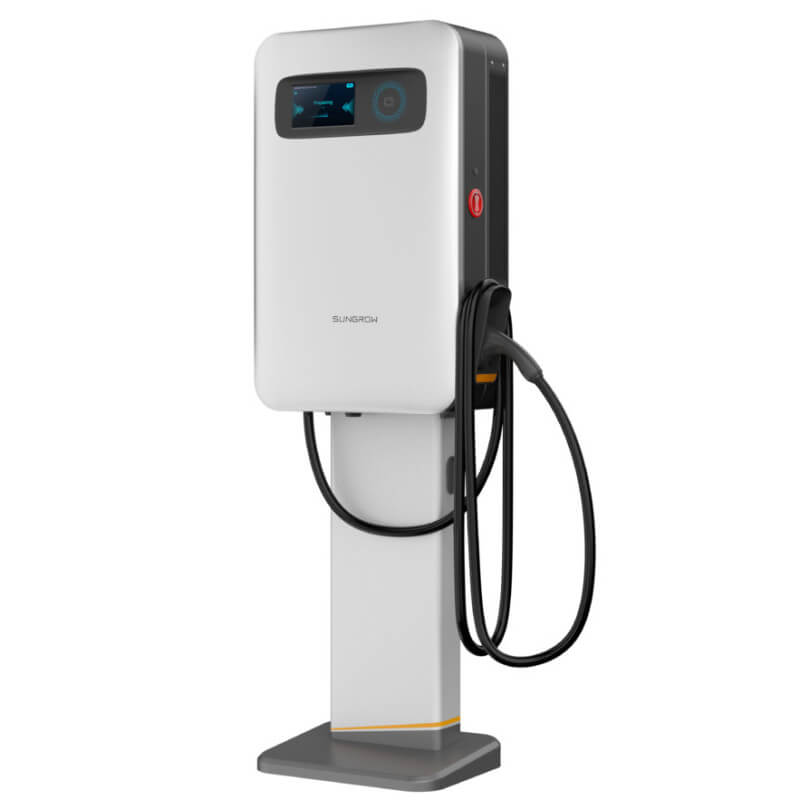

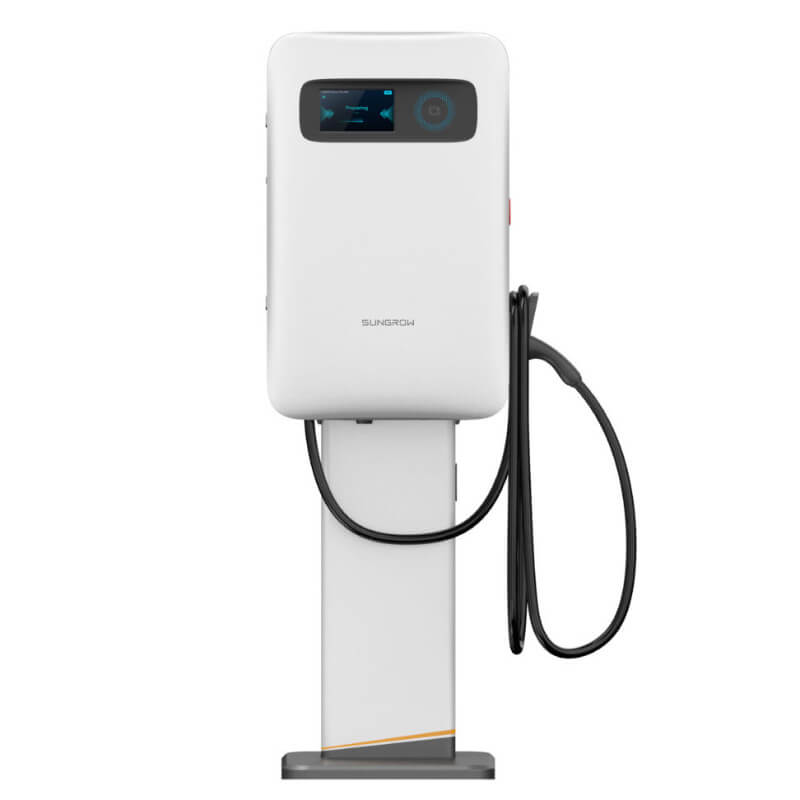

Sungrow IDC30E Charger 30 kW

Modern Sungrow 30 kW DC charging station for multi-purpose use

The state-of-the-art charging station from Sungrow, designed not only for commercial use, has a power output of 30 kW DC and offers a host of benefits. One of the main advantages is that the current undergoes fewer conversions, meaning losses are minimal. Its maximum output current is 80 A and, combined with its high power output, it is capable of charging a battery in 1–3 hours. It is therefore an ideal choice, for example, for shopping centres where people spend short periods of time, or for locations where as many cars as possible need to be charged in the shortest possible time. Naturally, it is also suitable for households with high demands. This 30 kW DC charger is capable of charging batteries in the range of 200 V to 1000 V, thereby covering all current electric vehicle brands. The package includes two RFID access cards, though an unlimited number of cards (M1 type) can be used. After placing the card on the front panel, the desired charging settings can be conveniently selected on the integrated display.

Special installation requirements? You have a choice:

• Wall mounting
• Pole mounting (on request, not included in the package)
• Mounting on a mobile trolley (on request, not included in the package)

The integrated payment terminal, type of electricity meter and additional accessories must be specified for the specific project.

And what about safety? Thanks to its IP65 rating and C5 corrosion protection, it can withstand harsh outdoor conditions, such as wet, dusty and salty environments. A major advantage is the dual-chamber system, where the smart cooling and electronics are housed in a separate chamber, ensuring greater durability and system stability. The charger is also very quiet, with noise levels limited to just 50 dB – less than a domestic fan. Thanks to its wide operating temperature range, the charger is capable of delivering constant maximum power between -35°C and 55°C. Safety is further enhanced by the Emergency Stop button on the side.

Product benefits

• High charging power of 30 kW
• Voltage range 200–1000 Vdc
• Charging current 80 A
• Efficiency: 96.5%
• 7-inch touchscreen control display
• 5 m cable with CCS2 connector
• Dual-chamber system for improved durability
• 4G / WiFi / Ethernet connectivity
• Access via RFID cards (M1 type)
• Temperature range -35°C to 55°C
• Integrated emergency stop button

Sungrow IDC30E product features

• Power: 30 kW
• Number of charging points: 1
• Cable length: 5 m
• Connector type: CCS2
• Verification: RFID, Plug & Play, Auto-charge
• Payment terminal is optional
• Electricity meter: MID with billing certification, optionally metrology-compliant / PTB
• Communication protocol: OCPP 1.6 J (ready for OCPP 2.0.1)
• SIM card slot
• System management: via the iEnergyCharge app
• Language: English
• Weight: 53 kg
• Dimensions: 500 x 800 x 288 mm
• Warranty: 3 years standard, with the option to extend up to 10 years

Package contents:

• 1x IDC30E Charger 30 kW including cable
• 1x wall mounting frame with positioning plate
• 4x corner protectors
• 2x screw-on handles for handling
• 6x wall expansion bolts with wall plugs
• 20x M5x12 star-head screws
• 1x M4x12 star-head screw
• 2x RFID cards
• 2x opening key
• 2x modular RJ45 connector
• 1x waterproof grommet
• Declaration of conformity
• test report
