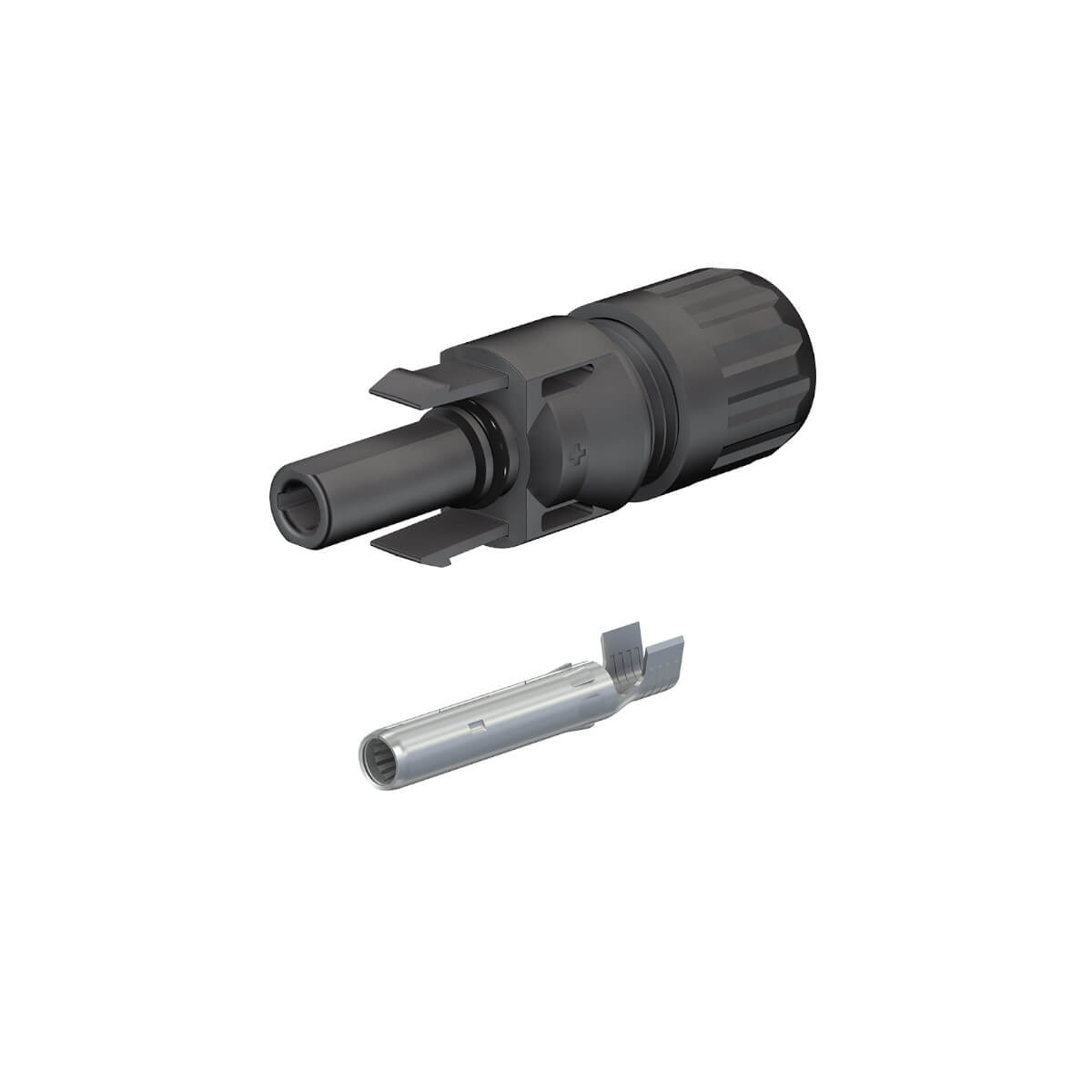

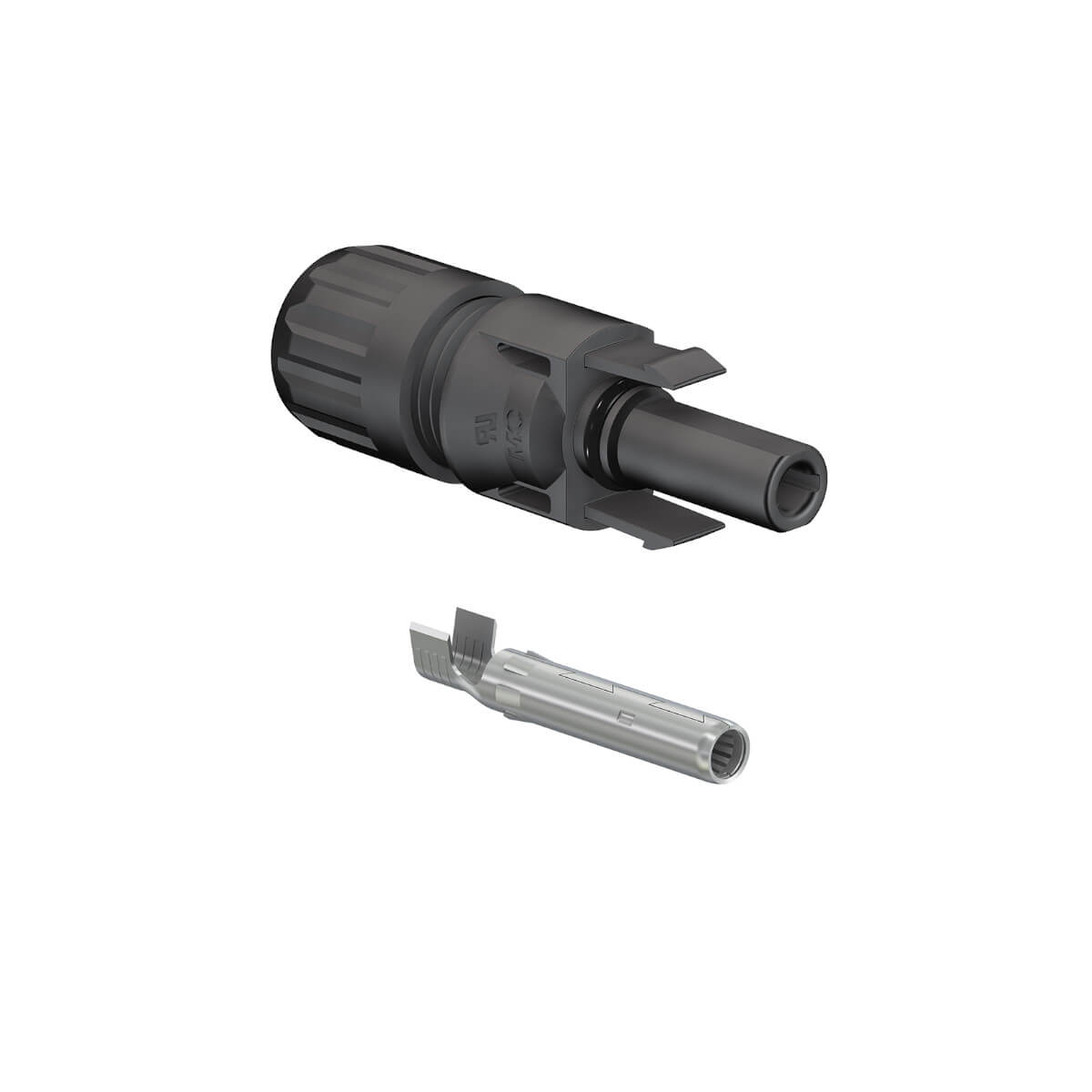

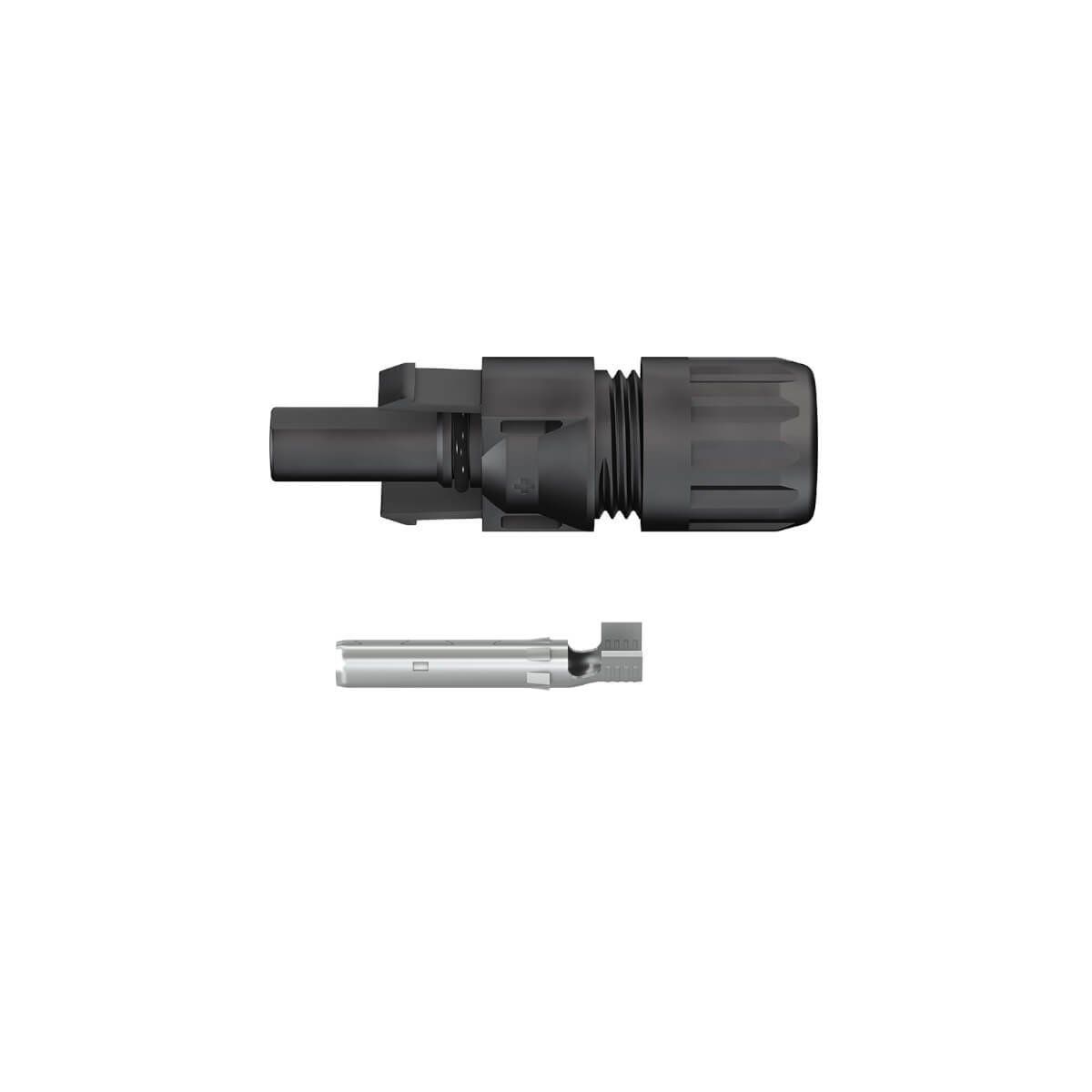

Stäubli MC4 socket, 4–6 mm² I, Da 5–6 mm
| Gyártó típusa: | PV-KBT4/6I-UR |
|---|---|
| Gyártói cikkszám: | 32.0014P0001-UR |
| Cikkszám: | 16175 |
| Darab csomagolási egységenként: |
|
| Accessory type: | Plugs |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- Új
Termékszám:
16175
Leírás
Stäubli Multi-Contact MC4 socket for cables with a cross-sectional area of 4–6 mm²
Stäubli connectors offer a cost-effective, high-quality solution for Photovoltaic systems.
The scope of delivery includes the housing and the inner assembly.
Product benefits
- Significant time savings thanks to quick connection
- Approvals from TÜV, UR, CSA and JET
Product features Stäubli Multi-Contact MC4 socket for cables with a diameter of 4–6 mm²
- DC voltage up to 1000 V and 39 A, tested to IEC 62852
- OD (outer diameter) 5–6 mm
The original solution for secure connections of solar cables. Ensure you use the correct crimping tool and select the appropriate size for the cross-section of the solar cables being installed.
-
