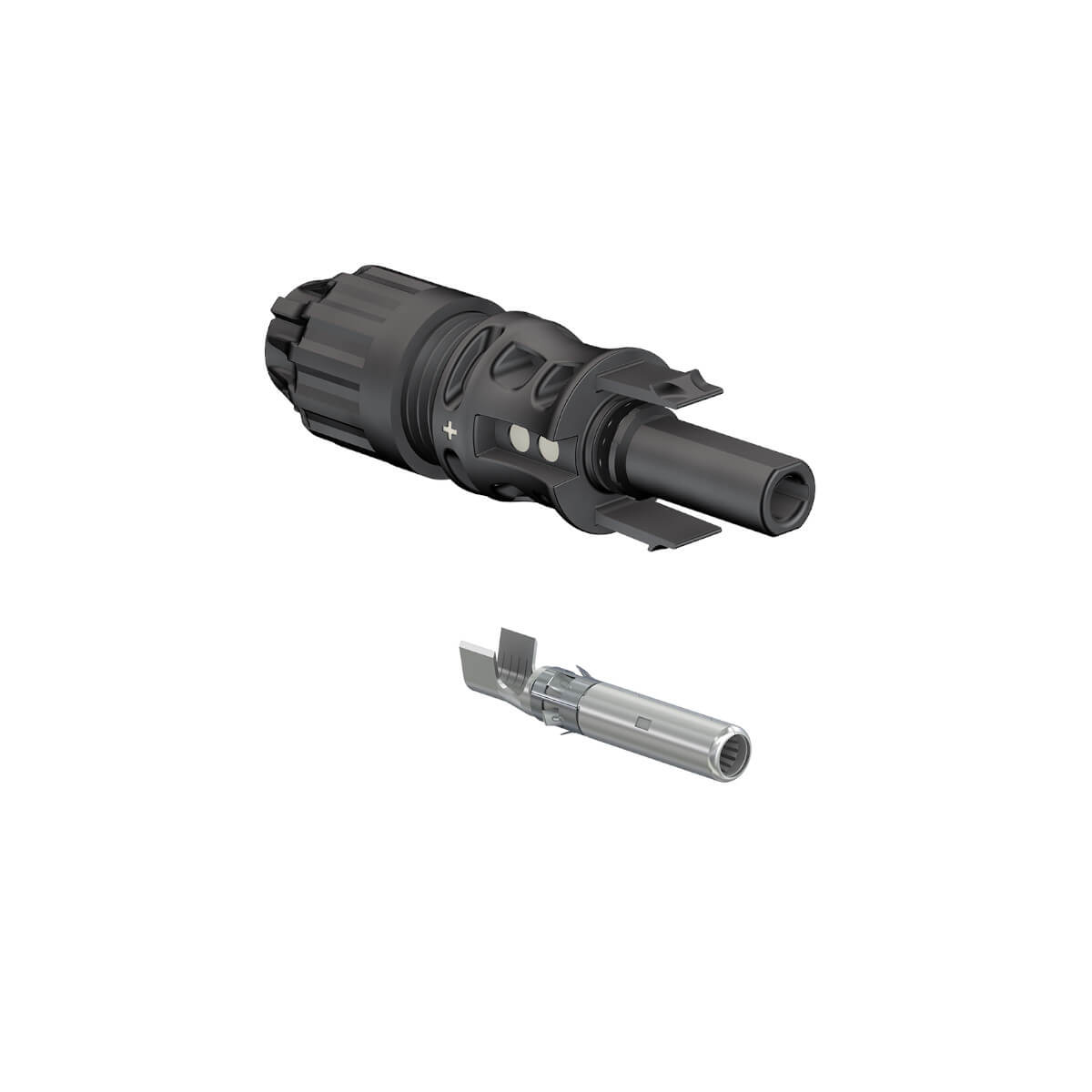

Stäubli MC4-EVO 2 socket, 4–6 mm², DA 6.4–8.4 mm
| Gyártó típusa: | PV-KBT4-EVO 2/6II-UR |
|---|---|
| Gyártói cikkszám: | 32.0088P0001-UR |
| Cikkszám: | 16182 |
| Darab csomagolási egységenként: |
|
| Accessory type: | Plugs |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- Új
Termékszám:
16182
Leírás
Stäubli Multi-Contact MC4-EVO 2 socket for system voltages up to 1,500 V DC and cables up to 6 mm²
Stäubli’s MC4 and MC4-EVO 2 connectors are a cost-effective, high-quality solution for Photovoltaic systems with DC voltages of up to 1,500 V and 100 A. The connectors are available for cable cross-sections of up to 10 mm²/8 AWG. The connectors comply with the requirements of IEC 61984:2008 (Connectors – Safety requirements and tests) for general low-voltage DC applications.
The scope of supply includes the housing and the internal assembly.
Product advantages
- Complies with the requirements of IEC 61984:2008
- TÜV certification to IEC 62852:2014 when used with suitable PV cables
- UL certification to 6703:2014 in combination with suitable PV cables
- Can also be used in systems outside the photovoltaic sector
Product specifications: Stäubli MC4-EVO 2 socket, 4.0–6.0 mm², DA 6.4–8.4 mm
- Cable cross-section (conductor): 4 or 6 mm²
- Cable outer diameter: 6.4–8.4 mm
- Rated voltage: 1,500 V DC
- Rated current (30°C) for a cable cross-section of 4 mm²: 51 A
- Rated current (30°C) for a cable cross-section of 6 mm²: 65 A
- Ambient temperature: -40 °C to +85 °C
- Protection rating when plugged in: IP 65
-
