SolaX T-BAT-SYS-HV-S3.6 - 14.75 kWh

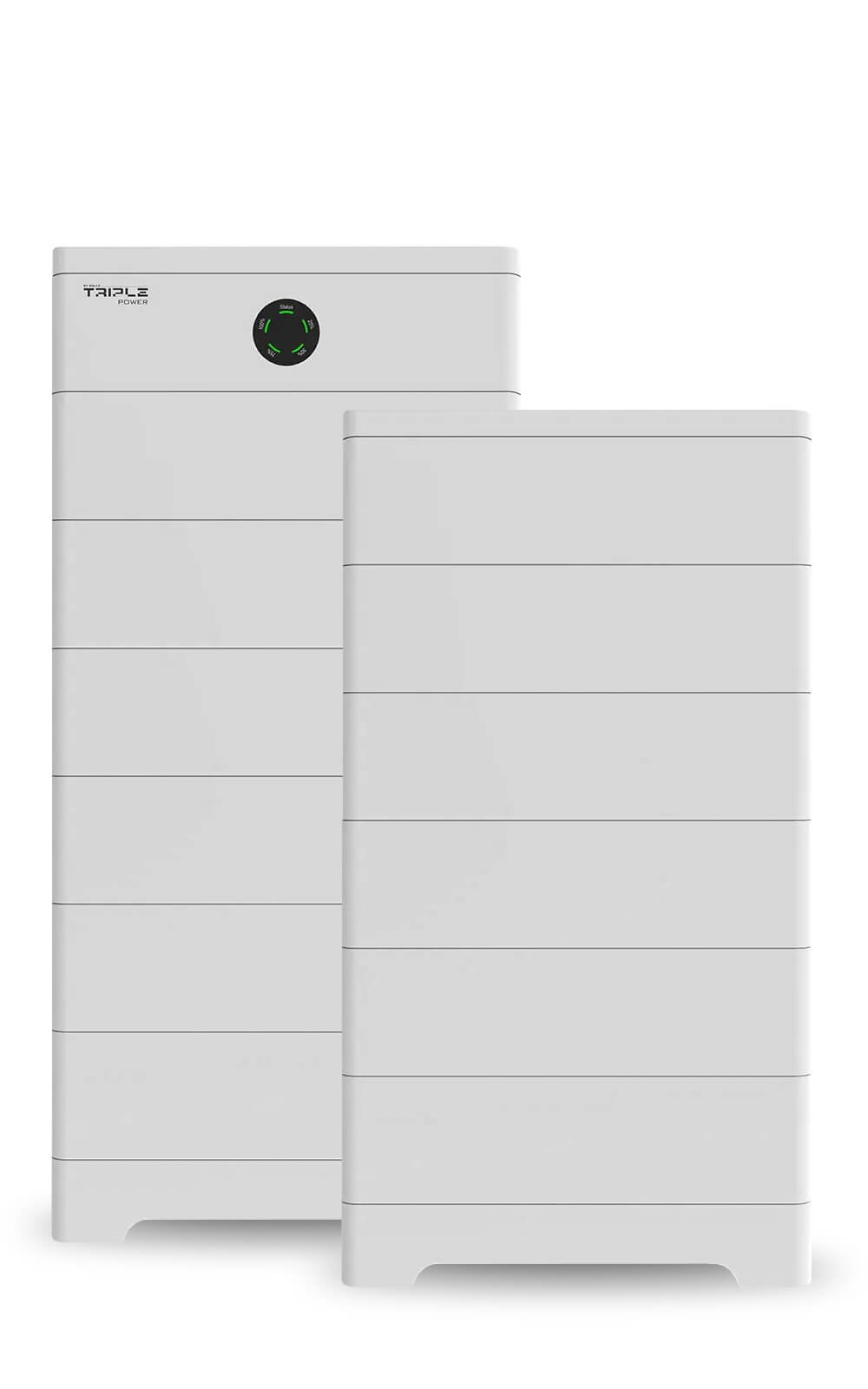

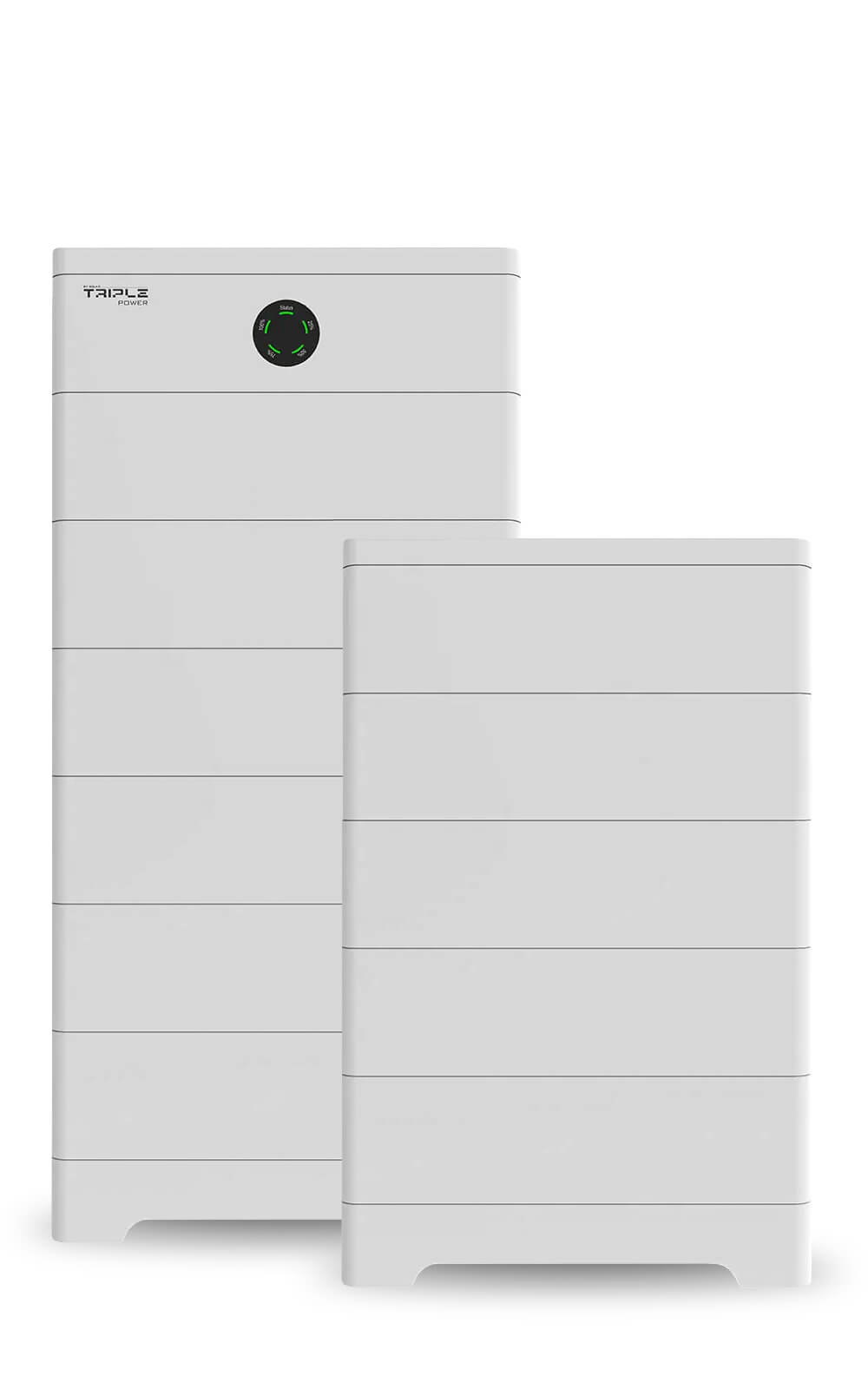

SolaX T-BAT-SYS-HV-S3.6 battery storage system with a capacity of 14.75 kWh

Introducing the new SolaX T-BAT HS3.6 series of stackable battery systems, available in a wide range of capacities. This system consists of 3.6 kWh modules and is scalable from 2 to 13 modules.

When combined with SolaX X3 and X3-ULTRA hybrid inverters, this system can be scaled from 4 (14.7 kWh) to 13 modules (47.9 kWh) per battery input. In total, therefore, up to 95.8 kWh of storage can be connected to the SolaX X3-ULTRA inverter. We offer the SolaX X3-ULTRA inverter in four power categories: 15, 20, 25 and 30 kW.

In addition to its wide capacity range, the system is capable of heating the entire battery so that it can operate at low temperatures. Combined with IP65 environmental protection, the battery system can therefore be installed outdoors.

With a standard warranty of 6,000 cycles, you can rely on the batteries retaining their capacity for ten years. If necessary, the battery system can be expanded with additional modules, which are easy to install thanks to plug-and-play functionality. Furthermore, the entire battery system can be remotely monitored, diagnosed and updated.

Product benefits:

• Stackable design
• IP65 protection rating
• 6,000-cycle warranty
• System with automatic heating
• High capacity range

Product features:

• Battery capacity (gross): 14.75 kWh
• Usable battery capacity (net): 13.3 kWh
• Technology: LFP
• Module nominal voltage: 51.2 V DC
• Rated voltage of the stack: 204.8 V DC
• Max. charging and discharging current: 50A
• Weight: 144 kg
• Module dimensions: 510×365×152
• BMS dimensions: 510×365×157

Contents of delivery:

• 4 × TP-HS3.6
• 1 × TBMS-MCS0800
