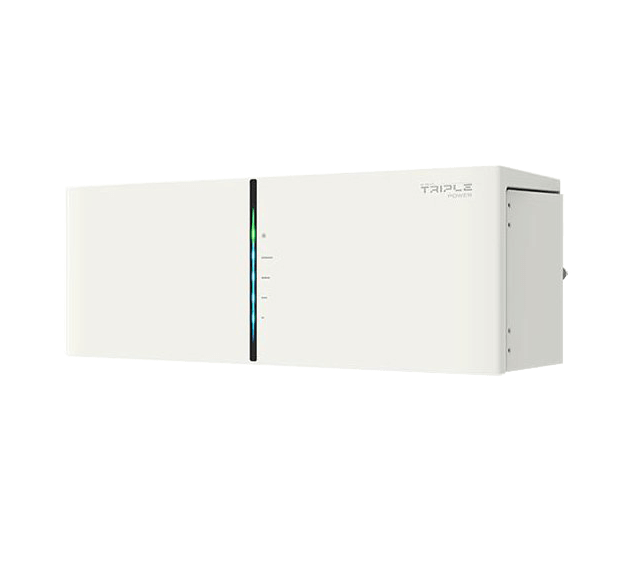

SolaX & SolaX Triple Power BMS for Battery T30
| Gyártó típusa: | MC0600 |
|---|---|
| Gyártói cikkszám: | 1020130039 |
| Cikkszám: | 7425 |
| Darab csomagolási egységenként: |
|
| Battery type: | High volt lithium |
| Solar battery type: | High voltage battery |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- % Sale
Termékszám:
7425
Leírás
SolaX Triple Power BMS control unit
The SolaX Triple Power BMS MC0600 V1.01 is a state-of-the-art BMS control unit for Triple Power T30 V2 high-voltage battery modules featuring LiFePO4 technology. It is fully compatible with the 4th generation of SolaX X-Hybrid G4 hybrid inverters and forms a key component of the modular lithium energy storage system. It ensures cell protection, communication with the inverter and intelligent operation control, including temperature management and overvoltage protection. Thanks to its plug-and-play design, it enables quick installation and reliable operation in domestic and small-scale commercial applications.
Product benefits
- Full battery charge in up to 1 hour
- 150% oversizing for efficient utilisation of surplus PV energy
- Online monitoring and remote access
- Capacity efficiency of up to 99%
- Over 6,000 cycles (when used with T30 V2 modules)
- Quick plug-and-play installation
Product features
- Compatibility: Triple Power T30 V2, SolaX X-Hybrid G4
- Voltage range: 70–500 VDC
- Max. charge/discharge current: 30 A
- Operating temperature: −10 to +45 °C
- Protection rating: IP55
- Dimensions: 461 × 189 × 105 mm
- Weight: 5.7 kg
- Installation: plug-and-play
- Warranty: 10 years
