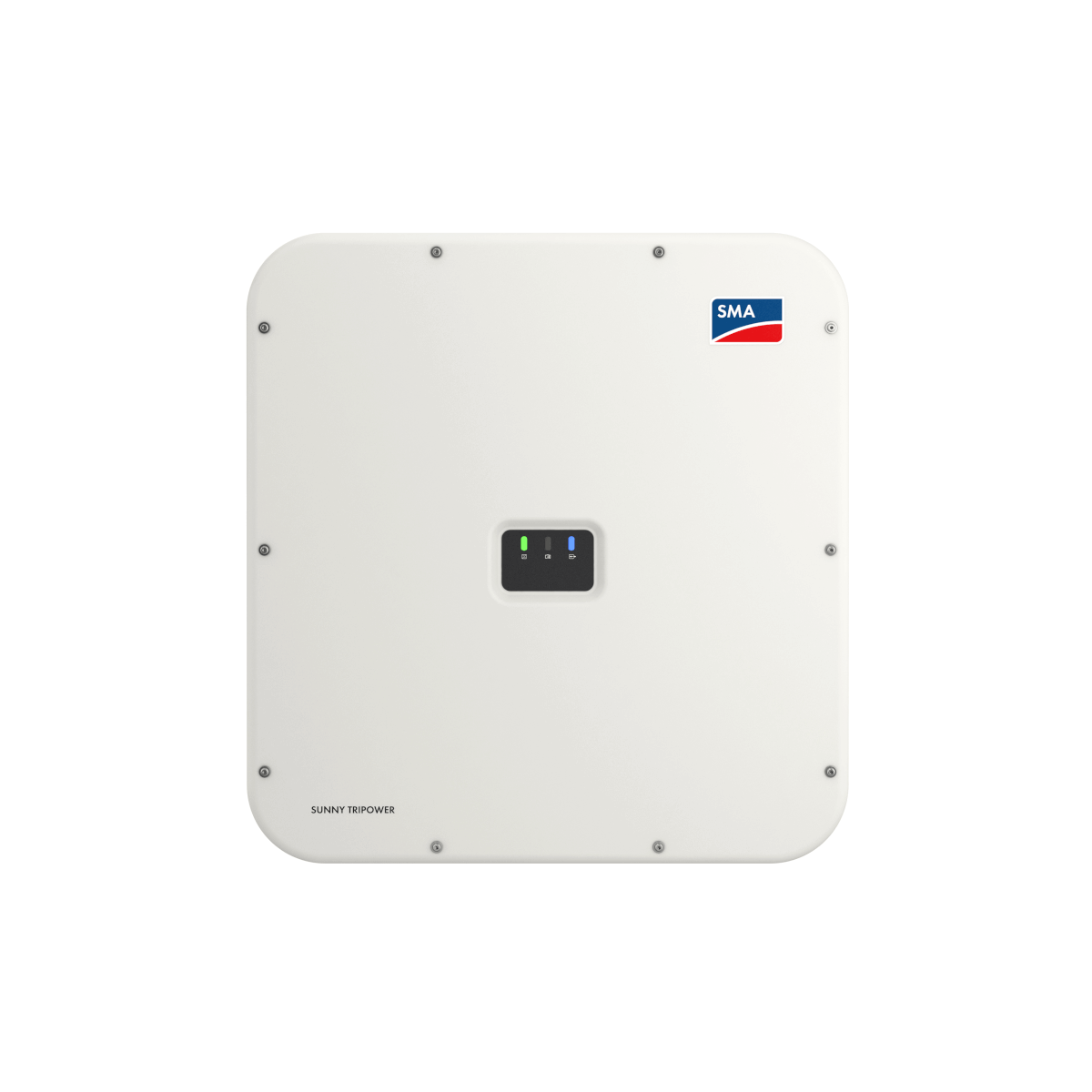

SMA Sunny Tripower X 25
| Gyártó típusa: | STP 25-50 |
|---|---|
| Gyártói cikkszám: | 03-25-1000-1-50 |
| Cikkszám: | 13363 |
| Darab csomagolási egységenként: |
|
| Phases: | 3 |
| Inverter type: | PV inverter |
| MPP-Tracker: | 3 |
| AC power: | 25 kW |
| Warranty: | 5 years |
| Communication: | WLAN, Ethernet |
| MPP voltage range: | 430 - 800 Volt |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- % Sale
Termékszám:
13363
Leírás
The SMA Sunny Tripower X 25 – Suitable for both residential and commercial applications
In Austria, please check local approval requirements!
The SMA Sunny Tripower X series features a new System Manager function. This allows up to 5 SMA inverters to be integrated, with a total system output of up to 135 kVA. Within this system, direct marketing via SMA Spot is possible without the Data Manager M. The Sunny Tripower X inverter has a direct connection for the radio remote control receiver (FRE). An external coupling switch is no longer required for central overcurrent protection at the low-voltage level.
Product advantages
- Integrated coupling switch for central overcurrent protection already included
- Connection for radio remote control receiver (FRE) integrated
- Compatible with SMA Energy App, 360° App, Sunny Portal, SHM 2.0, Data Manager
- Arc fault protection function (AFCI)
- Direct marketing via SMA SPOT up to 135 kVA
- Integrable DC RCD Type 2 or Type 1+2
Product features SMA Sunny Tripower X 25
- Grid connection: 3-phase
- AC rated power: 25 kVA
- MPP trackers: 3
- String connections per MPPT: 2
- Max. short-circuit current per MPPT: 35 A
- Communication: Ethernet, Wi-Fi
- Number of digital inputs: 6 (for FRE)
- Protection class: IP 65
- Dimensions: 762 x 728 x 266 mm (H x W x D)
- Weight: 35.0 kg
-
