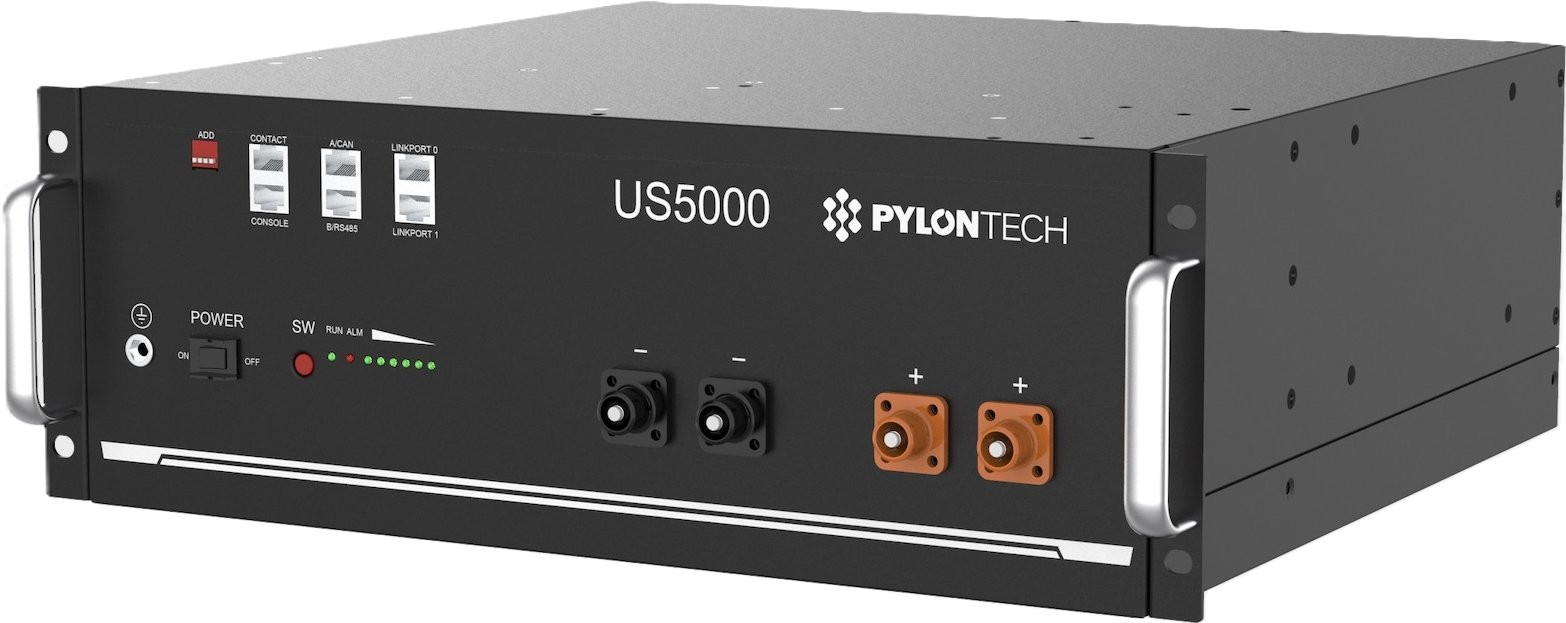

Pylontech US5000

Pylontech US5000 – 48 V battery module for modern energy storage systems

The Pylontech US5000 is a modern 48 V LiFePO₄ battery module with a capacity of 4.8 kWh, offering a long service life (up to 8,000+ cycles at 25°C), safe operation thanks to an integrated BMS, and full compatibility with leading inverter brands (e.g. Victron, GoodWe). Thanks to its modular design, up to 16 units can be connected without the need for additional equipment, achieving a storage capacity of almost 77 kWh. Communication via CAN and RS485 ensures reliable integration, whilst the compact rack-mount design and weight of under 40 kg facilitate installation. The battery is ideal for domestic, commercial and off-grid systems and represents a long-term, efficient and safe energy storage solution.

Features of the Pylontech US5000

• Cell technology: LiFePO₄
• Nominal voltage: 48 Vdc
• Rated capacity: 4.8 kWh
• Usable capacity: 4.56 kWh (at 95% DoD)
• Rated current: 80 A
• Maximum continuous current: 100 A
• Dimensions (W × H × D): 442 × 420 × 161 mm
• Weight: 39.7 kg
• Service life: ≥ 8,000 cycles (at 25 °C, 90% DoD)
• Communication: CAN, RS485
• Operating temperature: Charging: 0–50 °C; Discharging: –10–50 °C
• Protection rating: IP20
• Warranty: up to 10 years (upon registration)

Pylontech batteries come with a 7-year warranty. By registering your battery via the following link, the warranty is extended free of charge to 10 years. For more information, please refer to the warranty terms and conditions.
