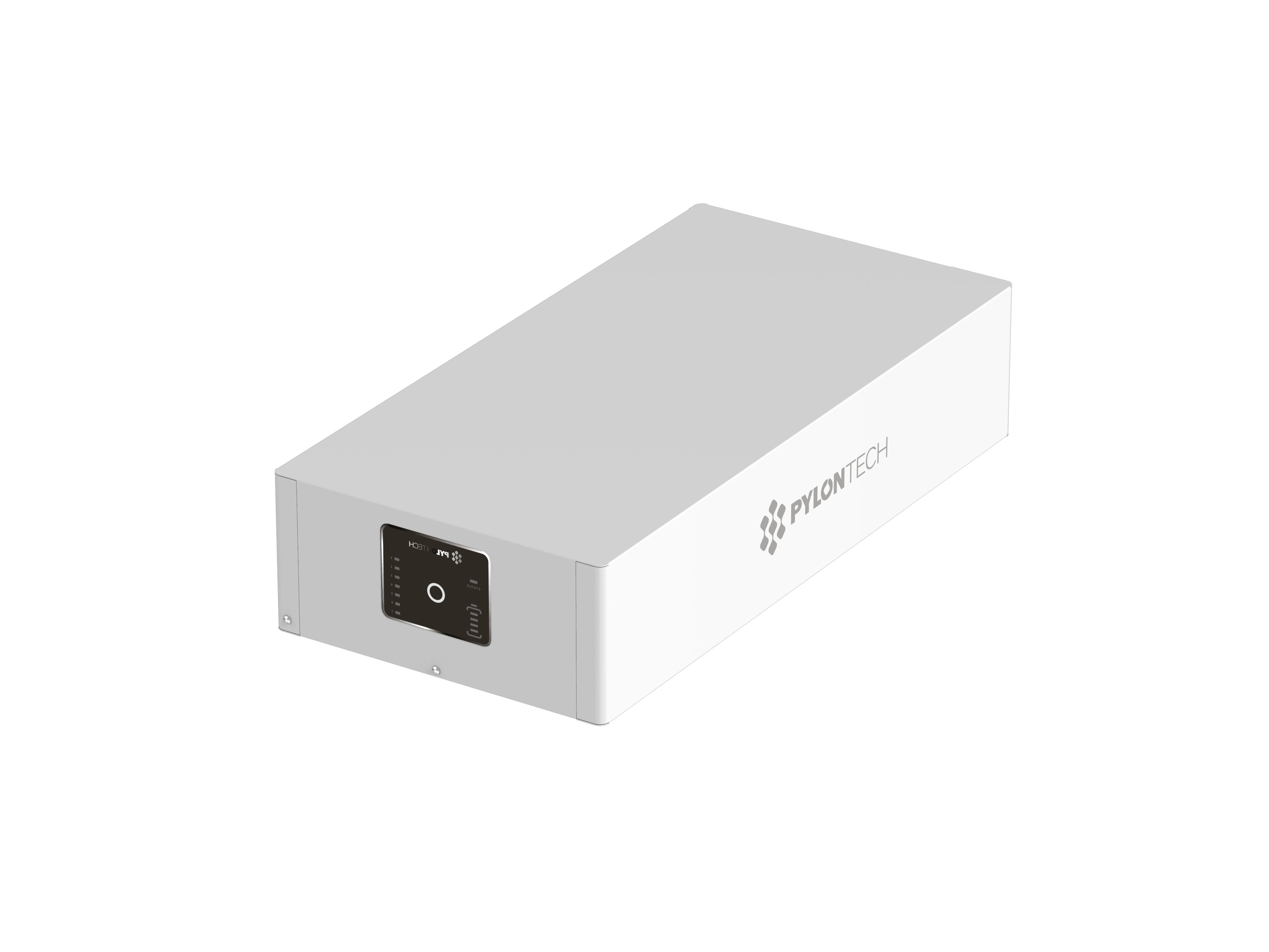

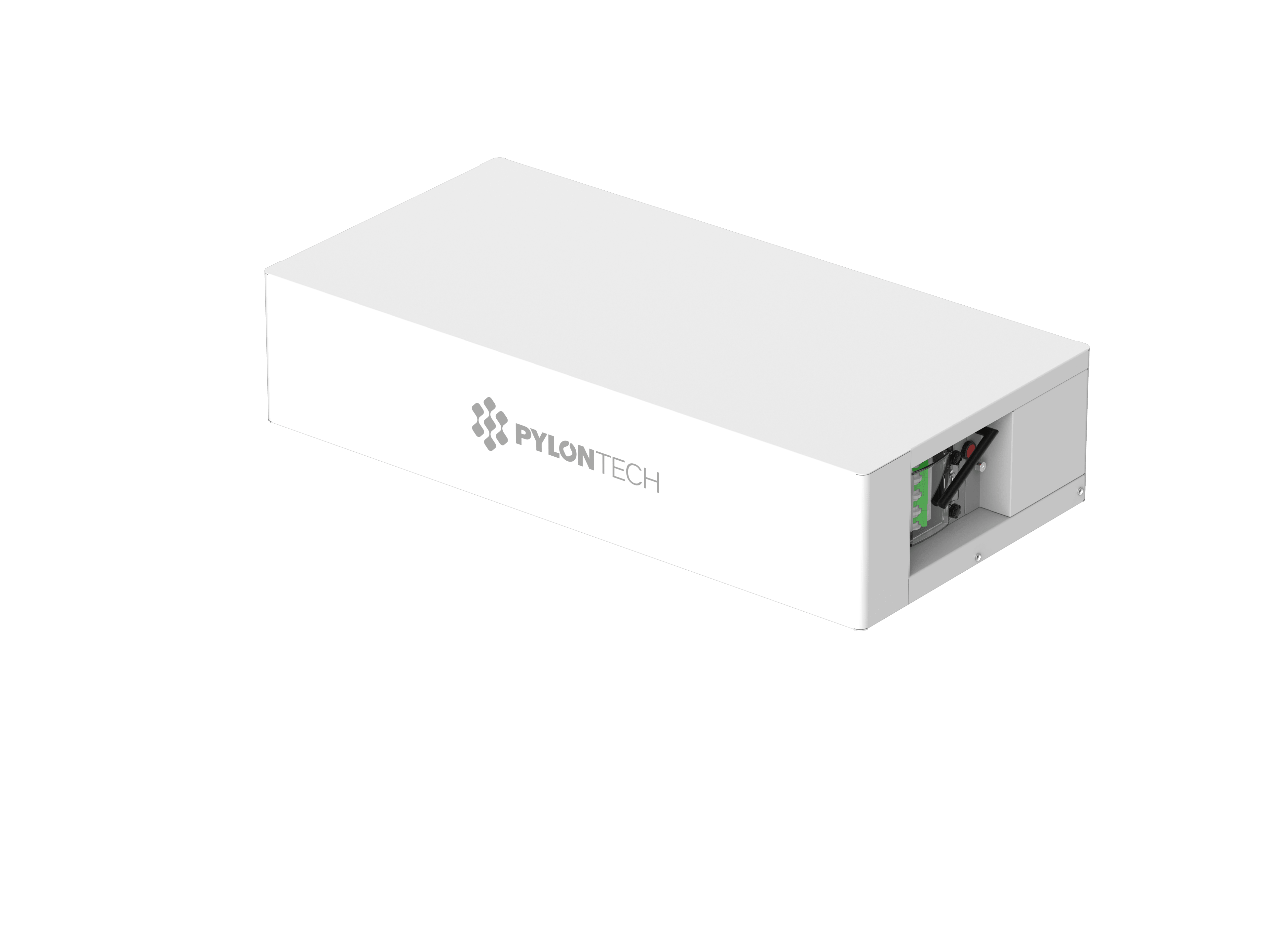

Pylontech ReefMagic PRO BMS
| Gyártó típusa: | RMC1000-Pro |
|---|---|
| Cikkszám: | 16421 |
| Battery type: | High volt lithium-iron-phosphate |
| Solar battery type: | High voltage battery |
- Új
Pylontech ReefMagic BMS unit for controlling a high-voltage battery system
The Pylontech ReefMagic RMC1000-Pro is a BMS control unit designed for the ReefMagic PRO high-voltage battery system with RMB70100-Pro battery modules. It manages and communicates with the battery system and enables connection to the inverter via Modbus RTU and CAN interfaces. Depending on the configuration, the ReefMagic system can be assembled from 2 to 10 battery modules, creating a storage capacity ranging from 15 to 75 kWh. The solution also supports the parallel connection of up to six battery groups, making it suitable for both residential and more demanding commercial installations.
Product benefits
- Control of the ReefMagic PRO high-voltage battery system
- Communication via Modbus RTU and CAN
- Support for battery arrays with a capacity of up to 75 kWh
- Option to connect up to 6 battery groups in parallel
- Support for real-time online system monitoring
- The ReefMagic system is designed for quick plug-and-play installation
- The PRO version is also suitable for operation at low temperatures
Product features
- Compatible battery module: RMB70100-Pro
- Number of battery modules per configuration: 2 to 10
- System capacity: 15 to 75 kWh
- Communication: Modbus RTU, CAN
- Maximum number of groups connected in parallel: 6
- System protection rating: IP65
- Operating temperature: -20 to 55 °C
- Design life of the system at 25 °C: 15 years
- Dimensions: 770 x 380 x 170 mm
- Weight: 16 kg
Manufacturer: Pylontech
Pylontech was founded in 2009 and specialises in the development and manufacture of battery systems for energy storage. It focuses on residential, commercial and industrial solutions and is one of the manufacturers that develops and manufactures key system components in-house, including battery modules, BMS and system integration. Thanks to its in-house research and development, Pylontech is able to offer comprehensive solutions with an emphasis on safety, reliability, long service life and easy capacity expansion. The company’s products are used in a wide range of applications, from domestic battery storage systems to large-scale commercial and industrial systems.
