Pylontech ReefMagic PRO 30.0 kWh
| Cikkszám: | 16422 |
|---|---|
| Net capacity: | 30 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Cycles: | 8 000 |
| Solar battery type: | High voltage battery |
- Új

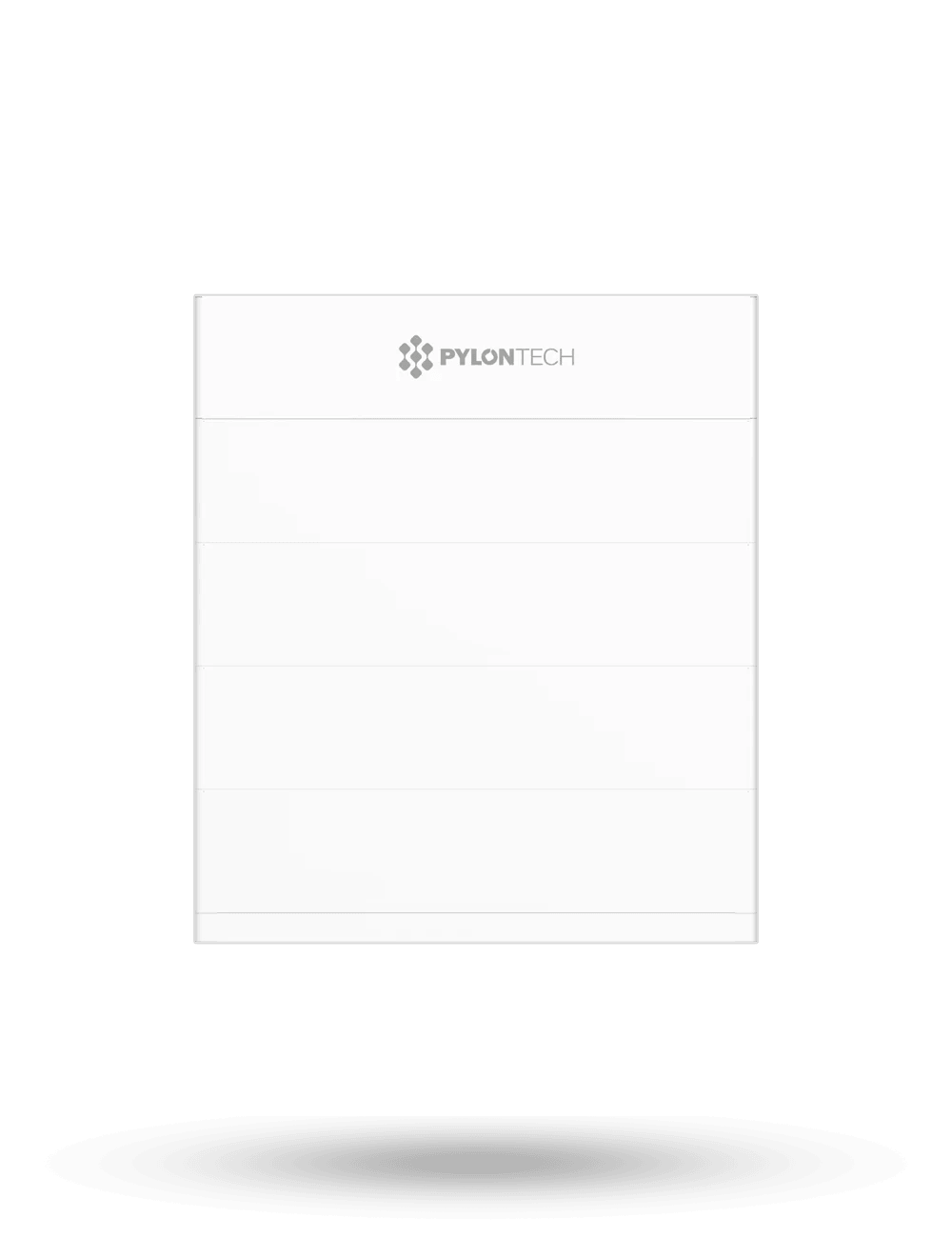

Pylontech ReefMagic PRO 30 kWh – high-performance battery storage system
The Pylontech ReefMagic PRO 30 kWh battery system is a high-voltage storage solution comprising four RMB70100-Pro battery modules, each with a capacity of 7.5 kWh. Its modular and stackable design allows for easy system assembly, and thanks to its plug-and-play installation, it significantly simplifies installation without the need for complex cabling between individual modules. ReefMagic PRO also supports parallel operation of up to six battery groups, providing a high degree of flexibility in system design and future expansion. The PRO variant is also suitable for more demanding conditions and outdoor installations, as it operates within a wide temperature range down to -20 °C. The system is therefore particularly well-suited to applications requiring high capacity, easy expansion, a long service life and reliable operation in both residential and commercial installations.
Product benefits
- Simple plug-and-play installation
- Option to connect up to 6 battery groups in parallel
- Modular and easily expandable design
- High battery safety standards thanks to an integrated switch at the LFP module level
- Suitable for outdoor installation and harsh conditions
- Operates down to -20 °C
- Real-time online system monitoring
- Long service life and high number of charge cycles
Product features
- Number of battery modules: 4
- Total system capacity: 30 kWh (4 × 7.5 kWh)
- Nominal system voltage: 294.4 V DC
- Battery module capacity: 102 Ah
- Depth of discharge (DoD): 95%
- Nominal charge and discharge current: 50 A
- Maximum current: 55 A for 15 minutes, 65 A for 15 seconds
- Dimensions of the unit: 770 × 380 × 890 mm
- Unit weight: 249 kg
- Communication: Modbus RTU, CAN
- Protection rating: IP65
- Operating temperature: -20 to 55 °C
Contents of delivery
- 1x RMC1000-Pro BMS unit
- 4x RMB70100-Pro battery modules
Manufacturer: Pylontech
Pylontech was founded in 2009 and specialises in the development and manufacture of battery systems for energy storage. It focuses on residential, commercial and industrial solutions and is one of the manufacturers that develops and manufactures key system components in-house, including battery modules, BMS and system integration. Thanks to its in-house research and development, Pylontech is able to offer comprehensive solutions with an emphasis on safety, reliability, long service life and easy capacity expansion. The company’s products are used in a wide range of applications, from domestic battery storage systems to large-scale commercial and industrial systems.
