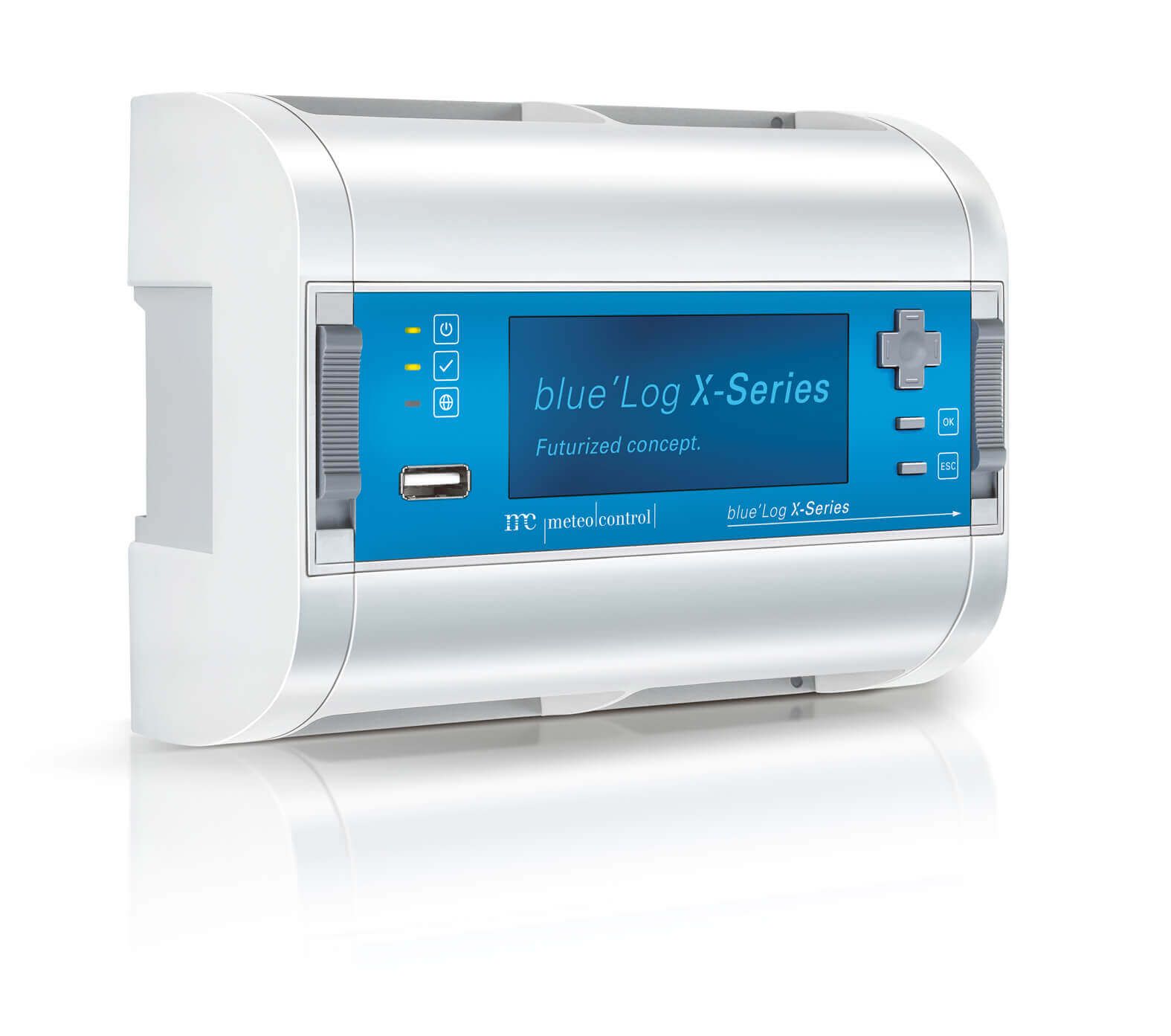

meteocontrol blueLog XC-1000 data logger for wind farms up to 1 MW
| Gyártói cikkszám: | 532021 |
|---|---|
| Cikkszám: | 16270 |
| Darab csomagolási egységenként: |
|
| Energy management systems: | Commercial |
| Mounting type: | DIN rail |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- Új
Termékszám:
16270
Leírás
Universal system monitoring and control with the blueLog XC from meteocontrol
The blue’Log XC is a high-performance data logger for Photovoltaic systems that enables precise monitoring and control. With comprehensive interfaces for system control, it ensures grid-compliant feed-in and transmits real-time data to the VCOM cloud monitoring platform.
blue’Log is available in two versions: blue’Log XM for monitoring only and blue’Log XC with additional control functions.
Thanks to flexible expansion modules and support for numerous Inverters, sensors and meters, the blue’Log optimises system management and maximises the efficiency of PV systems of all sizes.
Product benefits:
- Comprehensive monitoring: Real-time monitoring of up to 100 devices.
- Grid-compliant feed-in: Support for control functions for reactive and active power control
- Cloud integration: Automatic data transfer and analysis with VCOM.
- Flexibly expandable: Support for up to 3 RS485/422 and 5 multi-I/O modules.
- Easy installation: Wall or DIN rail mounting for flexible application options.
Product features:
- Communication: 2 x RS485, 1 x Ethernet (10/100 Mbit), 1 x CAN
- Digital inputs: 4 configurable inputs for digital signals or counters
- Analogue inputs: Supports 0–10 V voltage, 0–20 mA current, PT1000 resistance measurement
- Certifications: CE, UL E478072
- Power supply: 24 V DC
Possible expansion of communication interfaces via: meteocontrol blueLog MX - RS485/422 Item 12552
