GoodWe ET GW99.99K-ET-G10
| Gyártó típusa: | GW99.99K-ET-G10 |
|---|---|
| Gyártói cikkszám: | NBC99K9-05-01P |
| Cikkszám: | 14958 |
| Phases: | 3 |
| Inverter type: | Asymmetric inverters, Battery inverter, Hybrid inverter, Project inverter |
| MPP-Tracker: | 8 |
| AC power: | 99.99 kW |
| Warranty: | 5 years |
| Communication: | RS485, WiFi+LAN+Bluetooth, 4G+Bluetooth |
| MPP voltage range: | 160-950 Volt |
- Új

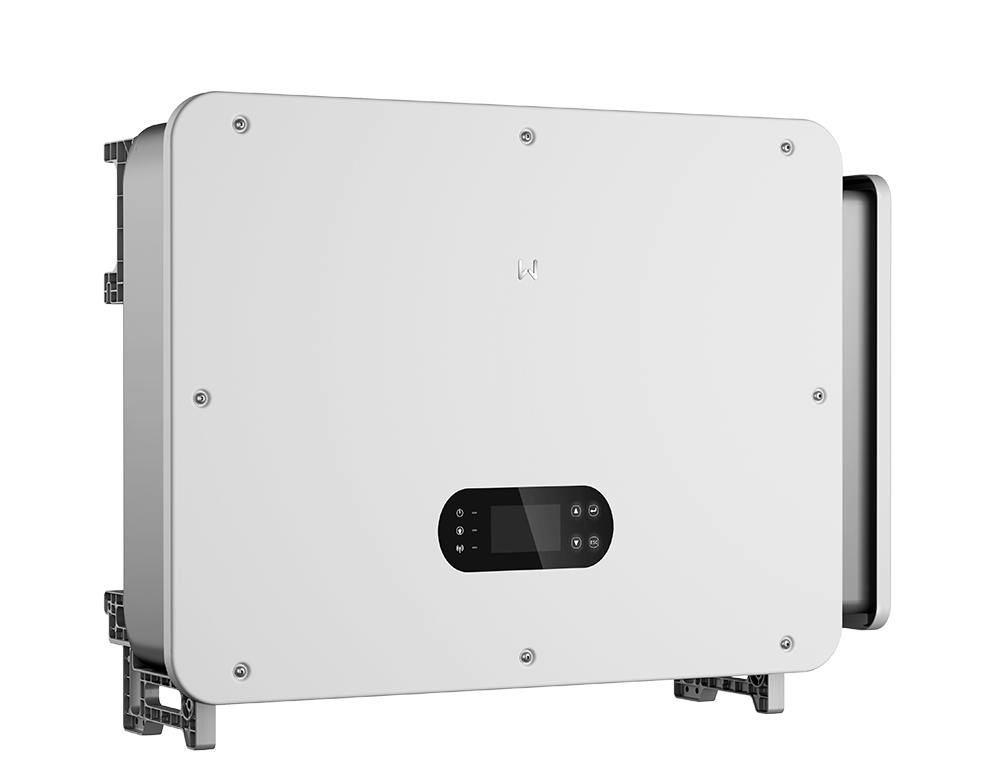

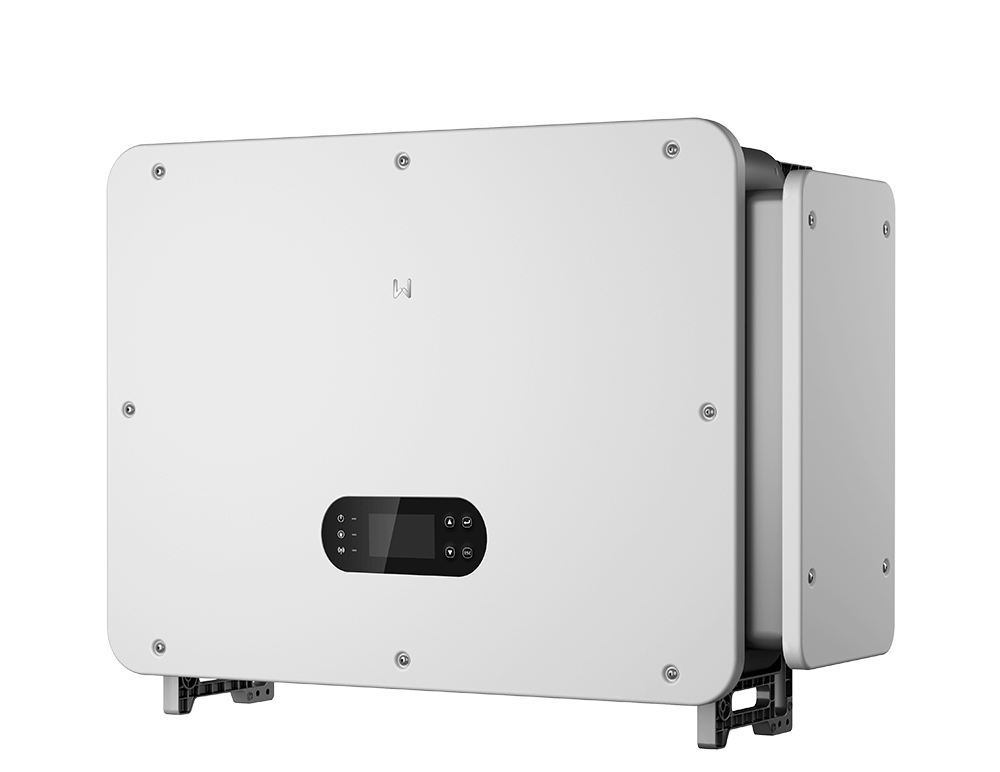

The GW99.99K-ET-G10 hybrid inverter from the ET-G10 series
The GoodWe ET hybrid inverter offers a powerful and compact solution for commercial and industrial photovoltaic systems. It is designed as a key component of modern solar-plus-storage installations, where it ensures efficient coordination between energy generation and battery storage. Thanks to its DC-coupled architecture, it enables maximum utilisation of the solar energy generated and high efficiency across the entire system. The inverter is compatible with a wide range of battery capacities and utilises intelligent operating modes to optimise performance across various operational scenarios. It supports self-consumption modes, peak shaving, time-of-use control and grid support. As a result, it helps to reduce operating costs, increase energy self-sufficiency and ensure stable operation of the energy system.
Product benefits
- Up to 150% DC input oversizing
- Various operating modes: self-consumption, peak sharing, time-of-use (ToU)
- Smart temperature sensing on AC and PV connectors
- 110% asymmetry
Product features
- Grid connection: 3-phase
- AC power: 99.99 kW
- Number of MPPT: 8
- Number of strings per MPPT: 2
- Max. input current per MPPT: 48 A
- Max. short-circuit current per MPPT: 55 A
- Battery voltage range: 300–800 V
- Protection rating: IP66
- Communication: RS485, CAN, WiFi, LAN, Bluetooth
- Dimensions: 995 x 758 x 358 mm (HxWxD)
- Weight: 97.0 kg
Battery compatibility
- GoodWe BAT 51.2
- GoodWe BAT 56.3
- GoodWe BAT 92.1
- GoodWe BAT 102.4
- GoodWe BAT 112.6
