GoodWe BAT60
| Gyártó típusa: | GW61.4-BAT-AC-G10 |
|---|---|
| Gyártói cikkszám: | BAH0061-01-00P |
| Cikkszám: | 15092 |
| Darab csomagolási egységenként: |
|
| Battery type: | LFP |
| Installation location: | Outdoor |
| Usable capacity: | 60 kWh |
| Warranty: | 10 years |
| Charging power: | 55.2 kW |
| Discharging power: | 67.5 kW |
| Communication: | CAN |
| Commercial storage type: | Modular without inverter |
- Új
-
-
{ "id": "be54d3fe5804564e91a098d2fcca14e6", "item_brand": "", "item_name": "GoodWe ET 25 - GW25K-ET (AFCI)", "item_id": "13628", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "be54d3fe5804564e91a098d2fcca14e6" } } -
{ "id": "480c3554d4bf5d69b33f4291d6136fe6", "item_brand": "", "item_name": "GoodWe ET 29.9 - GW29.9K-ET (AFCI)", "item_id": "13629", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "480c3554d4bf5d69b33f4291d6136fe6" } } -
{ "id": "6e16f8d173285f0989611ec47156dc00", "item_brand": "", "item_name": "GoodWe Ezlink 3000", "item_id": "10971", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "6e16f8d173285f0989611ec47156dc00" } }
-

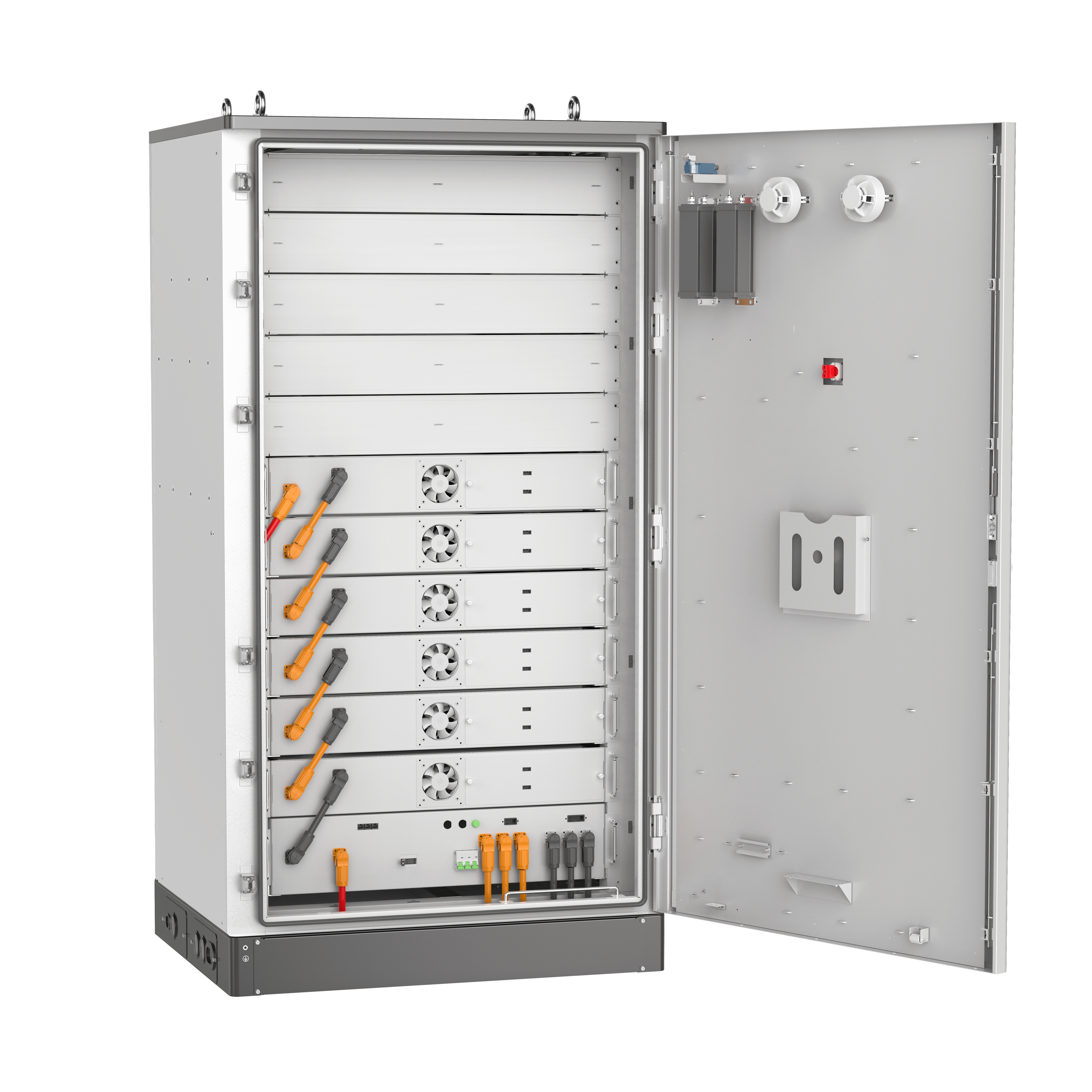

GoodWe BAT60 – 61.4 kWh
The GoodWe BAT60 is a high-performance high-voltage battery system designed for commercial and industrial applications. With a usable capacity of 60 kWh, it offers a robust and scalable solution for peak load management, optimising self-consumption and ensuring an uninterrupted power supply. The system is fully designed for outdoor installation and combines LFP cell technology, integrated climate control and an enclosed cabinet with a high IP rating.
When combined with the GoodWe ET hybrid inverter, it creates a reliable, comprehensive solution for C&I projects of all sizes.
With support for up to four battery cabinets connected in parallel (~240 kWh), the system is ideal for small and medium-sized commercial and industrial projects that require reliable storage capacity and a high level of safety.
The inverter is not included in the delivery. Depending on your configuration, it must be ordered separately.
Product benefits
- Scalability up to 4 parallel units
- Maximum operational safety thanks to a 6-layer protection concept and an aerosol fire suppression system at both module and system level
- Suitable for outdoor use – robust enclosure with IP55 rating, integrated air conditioning and C4 corrosion protection (optionally C5-M)
- Long service life thanks to LFP technology and 6,000 cycles at 90% DoD
Product features
- Usable battery capacity: 60 kWh
- Number of battery modules: 6 (each 10.24 kWh)
- Nominal voltage: 307.2 V
- Max. charge/discharge current: 180 / 220 A
- Communication: CAN
- Protection rating: IP55, standard C4, optional C5-M
- Certifications: IEC62619 / IEC63056 / IEC60730 / IEC62477 / VDE2510 / ISO13849 / IEC62040 / N140 / EU 2023/1542 / UN38.3
- Product warranty: 10 years
- Performance warranty: 10 years
- Operating temperature: -20 °C to +55 °C
- Dimensions: 2000 × 1055 × 1055 mm (H × W × D)
- Total weight: < 950 kg
Compatibility
- GoodWe ET 15–30
- GoodWe ET (40–50 kW)*
- GoodWe ET (75–100 kW)*
*The inverter does not reach full charging/discharging power
